GENERATING A WAVEFORM ANALYSIS REPORT

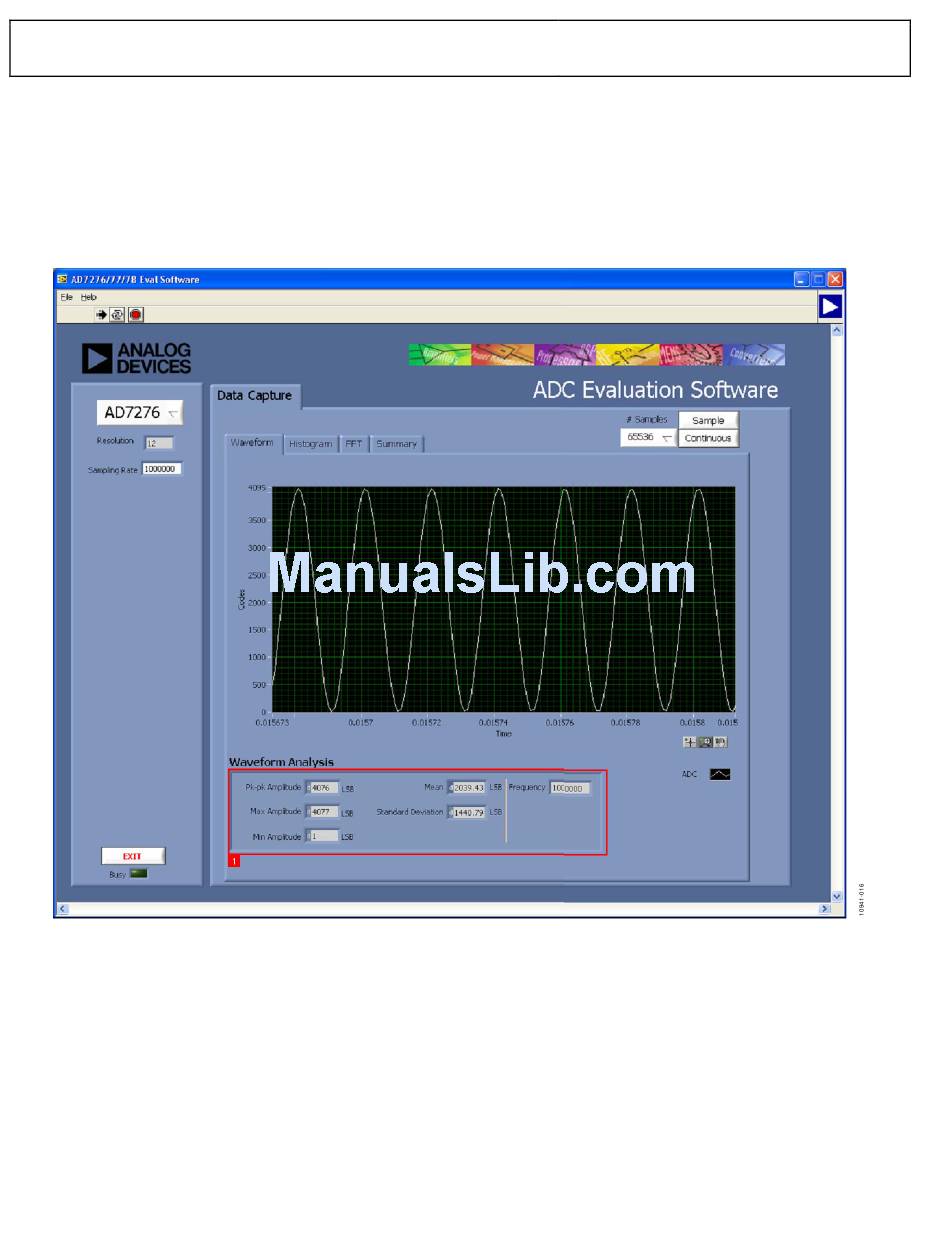

Figure 18 illustrates the waveform capture tab for a 50 kHz sine
wave input signal.
The Waveform Analysis area (labeled 1 in Figure 18) reports
the amplitudes recorded from the captured signal and the
frequency of the signal tone.
Figure 18. Waveform Tab
Rev. 0 | Page 16 of 20
