GENERATING A SUMMARY OF THE WAVEFORM,
HISTOGRAM, AND FAST FOURIER TRANSFORM
Figure 19 shows the Summary tab. This tab captures and
displays all of the information in one window with a synopsis of
the information, including key performance parameters, such
as SNR and THD (see the SNR and THD boxes, labeled 1 and
2, respectively, in Figure 19).

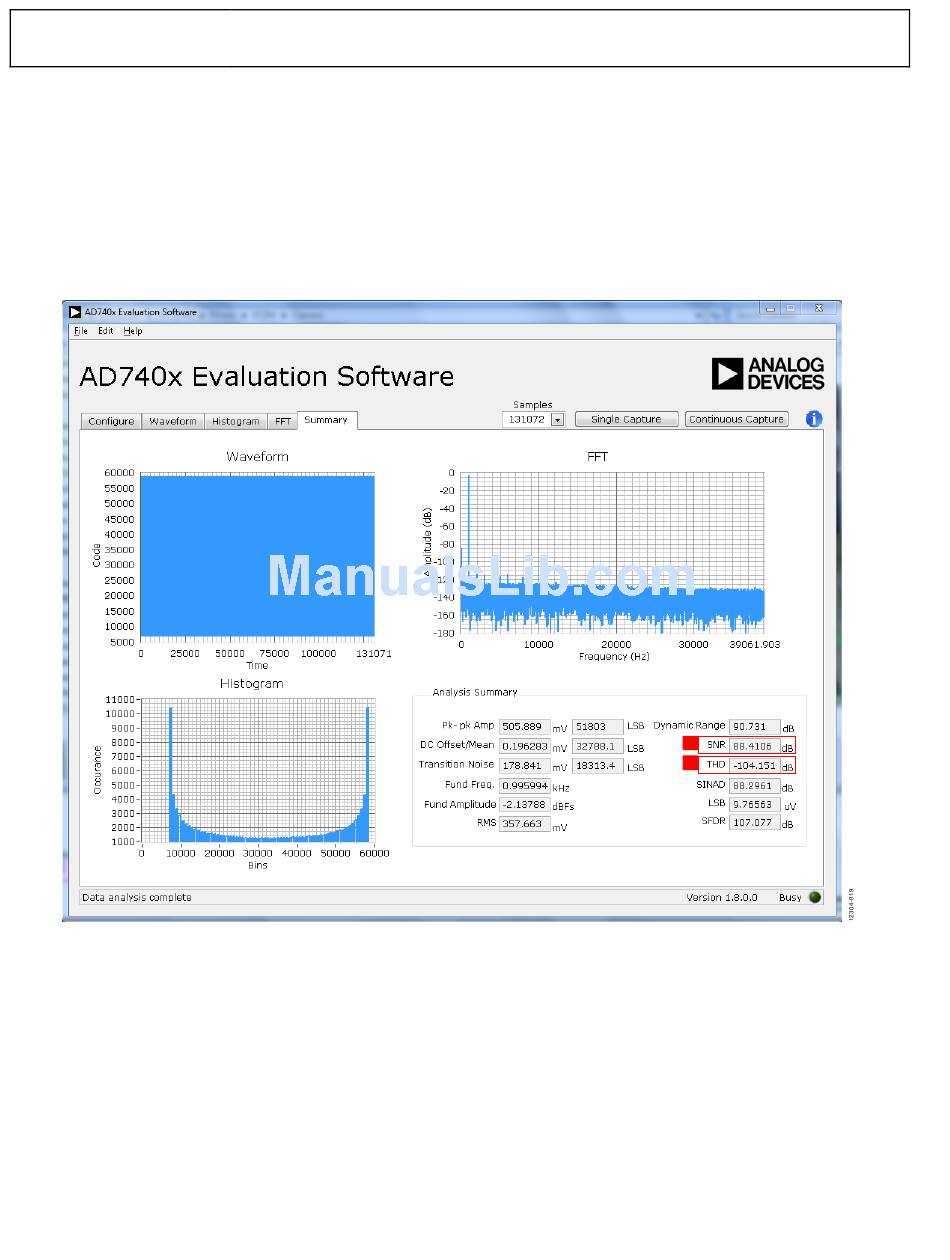

Figure 19. Summary Tab
Rev. 0 | Page 18 of 20
EVAL-AD7405FMCZ User Guide
1
2
