EVAL-AD7903SDZ User Guide UG-609
GENERATING A SUMMARY OF THE WAVEFORM,
HISTOGRAM, AND FAST FOURIER TRANSFORM

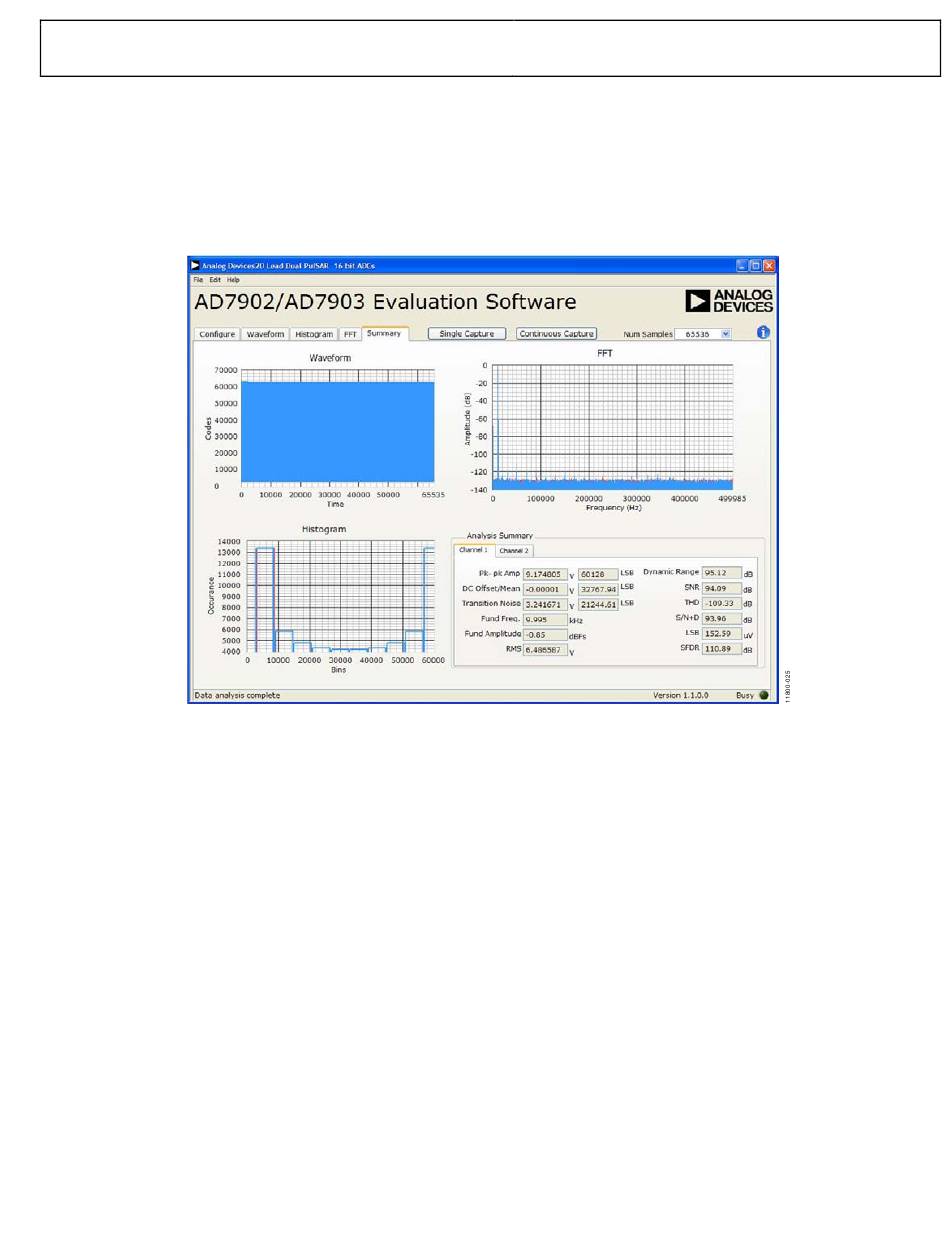

Figure 25 shows the Summary tab. The Summary tab captures
all the display information and provides it in one panel with a
synopsis of the information, including key performance parameters
such as SNR and THD.
Figure 25. Summary Tab
Rev. 0 | Page 19 of 32
