Evaluation Board User Guide
EVAL-AD7450A/EVAL-AD7451
GENERATING A SUMMARY OF THE WAVEFORM,
HISTOGRAM, AND FAST FOURIER TRANSFORM

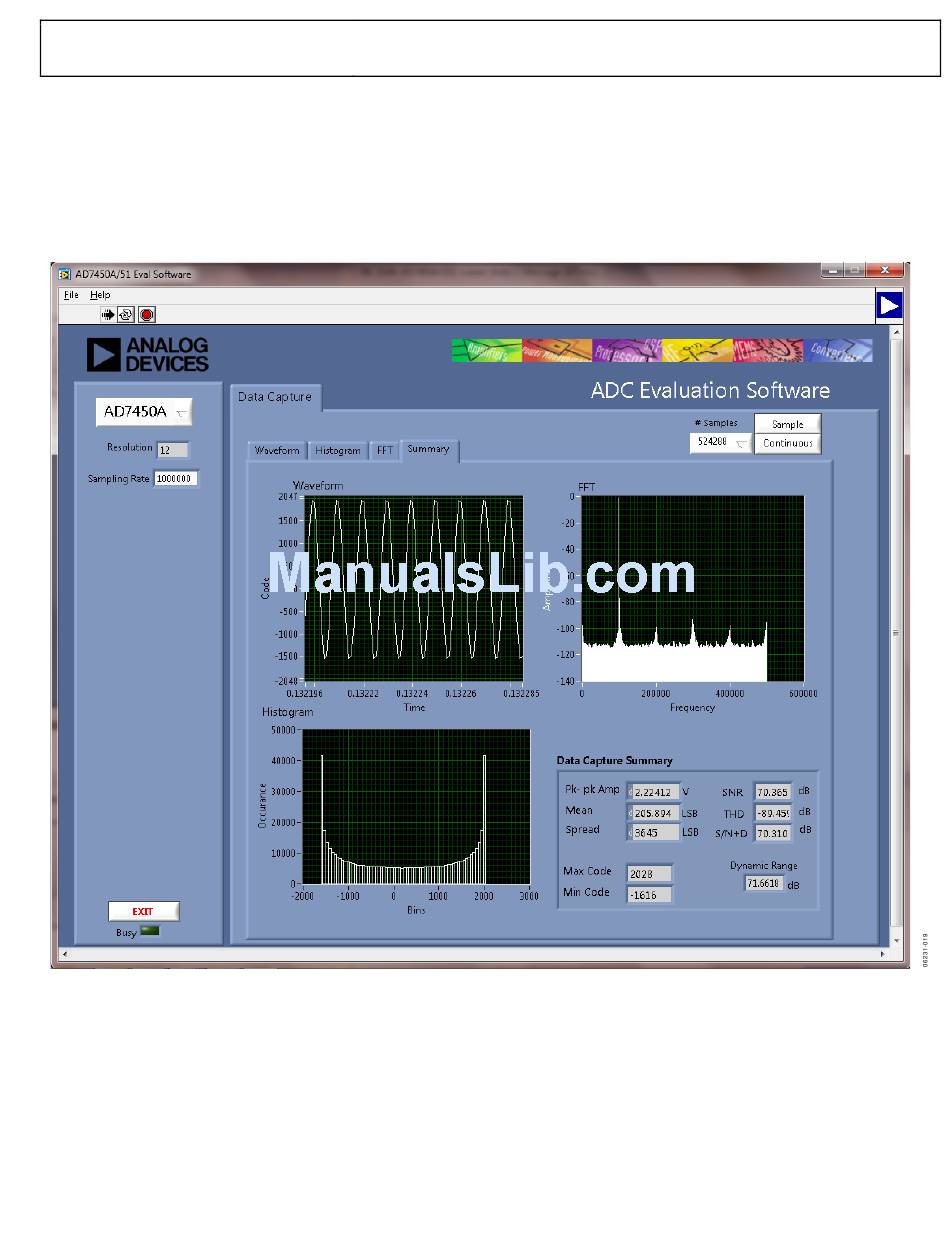

Figure 21 shows the Summary tab. The Summary tab captures
all the display information and provides it in one panel with a
synopsis of the information, including key performance param-
eters such as SNR and THD.
Figure 21. Summary Tab
Rev. A | Page 19 of 28
