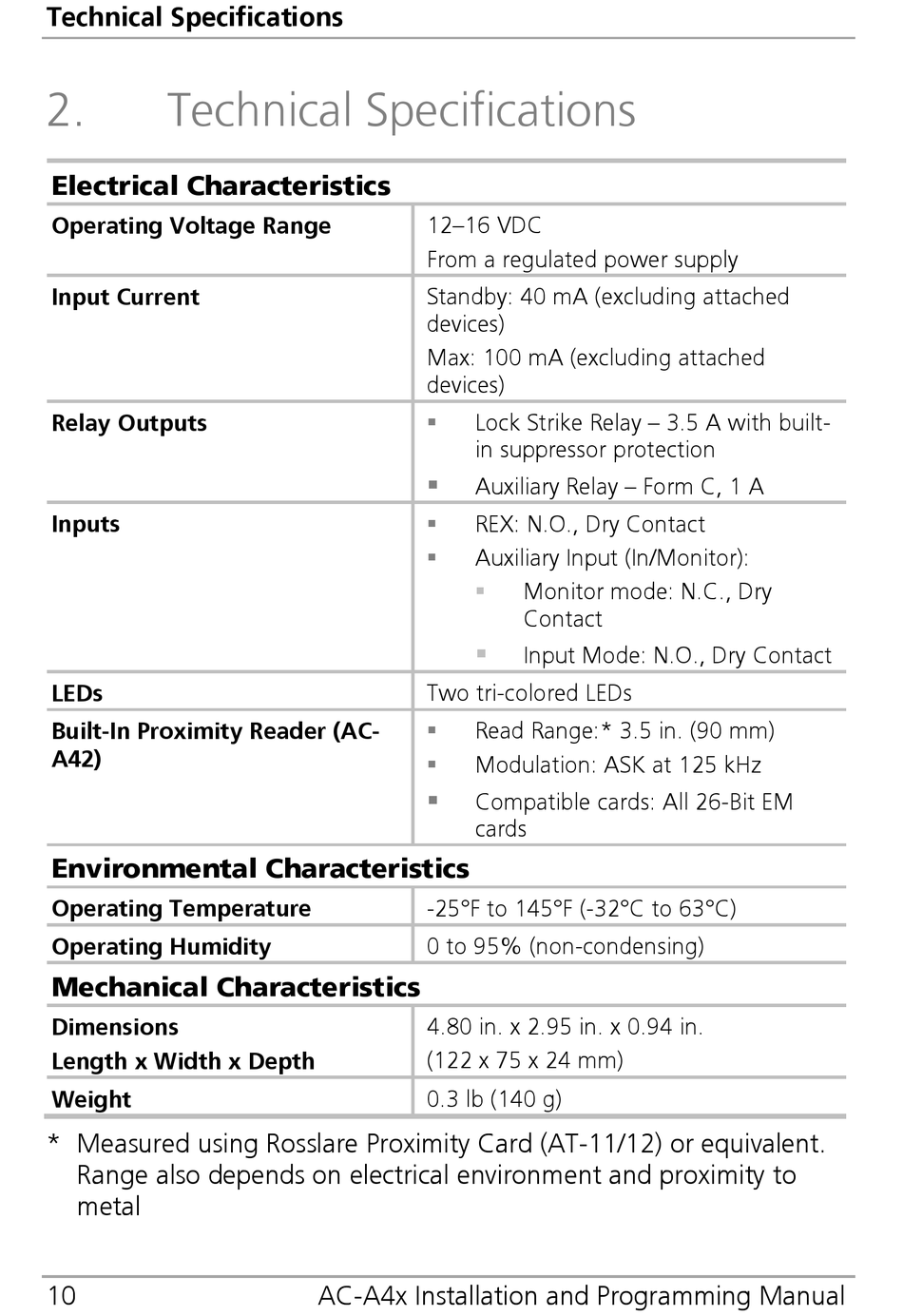

Technical Specifications

2. Technical Specifications
Electrical Characteristics
Operating Voltage Range
Input Current
Relay Outputs
Inputs
LEDs
Built-In Proximity Reader (AC-
A42)
Environmental Characteristics
Operating Temperature
Operating Humidity
Mechanical Characteristics
Dimensions
Length x Width x Depth
Weight
* Measured using Rosslare Proximity Card (AT-11/12) or equivalent.
Range also depends on electrical environment and proximity to
metal
10
12–16 VDC
From a regulated power supply
Standby: 40 mA (excluding attached
devices)
Max: 100 mA (excluding attached
devices)
 Lock Strike Relay – 3.5 A with built-
in suppressor protection

Auxiliary Relay – Form C, 1 A
 REX: N.O., Dry Contact
 Auxiliary Input (In/Monitor):


Two tri-colored LEDs
 Read Range:* 3.5 in. (90 mm)
 Modulation: ASK at 125 kHz

Compatible cards: All 26-Bit EM
cards
-25°F to 145°F (-32°C to 63°C)
0 to 95% (non-condensing)
4.80 in. x 2.95 in. x 0.94 in.
(122 x 75 x 24 mm)
0.3 lb (140 g)
AC-A4x Installation and Programming Manual
Monitor mode: N.C., Dry
Contact
Input Mode: N.O., Dry Contact
