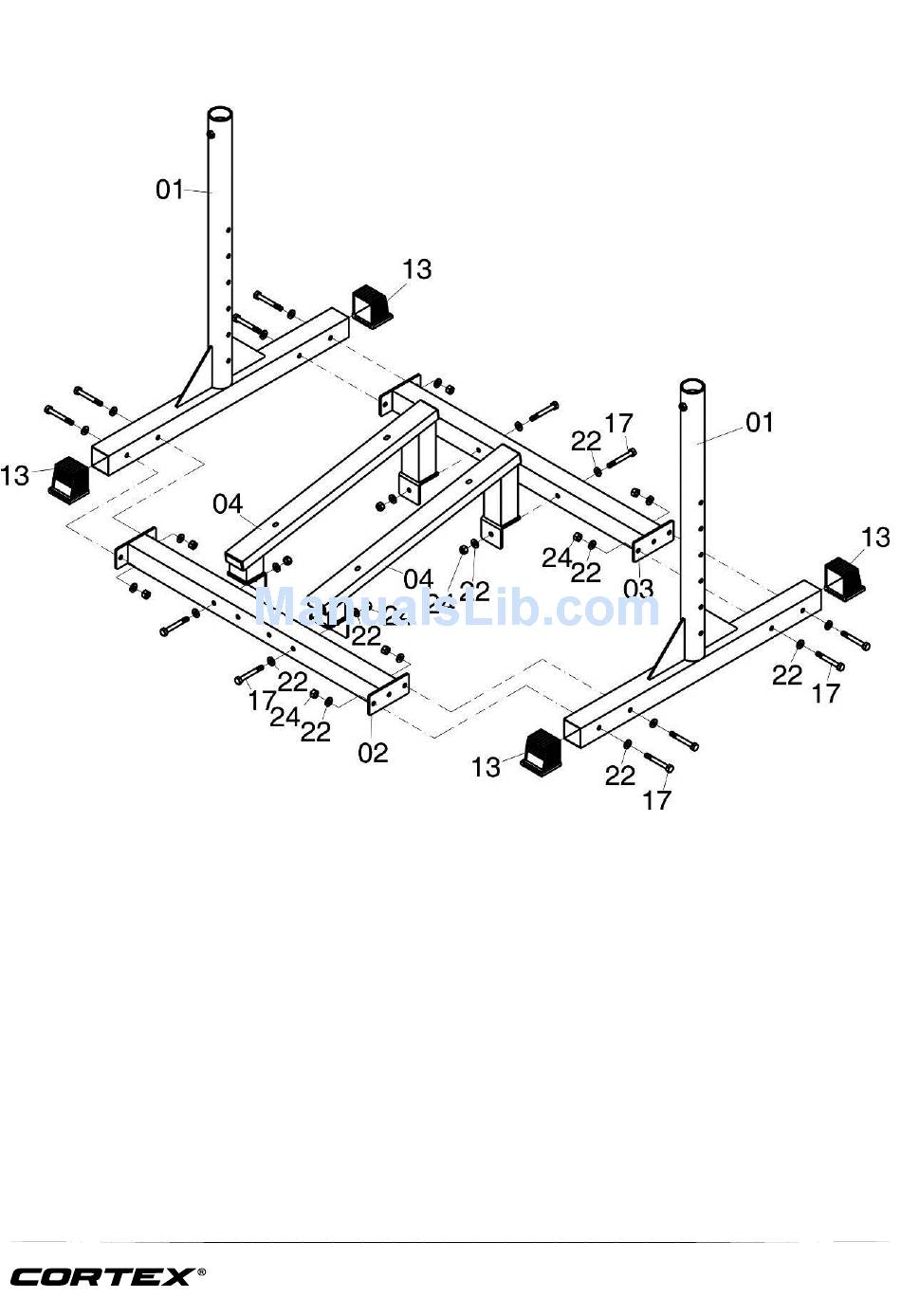

STEP 1
1. Attach foot cap (13) to main upright frame (01).
2. Attach front bottom connect tube (02) and rear bottom connect tube (03) to main upright
frame (01) using hex bolt M10*80mm (17), washer φ10 (22) and nylon lock nut M10mm
(24).
3. Attach back cushion tube (04) to front bottom connect tube (02) and rear bottom connect
tube (03) using hex bolt M10*80mm (17), washer φ10 (22) and nylon lock nut M10mm (24).
3. ASSEMBLY INSTRUCTIONS
5
LP-1 Leg Press
