4. Replacement and Adjustment

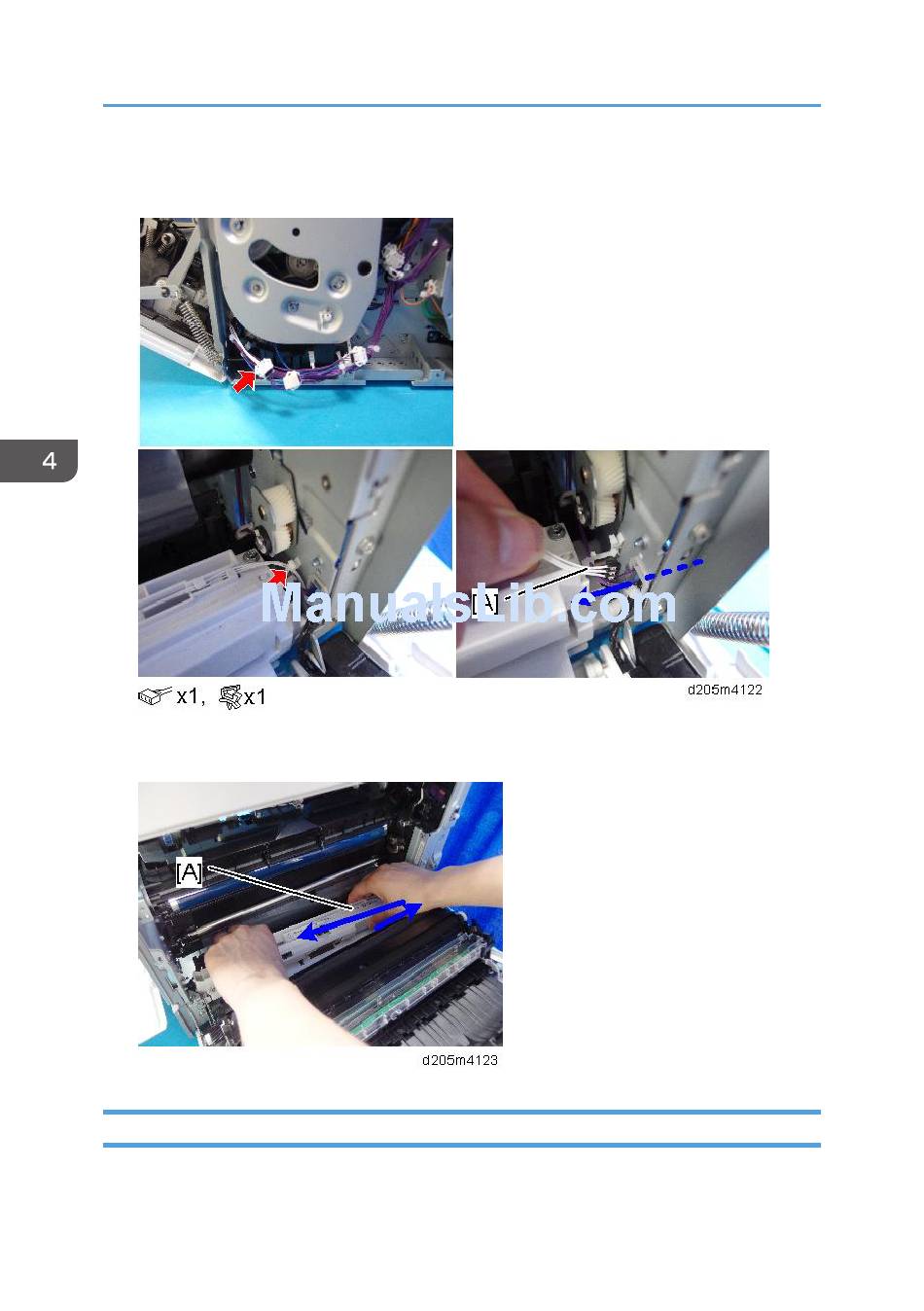

3. Release the harness at the left lower area of the rear and pull the harness of the bypass
paper end sensor [A] to the inside.
4. Hold the bypass unit [A] with both hands, and slide it towards the rear of the machine.
Then remove it upwards at an angle towards the front side of the machine.

Bypass Paper End Sensor

1. Bypass unit
270
(page 269)
