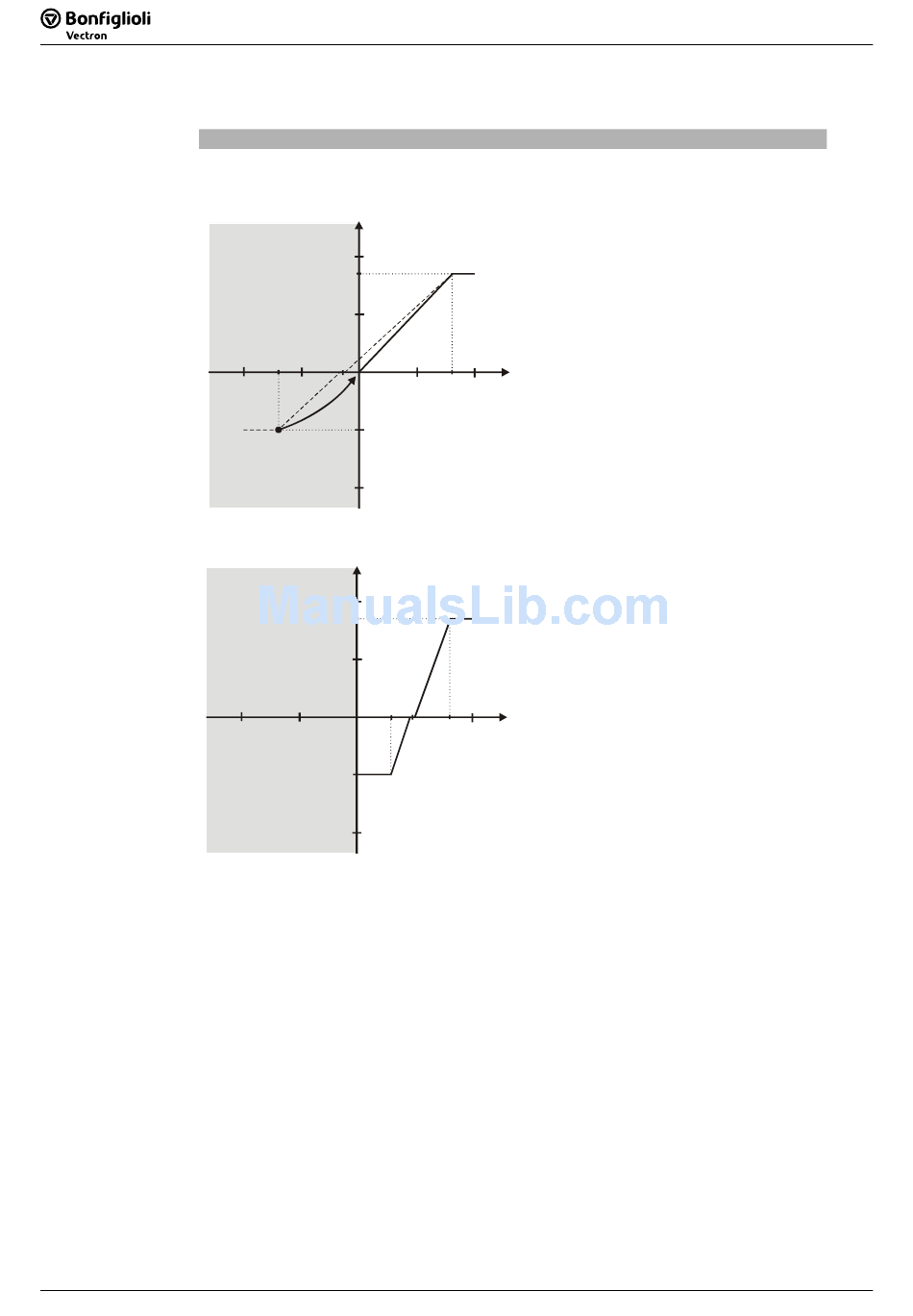

In operation mode "11 – unipolar", the characteristic points are displaced to the origin
of the characteristics with a negative value for the X-axis.
(X1=-70% / Y1=-50%)
54
54
Operation mode "11 – unipolar"
Y
(X2=80% / Y2=85%)
42.50Hz
-7V
-25Hz
Y
(X2=80% / Y2=85%)
42.50Hz
3.00V
8.00V
-25.00Hz
(X1=30% / Y1=-50%)
EM-RES-03
Characteristic point 1:
X1 = -70.00% · 10 V = -7.00 V
Y1 = -50.00% · 50.00 Hz = -25.00 Hz
Characteristic point 2:
X2 = 80.00% · 10 V = 8.00 V
Y2 = 85.00% · 50.00 Hz = 42.50 Hz
X
Tolerance band:
8V
ΔX = 2.00% · 10 V = 0.20 V
The characteristic point 1 has been dis-
placed to the origin. The parameter
erance band
count in this example, as no change of
sign of the reference frequency value
takes place.
Characteristic point 1:
X1 = 30.00 % · 10 V = 3.00 V
Y1 = -50.00 % · 50.00 Hz = -25.00 Hz
Characteristic point 2:
X2 = 80.00 % · 10 V = 8.00 V
Y2 = 85.00 % · 50.00 Hz = 42.50 Hz
X
Tolerance band:
ΔX = 2.00 % · 10 V = 0.20 V
The change of direction of rotation is done
in the example at an analog input signal of
4.85 V, with a tolerance band of ±0.20 V.
EM-RES-03
560 is not taken into ac-
