The EM-RES-03 expansion module is supplied in a housing for assembly on the lower
slot of the frequency inverter.
•
Caution!
•
•
When the supply voltage of the frequency inverter is switched on, the EM-RES-03
expansion module is ready for operation.
10
10

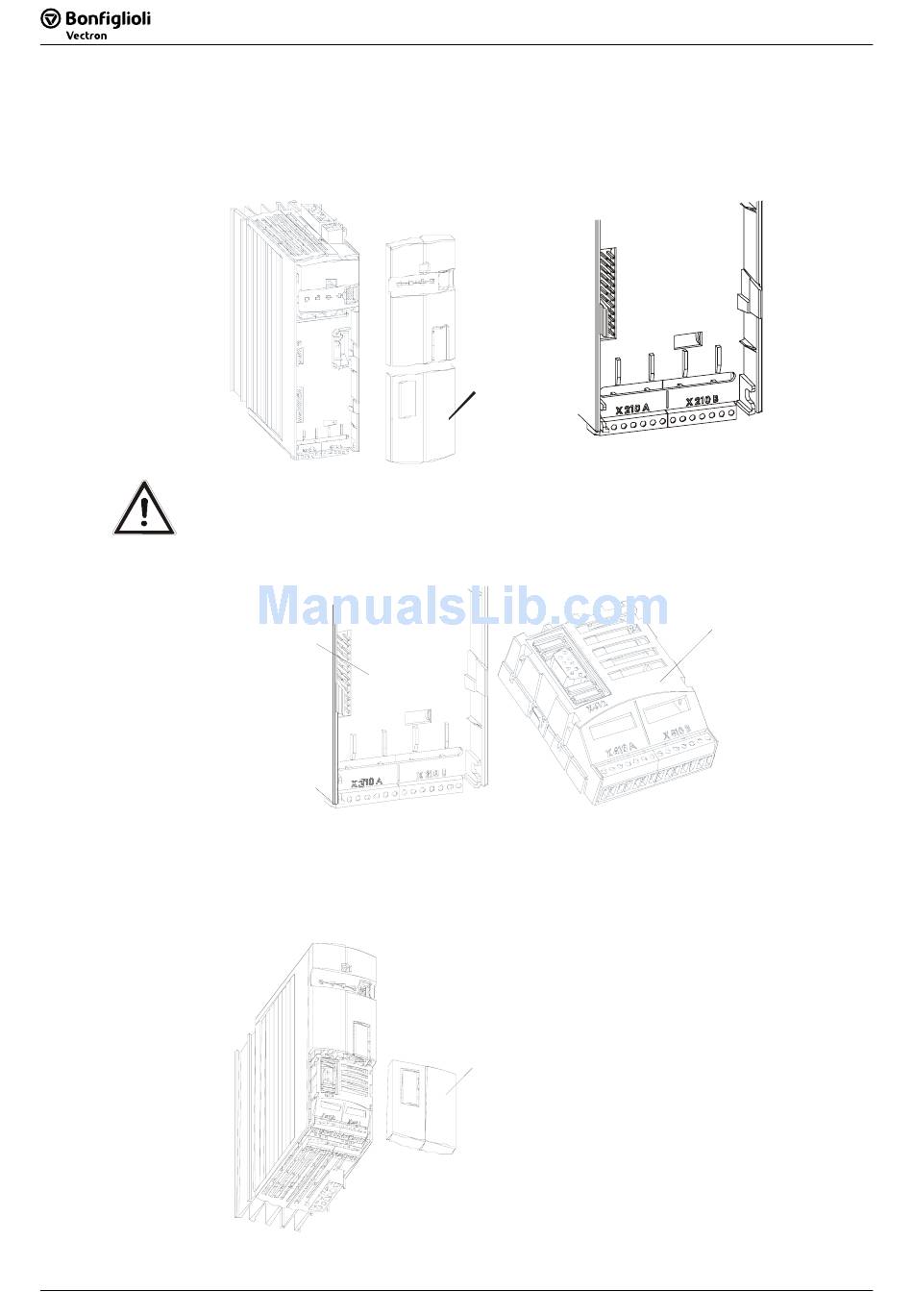

Remove the lower cover (1) of the frequency inverter.
The slot for the EM-RES-03 expansion module becomes accessible.
The EM-RES-03 expansion module (2) is pre-fitted in a housing. Do NOT
touch the PCB visible on the back, as modules may be damaged.
Plug the EM-RES-03 expansion module (2) onto the slot (3).
3
Re-install the lower cover (1).
This completes the assembly procedure.
