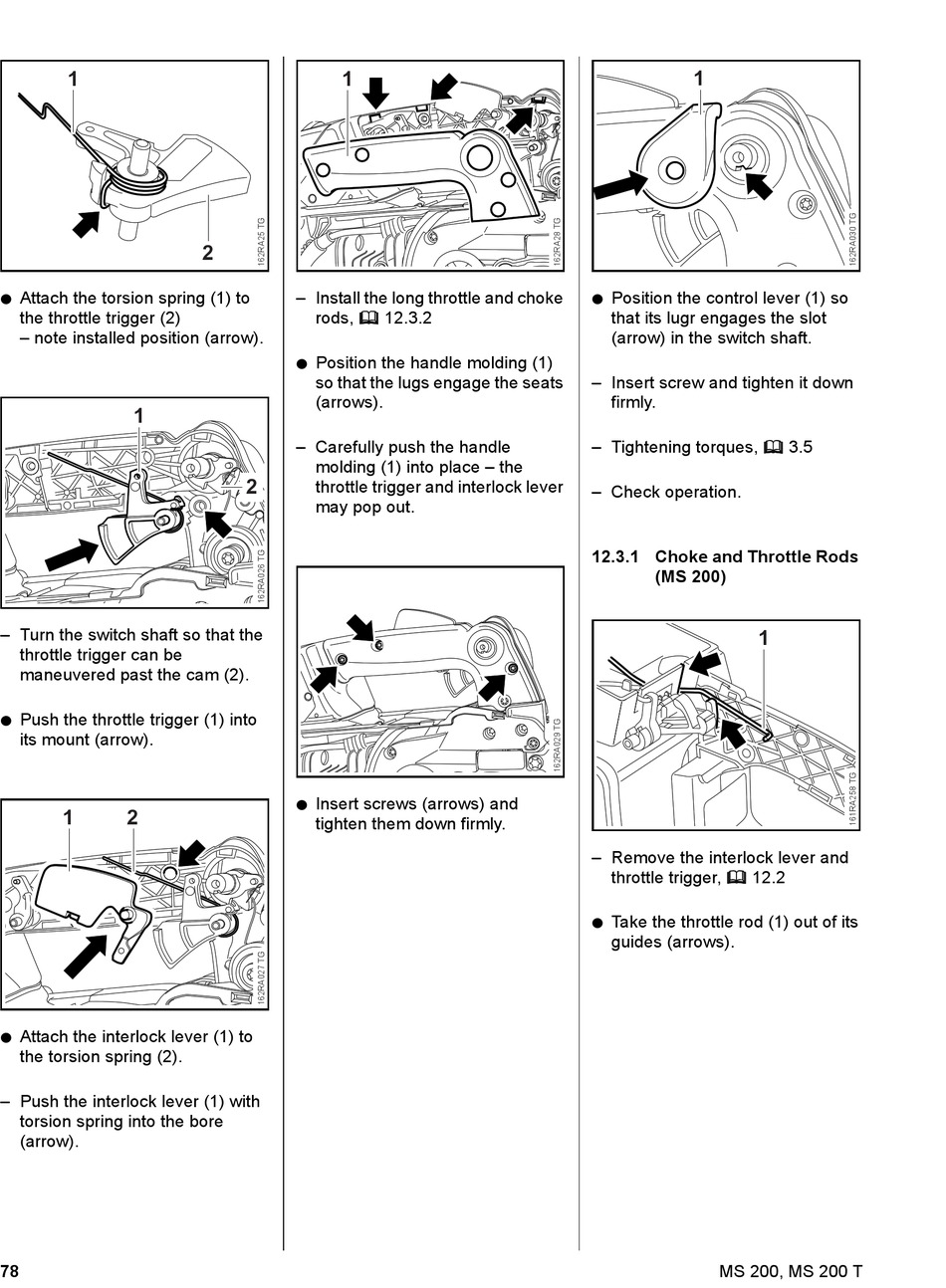

Choke And Throttle Rods (Ms 200) - Stihl MS 200 Service Manual

1
: Attach the torsion spring (1) to
the throttle trigger (2)
– note installed position (arrow).
1
– Turn the switch shaft so that the
throttle trigger can be
maneuvered past the cam (2).
: Push the throttle trigger (1) into
its mount (arrow).
1 2
: Attach the interlock lever (1) to
the torsion spring (2).
– Push the interlock lever (1) with
torsion spring into the bore
(arrow).
78
1
2
– Install the long throttle and choke
rods, b 12.3.2
: Position the handle molding (1)
so that the lugs engage the seats
(arrows).
– Carefully push the handle
molding (1) into place – the
2
throttle trigger and interlock lever
may pop out.
: Insert screws (arrows) and
tighten them down firmly.
1
: Position the control lever (1) so
that its lugr engages the slot
(arrow) in the switch shaft.
– Insert screw and tighten it down
firmly.
– Tightening torques, b 3.5
– Check operation.
12.3.1 Choke and Throttle Rods
(MS 200)
1
– Remove the interlock lever and
throttle trigger, b 12.2
: Take the throttle rod (1) out of its
guides (arrows).
MS 200, MS 200 T
