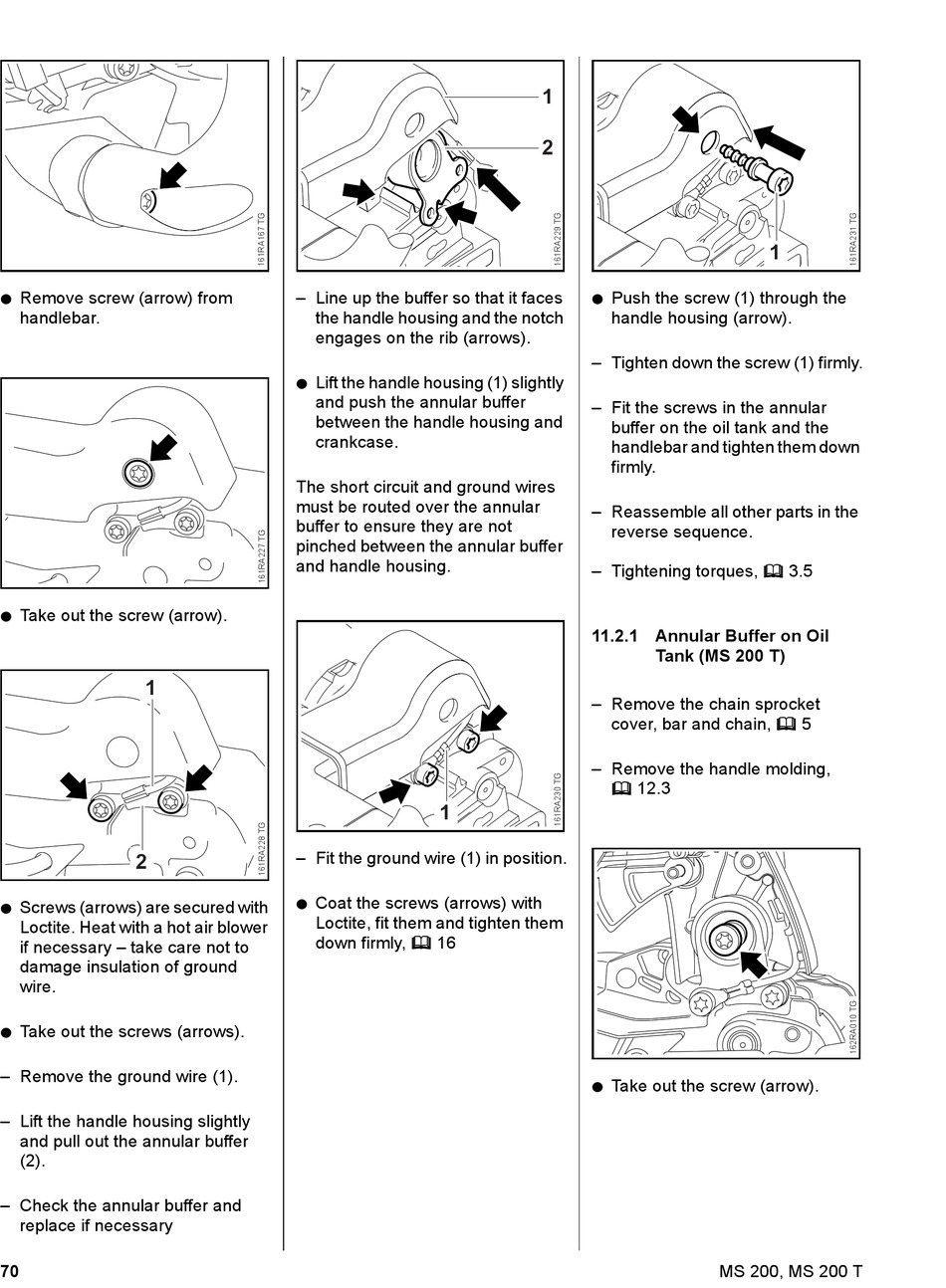

: Remove screw (arrow) from
handlebar.
: Take out the screw (arrow).
1
2
: Screws (arrows) are secured with
Loctite. Heat with a hot air blower
if necessary – take care not to
damage insulation of ground
wire.
: Take out the screws (arrows).
– Remove the ground wire (1).
– Lift the handle housing slightly
and pull out the annular buffer
(2).
– Check the annular buffer and
replace if necessary
70
– Line up the buffer so that it faces
the handle housing and the notch
engages on the rib (arrows).
: Lift the handle housing (1) slightly
and push the annular buffer
between the handle housing and
crankcase.
The short circuit and ground wires
must be routed over the annular
buffer to ensure they are not
pinched between the annular buffer
and handle housing.
1
– Fit the ground wire (1) in position.
: Coat the screws (arrows) with
Loctite, fit them and tighten them
down firmly, b 16
1
2
: Push the screw (1) through the
handle housing (arrow).
– Tighten down the screw (1) firmly.
– Fit the screws in the annular
buffer on the oil tank and the
handlebar and tighten them down
firmly.
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 3.5
11.2.1 Annular Buffer on Oil
Tank (MS 200 T)
– Remove the chain sprocket
cover, bar and chain, b 5
– Remove the handle molding,
b 12.3
: Take out the screw (arrow).
MS 200, MS 200 T
1
