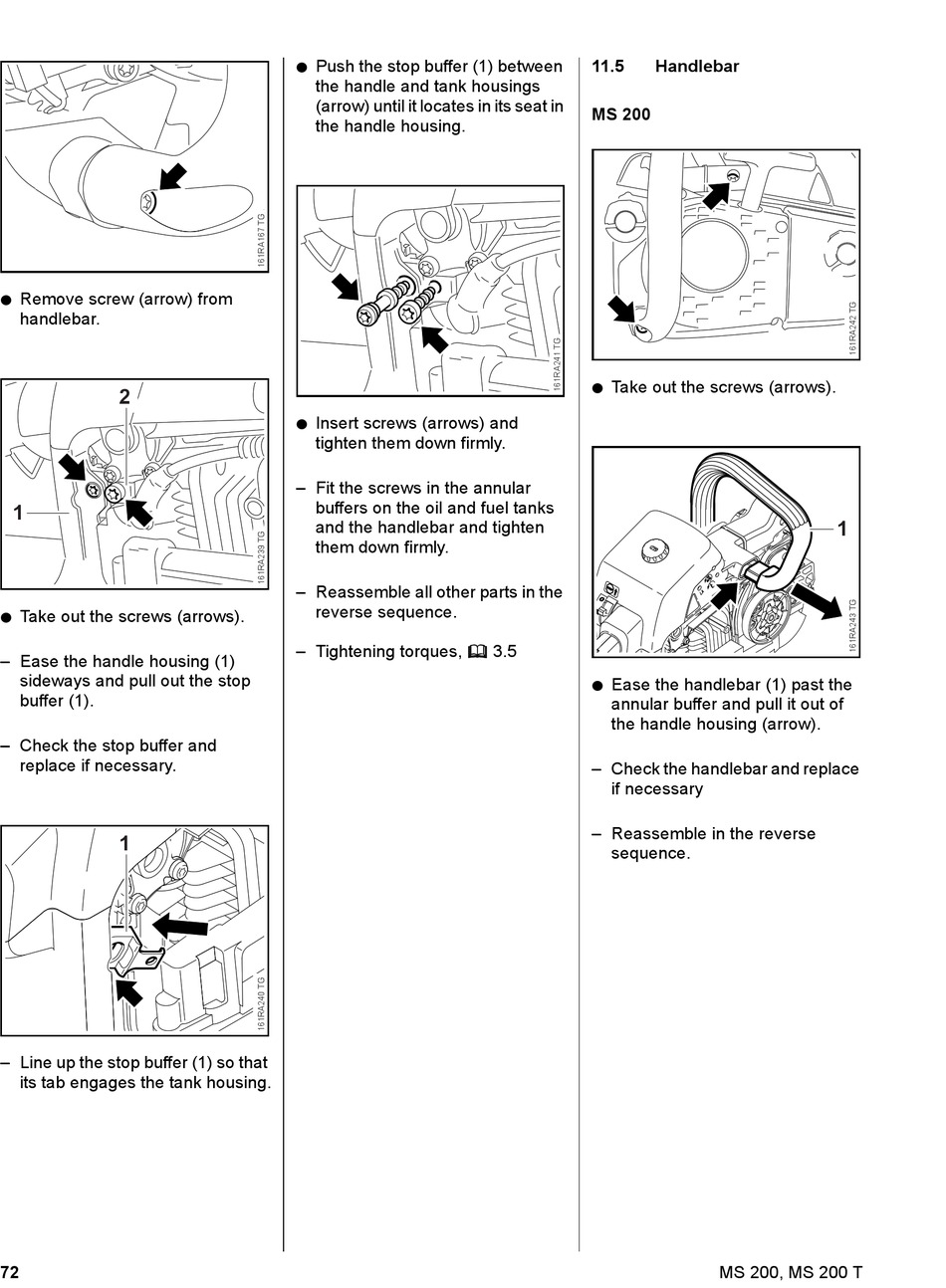

Handlebar - Stihl MS 200 Service Manual

: Remove screw (arrow) from

handlebar.

2
1
: Take out the screws (arrows).
– Ease the handle housing (1)
sideways and pull out the stop
buffer (1).
– Check the stop buffer and
replace if necessary.
1
– Line up the stop buffer (1) so that
its tab engages the tank housing.
72
: Push the stop buffer (1) between
the handle and tank housings
(arrow) until it locates in its seat in
the handle housing.
: Insert screws (arrows) and
tighten them down firmly.
– Fit the screws in the annular
buffers on the oil and fuel tanks
and the handlebar and tighten
them down firmly.
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 3.5
11.5 Handlebar
MS 200
: Take out the screws (arrows).
: Ease the handlebar (1) past the
annular buffer and pull it out of
the handle housing (arrow).
– Check the handlebar and replace
if necessary
– Reassemble in the reverse
sequence.
MS 200, MS 200 T
