7.5

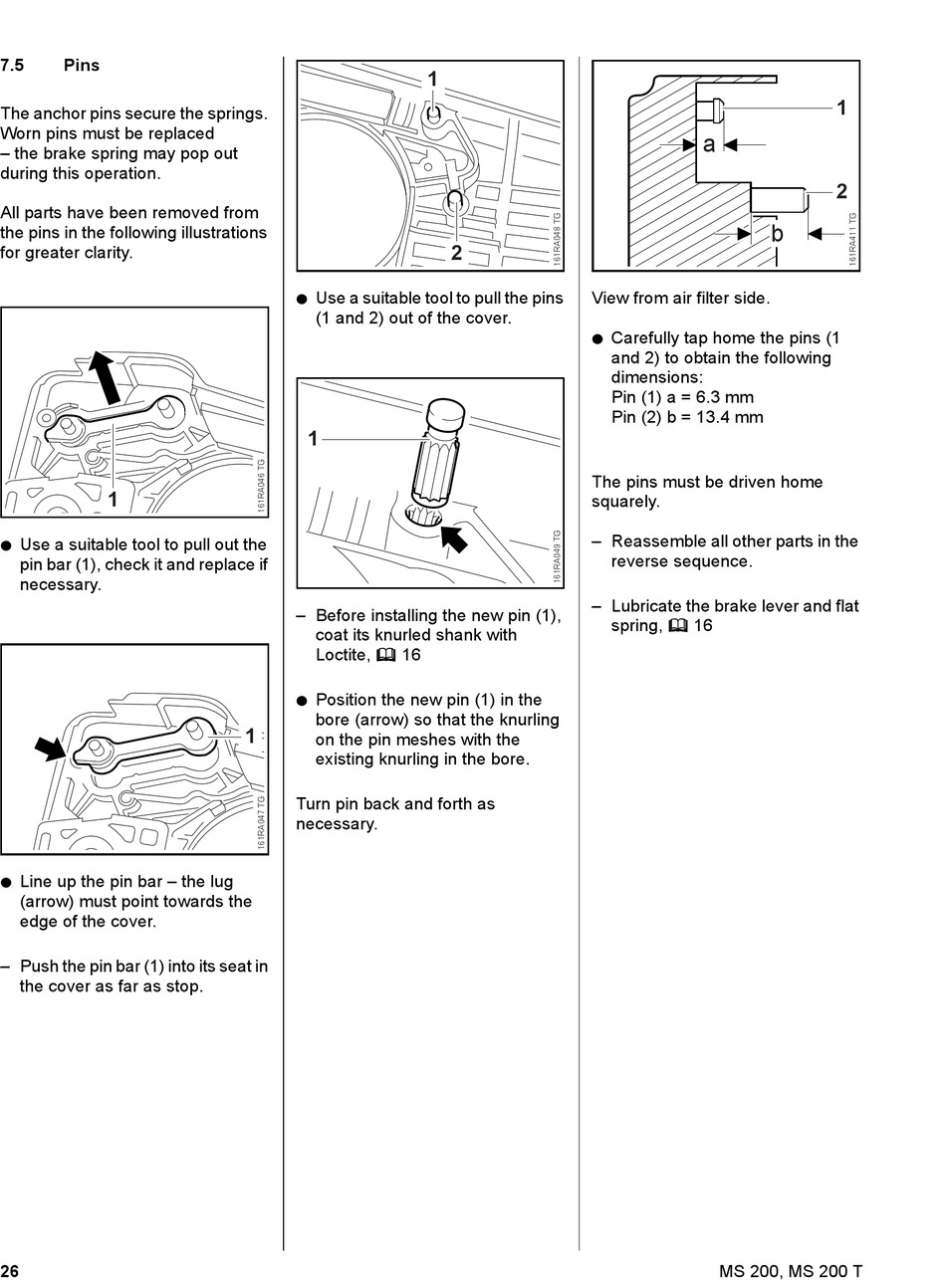

Pins

The anchor pins secure the springs.
Worn pins must be replaced
– the brake spring may pop out
during this operation.
All parts have been removed from
the pins in the following illustrations
for greater clarity.
1
: Use a suitable tool to pull out the
pin bar (1), check it and replace if
necessary.
: Line up the pin bar – the lug
(arrow) must point towards the
edge of the cover.
– Push the pin bar (1) into its seat in
the cover as far as stop.
26
: Use a suitable tool to pull the pins
(1 and 2) out of the cover.
1
– Before installing the new pin (1),
coat its knurled shank with
Loctite, b 16
: Position the new pin (1) in the
bore (arrow) so that the knurling
1
on the pin meshes with the
existing knurling in the bore.
Turn pin back and forth as
necessary.
1
2
View from air filter side.
: Carefully tap home the pins (1
The pins must be driven home
squarely.
– Reassemble all other parts in the
– Lubricate the brake lever and flat
a
b
and 2) to obtain the following
dimensions:
Pin (1) a = 6.3 mm
Pin (2) b = 13.4 mm
reverse sequence.
spring, b 16
MS 200, MS 200 T
