4.2.4 Lifting

Always lift the unit in the dedicated lifting eyes. Use a bar

to avoid bending the lifting holes.

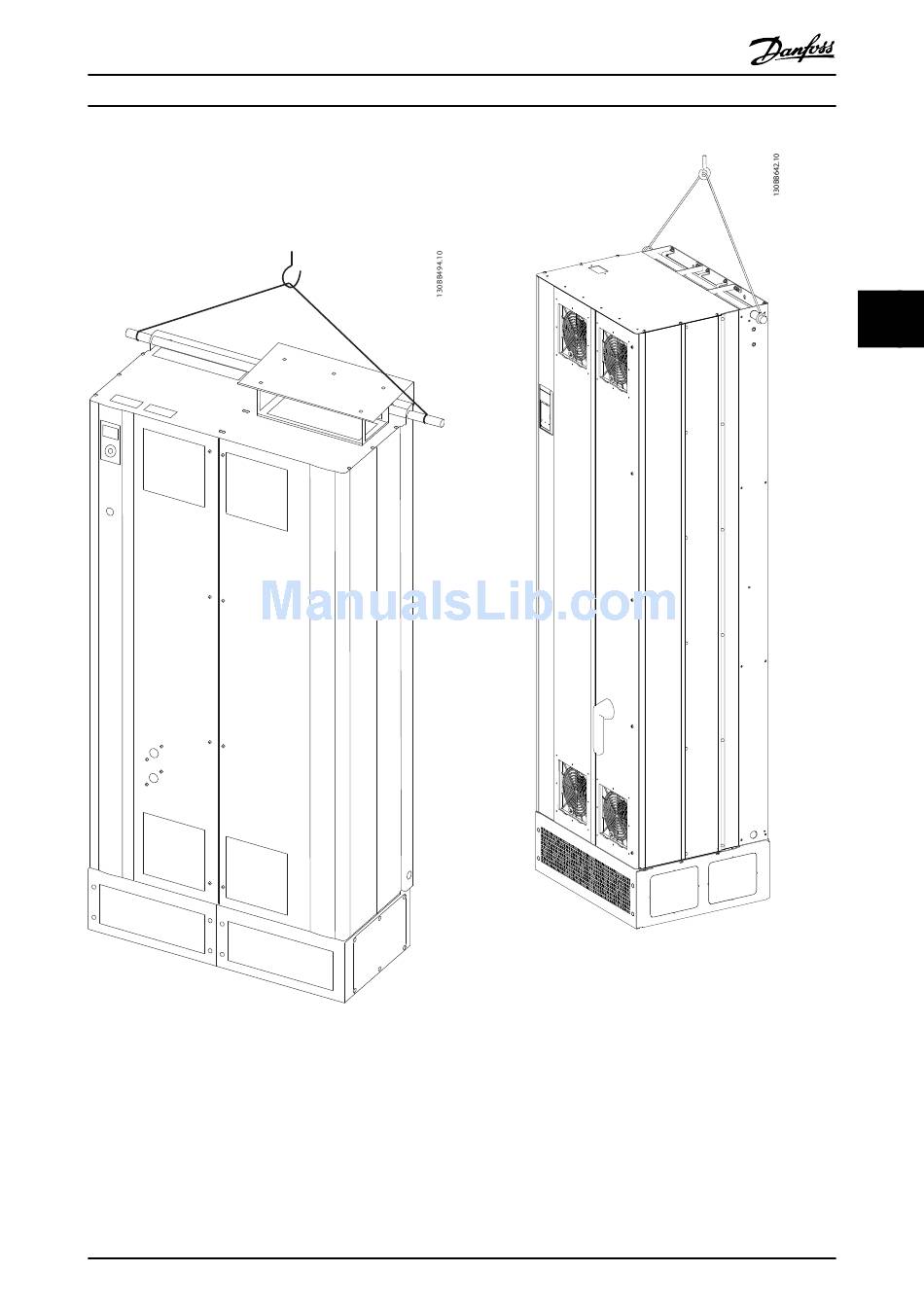

Illustration 4.2 Recommended Lifting Method for AAF 005,

Frame Sizes D9 and E7.

NOTE

The lifting bar must be able to handle the weight of the unit. See Mechanical Dimensions for the weight of the different

frame sizes. Maximum diameter for bar is 25mm (1 inch). The angle from the top of the unit to the lifting cable should be

60° or greater.

VLT Active Filter AAF 00x

Illustration 4.3 Recommended Lifting Method for AAF 006,

Frame Sizes D13 and E9.
