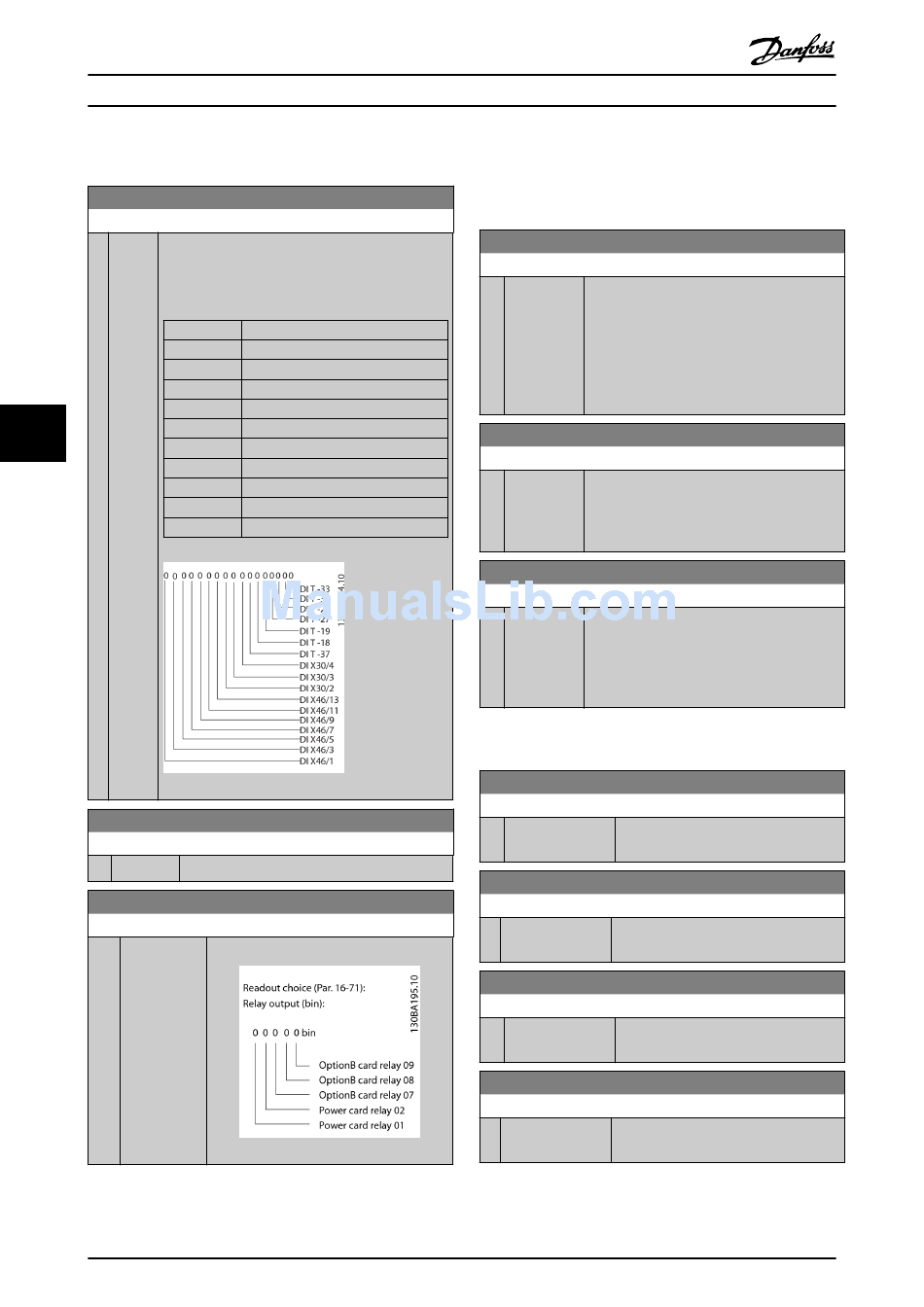

How to Programme
6.8.1 16-6* Inputs and Outputs
16-60 Digital Input
Range: Function:
0 [0 - View the signal states from the active digital inputs.
1023 ] Example: Input 18 corresponds to bit no. 5, '0' = no
*
signal, '1' = connected signal. Bit 6 works in the
opposite way, on = '0', off = '1' (safe stop input).
Bit 0
Bit 1
Bit 2
Bit 3
Bit 4
6 6
Bit 5
Bit 6
Bit 7
Bit 8
Bit 9
Bit 10-63
16-66 Digital Output [bin]
Range:
0 [0 - 15 ]
*
16-71 Relay Output [bin]
Range:
0 [0 - 511 ]
*
72
VLT Active Filter AAF 00x
Digital input term. 33
Digital input term. 32
Digital input term. 29
Digital input term. 27
Digital input term. 19
Digital input term. 18
Digital input term. 37
Digital input GP I/O term. X30/4
Digital input GP I/O term. X30/3
Digital input GP I/O term. X30/2
Reserved for future terminals
Function:
View the binary value of all digital outputs.
Function:
View the settings of all relays.
MG.90.V2.02 - VLT® is a registered Danfoss trademark
6.8.2 16-8* fieldbus & FC Port
Parameters for reporting the BUS references and control
words.
16-80 Fieldbus CTW 1
Range: Function:
0 [0 - 65535 ] View the two-byte Control word (CTW)
*
received from the Bus-Master. Interpretation of
the Control word depends on the fieldbus
option installed and the Control word profile
selected in 8-10 Control Profile.
For more information please refer to the
relevant fieldbus manual.
16-84 Comm. Option STW
Range: Function:
0 [0 - 65535 ] View the extended fieldbus comm. option
*
status word.
For more information please refer to the
relevant fieldbus manual.
16-85 FC Port CTW 1
Range: Function:
0 [0 - 65535 ] View the two-byte Control word (CTW)
*
received from the Bus-Master. Interpretation of
the control word depends on the fieldbus
option installed and the Control word profile
selected in 8-10 Control Profile.
6.8.3 16-9* Diagnosis Read-Outs
16-90 Alarm Word
Range: Function:
0 [0 - 4294967295 ] View the alarm word sent via the serial
*
communication port in hex code.
16-91 Alarm Word 2
Range: Function:
0 [0 - 4294967295 ] View the alarm word sent via the serial
*
communication port in hex code.
16-92 Warning Word
Range: Function:
0 [0 - 4294967295 ] View the warning word sent via the
*
serial communication port in hex code.
16-93 Warning Word 2
Range: Function:
0 [0 - 4294967295 ] View the warning word sent via the serial
*
communication port in hex code.
