Newland BS8060 Piranha User Manual

Pocket bluetooth barcode scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

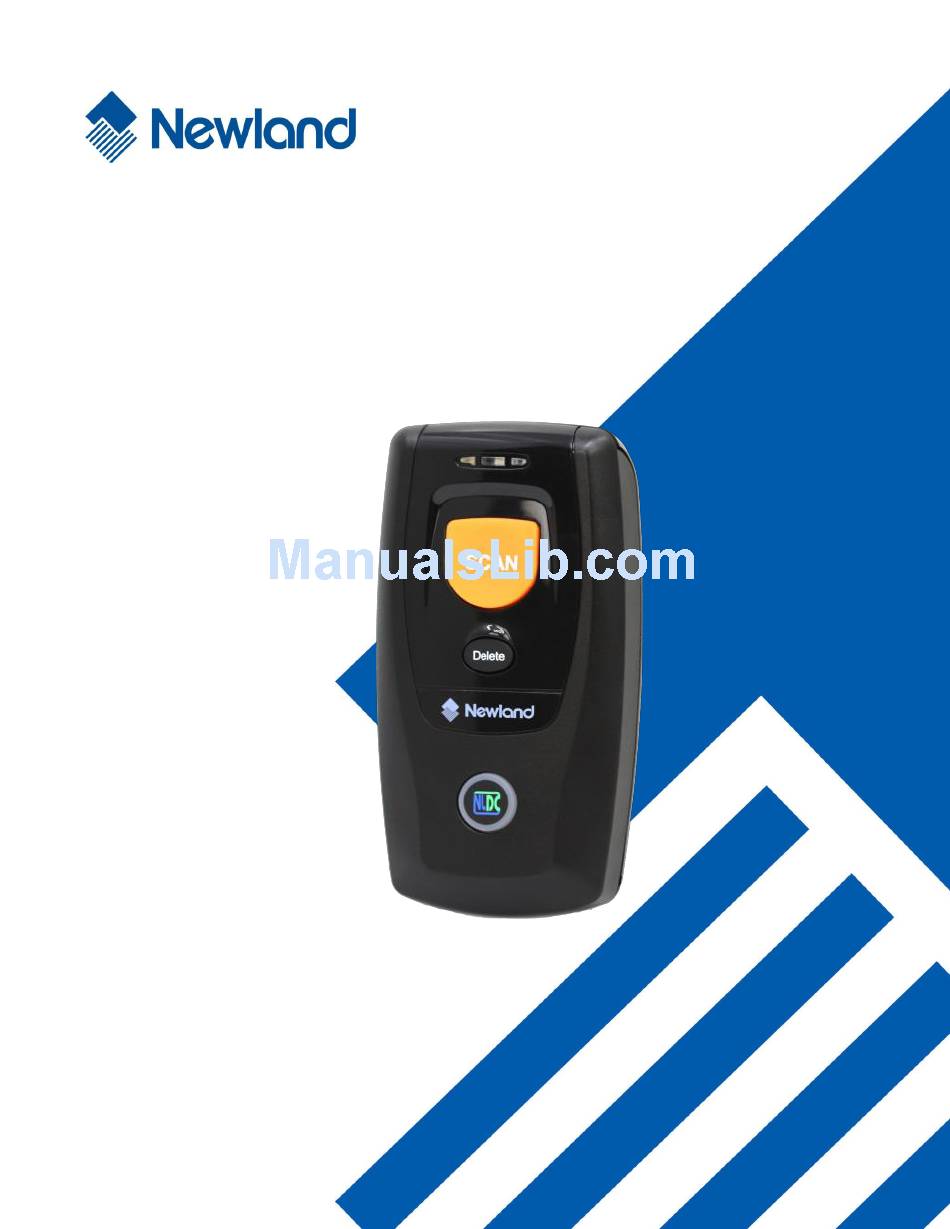

BS8060 Piranha
Pocket Bluetooth Barcode Scanner
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BS8060 Piranha and is the answer not in the manual?

Questions and answers

Related Manuals for Newland BS8060 Piranha

Summary of Contents for Newland BS8060 Piranha

  • Page 1 BS8060 Piranha Pocket Bluetooth Barcode Scanner User Guide...
  • Page 2 All pictures in this manual are for reference only and actual product may differ. Regarding to the product modification and update, Fujian Newland Auto-ID Tech. Co., Ltd. reserves the right to make changes to any software or hardware to improve reliability, function, or design at any time without notice. The information contained herein is subject to change without prior notice.

  • Page 3: Revision History

    Revision History Version Description Date V1.0 Initial release. March 18, 2015 V1.1 Added the content concerning the 2D version. May 19, 2015 1. Added the Enable/Disable USB HID-KBW feature in Chapter 2. V1.2 September 16, 2015 2. Added barcode parameters in Chapter 3. Added the USB country keyboard types in Chapter 2.

  • Page 4: Table Of Contents

    Table of Contents Revision History ............................- 3 - Preface ................................1 Introduction..............................1 Chapter Descriptions............................ 1 Safety Instructions ............................1 Chapter 1 Getting Started ..........................2 Introduction..............................2 Unpacking ..............................2 BS80 Scanner .............................. 3 Button Functions ............................4 Charging the Battery ............................
  • Page 5 Parameters of USB HID-KBW ........................24 USB Country Keyboard Types ......................24 Character Encoding ..........................27 Convert Case ............................27 Emulate ALT+Keypad .......................... 28 Function Key Mapping ......................... 29 Emulate Numeric Keypad ........................29 Code Page ............................30 Inter-Keystroke Delay for KBW ......................31 Upgrade the Firmware ..........................
  • Page 6 2-Digit Add-On Code ........................48 5-Digit Add-On Code ........................49 EAN-13 Beginning with 290 Add-On Code Required ..............50 EAN-13 Beginning with 378/379 Add-On Code Required ............50 EAN-13 Beginning with 414/419 Add-On Code Required ............51 EAN-13 Beginning with 434/439 Add-On Code Required ............51 EAN-13 Beginning with 977 Add-On Code Required ..............
  • Page 7 Deutsche 14 ............................68 Restore Factory Defaults ......................68 Enable/Disable Deutsche 14 ......................68 Deutsche 12 ............................69 Restore Factory Defaults ......................69 Enable/Disable Deutsche 12 ......................69 COOP 25 (Japanese Matrix 2 of 5) ..................... 70 Restore Factory Defaults ......................70 Enable/Disable COOP 25 ......................
  • Page 8 Restore Factory Defaults ......................82 Enable/Disable Codabar ......................82 Check Digit Verification......................... 82 Transmit Start/Stop Character ...................... 83 Set Length Range for Codabar ....................84 Code 93..............................85 Restore Factory Defaults ......................85 Enable/Disable Code 93 ....................... 85 Check Digit Verification......................... 85 Set Length Range for Code 93 .....................
  • Page 9 GS1-128 (UCC/EAN-128) ........................100 Restore Factory Defaults ......................100 Enable/Disable GS1-128 ......................100 Set Length Range for GS1-128 ....................101 AIM-128.............................. 102 Restore Factory Defaults ......................102 Enable/Disable AIM-128 ......................102 Set Length Range for AIM-128 ....................103 EAN-8 ..............................104 Restore Factory Defaults ......................
  • Page 10 Add-On Code Required ......................116 UPC-E ..............................117 Restore Factory Defaults ......................117 Enable/Disable UPC-E ....................... 117 Transmit Check Digit ........................117 Add-On Code ..........................118 Add-On Code Required ......................118 Transmit System Character “0” ....................119 UPC-E Extension ........................119 UPC-A ..............................
  • Page 11 Code 39.............................. 137 Restore Factory Defaults ......................137 Enable/Disable Code 39 ......................137 Transmit Start/Stop Character ....................137 Set Length Range for Code 39 ....................138 Check Digit Verification....................... 139 Enable/Disable Code 39 Full ASCII ................... 139 Enable/Disable Code 32 (For BS8060-2T) ................139 Code 32 Prefix (For BS8060-2T)....................
  • Page 12 MSI-Plessey ............................155 Restore Factory Defaults ......................155 Enable/Disable MSI-Plessey ...................... 155 Set Length Range for MSI-Plessey .................... 156 Transmit Check Digit ........................157 Check Digit Verification....................... 157 PDF 417 ............................. 158 Restore Factory Defaults ......................158 Enable/Disable PDF 417 ......................158 Set Length Range for PDF 417 ....................
  • Page 13 Modify Code ID ........................... 173 Custom Suffix ............................. 177 Enable/Disable Custom Suffix ....................177 Set Custom Suffix ........................177 Terminating Character Suffix ......................178 Enable/Disable Terminating Character Suffix ................178 Set Terminating Character Suffix ....................178 2D Scanner .............................. 179 Prefix Sequences ..........................

  • Page 15: Preface

    Preface Introduction This manual provides detailed instructions for setting up and using the NLS-BS80 barcode scanner (hereinafter referred to as “the BS80” or “the scanner”). Chapter Descriptions  Chapter 1, Getting Started : This chapter provides information on getting the scanner up and running for the first time.

  • Page 16: Chapter 1 Getting Started

    Chapter 1 Getting Started Introduction The BS80 is a wireless pocket barcode scanner equipped with 1D or 2D scan engine to meet different needs. It is a great space-saver for busy or limited workspaces. It also supports iOS, Android, and Windows devices through Bluetooth HID or SPP or BLE communication.

  • Page 17: Bs80 Scanner

    BS80 Scanner Charging/Battery LED Good Read LED Data LED Scan/Power Button Delete/Reset Button Function Button/Function LED Micro USB Port Product Label Scan Window* *Note: Please peel off the protective film from the scan window before reading barcodes.

  • Page 18: Button Functions

    Button Functions Scan/Power Button *Press the button to scan barcode. *Hold down the button for 3 seconds to power the scanner on. Delete/Reset Button *Press the button to remove the corresponding data from the flash memory in one of the following conditions before scanning the barcode to be deleted: (i) Bluetooth mode enabled but no Bluetooth connection established;...

  • Page 19: Charging The Battery

    Charging the Battery Charge the scanner by connecting it to a host device with Micro USB cable, as shown below. Note: Low battery may result in failure or misoperation of the scanner. Before your first use, charge the battery for 3-4 hours.

  • Page 20: Connecting The Bs80 To Smartphone/Tablet

    Connecting the BS80 to Smartphone/Tablet 1. Make sure your device has HID or SPP or BLE profile. 2. If the red Function LED on the scanner is on, hold down the Scan/Power button and Function button at the same time for 3 seconds or scan the Bluetooth Mode barcode to switch to the Bluetooth mode. Hold down the Delete/Reset button and Function button at the same time or scan the Delete Bluetooth Pairing barcode to remove existing pairing information from the scanner.
  • Page 21 (1) Click “Settings”. (2) Click “General”. (3) Click “Bluetooth”. (5) Select “BS80XXXX” to (6) The “Connected” message (4) Turn it on and search the devices. connect. means the connection is OK. BS80XXXX Connected BS80XXXX 6. After the connection is completed, the blue Function LED on the scanner will illuminate. 7.

  • Page 22: Led Notifications

    LED Notifications Charging/Battery LED Red LED on Charging in progress. Green LED on Fully charged. Red and green LEDs flash alternately Battery not found. Red LED flashes Low battery alert. When the scanner is on, pressing the Scan/Power button and Delete/Reset button at the same time for 3 seconds can display the battery level with the Charging/Battery LED.

  • Page 23: Turning The Bs80 On/Off

    Turning the BS80 On/Off Turn the scanner on: Press the Scan/Power button for 3 seconds. Turn the scanner off: By default, the scanner automatically powers off if no operation is performed on the scanner for 30 minutes. You can adjust the auto power-off timer. You can also turn off the scanner by scanning the Power Off barcode.

  • Page 24: Scanning Instructions

    Scanning Instructions Scanning 1D Barcode Adjust the scan angle (Do not read barcode at vertical degree) or the distance between barcode and the scanner to ensure that the length of the scan line is roughly 8mm greater than that of the barcode, as shown below.

  • Page 25: Chapter 2 System Settings

    Chapter 2 System Settings Introduction This chapter describes how to configure the basic system parameters on the scanner. Restore Factory Defaults Restore Factory Defaults Operating Modes The scanner provides two operating modes: Bluetooth mode and USB mode. To switch between these two modes, press the Scan/Power and Function buttons for 3 seconds at the same time or scan the USB Mode or Bluetooth Mode barcode.

  • Page 26: Bluetooth Mode

    Bluetooth Mode Bluetooth Mode (default) When the scanner is in the Bluetooth mode, you can select a desired profile by scanning the appropriate barcode below. HID (default) There are three types of data transmission via Bluetooth: Synchronous transmission, Asynchronous transmission and Batch transmission. (1) Synchronous transmission (default): When you scan barcodes, the data will be sent to smartphone/tablet directly.
  • Page 27 Synchronous Transmission, Bluetooth (default) Asynchronous Transmission, Bluetooth Batch Transmission, Bluetooth Transmit Stored Data The following feature is enabled automatically when the scanner is in Bluetooth Batch mode. Verify Receipt of Data: The scanner will keep all the stored data after transmission, which offers users the opportunity to verify if the data is properly received and to resend the data when needed.

  • Page 28: Usb Mode

    PC or not. You can sync the data from the flash memory to your PC via USB by following the procedure described below. Step 1: Download CDC-Virtual COM Driver from Newland website at www.newlandaidc.com and Install it on your PC.
  • Page 29 Batch Transmission, USB Asynchronous Transmission, USB (default) Transmit Stored Data The following feature is enabled automatically when the scanner is in USB Batch mode. Moreover, you can scan the appropriate barcode below to enable or disable this feature for USB Asynchronous mode. Verify Receipt of Data: The scanner will keep all the stored data after transmission, which offers users the opportunity to verify if the data is properly received and to resend the data when needed.

  • Page 30: Query Product Information

    Query Product Information Query the Firmware Version of Embedded Scan Engine Query the Manufacture Date of Product Query the Serial Number of Product Query the Firmware & Hardware Versions of Product Query/Delete Stored Data in Flash Query the Number of Stored Barcodes Clear All Stored Data...

  • Page 31: Sound Notifications

    Sound Notifications Turn sound notifications on or off by scanning the appropriate barcode below. After this feature is enabled, the scanner beeps when one of the following events occurs: 1. The scanner is turned on. 2. The scanner resets. 3. A barcode is decoded (including good read for removing barcode data from the flash memory). 4.

  • Page 32: Vibration Notifications

    Vibration Notifications Turn vibration notifications on or off by scanning the appropriate barcode below. After this feature is enabled, the scanner vibrates when one of the following events occurs: 1. A barcode is decoded (including good read for removing barcode data from the flash memory). 2.

  • Page 33: Inter-Character Delay For Bluetooth Hid

    Inter-Character Delay for Bluetooth HID Select an appropriate inter-character delay to avoid data loss during transmission. This parameter is only valid in the Bluetooth HID mode. 15ms (default) 25ms 35ms 45ms Query Inter-Character Delay Delete Bluetooth Pairing Delete Bluetooth Pairing...

  • Page 34: Automatic/Manual Power-Off

    Automatic/Manual Power-Off By default, the scanner automatically powers off if no operation is performed on the scanner for 30 minutes. This feature can help to extend battery life. Query Auto Power-Off Timer Set the auto power-off timer: Scan the Set Auto Power-Off Timer barcode then one of the timers listed below.
  • Page 35 You can power off your scanner manually by scanning the barcode below. Power Off Note: After the Power Off barcode is scanned, the scanner emits a long beep and then turns off.

  • Page 36: Product Serial Number

    Product Serial Number You can select whether to send product serial number or not by enabling or disabling it. Enable Product Serial Number Disable Product Serial Number (default) Time Stamp You can select whether to send date & time or not by enabling or disabling time stamp. Enable Time Stamp Disable Time Stamp (default) Set Date Format...

  • Page 37: Set Date & Time

    Set Date & Time Step 1: Double click on BS80Setting.exe to run BS80 Date&Time Setting Tool. Then check the “Auto-sync date and time with the host” item on it. Step 2: After the time in the box is in sync with the system clock, click the “Generate Barcode” button. Step 3: Scan the barcode generated to set the date and time on the scanner.

  • Page 38: Parameters Of Usb Hid-Kbw

    Parameters of USB HID-KBW USB Country Keyboard Types US English (default) Belgium Brazil Canada Czech Danmark Finland France...
  • Page 39 Germany, Austria Greece Hungary Israel Italy Latin America, South America Netherland Norway Poland Portugal...
  • Page 40 Romania Russia Slovakia Spain Sweden Switzerland Turkey_F Turkey_Q Japan...

  • Page 41: Character Encoding

    Character Encoding ISO-8859-1 (default) UTF-8 Convert Case No Case Conversion (default) Convert All to Upper Case Convert All to Lower Case Invert Upper and Lower Case Characters...

  • Page 42: Emulate Alt+Keypad

    Emulate ALT+Keypad This feature allows any ASCII character (0x00 - 0xFF) to be sent over the numeric keypad no matter which keyboard type is selected. Since sending a character involves multiple keystroke emulations, this method appears less efficient. The following options are available: ...

  • Page 43: Function Key Mapping

    Function Key Mapping When Function Key Mapping is enabled, function characters (0x00 - 0x1F) are sent as ASCII sequences over the keypad. For more information, see ASCII Function Key Mapping Table in Appendix. Disable Function Key Mapping (default) Enable Function Key Mapping Example: Barcode data 0x16 Enable Function Key Mapping Ctrl+V...

  • Page 44: Code Page

    Code Page The Code Page programming feature is provided to support more international characters. This feature is only effective when ASCII characters are sent in the ALT+Keypad way. Windows 1251 (Cyrillic) Windows 1252 (Latin I) (default) Example 1: Set the scanner to get proper output for Russian encoded with ISO-8859-1 1.

  • Page 45: Inter-Keystroke Delay For Kbw

    Inter-Keystroke Delay for KBW To set the inter-keystroke delay, scan the Set Inter-Keystroke Delay barcode and a desired value barcode below. Set Inter-Keystroke Delay 3ms (default) 13ms 18ms 23ms 28ms 33ms 38ms...
  • Page 46 43ms 48ms 53ms 58ms 63ms 68ms 73ms 78ms...

  • Page 47: Upgrade The Firmware

    Step 1: Contact the technical support to get the BS80 Firmware Upgrade Utility and the latest firmware. Step 2: Download CDC-Virtual COM Driver from the Newland website at www.newlandaidc.com. Install it on PC by following the on-screen instructions. (Skip this step if it is already installed on your PC.) Make sure that the driver is properly installed.
  • Page 48 Step 4: Turn on the scanner and connect it to your PC with the USB cable. Step 5: Hold down the Function button and the Delete/Reset button on the scanner at the same time for 7 seconds to upgrade the firmware. The red and blue Function LEDs flash alternately during the updating process.
  • Page 49 Notes: 1. If this utility does not operate normally, check to see if the FirmwarePath in the UpdataTool.ini file is correct (its value should be identical with the name of the .bin file). If there is a higher version of firmware, replace the .bin file.

  • Page 50: Chapter 3 Symbologies

    Chapter 3 Symbologies Introduction Every symbology (barcode type) has its own unique attributes. This chapter provides programming barcodes for configuring the scanner so that it can identify various barcode symbologies. It is recommended to disable those that are rarely used to increase the efficiency of the scanner. Note: Maximum barcode length supported by the scanner is 3072 bytes.

  • Page 51: Code 128

    Code 128 Restore Factory Defaults Restore the Factory Defaults of Code 128 Enable/Disable Code 128 Enable Code 128 (default) Disable Code 128...

  • Page 52: Set Length Range For Code 128

    Set Length Range for Code 128 The scanner can be configured to only decode Code 128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Code 128 barcodes with either the minimum or maximum length.

  • Page 53: Ucc/Ean-128

    UCC/EAN-128 Restore Factory Defaults Restore the Factory Defaults of UCC/EAN-128 Enable/Disable UCC/EAN-128 Enable UCC/EAN-128 (default) Disable UCC/EAN-128...

  • Page 54: Set Length Range For Ucc/Ean-128

    Set Length Range for UCC/EAN-128 The scanner can be configured to only decode UCC/EAN-128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes UCC/EAN-128 barcodes with either the minimum or maximum length.

  • Page 55: Aim 128

    AIM 128 Restore Factory Defaults Restore the Factory Defaults of AIM 128 Enable/Disable AIM 128 Enable AIM 128 Disable AIM 128 (default)

  • Page 56: Set Length Range For Aim 128

    Set Length Range for AIM 128 The scanner can be configured to only decode AIM128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes AIM128 barcodes with either the minimum or maximum length.

  • Page 57: Restore Factory Defaults

    EAN-8 Restore Factory Defaults Restore the Factory Defaults of EAN-8 Enable/Disable EAN-8 Enable EAN-8 (default) Disable EAN-8...

  • Page 58: 2-Digit Add-On Code

    2-Digit Add-On Code An EAN-8 barcode can be augmented with a two-digit add-on code to form a new one.  Disable 2-Digit Add-On Code: The scanner decodes EAN-8 and ignores the add-on code when presented with an EAN-8 plus 2-digit add-on barcode. It can also decode EAN-8 barcodes without 2-digit add-on codes.

  • Page 59: 5-Digit Add-On Code

    5-Digit Add-On Code An EAN-8 barcode can be augmented with a five-digit add-on code to form a new one.  Disable 5-Digit Add-On Code: The scanner decodes EAN-8 and ignores the add-on code when presented with an EAN-8 plus 5-digit add-on barcode. It can also decode EAN-8 barcodes without 5-digit add-on codes.

  • Page 60: Ean-8 Extension

    EAN-8 Extension  Disable EAN-8 Zero Extend: Transmit EAN-8 barcodes as is.  Enable EAN-8 Zero Extend: Add five leading zeros to decoded EAN-8 barcodes to extend to13 digits.  Convert EAN-8 to EAN-13: Add five leading zeros to decoded EAN-8 barcodes to make them compatible in format to EAN-13 barcodes.

  • Page 61: Restore Factory Defaults

    EAN-13 Restore Factory Defaults Restore the Factory Defaults of EAN-13 Enable/Disable EAN-13 Enable EAN-13 (default) Disable EAN-13 Transmit Check Digit EAN-13 is 13 digits in length with the last one as its check digit used to verify the integrity of the data. Transmit EAN-13 Check Digit (default) Do Not Transmit EAN-13 Check Digit...

  • Page 62: 2-Digit Add-On Code

    2-Digit Add-On Code An EAN-13 barcode can be augmented with a two-digit add-on code to form a new one.  Disable 2-Digit Add-On Code: The scanner decodes EAN-13 and ignores the add-on code when presented with an EAN-13 plus 2-digit add-on barcode. It can also decode EAN-13 barcodes without 2-digit add-on codes.

  • Page 63: 5-Digit Add-On Code

    5-Digit Add-On Code An EAN-13 barcode can be augmented with a five-digit add-on code to form a new one.  Disable 5-Digit Add-On Code: The scanner decodes EAN-13 and ignores the add-on code when presented with an EAN-13 plus 5-digit add-on barcode. It can also decode EAN-13 barcodes without 5-digit add-on codes.

  • Page 64: Ean-13 Beginning With 290 Add-On Code Required

    EAN-13 Beginning with 290 Add-On Code Required This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “290”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with “290” must have a 2-digit or 5-digit add-on code.

  • Page 65: Ean-13 Beginning With 414/419 Add-On Code Required

    EAN-13 Beginning with 414/419 Add-On Code Required This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with a “414” or “419”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with a “414” or “419” must have a 2-digit or 5-digit add-on code.

  • Page 66: Ean-13 Beginning With 977 Add-On Code Required

    EAN-13 Beginning with 977 Add-On Code Required This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “977”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with “977” must have a 2-digit or 5-digit add-on code.

  • Page 67: Ean-13 Beginning With 979 Add-On Code Required

    EAN-13 Beginning with 979 Add-On Code Required This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “979”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with “979” must have a 2-digit or 5-digit add-on code.

  • Page 68: Issn

    ISSN Restore Factory Defaults Restore the Factory Defaults of ISSN Enable/Disable ISSN Enable ISSN Disable ISSN (default)

  • Page 69: Isbn

    ISBN Restore Factory Defaults Restore the Factory Defaults of ISBN Enable/Disable ISBN Enable ISBN Disable ISBN (default) Set ISBN Format ISBN-13 (default) ISBN-10...

  • Page 70: Upc-E

    UPC-E Restore Factory Defaults Restore the Factory Defaults of UPC-E Enable/Disable UPC-E Enable UPC-E (default) Disable UPC-E Transmit Check Digit UPC-E is 8 digits in length with the last one as its check digit used to verify the integrity of the data. Transmit UPC-E Check Digit (default) Do Not Transmit UPC-E Check Digit...

  • Page 71: 2-Digit Add-On Code

    2-Digit Add-On Code A UPC-E barcode can be augmented with a two-digit add-on code to form a new one.  Disable 2-Digit Add-On Code: The scanner decodes UPC-E and ignores the add-on code when presented with a UPC-E plus 2-digit add-on barcode. It can also decode UPC-E barcodes without 2-digit add-on codes.

  • Page 72: 5-Digit Add-On Code

    5-Digit Add-On Code A UPC-E barcode can be augmented with a five-digit add-on code to form a new one.  Disable 5-Digit Add-On Code: The scanner decodes UPC-E and ignores the add-on code when presented with a UPC-E plus 5-digit add-on barcode. It can also decode UPC-E barcodes without 5-digit add-on codes.

  • Page 73: Transmit Preamble Character

    Transmit Preamble Character Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-E barcode. Select one of the following options for transmitting UPC-E preamble to the host device: transmit system character only, transmit system character and country code (“0” for USA), or transmit no preamble.

  • Page 74: Upc-A

    UPC-A Restore Factory Defaults Restore the Factory Defaults of UPC-A Enable/Disable UPC-A Enable UPC-A (default) Disable UPC-A Transmit Check Digit UPC-A is 13 digits in length with the last one as its check digit used to verify the integrity of the data. Transmit UPC-A Check Digit (default) Do Not Transmit UPC-A Check Digit...

  • Page 75: Transmit Preamble Character

    Transmit Preamble Character Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-A barcode. Select one of the following options for transmitting UPC-A preamble to the host device: transmit system character only, transmit system character and country code (“0” for USA), or transmit no preamble.

  • Page 76: 2-Digit Add-On Code

    2-Digit Add-On Code A UPC-A barcode can be augmented with a two-digit add-on code to form a new one.  Disable 2-Digit Add-On Code: The scanner decodes UPC-A and ignores the add-on code when presented with a UPC-A plus 2-digit add-on barcode. It can also decode UPC-A barcodes without 2-digit add-on codes.

  • Page 77: 5-Digit Add-On Code

    5-Digit Add-On Code A UPC-A barcode can be augmented with a five-digit add-on code to form a new one.  Disable 5-Digit Add-On Code: The scanner decodes UPC-A and ignores the add-on code when presented with a UPC-A plus 5-digit add-on barcode. It can also decode UPC-A barcodes without 5-digit add-on codes.

  • Page 78: Interleaved 2 Of 5

    Interleaved 2 of 5 Restore Factory Defaults Restore the Factory Defaults of Interleaved 2 of 5 Enable/Disable Interleaved 2 of 5 Enable Interleaved 2 of 5 (default) Disable Interleaved 2 of 5 Check Digit Verification Disable Do Not Transmit Check Digit After Verification (default) Transmit Check Digit After Verification...

  • Page 79: Set Length Range For Interleaved 2 Of 5

    Set Length Range for Interleaved 2 of 5 The scanner can be configured to only decode Interleaved 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 80: Itf-6

    ITF-6 ITF-6 is a special kind of Interleaved 2 of 5 with a length of 6 characters and the last character as the check character. Restore the Factory Defaults of ITF-6 Disable ITF-6 (default) Enable ITF-6, Do Not Transmit Check Digit Enable ITF-6, Transmit Check Digit Note: It is advisable not to enable ITF-6 and Interleaved 2 of 5 at the same time.

  • Page 81: Itf-14

    ITF-14 ITF-14 is a special kind of Interleaved 2 of 5 with a length of 14 characters and the last character as the check character. Restore the Factory Defaults of ITF-14 Enable ITF-14, Do Not Transmit Check Digit Disable ITF-14 (default) Enable ITF-14, Transmit Check Digit Note: It is advisable not to enable ITF-14 and Interleaved 2 of 5 at the same time.

  • Page 82: Deutsche 14

    Deutsche 14 Restore Factory Defaults Restore the Factory Defaults of Deutsche 14 Enable/Disable Deutsche 14 Enable Deutsche 14, Do Not Transmit Check Digit Disable Deutsche 14 (default) Enable Deutsche 14, Transmit Check Digit Note: It is advised not to enable Deutsche 14 unless necessary, because Deutsche 14, ITF-14 and Interleaved 2 of 5 use the same encoding method and enabling them at the same time can easily cause confusion with each other when decoding.

  • Page 83: Deutsche 12

    Deutsche 12 Restore Factory Defaults Restore the Factory Defaults of Deutsche 12 Enable/Disable Deutsche 12 Enable Deutsche 12, Do Not Transmit Check Digit Disable Deutsche 12 (default) Enable Deutsche 12, Transmit Check Digit Note: It is advised not to enable Deutsche 12 unless necessary, because Deutsche 12, ITF-12 and Interleaved 2 of 5 use the same encoding method and enabling them at the same time can easily cause confusion with each other when decoding.

  • Page 84: Coop 25 (Japanese Matrix 2 Of 5)

    COOP 25 (Japanese Matrix 2 of 5) Restore Factory Defaults Restore the Factory Defaults of COOP 25 Enable/Disable COOP 25 Enable COOP 25 Disable COOP 25 (default) Check Digit Verification Disable (default) Transmit Check Digit After Verification Do Not Transmit Check Digit After Verification...

  • Page 85: Set Length Range For Coop 25

    Set Length Range for COOP 25 The scanner can be configured to only decode COOP 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes COOP 25 barcodes with either the minimum or maximum length.

  • Page 86: Matrix 2 Of 5 (European Matrix 2 Of 5)

    Matrix 2 of 5 (European Matrix 2 of 5) Restore Factory Defaults Restore the Factory Defaults of Matrix 2 of 5 Enable/Disable Matrix 2 of 5 Enable Matrix 2 of 5 (default) Disable Matrix 2 of 5 Check Digit Verification Disable (default) Transmit Check Digit After Verification...

  • Page 87: Set Length Range For Matrix 2 Of 5

    Set Length Range for Matrix 2 of 5 The scanner can be configured to only decode Matrix 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 88: Industrial 25

    Industrial 25 Restore Factory Defaults Restore the Factory Defaults of Industrial 25 Enable/Disable Industrial 25 Enable Industrial 25 (default) Disable Industrial 25 Check Digit Verification Disable (default) Transmit Check Digit After Verification Do Not Transmit Check Digit After Verification...

  • Page 89: Set Length Range For Industrial 25

    Set Length Range for Industrial 25 The scanner can be configured to only decode Industrial 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Industrial 25 barcodes with either the minimum or maximum length.

  • Page 90: Standard 25

    Standard 25 Restore Factory Defaults Restore the Factory Defaults of Standard 25 Enable/Disable Standard 25 Enable Standard 25 (default) Disable Standard 25 Check Digit Verification Disable (default) Transmit Check Digit After Verification Do Not Transmit Check Digit After Verification...

  • Page 91: Set Length Range For Standard 25

    Set Length Range for Standard 25 The scanner can be configured to only decode Standard 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Standard 25 barcodes with either the minimum or maximum length.

  • Page 92: Code 39

    Code 39 Restore Factory Defaults Restore the Factory Defaults of Code 39 Enable/Disable Code 39 Enable Code 39 (default) Disable Code 39 Check Digit Verification Disable (default) Transmit Check Digit After Verification Do Not Transmit Check Digit After Verification...

  • Page 93: Transmit Start/Stop Character

    Transmit Start/Stop Character Code 39 uses an asterisk (*) for both the start and the stop characters. You can choose whether or not to transmit the start/stop characters by scanning the appropriate barcode below. Transmit Start/Stop Character (default) Do Not Transmit Start/Stop Character Enable/Disable Code 39 Full ASCII The scanner can be configured to identify all ASCII characters by scanning the appropriate barcode below.

  • Page 94: Code 32 Prefix

    Code 32 Prefix Scan the appropriate bar code below to enable or disable adding the prefix character “A” to all Code 32 barcodes. Code 32 must be enabled for this parameter to function. Disable Code 32 Prefix (default) Enable Code 32 Prefix Transmit Code 32 Check Digit Code 32 must be enabled for this parameter to function.

  • Page 95: Set Length Range For Code 39

    Set Length Range for Code 39 The scanner can be configured to only decode Code 39 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Code 39 barcodes with either the minimum or maximum length.

  • Page 96: Codabar

    Codabar Restore Factory Defaults Restore the Factory Defaults of Codabar Enable/Disable Codabar Enable Codabar (default) Disable Codabar Check Digit Verification Disable (default) Transmit Check Digit After Verification Do Not Transmit Check Digit After Verification...

  • Page 97: Transmit Start/Stop Character

    Transmit Start/Stop Character Do Not Transmit Start/Stop Character Transmit Start/Stop Character (default) ABCD/ABCD as the Start/Stop Character (default) ABCD/TN*E as the Start/Stop Character abcd/abcd as the Start/Stop Character abcd/tn*e as the Start/Stop Character...

  • Page 98: Set Length Range For Codabar

    Set Length Range for Codabar The scanner can be configured to only decode Codabar barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Codabar barcodes with either the minimum or maximum length.

  • Page 99: Code 93

    Code 93 Restore Factory Defaults Restore the Factory Defaults of Code 93 Enable/Disable Code 93 Enable Code 93 (default) Disable Code 93 Check Digit Verification Disable Transmit Check Digit After Verification Do Not Transmit Check Digit After Verification (default)

  • Page 100: Set Length Range For Code 93

    Set Length Range for Code 93 The scanner can be configured to only decode Code 93 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Code 93 barcodes with either the minimum or maximum length.

  • Page 101: Code 11

    Code 11 Restore Factory Defaults Restore the Factory Defaults of Code 11 Enable/Disable Code 11 Enable Code 11 Disable Code 11 (default)

  • Page 102: Check Digit Verification

    Check Digit Verification Disable One Check Digit, MOD11 (default) Two Check Digits, MOD11/MOD11 Two Check Digits, MOD11/MOD9 One Check Digit, MOD11 (Len <= 10) One Check Digit, MOD11 (Len <= 10) Two Check Digits, MOD11/MOD11 (Len > 10) Two Check Digits, MOD11/MOD9 (Len > 10) Do Not Transmit Check Digit (default) Transmit Check Digit...

  • Page 103: Set Length Range For Code 11

    Set Length Range for Code 11 The scanner can be configured to only decode Code 11 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Code 11 barcodes with either the minimum or maximum length.

  • Page 104: Plessey

    Plessey Restore Factory Defaults Restore the Factory Defaults of Plessey Enable/Disable Plessey Enable Plessey Disable Plessey (default) Check Digit Verification Disable Transmit Check Digit After Verification Do Not Transmit Check Digit After Verification (default)

  • Page 105: Set Length Range For Plessey

    Set Length Range for Plessey The scanner can be configured to only decode Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Plessey barcodes with either the minimum or maximum length.

  • Page 106: Msi-Plessey

    MSI-Plessey Restore Factory Defaults Restore the Factory Defaults of MSI-Plessey Enable/Disable MSI-Plessey Enable MSI-Plessey Disable MSI-Plessey (default)

  • Page 107: Check Digit Verification

    Check Digit Verification Disable One Check Digit, MOD10 (default) Two Check Digits, MOD10/MOD10 Two Check Digits, MOD10/MOD11 Do Not Transmit Check Digit (default) Transmit Check Digit...

  • Page 108: Set Length Range For Msi-Plessey

    Set Length Range for MSI-Plessey The scanner can be configured to only decode MSI-Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes MSI-Plessey barcodes with either the minimum or maximum length.

  • Page 109: Gs1 Databar

    GS1 Databar Restore Factory Defaults Restore the Factory Defaults of GS1 Databar Enable/Disable GS1 Databar Enable GS1 Databar (default) Disable GS1 Databar...

  • Page 110: 2D Scanner

    2D Scanner Global Settings Enable/Disable All Symbologies If the Disable All Symbologies feature is enabled, the scanner will not be able to read any non-programming barcodes except the programming barcodes. Enable All Symbologies Disable All Symbologies Enable/Disable 1D Symbologies If the Disable 1D Symbologies feature is enabled, the scanner will not be able to read any 1D barcodes. Enable 1D Symbologies Disable 1D Symbologies Enable/Disable 2D Symbologies...

  • Page 111: Video Reverse

    Video Reverse The Video Reverse feature only applies to 2D barcodes. Regular barcode: Dark image on a bright background. Inverse barcode: Bright image on a dark background. The examples of regular barcode and inverse barcode are shown below. Regular Barcode Inverse Barcode Video Reverse allows the scanner to read barcodes that are inverted.

  • Page 112: Code 128

    Code 128 Restore Factory Defaults Restore the Factory Defaults of Code 128 Enable/Disable Code 128 Enable Code 128 (default) Disable Code 128...

  • Page 113: Set Length Range For Code 128

    Set Length Range for Code 128 The scanner can be configured to only decode Code 128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Code 128 barcodes with either the minimum or maximum length.

  • Page 114: Gs1-128 (Ucc/Ean-128)

    GS1-128 (UCC/EAN-128) Restore Factory Defaults Restore the Factory Defaults of GS1-128 Enable/Disable GS1-128 Enable GS1-128 (default) Disable GS1-128...

  • Page 115: Set Length Range For Gs1-128

    Set Length Range for GS1-128 The scanner can be configured to only decode GS1-128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes GS1-128 barcodes with either the minimum or maximum length.

  • Page 116: Aim-128

    AIM-128 Restore Factory Defaults Restore the Factory Defaults of AIM-128 Enable/Disable AIM-128 Enable AIM-128 (default) Disable AIM-128...

  • Page 117: Set Length Range For Aim-128

    Set Length Range for AIM-128 The scanner can be configured to only decode AIM-128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes AIM-128 barcodes with either the minimum or maximum length.

  • Page 118: 104

    EAN-8 Restore Factory Defaults Restore the Factory Defaults of EAN-8 Enable/Disable EAN-8 Enable EAN-8 (default) Disable EAN-8 Transmit Check Digit EAN-8 is 8 digits in length with the last one as its check digit used to verify the integrity of the data. Transmit EAN-8 Check Digit (default) Do Not Transmit EAN-8 Check Digit...

  • Page 119: Add-On Code

    Add-On Code An EAN-8 barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is add-on code.

  • Page 120: Add-On Code Required

    Add-On Code Required When EAN-8 Add-On Code Required is selected, the scanner will only read EAN-8 barcodes that contain add-on codes. EAN-8 Add-On Code Required EAN-8 Add-On Code Not Required (default) EAN-8 Extension Disable EAN-8 Zero Extend: Transmit EAN-8 barcodes as is. Enable EAN-8 Zero Extend: Add five leading zeros to decoded EAN-8 barcodes to extend to13 digits.

  • Page 121: 107

    EAN-13 Restore Factory Defaults Restore the Factory Defaults of EAN-13 Enable/Disable EAN-13 Enable EAN-13 (default) Disable EAN-13 Transmit Check Digit Transmit EAN-13 Check Digit (default) Do Not Transmit EAN-13 Check Digit...

  • Page 122: Add-On Code

    Add-On Code An EAN-13 barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code Disable 2-Digit Add-On Code (default) Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code (default) Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of EAN-13 barcodes with and without 2-digit/5-digit add-on codes.

  • Page 123: Beginning With 290 Add-On Code Required (For Bs8060-2T)

    EAN-13 Beginning with 290 Add-On Code Required (For BS8060-2T) This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “290”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with “290” must have a 2-digit or 5-digit add-on code.

  • Page 124: Beginning With 414/419 Add-On Code Required (For Bs8060-2T)

    EAN-13 Beginning with 414/419 Add-On Code Required (For BS8060-2T) This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with a “414” or “419”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with a “414” or “419” must have a 2-digit or 5-digit add-on code.

  • Page 125: Beginning With 977 Add-On Code Required (For Bs8060-2T)

    EAN-13 Beginning with 977 Add-On Code Required (For BS8060-2T) This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “977”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with “977” must have a 2-digit or 5-digit add-on code.

  • Page 126: Beginning With 979 Add-On Code Required (For Bs8060-2T)

    EAN-13 Beginning with 979 Add-On Code Required (For BS8060-2T) This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “979”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with “979” must have a 2-digit or 5-digit add-on code.

  • Page 127: Issn

    ISSN Restore Factory Defaults Restore the Factory Defaults of ISSN Enable/Disable ISSN Enable ISSN Disable ISSN (default)

  • Page 128: Add-On Code

    Add-On Code An ISSN barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code Disable 2-Digit Add-On Code (default) Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code (default) Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of ISSN barcodes with and without 2-digit/5-digit add-on codes.

  • Page 129: Isbn

    ISBN Restore Factory Default Restore the Factory Defaults of ISBN Enable/Disable ISBN Enable ISBN (default) Disable ISBN Set ISBN Format ISBN-13 (default) ISBN-10...

  • Page 130: Add-On Code

    Add-On Code An ISBN barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code Disable 2-Digit Add-On Code (default) Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code (default) Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of ISBN barcodes with and without 2-digit/5-digit add-on codes.

  • Page 131: Upc-E

    UPC-E Restore Factory Defaults Restore the Factory Defaults of UPC-E Enable/Disable UPC-E Enable UPC-E (default) Disable UPC-E Transmit Check Digit Transmit UPC-E Check Digit (default) Do Not Transmit UPC-E Check Digit...

  • Page 132: Add-On Code

    Add-On Code A UPC-E barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code Disable 2-Digit Add-On Code (default) Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code (default) Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of UPC-E barcodes with and without 2-digit/5-digit add-on codes.

  • Page 133: Transmit System Character "0

    Transmit System Character “0” The first character of UPC-E barcode is the system character “0”. Transmit System Character “0” Do Not Transmit System Character “0” (default) UPC-E Extension Disable UPC-E Extend: Transmit UPC-E barcodes as is. Enable UPC-E Extend: Extend UPC-E barcodes to make them compatible in length to UPC-A. Enable UPC-E Extend Disable UPC-E Extend (default)

  • Page 134: Upc-A

    UPC-A Restore Factory Defaults Restore the Factory Defaults of UPC-A Enable/Disable UPC-A Enable UPC-A (default) Disable UPC-A Transmit Check Digit Transmit UPC-A Check Digit (default) Do Not Transmit UPC-A Check Digit...

  • Page 135: Add-On Code

    Add-On Code A UPC-A barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code Disable 2-Digit Add-On Code (default) Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code (default) Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of UPC-A barcodes with and without 2-digit/5-digit add-on codes.

  • Page 136: Transmit Preamble Character "0

    Transmit Preamble Character “0” Transmit Preamble Character “0” Do not Transmit Preamble Character “0” (default) Note: The preamble character “0” usually does not appear in printed UPC-A barcodes.

  • Page 137: Interleaved 2 Of 5

    Interleaved 2 of 5 Restore Factory Defaults Restore the Factory Defaults of Interleaved 2 of 5 Enable/Disable Interleaved 2 of 5 Enable Interleaved 2 of 5 (default) Disable Interleaved 2 of 5...

  • Page 138: Set Length Range For Interleaved 2 Of 5

    Set Length Range for Interleaved 2 of 5 The scanner can be configured to only decode Interleaved 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 139: Check Digit Verification

    Check Digit Verification A check digit is optional for Interleaved 2 o 5 and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Interleaved 2 of 5 barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Interleaved 2 of 5 barcodes to verify that the data complies with the check digit algorithm.

  • Page 140: 126

    ITF-14 ITF-14 is a special kind of Interleaved 2 of 5 with a length of 14 characters and the last character as the check digit. Restore the Factory Defaults of ITF-14 Disable ITF-14 Enable ITF-14 But Do Not Transmit Check Digit (default) Enable ITF-14 and Transmit Check Digit Note: It is advisable not to enable ITF-14 and Interleaved 2 of 5 at the same time.

  • Page 141: 127

    ITF-6 ITF-6 is a special kind of Interleaved 2 of 5 with a length of 6 characters and the last character as the check digit. Restore the Factory Defaults of ITF-6 Disable ITF-6 (default) Enable ITF-6 But Do Not Transmit Check Digit Enable ITF-6 and Transmit Check Digit Note: It is advisable not to enable ITF-6 and Interleaved 2 of 5 at the same time.

  • Page 142: Matrix 2 Of 5

    Matrix 2 of 5 Restore Factory Defaults Restore the Factory Defaults of Matrix 2 of 5 Enable/Disable Matrix 2 of 5 Enable Matrix 2 of 5 Disable Matrix 2 of 5 (default)

  • Page 143: Set Length Range For Matrix 2 Of 5

    Set Length Range for Matrix 2 of 5 The scanner can be configured to only decode Matrix 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 144: Check Digit Verification

    Check Digit Verification Disable Do Not Transmit Check Digit After Verification (default) Transmit Check Digit After Verification...

  • Page 145: Industrial 2 Of 5

    Industrial 2 of 5 Restore Factory Defaults Restore the Factory Defaults of Industrial 2 of 5 Enable/Disable Industrial 2 of 5 Enable Industrial 2 of 5 (default) Disable Industrial 2 of 5...

  • Page 146: Set Length Range For Industrial 2 Of 5

    Set Length Range for Industrial 2 of 5 The scanner can be configured to only decode Industrial 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 147: Check Digit Verification

    Check Digit Verification Disable (default) Transmit Check Digit After Verification Do Not Transmit Check Digit After Verification...

  • Page 148: Standard 25 (Iata 2 Of 5)

    Standard 25 (IATA 2 of 5) Restore Factory Defaults Restore the Factory Defaults of Standard 25 Enable/Disable Standard 25 Enable Standard 25 (default) Disable Standard 25...

  • Page 149: Set Length Range For Standard 25

    Set Length Range for Standard 25 The scanner can be configured to only decode Standard 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Standard 25 barcodes with either the minimum or maximum length.

  • Page 150: Check Digit Verification

    Check Digit Verification Disable (default) Transmit Check Digit After Verification Do Not Transmit Check Digit After Verification...

  • Page 151: Code 39

    Code 39 Restore Factory Defaults Restore the Factory Defaults of Code 39 Enable/Disable Code 39 Enable Code 39 (default) Disable Code 39 Transmit Start/Stop Character Transmit Start/Stop Character Do not Transmit Start/Stop Character (default)

  • Page 152: Set Length Range For Code 39

    Set Length Range for Code 39 The scanner can be configured to only decode Code 39 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Code 39 barcodes with either the minimum or maximum length.

  • Page 153: Check Digit Verification

    Check Digit Verification Disable (default) Transmit Check Digit After Verification Do Not Transmit Check Digit After Verification Enable/Disable Code 39 Full ASCII The scanner can be configured to identify all ASCII characters by scanning the appropriate barcode below. Enable Code 39 Full ASCII (default) Disable Code 39 Full ASCII Enable/Disable Code 32 (For BS8060-2T)

  • Page 154: Code 32 Prefix (For Bs8060-2T)

    Code 32 Prefix (For BS8060-2T) Scan the appropriate bar code below to enable or disable adding the prefix character “A” to all Code 32 barcodes. Code 32 must be enabled for this parameter to function. Disable Code 32 Prefix (default) Enable Code 32 Prefix Transmit Code 32 Check Digit (For BS8060-2T) Code 32 must be enabled for this parameter to function.

  • Page 155: Codabar

    Codabar Restore Factory Defaults Restore the Factory Defaults of Codabar Enable/Disable Codabar Enable Codabar (default) Disable Codabar...

  • Page 156: Set Length Range For Codabar

    Set Length Range for Codabar The scanner can be configured to only decode Codabar barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Codabar barcodes with either the minimum or maximum length.

  • Page 157: Check Digit Verification

    Check Digit Verification Disable (default) Transmit Check Digit After Verification Do Not Transmit Check Digit After Verification Transmit Start/Stop Character Transmit Start/Stop Character Do not Transmit Start/Stop Character (default)

  • Page 158: Start/Stop Character Format

    Start/Stop Character Format You can choose your desired start/stop character format by scanning the appropriate barcode below. ABCD/ABCD as the Start/Stop Character (default) ABCD/TN*E as the Start/Stop Character Start/Stop Character in Uppercase Start/Stop Character in Lowercase...

  • Page 159: Code 93

    Code 93 Restore Factory Defaults Restore the Factory Defaults of Code 93 Enable/Disable Code 93 Enable Code 93 (default) Disable Code 93...

  • Page 160: Set Length Range For Code 93

    Set Length Range for Code 93 The scanner can be configured to only decode Code 93 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Code 93 barcodes with either the minimum or maximum length.

  • Page 161: Check Digit Verification

    Check Digit Verification Disable Do Not Transmit Check Digit After Verification (default) Transmit Check Digit After Verification...

  • Page 162: Gs1-Databar (Rss)

    GS1-Databar (RSS) Restore Factory Defaults Restore the Factory Defaults of GS1-Databar Enable/Disable GS1 Databar Enable GS1-DataBar (default) Disable GS1-DataBar Transmit Application Identifier “01” Transmit Application Identifier “01” Do Not Transmit Application Identifier “01” (default)

  • Page 163: Code 11

    Code 11 Restore Factory Defaults Restore the Factory Defaults of Code 11 Enable/Disable Code 11 Enable Code 11 (default) Disable Code 11...

  • Page 164: Set Length Range For Code 11

    Set Length Range for Code 11 The scanner can be configured to only decode Code 11 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Code 11 barcodes with either the minimum or maximum length.

  • Page 165: Transmit Check Digit

    Transmit Check Digit Transmit Check Digit Do Not Transmit Check Digit (default) Check Digit Verification Disable One Check Digit, MOD11 (default) Two Check Digits, MOD11/MOD11 Two Check Digits, MOD11/MOD9 One Check Digit, MOD11 (Len<=10) One Check Digit, MOD11 (Len<=10) Two Check Digits, MOD11/MOD11 (Len>10) Two Check Digits, MOD11/MOD9 (Len>10)

  • Page 166: Plessey

    Plessey Restore Factory Defaults Restore the Factory Defaults of Plessey Enable/Disable Plessey Enable Plessey (default) Disable Plessey...

  • Page 167: Set Length Range For Plessey

    Set Length Range for Plessey The scanner can be configured to only decode Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Plessey barcodes with either the minimum or maximum length.

  • Page 168: Check Digit Verification

    Check Digit Verification Disable Do Not Transmit Check Digit After Verification (default) Transmit Check Digit After Verification...

  • Page 169: Msi-Plessey

    MSI-Plessey Restore Factory Defaults Restore the Factory Defaults of MSI-Plessey Enable/Disable MSI-Plessey Enable MSI-Plessey (default) Disable MSI-Plessey...

  • Page 170: Set Length Range For Msi-Plessey

    Set Length Range for MSI-Plessey The scanner can be configured to only decode MSI-Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes MSI-Plessey barcodes with either the minimum or maximum length.

  • Page 171: Transmit Check Digit

    Transmit Check Digit Transmit Check Digit Do Not Transmit Check Digit (default) Check Digit Verification Disable One Check Digit, MOD10 (default) Two Check Digits, MOD10/MOD10 Two Check Digits, MOD10/MOD11...

  • Page 172: Pdf 417

    PDF 417 Restore Factory Defaults Restore the Factory Defaults of PDF 417 Enable/Disable PDF 417 Enable PDF 417 (default) Disable PDF 417...

  • Page 173: Set Length Range For Pdf 417

    Set Length Range for PDF 417 The scanner can be configured to only decode PDF 417 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes PDF 417 barcodes with either the minimum or maximum length.

  • Page 174: Pdf 417 Twin Code

    PDF 417 Twin Code PDF417 twin code is 2 PDF417 barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes. They must have similar specifications and be placed closely together. There are 3 options for reading PDF417 twin codes: Single PDF417 Only: Read either PDF417 code.

  • Page 175: Qr Code

    QR Code Restore Factory Defaults Restore the Factory Defaults of QR Code Enable/Disable QR Code Enable QR Code (default) Disable QR Code Micro QR Enable Micro QR (default) Disable Micro QR...

  • Page 176: Set Length Range For Qr Code

    Set Length Range for QR Code The scanner can be configured to only decode QR Code barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes QR Code barcodes with either the minimum or maximum length.

  • Page 177: Qr Twin Code

    QR Twin Code QR twin code is 2 QR barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes. They must have similar specifications and be placed closely together. There are 3 options for reading QR twin codes: Single QR Only: Read either QR code.

  • Page 178: Data Matrix

    Data Matrix Restore Factory Defaults Restore the Factory Defaults of Data Matrix Enable/Disable Data Matrix Enable Data Matrix (default) Disable Data Matrix...

  • Page 179: Set Length Range For Data Matrix

    Set Length Range for Data Matrix The scanner can be configured to only decode Data Matrix barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Data Matrix barcodes with either the minimum or maximum length.

  • Page 180: Rectangular Barcode

    Rectangular Barcode Enable Rectangular Barcode (default) Disable Rectangular Barcode Mirror Image Decode Mirror Images (default) Do Not Decode Mirror Images...

  • Page 181: Data Matrix Twin Code

    Data Matrix Twin Code Data Matrix twin code is 2 Data Matrix barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes. They must have similar specifications and be placed closely together. There are 3 options for reading Data Matrix twin codes: Single Data Matrix Only: Read either Data Matrix code.

  • Page 182: Chinese Sensible Code

    Chinese Sensible Code Restore Factory Defaults Restore the Factory Defaults of Chinese Sensible Code Enable/Disable Chinese Sensible Code Enable Chinese Sensible Code Disable Chinese Sensible Code (default)

  • Page 183: Set Length Range For Chinese Sensible Code

    Set Length Range for Chinese Sensible Code The scanner can be configured to only decode Chinese Sensible Code barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Chinese Sensible Code barcodes with either the minimum or maximum length.

  • Page 184: Chapter 4 Prefix & Suffix

    Chapter 4 Prefix & Suffix 1D Scanner After a successful barcode reading, a string containing numbers, letters or symbols will be returned. In real applications, barcode data may be found insufficient for your needs. You may wish to include additional information such as barcode type, data acquisition time or delimiter in data being scanned. Adding extra information to printed barcodes does not seem like a sensible solution since that will increase the barcode size and make them inflexible.

  • Page 185: Custom Prefix

    Custom Prefix Enable/Disable Custom Prefix If custom prefix is enabled, you are allowed to append to the data a user-defined prefix that cannot exceed 11 characters. For example, if barcode data is “123” and custom prefix is “AB”, the host device will receive “AB123”. Disable Custom Prefix (default) Enable Custom Prefix Set Custom Prefix...

  • Page 186: Aim Id Prefix

    AIM ID Prefix AIM (Automatic Identification Manufacturers) ID defines symbology identifier (For the details, see AIM ID Table in Appendix). If AIM ID prefix is enabled, the scanner will add the symbology identifier before the scanned data after decoding. Enable AIM ID Prefix Disable AIM ID Prefix(default)

  • Page 187: Code Id Prefix

    Code ID Prefix Code ID can also be used to identify barcode type. Unlike AIM ID, Code ID is user programmable. Code ID can only consist of one or two English letters. Disable Code ID Prefix (default) Enable Code ID Prefix Restore All Default Code IDs For the information of default Code IDs, see Code ID Table (1D Scanner) in Appendix.
  • Page 188 Modify Code 128 Code ID Modify UCC/EAN 128 Code ID Modify AIM 128 Code ID Modify EAN-8 Code ID Modify EAN-13 Code ID Modify ISSN Code ID Modify ISBN Code ID Modify UPC-E Code ID Modify UPC-A Code ID Modify Interleaved 2 of 5 Code ID...
  • Page 189 Modify ITF-6 Code ID Modify ITF-14 Code ID Modify Deutsche 14 Code ID Modify Deutsche 12 Code ID Modify COOP25 Code ID Modify Matrix 2 of 5 Code ID Modify Industrial 25 Code ID Modify Standard 25 Code ID Modify Code 39 Code ID Modify Codabar Code ID...
  • Page 190 Modify Code 93 Code ID Modify Code 11 Code ID Modify Plessey Code ID Modify MSI-Plessey Code ID Modify GS1 Databar Code ID...

  • Page 191: Custom Suffix

    Custom Suffix Enable/Disable Custom Suffix If custom suffix is enabled, you are allowed to append to the data a user-defined suffix that cannot exceed 11 characters. For example, if barcode data is “123” and custom suffix is “AB”, the host device will receive “123AB”. Disable Custom Suffix (default) Enable Custom Suffix Set Custom Suffix...

  • Page 192: Terminating Character Suffix

    Terminating Character Suffix Enable/Disable Terminating Character Suffix A terminating character such as carriage return (CR) or carriage return/line feed pair (CRLF) can only be used to mark the end of data, which means nothing can be added after it. A terminating character suffix cannot exceed 7 characters.

  • Page 193: 2D Scanner

    2D Scanner In many applications, barcode data needs to be edited and distinguished from one another. Usually AIM ID and Code ID can be used as identifiers, but in some special cases customized prefix and terminating character suffix like Carriage Return or Line Feed can also be the alternatives. Data formatting may include: ...

  • Page 194: Custom Prefix

    Custom Prefix Enable/Disable Custom Prefix If custom prefix is enabled, you are allowed to append to the data a user-defined prefix that cannot exceed 11 characters. Enable Custom Prefix Disable Custom Prefix (default) Set Custom Prefix To set a custom prefix, scan the Set Custom Prefix barcode and the numeric barcodes representing the hexadecimal values of a desired prefix and then scan the Save barcode.

  • Page 195: Aim Id Prefix

    AIM ID Prefix AIM (Automatic Identification Manufacturers) IDs and ISO/IEC 15424 standards define symbology identifiers and data carrier identifiers. (For the details, see AIM ID Table (2D Scanner) in Appendix. If AIM ID prefix is enabled, the engine will add the symbology identifier before the scanned data after decoding.

  • Page 196: Code Id Prefix

    Code ID Prefix Code ID can also be used to identify barcode type. Unlike AIM ID, Code ID is user programmable. Code ID can only consist of one or two English letters. Enable Code ID Prefix Disable Code ID Prefix (default) Restore All Default Code IDs For the information of default Code IDs, see Code ID Table (2D Scanner) in Appendix.
  • Page 197 Modify PDF417 Code ID Modify Data Matrix Code ID Modify QR Code ID Modify Chinese Sensible Code ID Modify Code 128 Code ID Modify GS1-128 Code ID Modify AIM-128 Code ID Modify EAN-8 Code ID Modify EAN-13 Code ID Modify UPC-E Code ID...
  • Page 198 Modify UPC-A Code ID Modify ISBN Code ID Modify ISSN Code ID Modify Code 39 Code ID Modify Code 93 Code ID Modify Interleaved 2 of 5 Code ID Modify ITF-14 Code ID Modify ITF-6 Code ID Modify Codabar Code ID Modify Industrial 25 Code ID...
  • Page 199 Modify Standard 25 Code ID Modify Matrix 25 Code ID Modify COOP 25 Code ID Modify Code 11 Code ID Modify Plessey Code ID Modify MSI/Plessey Code ID Modify GS1 Databar Code ID...

  • Page 200: Custom Suffix

    Custom Suffix Enable/Disable Custom Suffix If custom suffix is enabled, you are allowed to append to the data a user-defined suffix that cannot exceed 11 characters. Enable Custom Suffix Disable Custom Suffix (default) Set Custom Suffix To set a custom suffix, scan the Set Custom Suffix barcode and the numeric barcodes representing the hexadecimal values of a desired suffix and then scan the Save barcode.

  • Page 201: Terminating Character Suffix

    Terminating Character Suffix A terminating character can be used to mark the end of data, which means nothing can be added after it. A terminating character suffix can contain 1-7 characters. Enable/Disable Terminating Character Suffix To enable/disable terminating character suffix, scan the appropriate barcode below. Enable Terminating Character Suffix (default) Disable Terminating Character Suffix...

  • Page 202: Set Terminating Character Suffix

    Set Terminating Character Suffix The engine provides a shortcut for setting the terminating character suffix to CR (0x0D) or CRLF (0x0D,0x0A) and enabling it by scanning the appropriate barcode below. Terminating Character CR (0x0D) (default) Terminating Character CRLF (0x0D,0x0A) To set a terminating character suffix, scan the Set Terminating Character Suffix barcode and the numeric barcodes representing the hexadecimal value of a desired terminating character and then scan the Save barcode.

  • Page 203: Appendix

    Appendix Factory Defaults Table Parameter Factory Default Remark System Settings Operating Mode Bluetooth mode Bluetooth Profile Data Transmission via Bluetooth Synchronous transmission USB Interface Type USB HID-KBW Data Transmission via USB Asynchronous transmission Verify Receipt of Data Disabled Sound Notifications Enabled Vibration Notifications Disabled...
  • Page 204 Parameter Factory Default Remark Prefix & Suffix 1D Scanner Prefix Sequence Code ID+Custom Prefix+AIM ID AIM ID Prefix Disabled Code ID Prefix Disabled 1 or 2 English letters Disabled Custom Prefix Max: 11 characters None Disabled Custom Suffix Max: 11 characters None Enabled Terminating Character Suffix...
  • Page 205 Parameter Factory Default Remark Symbologies 1D Scanner Code 128 Code 128 Enabled Maximum Length Minimum Length UCC/EAN-128 UCC/EAN-128 Enabled Maximum Length Minimum Length AIM 128 AIM 128 Disabled Maximum Length Minimum Length EAN-8 EAN-8 Enabled Check Digit Transmit 2-Digit Add-On Code Disabled 5-Digit Add-On Code Disabled...
  • Page 206 EAN-13 Beginning with 378/379 Add-On Code Do Not Require Add-On Code Required EAN-13 Beginning with 414/419 Add-On Code Do Not Require Add-On Code Required EAN-13 Beginning with 434/439 Add-On Code Do Not Require Add-On Code Required EAN-13 Beginning with 977 Add-On Code Do Not Require Add-On Code Required EAN-13 Beginning with 978 Add-On Code...
  • Page 207 System Character Transmit Country Code Do not transmit Interleaved 2 of 5 Interleaved 2 of 5 Enabled Check Digit Verification Enabled Check Digit Do not transmit Maximum Length Minimum Length No less than 2 ITF-6 ITF-6 Disabled Check Digit Do not transmit ITF-14 ITF-14 Disabled...
  • Page 208 Check Digit Verification Disabled Check Digit Do not transmit Maximum Length Minimum Length No less than 4 Standard 25 Standard 25 Enabled Check Digit Verification Disabled Check Digit Do not transmit Maximum Length Minimum Length No less than 4 Code 39 Code 39 Enabled Check Digit Verification...
  • Page 209 Minimum Length No less than 1 Code 11 Code 11 Disabled Check Digit Do not transmit Enabled Check Digit Verification 1 Check Digit, MOD11 Maximum Length Minimum Length No less than 3 Plessey Plessey Disabled Check Digit Verification Enabled Check Digit Do not transmit Maximum Length Minimum Length...
  • Page 210 Parameter Factory Default Remark 2D Scanner Video Reverse Disabled Applicable to all symbologies. Code 128 Code 128 Enabled Maximum Length Minimum Length GS1-128 (UCC/EAN-128) GS1-128 Enabled Maximum Length Minimum Length AIM 128 AIM 128 Enabled Maximum Length Minimum Length EAN-8 EAN-8 Enabled Check Digit...
  • Page 211 EAN-13 Beginning with 977 Add-On Code Do Not Require Add-On Code For BS8060-2T Required EAN-13 Beginning with 978 Add-On Code Do Not Require Add-On Code For BS8060-2T Required EAN-13 Beginning with 979 Add-On Code Do Not Require Add-On Code For BS8060-2T Required ISSN ISSN...
  • Page 212 Maximum Length Minimum Length ITF-6 ITF-6 Disabled Check Digit Do not transmit ITF-14 ITF-14 Enabled Check Digit Do not transmit Matrix 2 of 5 Matrix 2 of 5 Disabled Check Digit Verification Disabled Check Digit Do not transmit Maximum Length Minimum Length Industrial 25 Industrial 25...
  • Page 213 Code 32 Start/Stop Character Do not transmit For BS8060-2T Maximum Length Minimum Length Codabar Codabar Enabled Check Digit Verification Disabled Check Digit Do not transmit Start/Stop Character Do not transmit Start/Stop Character Format ABCD/ABCD Maximum Length Minimum Length Code 93 Code 93 Enabled Check Digit Verification...
  • Page 214 Minimum Length PDF417 PDF417 Enabled Maximum Length 2710 Minimum Length PDF 417 Twin Code Read single PDF417 only QR Code QR Code Enabled Micro QR Enabled Maximum Length 7089 Minimum Length QR Twin Code Read single QR only Data Matrix Data Matrix Enabled Rectangular Barcodes...

  • Page 215: Digit Barcodes (1D Scanner)

    Digit Barcodes (1D Scanner) 0 ~ 9...
  • Page 216 A ~ F...

  • Page 217: Digit Barcodes (2D Scanner)

    Digit Barcodes (2D Scanner) 0 ~ 9...
  • Page 218 A ~ F...

  • Page 219: Save/Cancel Barcodes (1D Scanner)

    Save/Cancel Barcodes (1D Scanner) After reading numeric barcode(s), you need to scan the Save barcode to save the data. If you scan the wrong digit(s), you can either scan the Cancel barcode and then start the configuration all over again, or scan the Cancel the Last Digit barcode and then the correct digit, or scan the Cancel All Digits barcode and then the digits you want.

  • Page 220: Save/Cancel Barcodes (2D Scanner)

    Save/Cancel Barcodes (2D Scanner) After reading numeric barcode(s), you need to scan the Save barcode to save the data. If you scan the wrong digit(s), you can either scan the Cancel barcode and then start the configuration all over again, or scan the Delete the Last Digit barcode and then the correct digit, or scan the Delete All Digits barcode and then the digits you want.

  • Page 221: Aim Id Table (1D Scanner)

    AIM ID Table (1D Scanner) Symbology AIM ID Possible AIM ID Parameters Code 128 UCC/EAN-128 AIM 128 ISBT 128 EAN-8 EAN-13 EAN-13 with Addon ISSN ISBN UPC-E UPC-E with Addon UPC-A UPC-A with Addon Interleaved 2 of 5 0,1,3 ITF-6 ITF-14 Deutsche 14 Deutsche 12...

  • Page 222: Aim Id Table (2D Scanner)

    AIM ID Table (2D Scanner) Symbology AIM ID Remark Standard EAN-13 EAN-13 EAN-13 + 2/5-Digit Add-On Code Standard EAN-8 ]E4…]E1… EAN-8 EAN-8 + 2-Digit Add-On Code ]E4…]E2… EAN-8 + 5-Digit Add-On Code Standard UPC-E UPC-E UPC-E + 2/5-Digit Add-On Code Standard UPC-A UPC-A UPC-A + 2/5-Digit Add-On Code...
  • Page 223 Symbology AIM ID Remark MOD11; transmit check digit MOD11/MOD11; transmit check digit Code 11 Do not transmit check digit after verification No check digit verification GS1-DataBar (RSS) Standard GS1-DataBar Plessey Standard Plessey MOD10; transmit check digit MOD10; do not transmit check digit MSI-Plessey MOD10/ MOD11;...

  • Page 224: Code Id Table (1D Scanner)

    Code ID Table (1D Scanner) Barcode Code ID Code 128 UCC/EAN-128 AIM 128 EAN-8 EAN-13 ISSN ISBN UPC-E UPC-A Interleaved 2 of 5 ITF-6 ITF-14 Deutsche 14 Deutsche 12 COOP 25（Japanese Matrix 2 of 5） Matrix 2 of 5(European Matrix 2 of 5) Industrial 25 Standard 25 Code 39...

  • Page 225: Code Id Table (2D Scanner)

    Code ID Table (2D Scanner) Symbology Code ID Code 128 GS1-128(UCC/EAN-128) AIM-128 EAN-8 EAN-13 ISSN ISBN UPC-E UPC-A Interleaved 2 of 5 ITF-6 ITF-14 Matrix 2 of 5 Industrial 2 of 5 Standard 2 of 5 Code 39 Codabar Code 93 Code 11 Plessey MSI-Plessey...

  • Page 226: Ascii Table

    ASCII Table Char (Null char.) (Start of Header) (Start of Text) (End of Text) (End of Transmission) (Enquiry) (Acknowledgment) (Bell) (Backspace) (Horizontal Tab) (Line Feed) (Vertical Tab) (Form Feed) (Carriage Return) (Shift Out) (Shift In) (Data Link Escape) (XON) (Device Control 1) (Device Control 2) (XOFF) (Device Control 3) (Device Control 4)
  • Page 227 Char (Request to Send) (Unit Separator) (Space) (Exclamation Mark) " (Double Quote) (Number Sign) (Dollar Sign) (Percent) & (Ampersand) (Single Quote) (Left/ Opening Parenthesis) (Right / Closing Parenthesis) (Asterisk) (Plus) (Comma) (Minus / Dash) (Dot) (Forward Slash) (Colon) (Semi-colon) < (Less Than) (Equal Sign)
  • Page 228 Char > (Greater Than) (Question Mark) (AT Symbol) (Left / Opening Bracket) (Back Slash) (Right / Closing Bracket)
  • Page 229 Char (Caret / Circumflex) (Underscore) (Grave Accent) (Left/ Opening Brace) (Vertical Bar) (Right/Closing Brace) (Tilde) (Delete)

  • Page 230: Ascii Function Key Mapping Table

    ASCII Function Key Mapping Table ASCII Value No Function Key ASCII Function Function Key Mapping (HEX) Mapping (Null char.) Null Ctrl+2 (Start of Header) Keypad Enter Ctrl+A Caps Lock Ctrl+B (Start of Text) Null Ctrl+C (End of Text) Null Ctrl+D (End of Transmission) Null Ctrl+E...
  • Page 231 ASCII Function Key Mapping Table (Continued) The function key mappings of the last five characters in the previous table differ from one keyboard layout to another. Function Key Mapping Country/ Keyboard Layout United States Ctrl+[ Ctrl+\ Ctrl+] Ctrl+6 Ctrl+- Belgium Ctrl+[ Ctrl+<...
