Newland BS10R Sepia Quick Start Manual

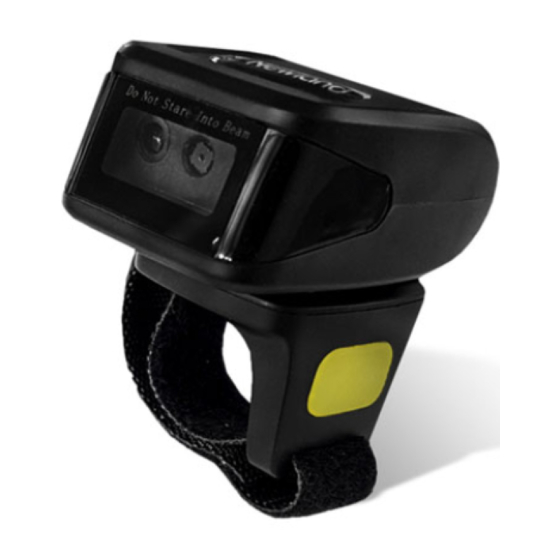

Ring scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

SCANNING MADE SIMPLE
Sepia
scanner
quick start guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BS10R Sepia and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Newland BS10R Sepia

Summary of Contents for Newland BS10R Sepia

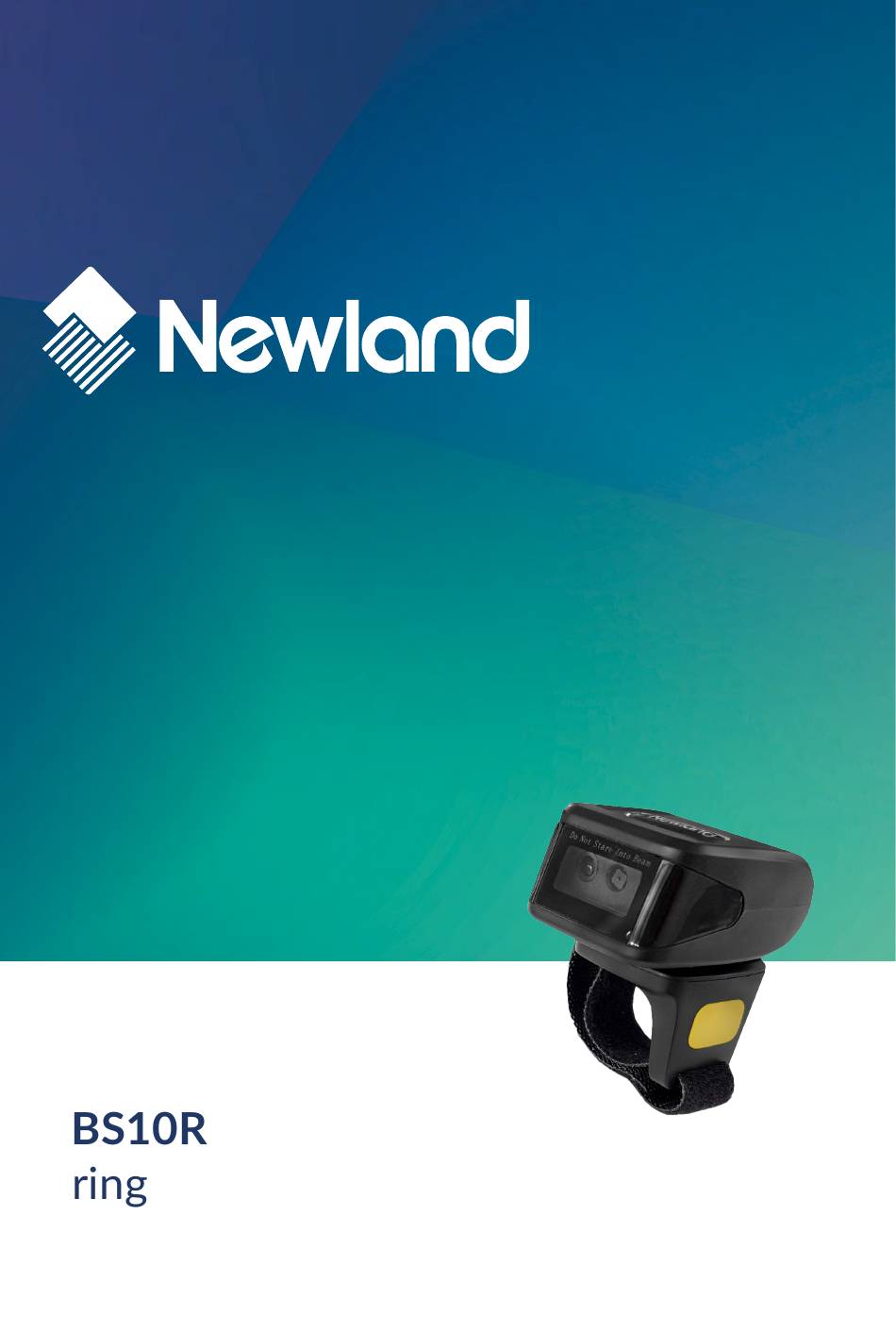

  • Page 1 SCANNING MADE SIMPLE Sepia scanner quick start guide...

  • Page 3: Notice

    Ring Barcode Scanner Precautions 1. Please read the user manual carefully before using this barcode scanner. 2. The working voltage of this barcode scanner is 3.3V, charging voltage 5V. Please use our original USB cable and AC power adapter to ensure the scanner is working properly. 3.

  • Page 4: Table Of Contents

    Ring Barcode Scanner Contents 1.Notice....................1 2.Introduction and Features.............3 3.Application & Execution Standands..........4 4.Working Conditions& Related regulations........5 5.Appearance..................6 6.Installation of USB Cable...............7 7.Reset Configuration to Defaults+Pair with PC terminals HID bluetooth mode..................8 8. Pull up and Hide Keyboard of IOS System........9 9.

  • Page 5: Introduction And Features

    Ring Barcode Scanner Introduction The series of barcode scanner produced by our company feature as strong light source， enhanced long-distance scanning technology. It can read the damaged,stained and poor printed barcode fast under different ambient light conditions. It is durable in use, since it is protected by the industrial safty technique. High volume buzzer is another hint of success scanning besides LED light in the noisy industrial environment.

  • Page 6: Application & Execution Standands

    Ring Barcode Scanner Application * Applicable to Business (electrical, book, clothing, medicine, cosmetics, etc.), retail industry, postal service, telecommunications industry,warehousing, logistics industry, public security system, customs systems,banking system, medical system. * Compatible with Microsoft, Android, Linux and other operating systems and bluetooth protocol * Support multi-national keyboard language Scanner Execution Standards Performance Parameter...

  • Page 7: Working Conditions& Related Regulations

    Ring Barcode Scanner Working Conditions Working Temperature： 32°F to 104°F/0°C to 40°C Storage Temperature： -40°F to 140°F/-40°C to 60°C Humidity： 5% to 95% relative humidity (no condensation) Ruggedness: Resist about 6 times drops from 1.5m to concrete ground Ambient Light Immunity： Under normal office and factory ambient lighting conditions, or exposed to the sun won’...

  • Page 8: Appearance

    Ring Barcode Scanner Appearance Indicator Light Scan Button Logo Scan Window Charging port Power switch Scan Button...

  • Page 9: Installation Of Usb Cable

    Ring Barcode Scanner Installation of Cable USB Cable Installation sample graph Each barcode scanner is with one USB cable.， For connection, please refer to above sample diagram. Noted: Computer host can charge scanner via USB cable and USB cable can also be used as a wire to transmit barcodes. The installation method is as follows: 1.Connect USB cable’...

  • Page 10: Bluetooth Mode

    Ring Barcode Scanner &Version Information Initialization Setting During usage,if you scan other set-up barcode by mistake and the scanning cannot perform as normal way, you can scan the initialization set-up barcode to revert. Initialization Setting Display Version Information Pair with Android, iOS operating system smartphones or tablets or PC terminals that with Bluetooth function (Bluetooth Pairing Steps)

  • Page 11: Pull Up And Hide Keyboard Of Ios System

    Ring Barcode Scanner Pull up and Hide Keyboard of IOS System Pull up and Hide Keyboard of IOS System Trigger twice to pull up iOS keyboard Trigger twice to disable iOS keyboard...

  • Page 12: Sound And Vibration Setting

    Ring Barcode Scanner Sound and Vibration Setting. Select the desired to turn on/off the sound or vibration set-up barcode Turn off the Sound Turn on the Sound Vibration off （optional） Vibration on(optional）...

  • Page 13: Sleep Time Setting

    Ring Barcode Scanner Dormancy time Setting dormancy after 1 min dormancy after 5 mins dormancy after10 mins dormancy after30 mins Never enters dormancy dormancy fastly...

  • Page 14: Language Settings

    Ring Barcode Scanner Keyboard Language Settings. English German French Spanish Italian Japanese...

  • Page 15: End Character Setting

    Ring Barcode Scanner End Character Setting Select the end barcode you want to add Add CR Add LF Add CR+LF Cancel CR+LF Add TAB...

  • Page 16: Transmission Speed Setting And Bluetooth Protocol

    Ring Barcode Scanner Transmission Speed Setting Select the corresponding transmission speed according to PC receiving speed. Fast Medium Slow Very Low Bluetooth protocol Select the desired communication bluetooth protocol barcode Bluetooth HID Mode Bluetooth SPP Mode Bluetooth BLE Mode Note: Scan above barcode to enter the bluetooth searching state...

  • Page 17: Operating Mode

    Ring Barcode Scanner Operating Mode In normal mode, the scans are uploaded directly to computer via USB cable . If succeeds, barcode scannner will make a low-frequency short tone. If it fails, there willl be three low frequency short tones to alarm. In normal mode, if fails, the data will be lost.You can scan below: Normal Mode If the transfer range is beyond Bluetooth wireless transfer range .
  • Page 18 Ring Barcode Scanner Upload the stored data by scanning the "Data Upload" barcode. Data Upload Note: When uploading data, please ensure the wireless signal is perfect, or upload after connecting with USB cable By scanning “Clear Data” to clear the scans in storage, the cleared scans won't be uploaded once cleared.

  • Page 19: Bluetooth Name Change Setting

    Ring Barcode Scanner Bluetooth Name Change Setting A.Scan Bluetooth Name Change Set-up Barcode： Bluetooth Name Change Set-up Barcode B.Scan the user-defined barcode of bluetooth name within 16 characters (Symbology unlimited,letter,number or symbol works). If customer wants to change the bluetooth name as you like it, you should equipped with bar code generator yourself.

  • Page 20: Hide Front And Back Characters

    Ring Barcode Scanner Hide front and back characters A : Scan” Hide front character” or” Hide back character” Setting Barcode Hide front character Hide back character B: Scan hide quantity of characters Hide 1 Character Hide 2 Characters Hide 4 Characters Hide 3 Characters...

  • Page 21: Hide Front And Back Characters

    Ring Barcode Scanner Hide 6 Characters Hide 5 Characters Hide 8 Characters Hide 7 Characters Note: If you want to cancel “Hide front and back characters” operation,please scan barcodes of “Hide front character” or” Hide back character” Setting Barcode...

  • Page 22: Set Prefix And Suffix Setting

    Ring Barcode Scanner Set Prefix and Suffix Setting A : Scan the "Allow for Prefix Adding" or "Allow for Suffix Adding" setting barcode Allow for Prefix Adding Allow for Suffix Adding B : Select the desired contents of prefix or suffix （ Appendix A） Note: If you want to cancel Prefix or Suffix Adding operation, please scan barcodes of “Allow for Prefix Adding”...

  • Page 23: Appendix A

    Ring Barcode Scanner Appendix A:...
  • Page 24 Ring Barcode Scanner...
  • Page 25 Ring Barcode Scanner Blank...
  • Page 26 Ring Barcode Scanner...
  • Page 27 Ring Barcode Scanner...
  • Page 28 Ring Barcode Scanner 蓝牙无线扫描枪...
  • Page 29 Ring Barcode Scanner...
  • Page 30 Ring Barcode Scanner...
  • Page 31 Ring Barcode Scanner...
  • Page 32 Ring Barcode Scanner...
  • Page 33 Ring Barcode Scanner Battery power display...

  • Page 34: Faq(Frequently Asked Questions)

    Ring Barcode Scanner What should I do if I can not pair scanner with Bluetooth devices? A.Please make sure that scanner is in the matching state under corresponding bluetooth protocol B.If the devices has connected successfully with other barcode scanner via bluetooth,or other devices.Please delete the bluetooth connection record before connecting.

  • Page 35: Buzzer And Indicator Light State

    Ring Barcode Scanner 指环式扫描器 Buzzer Sound Type description a long sound （First low then high frequency ） Means power on a long sound （First high then low frequency ） Means power off a short sound （ low frequency ） Means read barcode a short sound （First low then high frequency ）...
  • Page 36 SCANNING MADE SIMPLE Russia Newland EMEA HQ D-A-C-H United Kingdom France +31 (0) 345 87 00 33 +49 (0) 6182 82916-16 +44 (0) 1442 212020 +39 (0) 345 8804096 info@newland-id.com russia@newland-id.com sales@newland-id.co.uk france@newland-id.com info@newland-id.de newland-id.com Middle East Benelux South Africa Ibérica...
