BASIC CONNECTION FOR AIRPLANE AND ADJUSTMENT OF SERVOS

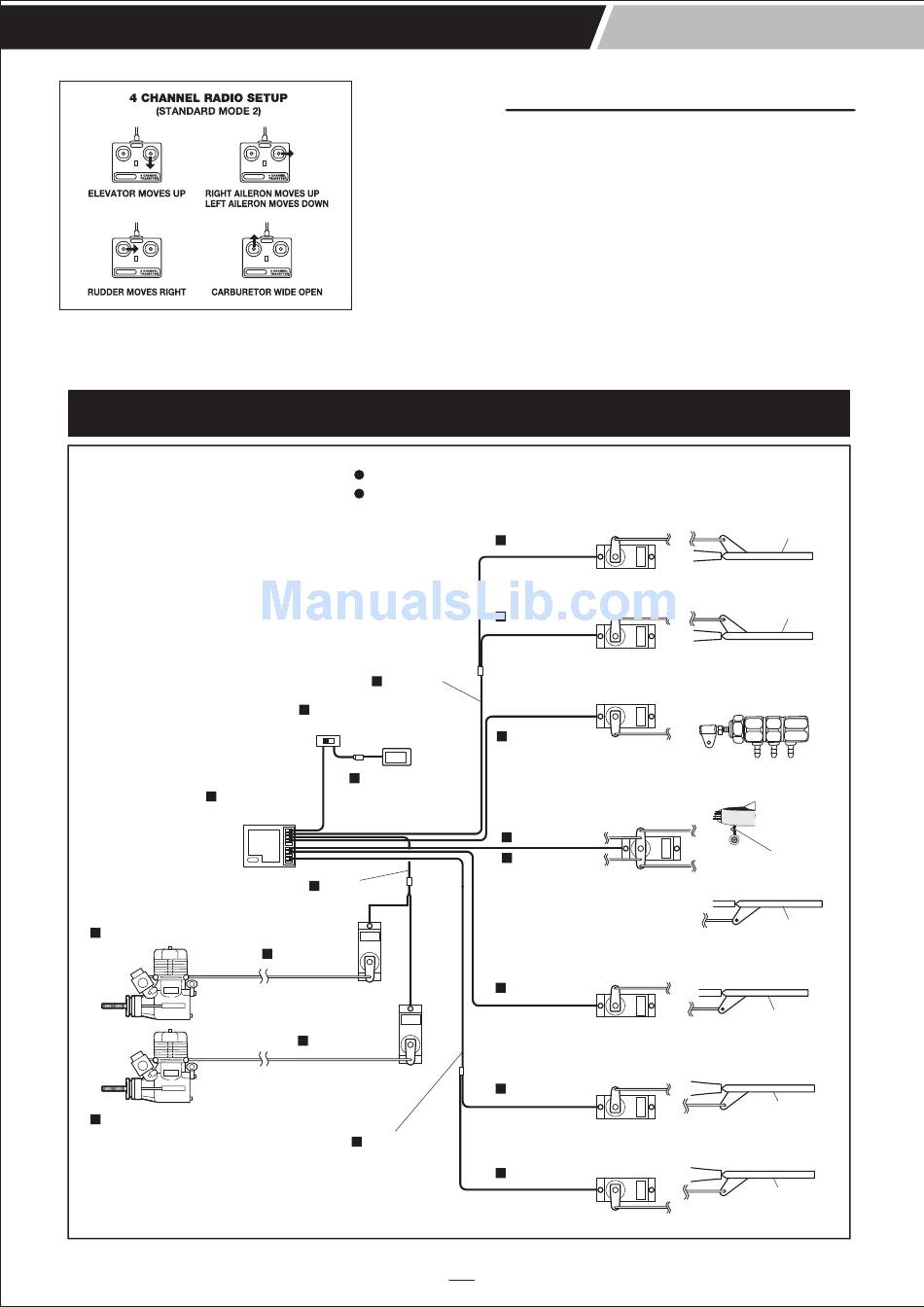

Example of connection
Receiver
Engine
Engine

FOR YOUR RADIO INSTALLATION

For more information, refer to radio system instruction manual.
Follow instruction manual of Engine and Battery.
Y-Harness
Switch
Battery (Receiver)
Y-Harness
Throttle Servo
Throttle Servo
Y-Harness

FLIGHT PREPARATION PRE FLIGHT CHECK

1. Completely charge your transmitter and receiver
batteries before your first day of flying.
2. Check every bolt and every glue joint in your
plane to ensure that everything is tight and well
bonded.
3. Double check the balance of the airplane
4. Check the control surface
5. Check the receiver antenna . It should be fully
extended and not coiled up inside the fuselage.
6. Properly balance the propeller.
Flap Servo
Flap Servo
Air Valve Servo
(For Retract Gear)
Steering nose
Rudder Servo
Elevator Servo
Aileron Servo
Aileron Servo
45
A26 INVADER
Flap
Flap
Nose retract
Rudder
Elevator
Aileron
Aileron
