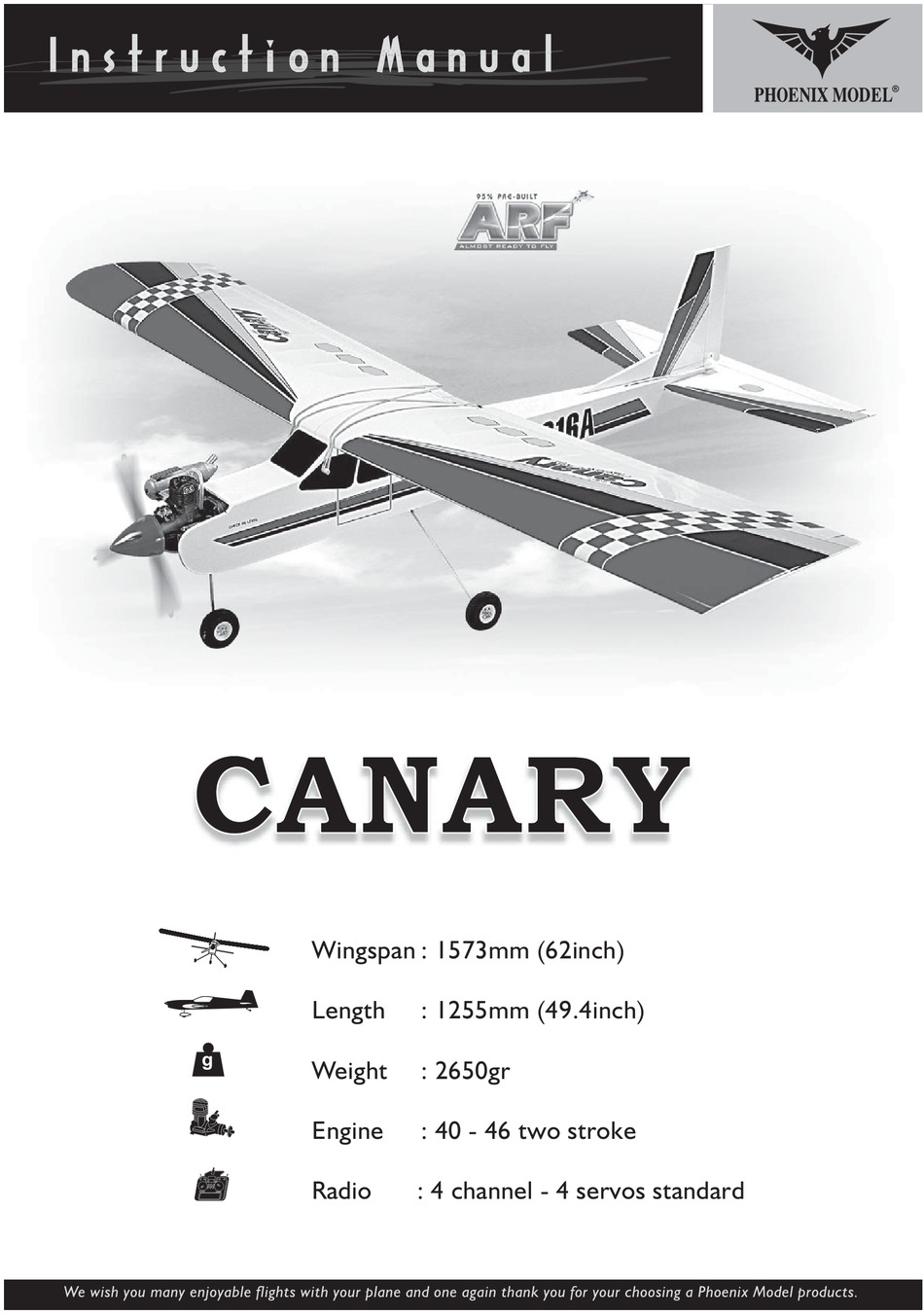

I n s t r u c t i o n
I n s t r u c t i o n M a n
I n s t r u c t i o n M a n u a l
u c t i o n M a n u a l

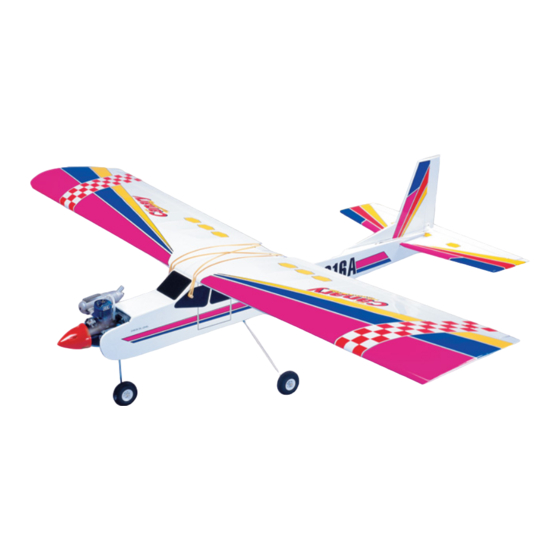

CANARY
g
We wish you many enjoyable flights with your plane and one again thank you for your choosing a Phoenix Model products.
i o n M a n
Wingspan : 1573mm (62inch)
Length
: 1255mm (49.4inch)
Weight
: 2650gr
Engine
: 40 - 46 two stroke
Radio
: 4 channel - 4 servos standard
a l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CANARY and is the answer not in the manual?

Questions and answers

Related Manuals for Phoenix Model CANARY

Summary of Contents for Phoenix Model CANARY

  • Page 1 : 1255mm (49.4inch) Weight : 2650gr Engine : 40 - 46 two stroke Radio : 4 channel - 4 servos standard We wish you many enjoyable flights with your plane and one again thank you for your choosing a Phoenix Model products.

  • Page 2: Joining The Wing Halves

    Instruction Manual Canary Joining the wing halves. Joining the wing halves. Center line Draw a center line. Remove the covering. Glue the wing joiner to the wing. Apply the epoxy into the wing section. Glue the wing by epoxy. Apply the trim tape to the center section of the wing where they join.
  • Page 3 Instruction Manual Canary Mark the shape of the servo box to the wing. Remove the covering. Glue the servo box by C.A glue. Install and secure the aileron servo. Silicon tube Nylon control horn Silicon tube Install the two nylon control horn.
  • Page 4 Instruction Manual Canary Nylon clasp Attach the nylon clasp to the aileron servo arm. Make the same way to install the second aileron pushrod. Installing the horizontal and vertical. Installing the horizontal and vertical. Center line Draw a center line.
  • Page 5 Instruction Manual Canary Remove the covering from the bottom of the horizontal. Glue the horizontal and fuselage by epoxy and check it. Check the horizontal and the wing. Cut away the covering from the fuselage. Mark the shape of the fuselage onto the both side of the Remove the covering from the vertical.
  • Page 6 Instruction Manual Canary a1 = a2 Check the fin before it dry and remove the wing out of the fuselage. Joining the landing gear and nose gear. Joining the landing gear and nose gear. Collar Gear The landing gear and nose gear.
  • Page 7 Instruction Manual Canary Install the wheel. Attach the wire pushrod to the steering arm. Install the nose gear and secure it. Installing the rudder and elevator pushrod. Installing the rudder and elevator pushrod. Silicon tube The control horn and pushrod.
  • Page 8 Instruction Manual Canary Control horn Clevis Control horn Install the nylon control horn. Attach the clevis to the control horn. Install the rudder servo. Install the metal connector to the servo arm. Connect the rudder pushrod and the nose gear pushrod to Secure the nose gear pushrod.
  • Page 9 Instruction Manual Canary Attach the nylon clasp to the servo arm. Remove the covering from the slot. Insert the elevator pushrod into the fuselage. Install the control horn. Attach the clevis to the control horn. Install the elevator servo. Cut away the elevator pushrod.

  • Page 10: Installing The Fuel Tank

    Instruction Manual Canary Attach the nylon clasp to the servo arm. Installing the fuel tank. Installing the fuel tank. Cut away the fuel tube. Install the stopper to the tank. Secure the stopper. Install the silicone tube to the tank.

  • Page 11: Installing The Throttle Servo

    Instruction Manual Canary Installing the engine, the propeller and spinner. Installing the engine, the propeller and spinner. Attach the engine to the engine mount and mark four hole. Drill four holes onto the engine mount. Attach the throttle rod to the arm of the carburator.

  • Page 12: Installing The Wing

    Instruction Manual Canary Attach the throttle rod into the metal connector and secure it. Installing receiver battery and switch. Installing receiver battery and switch. Install the switch. Secure the switch. Switch Battery Receiver Install the radio. Installing the wing. Installing the wing.

  • Page 13: Kit Contents

    Instruction Manual Canary Install the wing into the fuselage using 8 rubber band. KIT CONTENTS AIR FRAME ASSEMBLIES elevator control system engine mount (2) Wing (1) Clevis (4) 3mm x 20mm screw (1) Fuselage (1) Silicon tube (4) Lock washer...

  • Page 14: Control Throws

    CONTROL THROWS BALANCING 1. We highly recommend setting up a plane using the 1. It is critical that your airplane be balanced correctly. control throws listed. Improper balance will cause your plane to lose control and crash. 2. The control throws should be measured at the widest point of each control surface.
