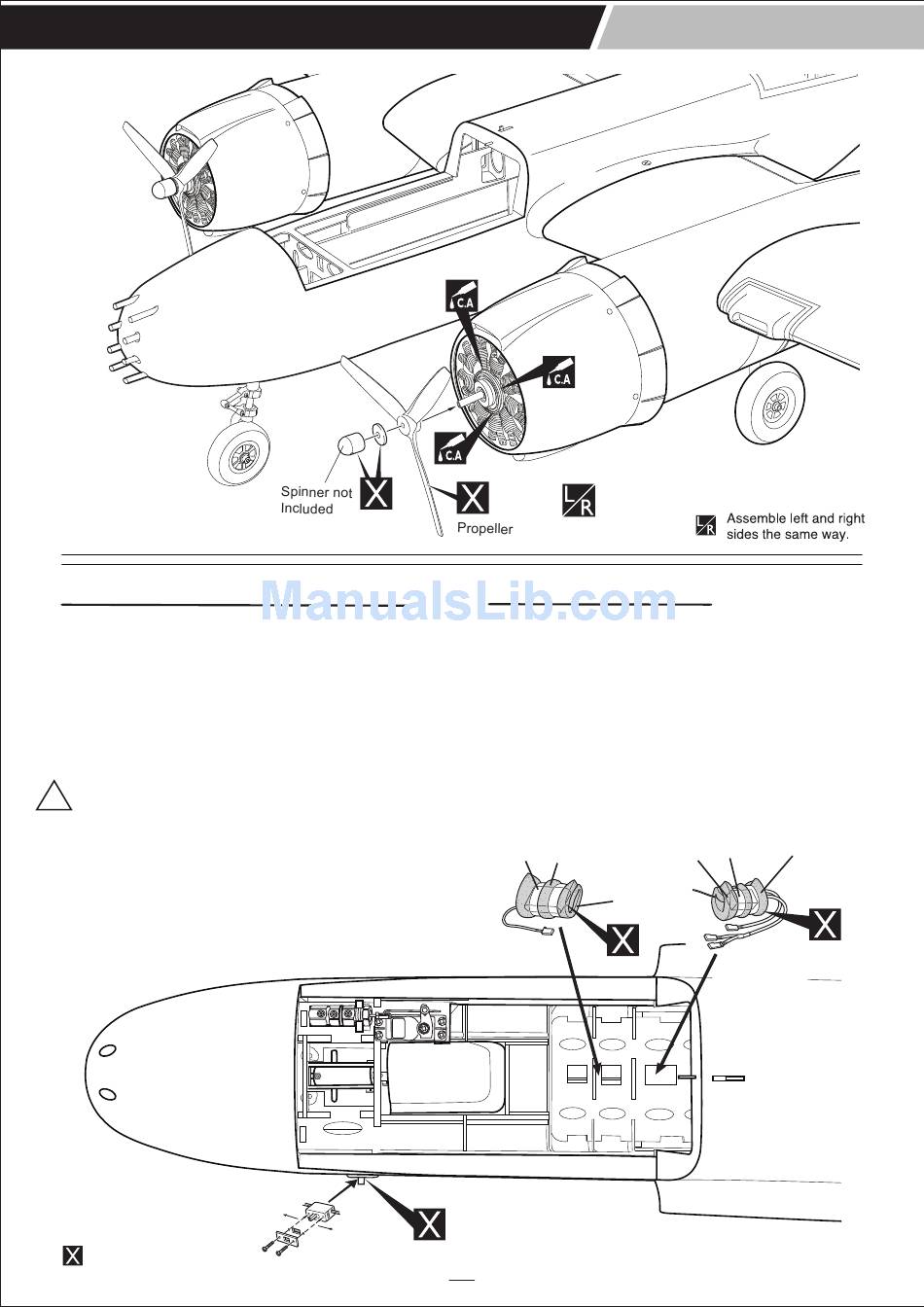

INSTALLING THE RECEIVER AND BATTERY

1. Plug the servo leads and the switch lead into the
receiver. You may want to plug an aileron
extension into the receiver to make plugging in the
aileron servo lead easier when you are installing
the wing. Plug the battery pack lead into the
switch.
2. Wrap the receiver and battery pack in the protective
foam to protect them from vibration. Use a rubber
band or masking tape to hold the foam in place.
!
Do not permanently secure the receiver and battery
until after balancing the model.
Must be purchased
separately!
On
Off

INSTALLING THE SWITCH

1. The switch should be mounted on the fuselage
side, opposite the muffler, close enough to the
receiver so the lead will reach. Use the face plate
of the switch cut out and locate the mounting
holes.
2. Cut out the switch hole using a modeling knife.
Use a 2mm drill bit and drill out the two mounting
holes through the fuselage side.
3. Secure the switch in place using the two machine
screws provided with the radio system.
Tape
Foam Pad
Battery
Switch
39
A26 INVADER
Foam Pad
Receiver Tape
