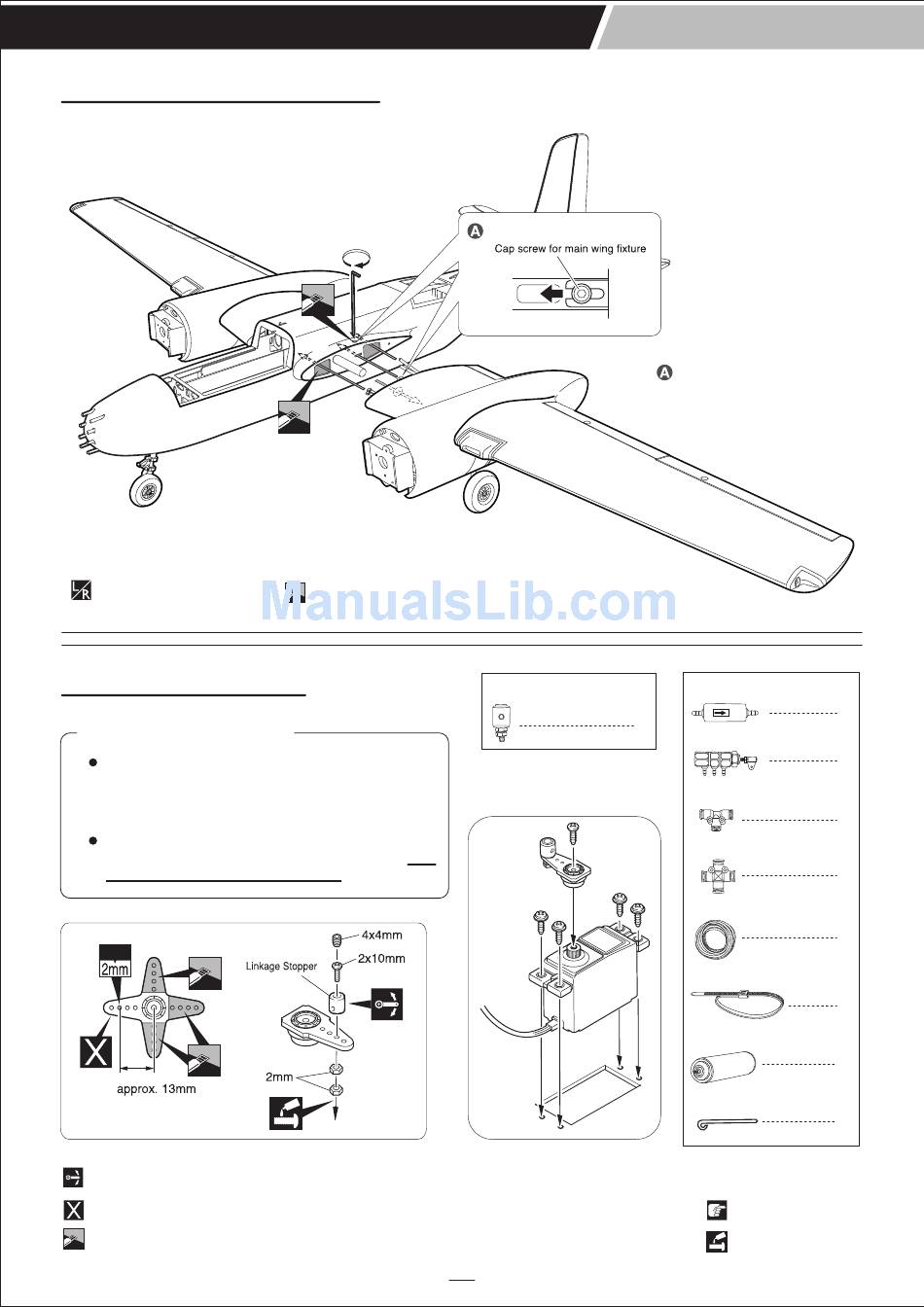

SECURE The Wing To The Fuselage

Attach the wings to the fuselage and secure the
wing panels.
Assemble left and right
sides the same way.

INSTALLING THE AIR VALVE

IMPORTANT SUGGESTION
Before installing the air valve, please test the
valve how does it work. If it doesn't move
smoothly, please clean the air valve as showing
at the end of the manual.
Please note that you must use the high torque
servo for controlling the air valve. The
minimum torque of servo is 7kg.
Ensure smooth, non-binding
movement when assembling
Must be purchased separately!
Cut off shaded portion
Cut off shaded portion
28
A26 INVADER
Connector
1
Main wing must be inserted and
attached completely before fixing
with screw.
Control Valve
1
Retract Control Valve
1
3 Way connector
1
4 Way connector
2
3.8x4500mm Air Hose
1
Zip Tie
2
Air Tank Big
1
1.7x70mm Push Rod
1
Pay close attention
Apply threadlocker
(screw cement).
