6 Commissioning

90

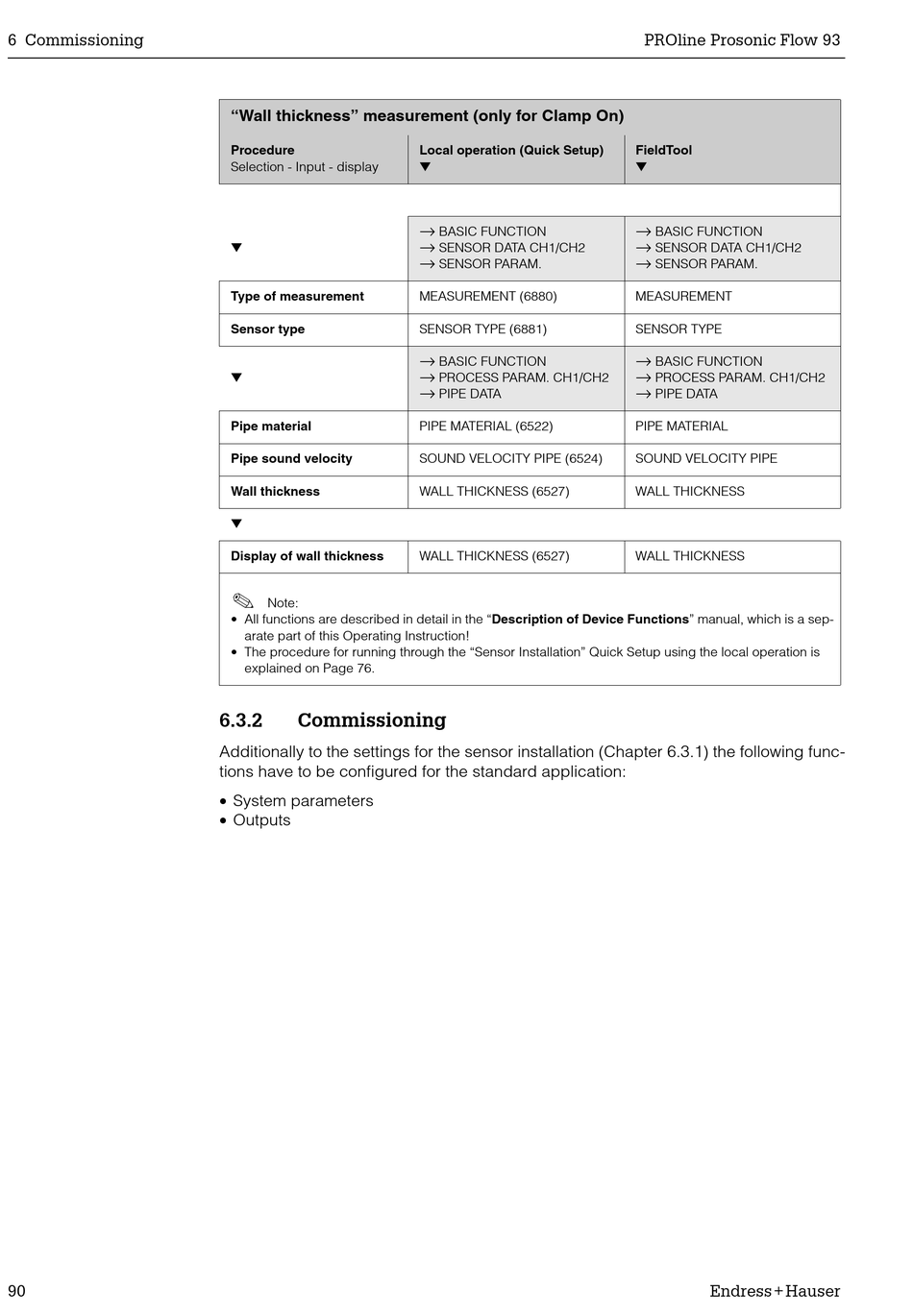

"Wall thickness" measurement (only for Clamp On)
Procedure
Selection - Input - display
▼
Type of measurement
Sensor type
▼
Pipe material
Pipe sound velocity
Wall thickness
▼
Display of wall thickness
!
Note:
• All functions are described in detail in the "Description of Device Functions" manual, which is a sep-
arate part of this Operating Instruction!
• The procedure for running through the "Sensor Installation" Quick Setup using the local operation is
explained on Page 76.
6.3.2 Commissioning
Additionally to the settings for the sensor installation (Chapter 6.3.1) the following func-
tions have to be configured for the standard application:
• System parameters
• Outputs
Local operation (Quick Setup)
▼
→
BASIC FUNCTION
→
SENSOR DATA CH1/CH2
→
SENSOR PARAM.
MEASUREMENT (6880)
SENSOR TYPE (6881)
→
BASIC FUNCTION
→
PROCESS PARAM. CH1/CH2
→
PIPE DATA
PIPE MATERIAL (6522)
SOUND VELOCITY PIPE (6524)
WALL THICKNESS (6527)
WALL THICKNESS (6527)
PROline Prosonic Flow 93
FieldTool
▼
→
BASIC FUNCTION
→
SENSOR DATA CH1/CH2
→
SENSOR PARAM.
MEASUREMENT
SENSOR TYPE
→
BASIC FUNCTION
→
PROCESS PARAM. CH1/CH2
→
PIPE DATA
PIPE MATERIAL
SOUND VELOCITY PIPE
WALL THICKNESS
WALL THICKNESS
