PROline Prosonic Flow 93
Installation instructions
Inlet and outlet runs
Connecting cable length
Ambient temperature
Storage temperature
Endress+Hauser
10.1.7

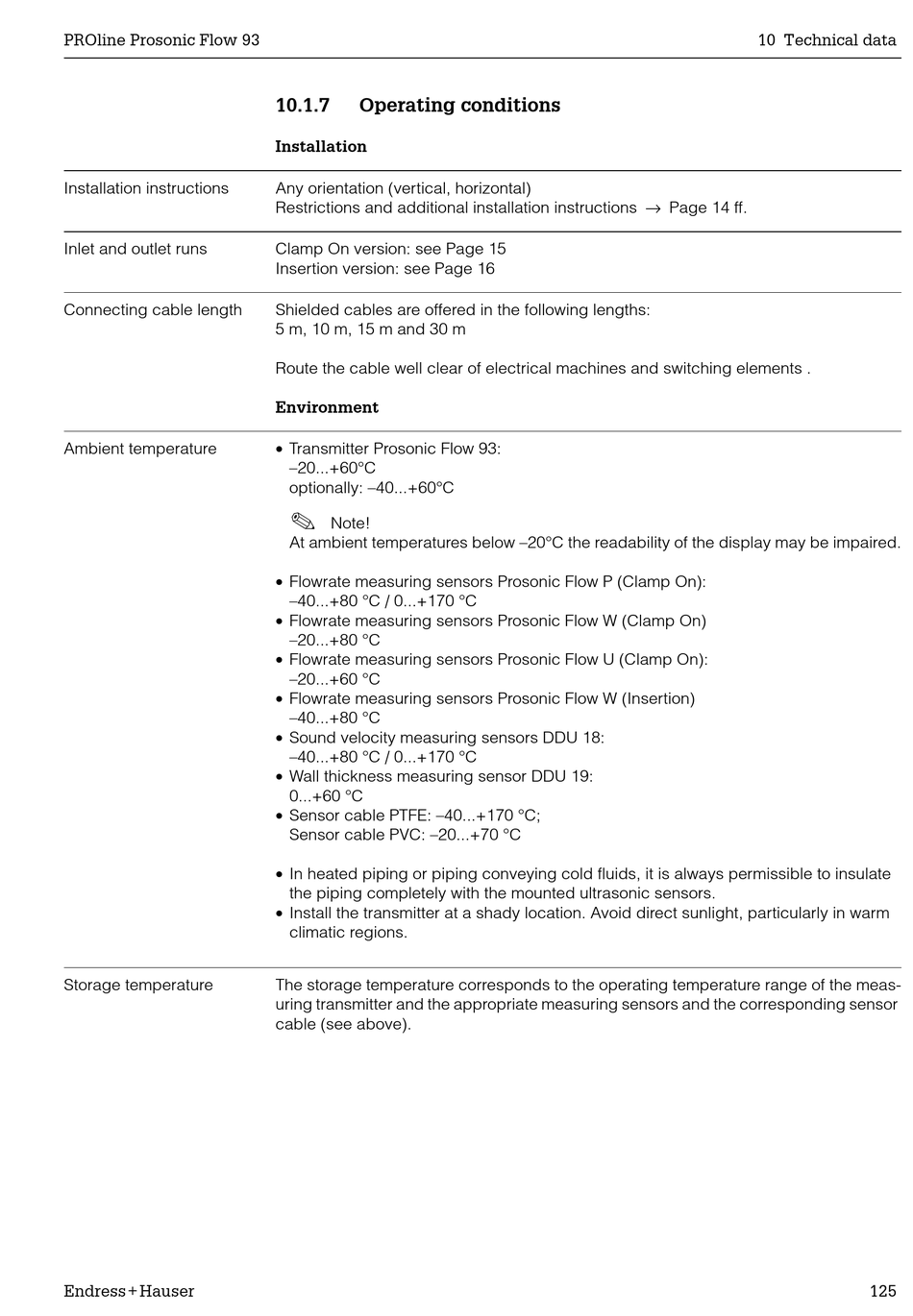

Operating conditions

Installation
Any orientation (vertical, horizontal)
Restrictions and additional installation instructions → Page 14 ff.
Clamp On version: see Page 15
Insertion version: see Page 16
Shielded cables are offered in the following lengths:
5 m, 10 m, 15 m and 30 m
Route the cable well clear of electrical machines and switching elements .
Environment
• Transmitter Prosonic Flow 93:
–20...+60°C
optionally: –40...+60°C
!
Note!
At ambient temperatures below –20°C the readability of the display may be impaired.
• Flowrate measuring sensors Prosonic Flow P (Clamp On):
–40...+80 °C / 0...+170 °C
• Flowrate measuring sensors Prosonic Flow W (Clamp On)
–20...+80 °C
• Flowrate measuring sensors Prosonic Flow U (Clamp On):
–20...+60 °C
• Flowrate measuring sensors Prosonic Flow W (Insertion)
–40...+80 °C
• Sound velocity measuring sensors DDU 18:
–40...+80 °C / 0...+170 °C
• Wall thickness measuring sensor DDU 19:
0...+60 °C
• Sensor cable PTFE: –40...+170 °C;
Sensor cable PVC: –20...+70 °C
• In heated piping or piping conveying cold fluids, it is always permissible to insulate
the piping completely with the mounted ultrasonic sensors.
• Install the transmitter at a shady location. Avoid direct sunlight, particularly in warm
climatic regions.
The storage temperature corresponds to the operating temperature range of the meas-
uring transmitter and the appropriate measuring sensors and the corresponding sensor
cable (see above).
