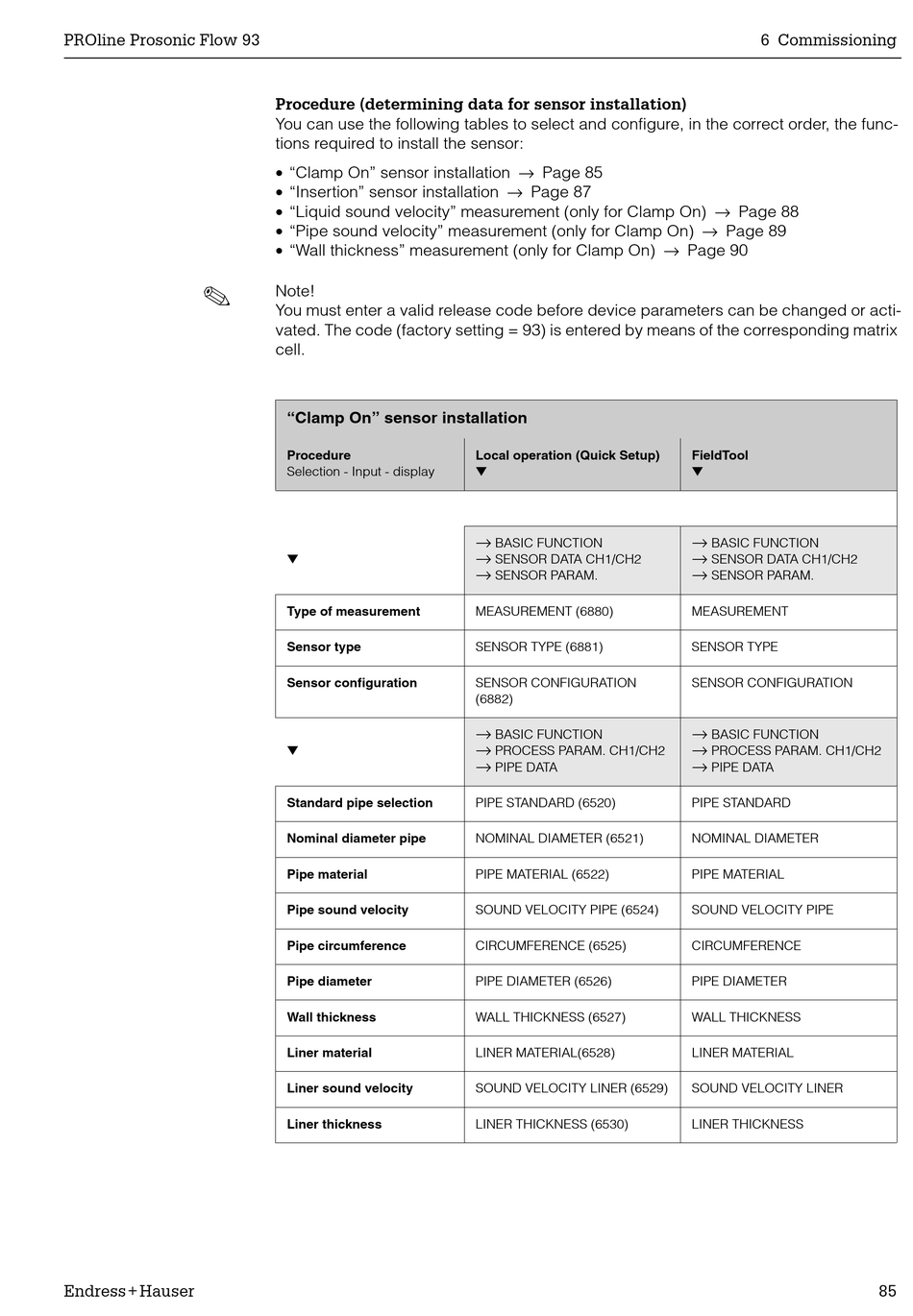

Endress+Hauser PROline prosonic flow 93 Operating Instructions Manual page 85

PROline Prosonic Flow 93
!
Endress+Hauser
Procedure (determining data for sensor installation)
You can use the following tables to select and configure, in the correct order, the func-
tions required to install the sensor:
• "Clamp On" sensor installation → Page 85
• "Insertion" sensor installation → Page 87
• "Liquid sound velocity" measurement (only for Clamp On) → Page 88
• "Pipe sound velocity" measurement (only for Clamp On) → Page 89
• "Wall thickness" measurement (only for Clamp On) → Page 90
Note!
You must enter a valid release code before device parameters can be changed or acti-
vated. The code (factory setting = 93) is entered by means of the corresponding matrix
cell.
"Clamp On" sensor installation
Procedure
Selection - Input - display
▼
Type of measurement
Sensor type
Sensor configuration
▼
Standard pipe selection
Nominal diameter pipe
Pipe material
Pipe sound velocity
Pipe circumference
Pipe diameter
Wall thickness
Liner material
Liner sound velocity
Liner thickness
Local operation (Quick Setup)
▼
→
BASIC FUNCTION
→
SENSOR DATA CH1/CH2
→
SENSOR PARAM.
MEASUREMENT (6880)
SENSOR TYPE (6881)
SENSOR CONFIGURATION
(6882)
→
BASIC FUNCTION
→
PROCESS PARAM. CH1/CH2
→
PIPE DATA
PIPE STANDARD (6520)
NOMINAL DIAMETER (6521)
PIPE MATERIAL (6522)
SOUND VELOCITY PIPE (6524)
CIRCUMFERENCE (6525)
PIPE DIAMETER (6526)
WALL THICKNESS (6527)
LINER MATERIAL(6528)
SOUND VELOCITY LINER (6529)
LINER THICKNESS (6530)
6 Commissioning
FieldTool
▼
→
BASIC FUNCTION
→
SENSOR DATA CH1/CH2
→
SENSOR PARAM.
MEASUREMENT
SENSOR TYPE
SENSOR CONFIGURATION
→
BASIC FUNCTION
→
PROCESS PARAM. CH1/CH2
→
PIPE DATA
PIPE STANDARD
NOMINAL DIAMETER
PIPE MATERIAL
SOUND VELOCITY PIPE
CIRCUMFERENCE
PIPE DIAMETER
WALL THICKNESS
LINER MATERIAL
SOUND VELOCITY LINER
LINER THICKNESS
85
