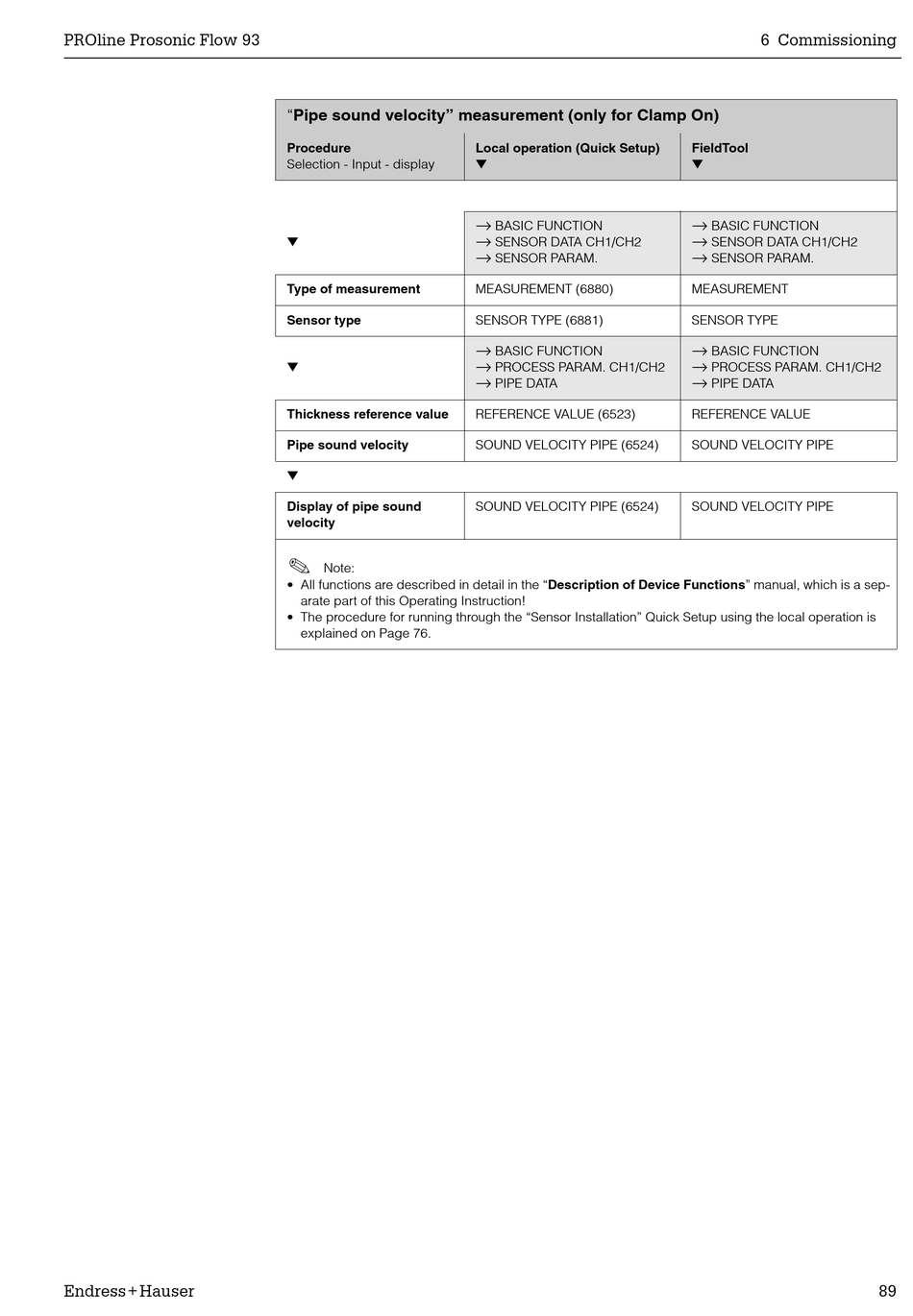

"Pipe sound velocity" measurement (only for Clamp On)
Procedure
Selection - Input - display
▼
Type of measurement
Sensor type
▼
Thickness reference value
Pipe sound velocity
▼
Display of pipe sound
velocity
!
Note:
• All functions are described in detail in the "Description of Device Functions" manual, which is a sep-
arate part of this Operating Instruction!
• The procedure for running through the "Sensor Installation" Quick Setup using the local operation is
explained on Page 76.
Local operation (Quick Setup)
▼
→
BASIC FUNCTION
→
SENSOR DATA CH1/CH2
→
SENSOR PARAM.
MEASUREMENT (6880)
SENSOR TYPE (6881)
→
BASIC FUNCTION
→
PROCESS PARAM. CH1/CH2
→
PIPE DATA
REFERENCE VALUE (6523)
SOUND VELOCITY PIPE (6524)
SOUND VELOCITY PIPE (6524)
6 Commissioning
FieldTool
▼
→
BASIC FUNCTION
→
SENSOR DATA CH1/CH2
→
SENSOR PARAM.
MEASUREMENT
SENSOR TYPE
→
BASIC FUNCTION
→
PROCESS PARAM. CH1/CH2
→
PIPE DATA
REFERENCE VALUE
SOUND VELOCITY PIPE
SOUND VELOCITY PIPE
