PROline Prosonic Flow 93
Endress+Hauser

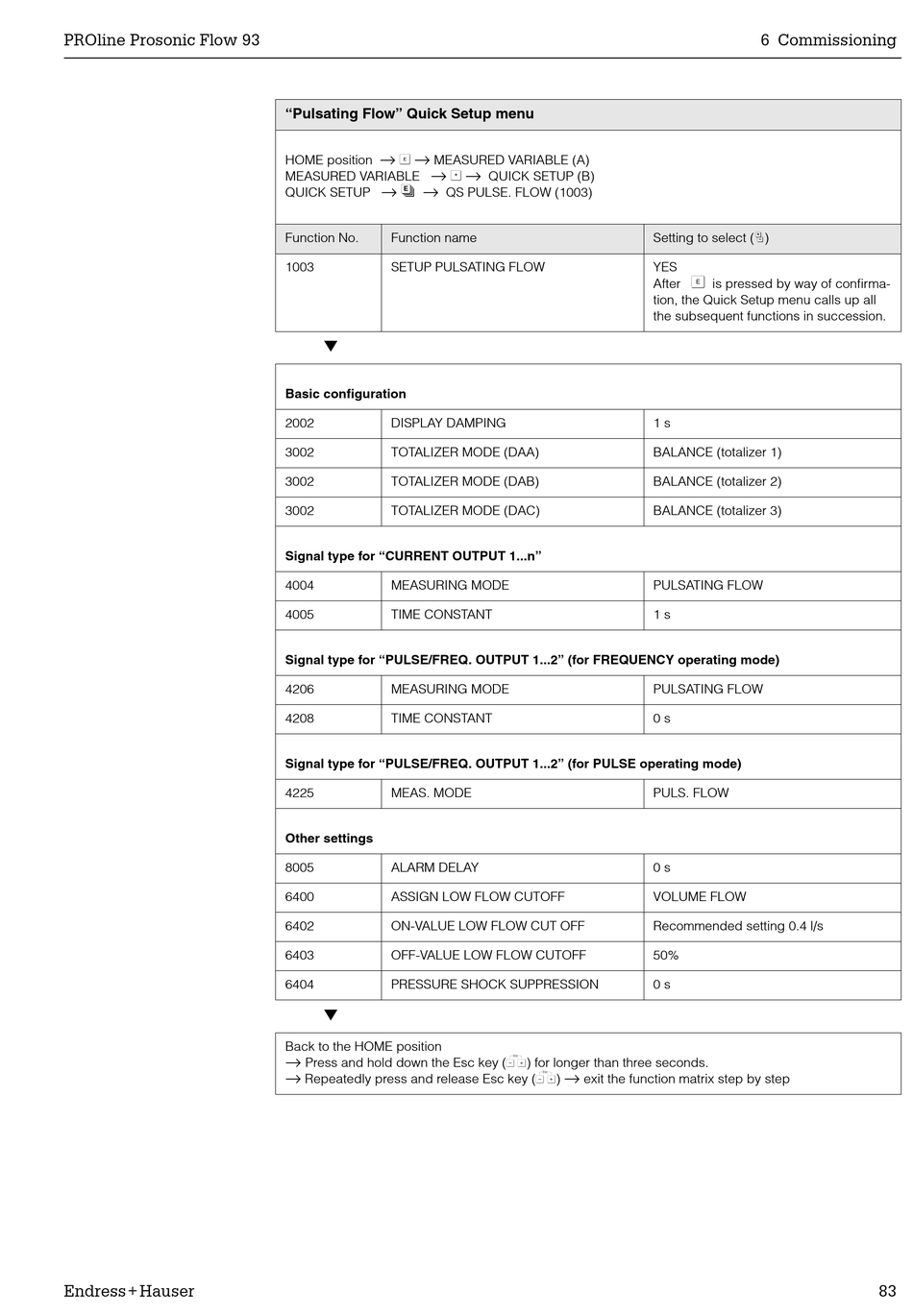

"Pulsating Flow" Quick Setup menu
→ →
F
HOME position MEASURED VARIABLE (A)
→
O
MEASURED VARIABLE
→ N →
QUICK SETUP QS PULSE. FLOW (1003)
Function No. Function name
1003 SETUP PULSATING FLOW
▼
Basic configuration
2002 DISPLAY DAMPING
3002 TOTALIZER MODE (DAA)
3002 TOTALIZER MODE (DAB)
3002 TOTALIZER MODE (DAC)
Signal type for "CURRENT OUTPUT 1...n"
4004 MEASURING MODE
4005 TIME CONSTANT
Signal type for "PULSE/FREQ. OUTPUT 1...2" (for FREQUENCY operating mode)
4206 MEASURING MODE
4208 TIME CONSTANT
Signal type for "PULSE/FREQ. OUTPUT 1...2" (for PULSE operating mode)
4225 MEAS. MODE
Other settings
8005 ALARM DELAY
6400 ASSIGN LOW FLOW CUTOFF
6402 ON-VALUE LOW FLOW CUT OFF
6403 OFF-VALUE LOW FLOW CUTOFF
6404 PRESSURE SHOCK SUPPRESSION
▼
Back to the HOME position
→
Press and hold down the Esc key (
→
Repeatedly press and release Esc key (
→
QUICK SETUP (B)
X
) for longer than three seconds.
→
X
) exit the function matrix step by step
6 Commissioning
Setting to select (P)
YES
F
After is pressed by way of confirma-
tion, the Quick Setup menu calls up all
the subsequent functions in succession.
1 s
BALANCE (totalizer 1)
BALANCE (totalizer 2)
BALANCE (totalizer 3)
PULSATING FLOW
1 s
PULSATING FLOW
0 s
PULS. FLOW
0 s
VOLUME FLOW
Recommended setting 0.4 l/s
50%
0 s
83
