7.9.4

Tachometer chart

In SIMATIC PDM, only one value is displayed in a tachometer chart.
Limits can be assigned to the displayed value. These are highlighted in color in the chart.
Chart
The chart can show the following elements:
● Name of the chart
● Inscription for the tachometer
● Name of the variable
● Min/max pointer (marks the maximum or minimum value reached since the start of
● Warning ranges (represented by hatching)
● Limit (for a warning range)
● Current value (represented as a needle on the tachometer and as a numeric value below
● Inscription of the axis
● Unit
Example

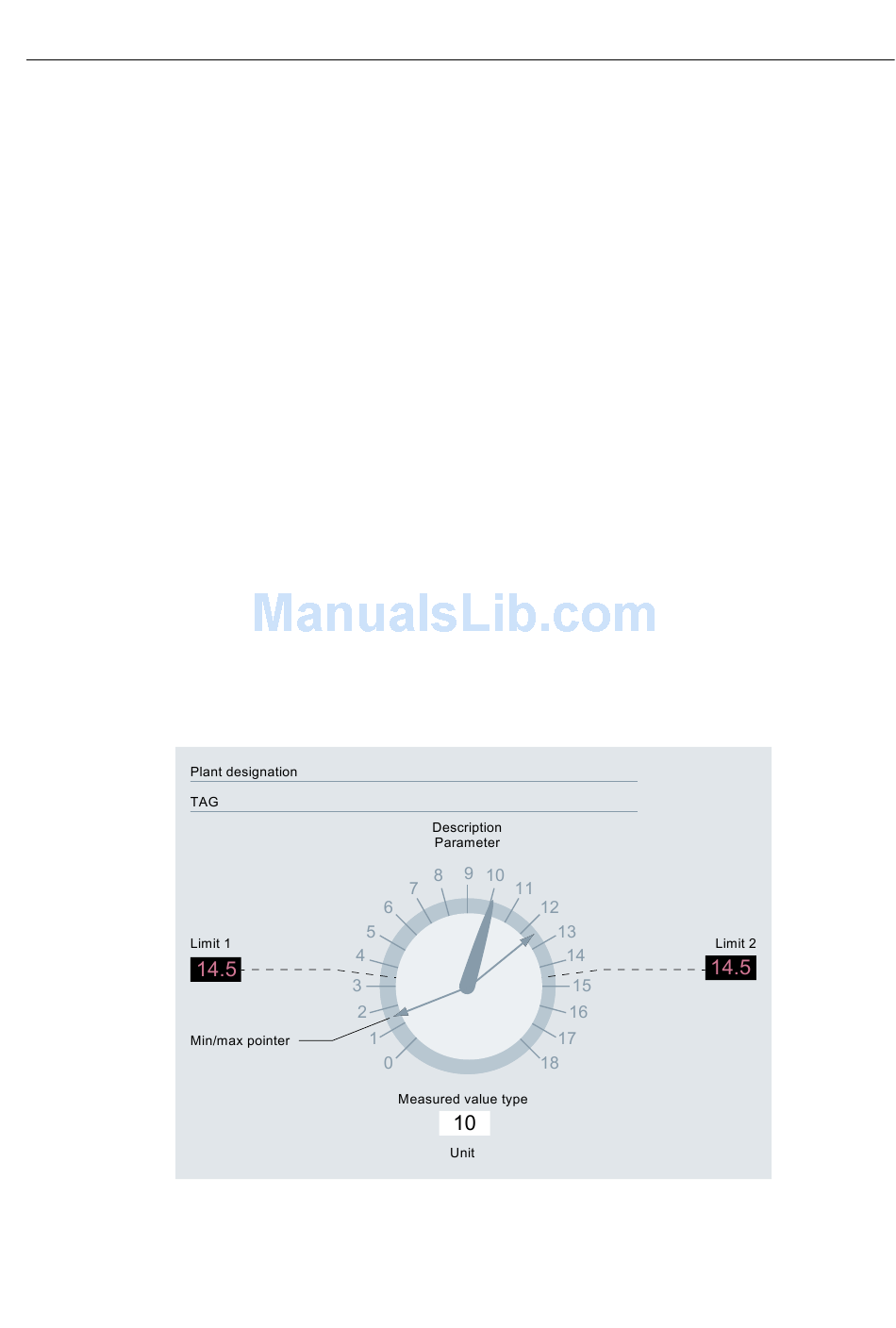

The figure below shows an example of a dialog window with a tachometer chart.
Help for SIMATIC PDM (V8.2)
Operating Manual, 02/2014, A5E33203676-AA
monitoring)
the tachometer)
Functions
7.9 Graphical displays
145
