Danfoss VT2800 Series Design Manual page 79

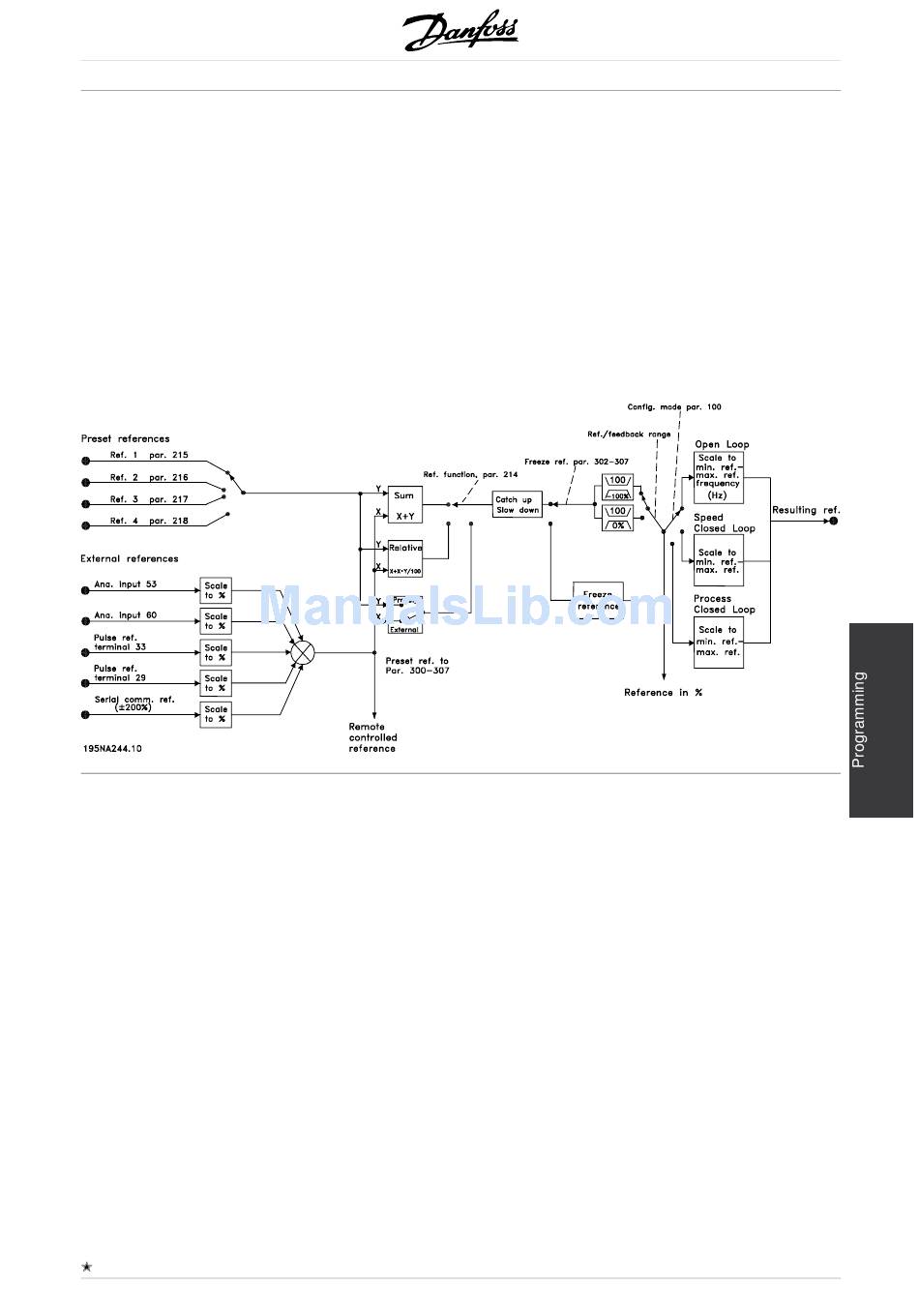

- Preset references.
The resulting reference can be shown on the LCP
control unit's display by selecting Reference [%] in
parameters 009-012 Display readout and can be
shown as one unit by selecting Reference [unit].
The sum of the external references can be shown on
the LCP control unit's display as a % of the area from
Minimum reference, Ref
MIN
. Select External reference, % [25] in parameters
MAX
009-012 Display readout if a readout is desired.
It is possible to have both references and external
references simultaneously. In parameter 214
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.28.E9.02 - VLT is a registered Danfoss trademark
to Maximum reference, Ref
®
VLT 2800 Series
Reference function a selection can be made
to determine how preset references should be
added to the external references.
There is also an independent local reference in
parameter 003 Local reference, in which the
resulting reference is set using the [+/-] keys.
When the local reference has been selected, the
output frequency range is limited by parameter
201 Output frequency low limit, f
202 Output frequency high limit, f
The local reference unit depends on the selection
in parameter 100 Configuration.
and parameter
MIN
.
MAX
