Motor coils

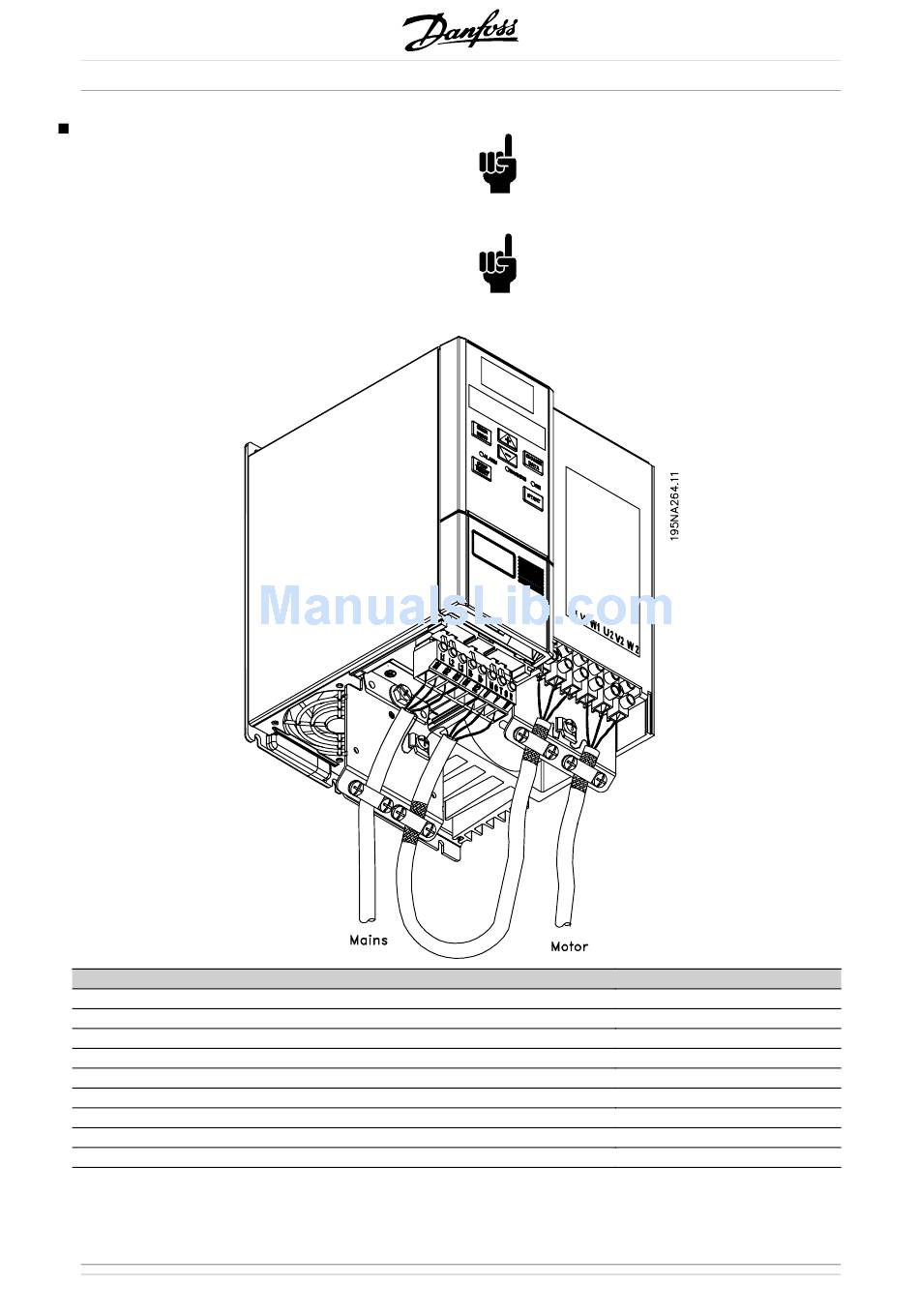

By fitting the motor coil module between the frequency
converter and the motor it is possible to use up
to 200 metres of unscreened/unarmoured motor
cable or 100 metres of screened/armoured motor
cable. The motor coil module has an enclosure of
IP 20 and can be installed side-by-side.
Technical data for VLT 2803-2875 Motor coils
Max. cable length (unscreened/unarmoured)
Max. cable length (screened/armoured)
Enclosure
1)
Max. rated current
1)
Max. voltage
Min. distance between VLT and motor coil
Min. distance above and below motor coil
Dimensions H x W x D (mm)
Weight
1)
Parameter 411 Switching frequency = 4500 Hz.
2)
For mechanical dimensions see under
Mechanical dimensions.
12
1)
1)
2)
®
VLT 2800 Series
NB!:
To have long motor cables and still comply
with EN55011-1A, motor coil and EMC filter
for long motor cables are needed.
NB!:
To comply with EN55011-1A the EMC filter for
long motor cables can only be fitted to a VLT
2800 with integral 1A filter (R1 option).
See also the section EMC Emission.
200 m
100 m
IP 20
16 A
480 V AC
Side-by-side
100 mm
200 x 90 x 152
3.8 kg
See ordering number for motor coil module
under Accessories for VLT 2800.
