Chapter 7 Replaceable Parts
Chapter 7 Replaceable Parts
RIGOL provides some replaceable parts in order to maintain or update for users.
Please see as the following figure and table. Note that the numbers in the figure and
the table are associated with each other.

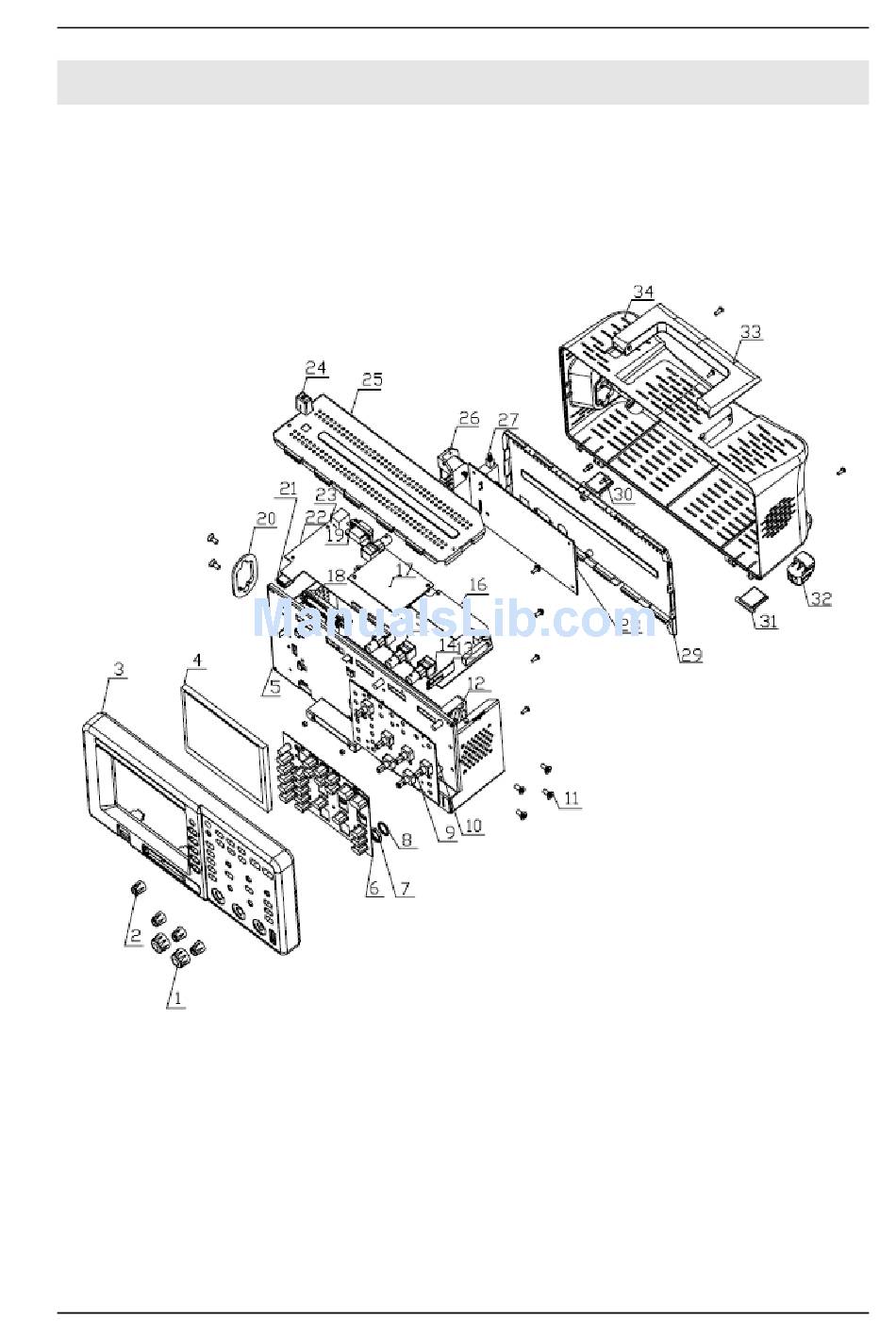

Figure 7-1 DS1000E, DS1000D Exploded View
7-1
Service Guide for DS1000E, DS1000D Series
