RS-232 Interface Test

Purpose:
Test if RS-232 interface works normally through Ultrascope for DS1000E, DS1000D
series.
Tools:
A set of DS1000E, DS1000D series digital oscilloscope

A PC with RS-232 interface

A standard RS-232 cable

Ultrascope for DS1000E, DS1000D series

Steps:
1. Install the Ultrascope for DS1000E, DS1000D series software on the PC.
2.
Connect the oscilloscope with PC using an RS-232 cable.
3. Run Ultrascope for DS1000E, DS1000D Series, then click Tools→Options and
select RS-232 as the current IO.
3-6

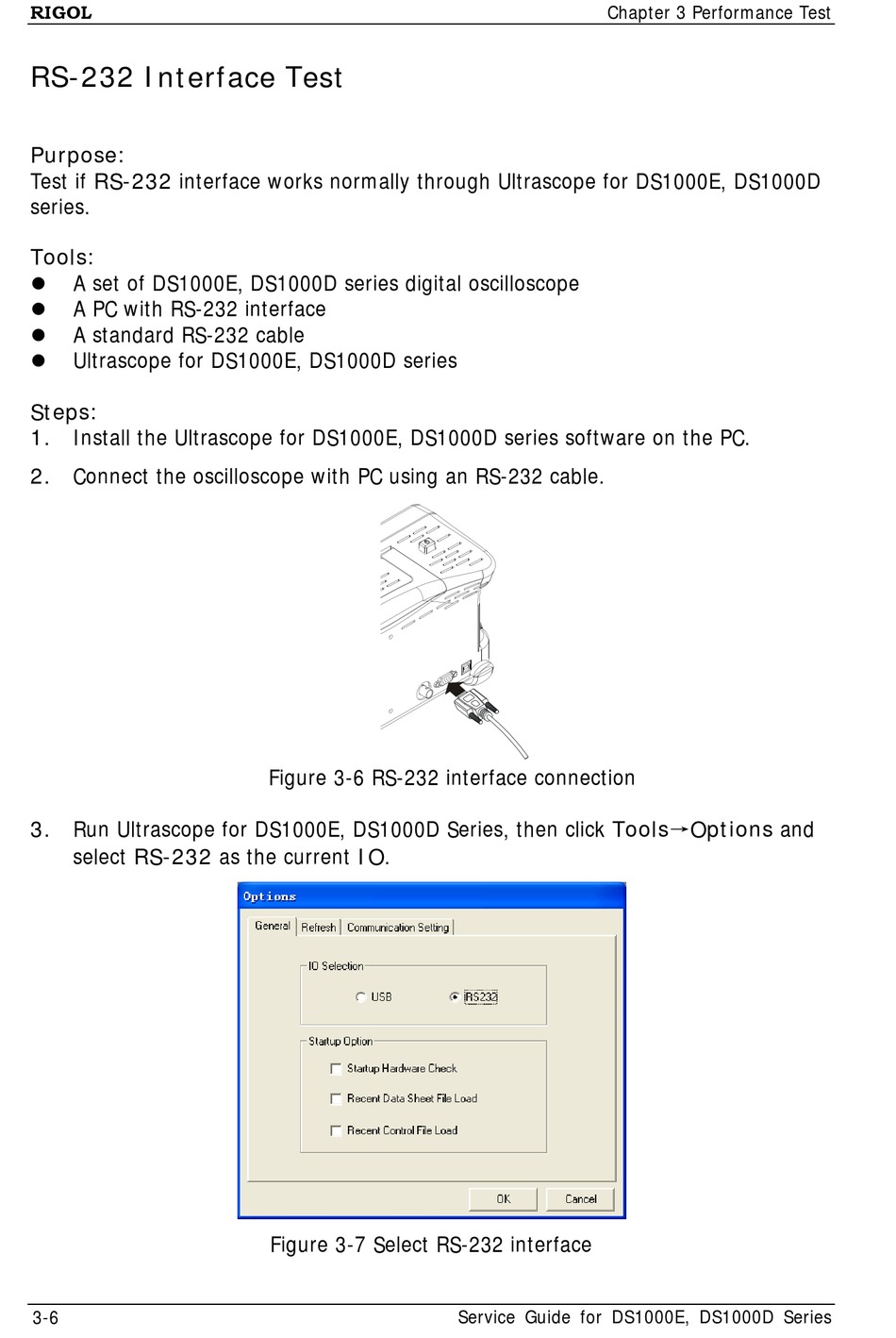

Figure 3-6 RS-232 interface connection

Figure 3-7 Select RS-232 interface
