Page 16: Mso1000Z/Ds1000Z Series Overview

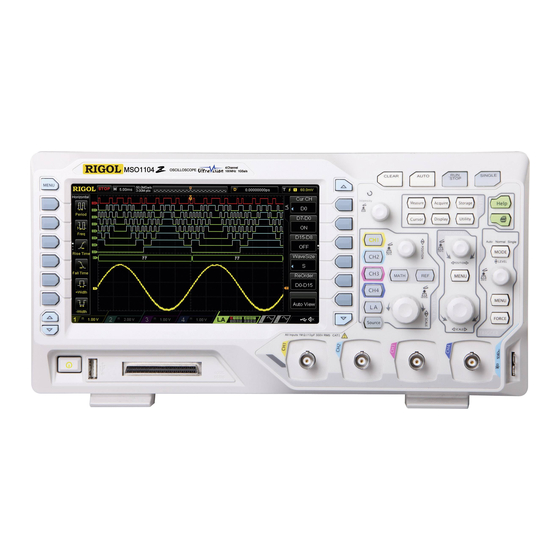

MSO1000Z/DS1000Z Series Overview MSO1000Z/DS1000Z series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision technique developed by RIGOL. Featuring extremely high memory depth, wide dynamic range, clear display, excellent waveform capture rate and comprehensive triggering functions, it is a useful commissioning instrument for various fields such as communication, aerospace, defense, embedded systems, computers, research and education.
Page 17 RIGOL Supports multiple languages and Chinese/English input  Novel and delicate industrial design and easy operation  MSO1000Z/DS1000Z User’s Guide GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
Page 18: Document Overview
RIGOL Document Overview Main Topics of this Manual: Chapter 1 Quick Start Introduce the preparations before using the oscilloscope and provide a basic introduction of the instrument. Chapter 2 To Set the Vertical System Introduce the vertical system functions of the oscilloscope.
Page 19 RIGOL Chapter 14 Store and Recall Introduce how to store and recall the measurement result and the setting of the oscilloscope. Chapter 15 Accessibility Setting Introduce how to set the remote interfaces and system-related functions. Chapter 16 Remote Control Introduce how to control the oscilloscope remotely.
Page 20 Manuals of this Product: The manuals of this product include the quick guide, user’s guide, programming guide, data sheet and etc. The latest versions of the manuals can be downloaded from RIGOL official website (www.rigol.com). XVIII MSO1000Z/DS1000Z User’s Guide GlobalTestSupply www.
Page 21: Table Of Contents
Contents RIGOL Contents Guaranty and Declaration ................. I Safety Requirement ................II General Safety Summary ................II Safety Notices and Symbols ..............IV Allgemeine Sicherheits Informationen ............V Sicherheits Begriffe und Symbole ............. VII Measurement Category ................VIII Ventilation Requirement ................IX Working Environment ................
Page 22 RIGOL Contents To Use the Built-in Help System ............. 1-26 Chapter 2 To Set the Vertical System ..........2-1 To Enable the Analog Channel ..............2-2 Channel Coupling ................... 2-2 Bandwidth Limit ..................2-3 Probe Ratio ................... 2-3 Waveform Invert ..................2-4 Vertical Scale ..................
Page 23 Contents RIGOL Setup/Hold Trigger (Optional) ............5-28 Nth Edge Trigger (Optional) ............5-30 RS232 Trigger (Optional) ..............5-32 I2C Trigger (Optional) ..............5-34 SPI Trigger (Optional) ..............5-37 Trigger Output Connector ..............5-39 Chapter 6 MATH and Measurement ............ 6-1 Math Operation ..................
Page 24 RIGOL Contents Group Set ....................7-3 To Set the Waveform Display Size ............7-4 Reorder Setting ..................7-4 Auto View....................7-4 To Set the Threshold ................7-4 To Set the Label ..................7-5 Probe Calibration ..................7-5 Digital Channel Delay Calibration ............. 7-5 Chapter 8 Protocol Decoding .............
Page 25 Contents RIGOL To Output Ramp ................13-4 To Output Pulse ................13-5 To Output DC ................13-5 To Output Noise ................13-6 To Output Built-in Waveform ..............13-6 To Output Arbitrary Waveform ............. 13-10 To Select Waveform ..............13-11 To Create Waveform ..............13-12 To Edit Waveform ................
Page 26 RIGOL Contents Chapter 18 Specifications ............18-1 Chapter 19 Appendix ..............19-1 Appendix A: Accessories and Options ............. 19-1 Appendix B: Warranty ................19-2 Index ......................1 XXIV MSO1000Z/DS1000Z User’s Guide GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
Page 27: Chapter 1 Quick Start
Chapter 1 Quick Start RIGOL Chapter 1 Quick Start This chapter introduces the precautions when using the oscilloscope for the first time, the front/rear panels of the oscilloscope, the user interface and the using method of the built-in help system.
Page 28: General Inspection
The consigner or carrier shall be liable for the damage to the instrument resulting from shipment. RIGOL would not be responsible for free maintenance/rework or replacement of the instrument. 2. Inspect the instrument In case of any mechanical damage, missing parts, or failure in passing the electrical and mechanical tests, contact your RIGOL sales representative.
Page 29: Appearance And Dimensions
Chapter 1 Quick Start RIGOL Appearance and Dimensions Figure 1-1 Front View Unit: mm Figure 1-2 Top View Unit: mm MSO1000Z/DS1000Z User’s Guide GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
Page 30: To Prepare The Oscilloscope For Use
RIGOL Chapter 1 Quick Start To Prepare the Oscilloscope for Use To Adjust the Supporting Legs Adjust the supporting legs properly to use them as stands to tilt the oscilloscope upwards for stable placement of the oscilloscope as well as better operation and observation.
Page 31: Power-On Inspection
To Connect the Probe RIGOL provides passive probe (standard) for DS1000Z series as well as passive probe (standard) and logic probe (standard) for MSO1000Z series. For detailed technical information of the probes, please refer to the corresponding Probe User’s Guide.
Page 32 RIGOL Chapter 1 Quick Start Connect the logic probe: 1. Connect the single-wire terminal of the logic probe to the digital channel input terminal at the front panel of the oscilloscope in the correct direction. 2. Connect the signal under test to the other terminal of the logic probe. MSO1000Z...
Page 33: Function Inspection
Chapter 1 Quick Start RIGOL Function Inspection Press Storage  Default to restore the oscilloscope to its default configuration. Connect the earth alligator clip of the probe to the "Ground Terminal" as shown in the figure below. Use the probe to connect the input terminal of CH1 of the oscilloscope and the "Compensation Signal Output Terminal"...
Page 34: Probe Compensation
RIGOL Chapter 1 Quick Start Probe Compensation When the probes are used for the first time, you should compensate the probes to make them match the input channels of the oscilloscope. Non-compensated or poorly compensated probes may cause measurement inaccuracy or error. The probe compensation procedures are as follows.
Page 35: Front Panel Overview
Chapter 1 Quick Start RIGOL Front Panel Overview 9 10 11 12 16 17 19 20 Figure 1-10 Front Panel Overview Table 1-1 Front Panel Descriptions Description Description Measurement Menu Softkeys Power Key USB Host Interface Function Menu Softkeys Digital Channel Input Interface...
Page 36: Rear Panel Overview
RIGOL Chapter 1 Quick Start Rear Panel Overview Figure 1-11 Rear Panel Overview 1． Handle Pull up the handle vertically for easy carry of the instrument. When you do not need the handle, press it down. 2． LAN Connect the instrument to network via this interface for remote control. This oscilloscope conforms to the LXI CORE 2011 DEVICE class instrument standards and can quickly build test system with other instruments.
Page 37 Chapter 1 Quick Start RIGOL Pass/Fail:  The instrument can output a negative pulse via this connector when a failed waveform is detected during the pass/fail test. The instrument continuously outputs a low level via this connector when no failed waveform is detected.
Page 38: Front Panel Function Overview
RIGOL Chapter 1 Quick Start Front Panel Function Overview VERTICAL CH1, CH2, CH3, CH4: analog channel setting keys. The 4 channels are marked by different colors which are also used to mark both the corresponding waveforms on the screen and the channel input connectors. Press any key to open the corresponding channel menu and press again to turn off the channel.
Page 39: Logic Analyzer
Chapter 1 Quick Start RIGOL Logic Analyzer Press this key to open the logic analyzer control menu. You can turn on or off any channel or channel group, modify the display size of the digital channel, modify the logic threshold of the digital channel as well as group the 16 digital channels.
Page 40: Horizontal
RIGOL Chapter 1 Quick Start HORIZONTAL HORIZONTAL POSITION: modify the horizontal position. The trigger point would move left or right relative to the center of the screen when you turn the knob. During the modification, waveforms of all the channels would move left or right and the horizontal position message (e.g.
Page 41: Trigger
Chapter 1 Quick Start RIGOL TRIGGER MODE: press this key to switch the trigger mode to Auto, Normal or Single and the corresponding state backlight of the current trigger mode would be illuminated. TRIGGER LEVEL: modify the trigger level. Turn clockwise to increase the level and turn counterclockwise to reduce the level.
Page 42: Run/Stop
RIGOL Chapter 1 Quick Start RUN/STOP Press this key to "RUN" or "STOP" waveform sampling. In the "RUN" state, the key is illuminated in yellow. In the "STOP" state, the key is illuminated in red. SINGLE Press this key to set the trigger mode to "Single". In single trigger mode, press FORCE to generate a trigger signal immediately.
Page 43: Function Menus
Chapter 1 Quick Start RIGOL Function Menus Measure: press this key to open the measurement setting menu. You can set the measurement source, turn on or off the frequency counter, all measure, statistic function and etc. Press MENU at the left of the screen to open the measurement menus of 37 waveform parameters.
Page 44: Print
RIGOL Chapter 1 Quick Start Print Press this key to print the screen or save the screen to a USB storage device. ― If a PictBridge printer is connected currently and the printer is in idle state, pressing this key will execute the print operation.
Page 45: User Interface
Chapter 1 Quick Start RIGOL User Interface MSO1000Z/DS1000Z provides 7.0 inch WVGA (800*480) TFT LCD. 21 22 Figure 1-12 User Interface 1. Auto Measurement Items Provide 20 horizontal (HORIZONTAL) and 17 vertical (VERTICAL) measurement parameters. Press the softkey at the left of the screen to activate the corresponding measurement item.
Page 46 RIGOL Chapter 1 Quick Start 3. Status Available states include RUN, STOP, T’D (triggered), WAIT and AUTO. 4. Horizontal Time Base Represent the time per grid on the horizontal axis on the screen.  Use HORIZONTAL SCALE to modify this parameter. The range ...
Page 47 Chapter 1 Quick Start RIGOL 11. Trigger Level When an analog channel is selected as the trigger source, you need to set a  proper trigger level. The trigger level label is displayed at the right of the screen and the ...
Page 48 RIGOL Chapter 1 Quick Start 18. Digital Channel Status Area Display the current status of the 16 digital channels. The digital channels currently turned on are displayed in green and the digital channel currently selected is displayed in red. The digital channels turned off are displayed in grey.
Page 49 Chapter 1 Quick Start RIGOL Denote that the current menu has several options. Denote that the current menu has a lower level menu. Press this key to return to the previous menu. The number of dots indicates the number of pages of the current menu.
Page 50: Parameter Setting Method
RIGOL Chapter 1 Quick Start Parameter Setting Method MSO1000Z/DS1000Z supports the following two parameter setting methods. Method one: For the parameters with displayed on the menu, you can turn the multifunction knob directly to set the desired values. Method two:...
Page 51: To Use The Security Lock
Chapter 1 Quick Start RIGOL To Use the Security Lock If needed, you can use the security lock (please buy it yourself) to lock the oscilloscope to a fixed location. The method is as follows, align the lock with the lock hole and plug it into the lock hole vertically, turn the key clockwise to lock the oscilloscope and then pull the key out.
Page 52: To Use The Built-In Help System
RIGOL Chapter 1 Quick Start To Use the Built-in Help System The help system of this oscilloscope provides instructions for all the function keys (including the menu keys) at the front panel. Press Help to open the help interface and press again to close the interface. The help interface mainly consists of two parts.
Page 53: Chapter 2 To Set The Vertical System
Chapter 2 To Set the Vertical System RIGOL Chapter 2 To Set the Vertical System The contents of this chapter: To Enable the Analog Channel  Channel Coupling  Bandwidth Limit  Probe Ratio  Waveform Invert  Vertical Scale ...
Page 54: To Enable The Analog Channel
RIGOL Chapter 2 To Set the Vertical System To Enable the Analog Channel MSO1000Z/DS1000Z provides 4 analog input channels (CH1-CH4). As the setting methods of the vertical systems of the four channels are the same, this chapter takes CH1 as an example to illustrate the setting method of the vertical system.
Page 55: Bandwidth Limit
Chapter 2 To Set the Vertical System RIGOL Bandwidth Limit MSO1000Z/DS1000Z supports the bandwidth limit function which can reduce the display noise. For example, the signal under test is a pulse with high frequency oscillation. When the bandwidth limit is disabled, the high frequency components of the ...
Page 56: Waveform Invert
RIGOL Chapter 2 To Set the Vertical System Waveform Invert Press CH1  Invert to turn on or off waveform invert. When waveform invert is turned off, the waveform display is normal; when waveform invert is turned on, the waveform voltage values are inverted (as shown in the figures below).
Page 57: Amplitude Unit
Chapter 2 To Set the Vertical System RIGOL and "Fine" adjustments. When changing the vertical scale of the analog channel by rotating VERTICAL SCALE, you can select to expand or compress the waveform around the "Center" or "Ground". For more details, please refer to the introduction in "Vertical Reference".
Page 58 RIGOL Chapter 2 To Set the Vertical System Select "A " using and press down to switch it to " A". Select "C" using and press down to input the character. Use the same method to input "hn1". After finishing the input, press OK to finish the editing. If the Display is enabled, the label will be displayed at the left of CH1 waveform.
Page 59: Delay Calibration Of The Analog Channel
Chapter 2 To Set the Vertical System RIGOL Delay Calibration of the Analog Channel When using an oscilloscope for actual measurement, the transmission delay of the probe cable may bring relatively greater error (zero offset). MSO1000Z/DS1000Z supports user to set a delay time to calibrate the zero offset of the corresponding channel.
Page 60 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
Page 61: Chapter 3 To Set The Horizontal System
Chapter 3 To Set the Horizontal System RIGOL Chapter 3 To Set the Horizontal System The contents of this chapter: Delayed Sweep  Time Base Mode  MSO1000Z/DS1000Z User’s Guide GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
Page 62: Delayed Sweep
RIGOL Chapter 3 To Set the Horizontal System Delayed Sweep Delayed sweep can be used to enlarge a length of waveform horizontally to view waveform details. Press MENU in the horizontal control area (HORIZONTAL) at the front panel and press Delayed to enable or disable delayed sweep.
Page 63: Time Base Mode
Chapter 3 To Set the Horizontal System RIGOL You can also press down HORIZONTAL SCALE (delayed sweep shortcut key) to directly switch to the delayed sweep mode. Time Base Mode Press MENU in the horizontal control area (HORIZONTAL) at the front panel and then press Time Base to select the time base mode of the oscilloscope.
Page 64 RIGOL Chapter 3 To Set the Horizontal System According to sinθ=A/B or C/D (wherein, θ is the phase deviation angle between the two channels and the definitions of A, B, C and D are as shown in the figure above), the phase deviation angle is obtained, that is: θ=±arcsin (A/B) or ±arcsin (C/D)
Page 65: Roll Mode
Chapter 3 To Set the Horizontal System RIGOL Note: The maximum sample rate of XY mode is 500 MSa/s. Generally, longer sample  waveform can ensure better display effect of Lissajous figure. But due to the limitation of the memory depth, you have to reduce the waveform sample rate to acquire longer waveform (refer to the introduction in "Memory Depth").
Page 66 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
Page 67: Chapter 4 To Set The Sample System
Chapter 4 To Set the Sample System RIGOL Chapter 4 To Set the Sample System The contents of this chapter: Acquisition Mode  Sin(x)/x  Sample Rate  Memory Depth  Antialiasing  MSO1000Z/DS1000Z User’s Guide GlobalTestSupply www. .com nd Quality Products Online at:...
Page 68: Acquisition Mode
RIGOL Chapter 4 To Set the Sample System Acquisition Mode The acquisition mode is used to control how to generate waveform points from sample points. Press Acquire  Mode at the front panel and use to select the desired acquisition mode (the default is normal), then press down the knob to select this mode.
Page 69: High Resolution
Chapter 4 To Set the Sample System RIGOL Figure 4-1 The Waveform before Average Figure 4-2 The Waveform after 256 Averages High Resolution This mode uses a kind of ultra-sample technique to average the neighboring points of the sample waveform to reduce the random noise on the input signal and generate much smoother waveforms on the screen.
Page 70: Sin(X)/X
RIGOL Chapter 4 To Set the Sample System Sin(x)/x Press Sin(x)/x to enable or disable the dynamic sine interpolation function which can acquire better restoration of the original waveform. Note: If the number of channels currently turned on is less than three, Sin(x)/x is grayed out and disabled.
Page 71 Chapter 4 To Set the Sample System RIGOL 3. Waveform Leakage: when the sample rate is too low, the waveform rebuilt from the sample data does not reflect all the actual signal information. Pulse disappeared MSO1000Z/DS1000Z User’s Guide GlobalTestSupply www.
Page 72: Memory Depth
RIGOL Chapter 4 To Set the Sample System Memory Depth Memory depth refers to the number of waveform points that the oscilloscope can store in a single trigger sample and it reflects the storage ability of the sample memory. MSO1000Z/DS1000Z provides up to 24 Mpts memory depth (optional) and 12 Mpts standard memory depth.
Page 73: Antialiasing
Chapter 4 To Set the Sample System RIGOL For digital channels:  ― When 8 channels are enabled, the memory depths available include Auto, 12kPoints, 120kPoints, 1.2MPoints, 12MPoints and 24MPoints (optional). ― When 16 channels are enabled, the memory depths available include Auto, 6kPoints, 60kPoints, 600kPoints, 6MPoints and 12MPoints (optional).
Page 74 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
Page 75: Chapter 5 To Trigger The Oscilloscope
Chapter 5 To Trigger the Oscilloscope RIGOL Chapter 5 To Trigger the Oscilloscope As for trigger, you set certain trigger condition according to the requirement and when a waveform in the waveform stream meets this condition, the oscilloscope captures this waveform as well as the neighbouring part and displays them on the screen.
Page 76: Trigger Source
RIGOL Chapter 5 To Trigger the Oscilloscope Trigger Source Press MENU  Source in the trigger control area (TRIGGER) at the front panel to select the desired trigger source. Analog channels CH1-CH4, digital channels D0-D15 or the AC Line can all be used as trigger source.
Page 77: Trigger Mode
Chapter 5 To Trigger the Oscilloscope RIGOL Trigger Mode The following is the schematic diagram of the acquisition memory. To easily understand the trigger event, the acquisition memory is divided into the pre-trigger buffer and post-trigger buffer. Trigger Event Pre-trigger Buffer...
Page 78: Trigger Coupling
RIGOL Chapter 5 To Trigger the Oscilloscope Trigger Coupling Trigger coupling decides which kind of components will be transmitted to the trigger module. Please distinguish it from "Channel Coupling". DC: allow DC and AC components into the trigger path. ...
Page 79: Trigger Holdoff
Chapter 5 To Trigger the Oscilloscope RIGOL Trigger Holdoff Trigger holdoff can be used to stably trigger complex waveforms (such as modulated waveform). Holdoff time is the amount of time that the oscilloscope waits for re-arming the trigger module after generating a correct trigger. The oscilloscope will not trigger even if the trigger condition is met during the holdoff time and will only re-arm the trigger module after the holdoff time expires.
Page 80: Trigger Type
RIGOL Chapter 5 To Trigger the Oscilloscope Trigger Type MSO1000Z/DS1000Z provides various trigger functions. Among various trigger types, RS232 trigger (optional), I2C trigger (optional) and SPI trigger (optional) are serial bus triggers. Edge Trigger  Pulse Trigger  Slope Trigger ...
Page 81: Edge Trigger
Chapter 5 To Trigger the Oscilloscope RIGOL Edge Trigger Trigger on the trigger threshold of the specified edge of the input signal. Trigger Type: Press Type, rotate to select "Edge" and press down . At this point, the trigger setting information is displayed at the upper right corner of the screen.
Page 82: Pulse Trigger
RIGOL Chapter 5 To Trigger the Oscilloscope Pulse Trigger Trigger on the positive or negative pulse with a specified width. In this mode, the oscilloscope will trigger when the pulse width of the input signal satisfies the specified pulse width condition.
Page 83 Chapter 5 To Trigger the Oscilloscope RIGOL of pulse width. : trigger when the negative pulse width of the input signal is greater than  the specified pulse width. : trigger when the negative pulse width of the input signal is lower than ...
Page 84: Slope Trigger
RIGOL Chapter 5 To Trigger the Oscilloscope Slope Trigger In slope trigger, the oscilloscope triggers on the positive or negative slope of the specified time. This trigger mode is applicable to ramp and triangle waveforms. Trigger Type: Press Type, rotate to select "Slope"...
Page 85: Time Setting
Chapter 5 To Trigger the Oscilloscope RIGOL : trigger when the negative slope time of the input signal is greater than  the specified lower limit of time and lower than the specified upper limit of time. Time Setting: When the Slope Condition is set to ...
Page 86 RIGOL Chapter 5 To Trigger the Oscilloscope Figure 5-5 Trigger Level Information Display Note: Under the "Slope" trigger menu, you can also press down the trigger level knob continuously to switch the vertical window. During the adjustment of trigger level, two orange trigger level lines and two trigger...
Page 87: Video Trigger
Chapter 5 To Trigger the Oscilloscope RIGOL Video Trigger The video signal can include image information and timing information and can adopt different standards and formats. MSO1000Z/DS1000Z can trigger on the standard video signal field or line of NTSC (National Television Standards Committee), PAL (Phase Alternating Line) or SECAM (Sequential Couleur A Memoire).
Page 88 In the trigger debugging process of video signals, the frequency in different  part of the signal can be reflected by different brightness as RIGOL digital oscilloscope provides the intensity graded color display function. Experienced users can quickly judge the signal quality and discover abnormalities.
Page 89: Pattern Trigger
Chapter 5 To Trigger the Oscilloscope RIGOL Pattern Trigger Identify a trigger condition by looking for a specified pattern. This pattern is a logical "AND" combination of channels. Each channel can have a value of high (H), low (L) or don't care (X). A rising or falling edge (you can only specify a single edge) can be specified for one channel included in the pattern.
Page 90 RIGOL Chapter 5 To Trigger the Oscilloscope "Don’t Care", the oscilloscope will not trigger. : set the pattern to the rising or falling edge of the channel selected.  Note: When digital channels D7-D0 are enabled, CH4 is automatically disabled; the ...
Page 91: Duration Trigger
Chapter 5 To Trigger the Oscilloscope RIGOL Duration Trigger In duration trigger, the instrument identifies a trigger condition by looking for the duration of a specified pattern. This pattern is a logical "AND" combination of the channels. Each channel can have a value of high (H), low (L) or don’t care (X). The instrument triggers when the duration (△T) of this pattern meets the preset time, as...
Page 92 RIGOL Chapter 5 To Trigger the Oscilloscope lower than the trigger level of the channel. : set the pattern of the channel selected to "Don’t Care", namely this channel  is not used as a part of the pattern. When all channels in the pattern are set to "Don’t Care", the oscilloscope will not trigger.
Page 93: Timeout Trigger (Optional)
Chapter 5 To Trigger the Oscilloscope RIGOL TimeOut Trigger (Optional) In timeout trigger, the instrument triggers when the time interval (△T) from when the rising edge (or falling edge) of the input signal passes through the trigger level to when the neighbouring falling edge (or rising edge) passes through the trigger level is greater than the timeout time set, as shown in the figure below.
Page 94 RIGOL Chapter 5 To Trigger the Oscilloscope ns to 10 s. Trigger Mode: Press Sweep to open the trigger mode list and select auto, normal or single. For the details, please refer to "Trigger Mode". The corresponding status light of the current trigger mode turns on.
Page 95: Runt Trigger (Optional)
Chapter 5 To Trigger the Oscilloscope RIGOL Runt Trigger (Optional) This trigger mode is used to trigger pulses that pass through one trigger level but fail to pass through the other trigger level as shown in the figure below. Positive Runt Pulse...
Page 96 RIGOL Chapter 5 To Trigger the Oscilloscope Limit to set the minimum pulse width of runt trigger and the range is from 8.00 ns to 9.99 s. Note: The lower limit of the pulse width must be lower than the upper limit.
Page 97: Window Trigger (Optional)
Chapter 5 To Trigger the Oscilloscope RIGOL Window Trigger (Optional) Window trigger provides a high trigger level and a low trigger level. The instrument triggers when the input signal passes through the high trigger level or the low trigger level.
Page 98 RIGOL Chapter 5 To Trigger the Oscilloscope Trigger Mode: Press Sweep to open the trigger mode list and select auto, normal or single. For the details, please refer to "Trigger Mode". The corresponding status light of the current trigger mode turns on.
Page 99: Delay Trigger (Optional)
Chapter 5 To Trigger the Oscilloscope RIGOL Delay Trigger (Optional) In delay trigger, you need to set signal source A and signal source B. The oscilloscope triggers when the time difference (△T) between the specified edges of source A (Edge A) and source B (Edge B) meets the preset time limit, as shown in the figure below.
Page 100 RIGOL Chapter 5 To Trigger the Oscilloscope Edge B: Press EdgeB to select the trigger edge type of signal source B in delay trigger. It can be set to the rising edge or falling edge. Delay Type: Press DelayType to set the time limit condition of delay trigger.
Page 101 Chapter 5 To Trigger the Oscilloscope RIGOL TRIGGER LEVEL to modify the level. For the details, please refer to the introduction of "Trigger Level". MSO1000Z/DS1000Z User’s Guide 5-27 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
Page 102: Setup/Hold Trigger (Optional)
RIGOL Chapter 5 To Trigger the Oscilloscope Setup/Hold Trigger (Optional) In setup/hold trigger, you need to set the data signal line and clock signal line. The setup time starts when the data signal passes the trigger level and ends at the coming of the specified clock edge;...
Page 103 Chapter 5 To Trigger the Oscilloscope RIGOL Setup Type: It is used to select the different trigger types of setup/hold trigger. Press SetupType to select the desired setup type. Setup: the oscilloscope triggers when the setup time is less than the specified ...
Page 104: Nth Edge Trigger (Optional)
RIGOL Chapter 5 To Trigger the Oscilloscope Nth Edge Trigger (Optional) Trigger on the nth edge that appears after the specified idle time. For example, in the waveform shown in the figure below, the instrument should trigger on the second rising edge after the specified idle time (the time between two neighbouring rising edges) and the idle time should be set to P<Idle Time<M.
Page 105 Chapter 5 To Trigger the Oscilloscope RIGOL Idle Time: Press Idle to set the idle time before the edge counting in Nth edge trigger. The range available is from 16 ns to 10 s. Edge Number: Press Edge to set the value of "N" in Nth edge trigger and the range available is from 1 to 65535.
Page 106: Rs232 Trigger (Optional)
RIGOL Chapter 5 To Trigger the Oscilloscope RS232 Trigger (Optional) RS232 bus is a serial communication mode used in the data transmission between PCs or between PC and terminal. In RS232 serial protocol, a character is transmitted as a frame of data which consists of 1 bit start bit, 5~8 bits data bits, 1 bit check bit and 1~2 bits stop bit(s).
Page 107 Chapter 5 To Trigger the Oscilloscope RIGOL selected: --press Data Bits to select "5 bits", "6 bits", "7 bits" or "8 bits"; --press Data and use to set the data value of RS232 trigger. According to the setting in Data Bits and the ranges can be from 0 to 31, from 0 to 63, from 0 to 127 or from 0 to 255 respectively.
Page 108: I2C Trigger (Optional)
RIGOL Chapter 5 To Trigger the Oscilloscope I2C Trigger (Optional) I2C is a 2-wire serial bus used to connect the microcontroller and its peripheral device and is a bus standard widely used in the microelectronic communication control field. The I2C serial bus consists of SCL and SDA. Its transmission rate is determined by SCL and its transmission data is determined by SDA, as shown in the figure below.
Page 109 Chapter 5 To Trigger the Oscilloscope RIGOL MissedACK: trigger when the SDA data is high level during any  acknowledgement of SCL clock position. Address: the trigger searches for the specified address value. When this event  occurs, the oscilloscope will trigger on the read/write bit. After this trigger condition is selected: --press AddrBits to select "7 bits", "8 bits"...
Page 110 RIGOL Chapter 5 To Trigger the Oscilloscope Trigger Setting: Press Setting to set the trigger parameter (noise rejection) under this trigger type. Trigger Level: When SCL is an analog channel, press SCL and use TRIGGER LEVEL to modify the trigger level of the SCL channel. When SDA is an analog channel, press SDA and use TRIGGER LEVEL to modify the trigger level of the SDA channel.
Page 111: Spi Trigger (Optional)
Chapter 5 To Trigger the Oscilloscope RIGOL SPI Trigger (Optional) In SPI trigger, after the CS or timeout condition is satisfied, the oscilloscope triggers when the specified data is found. When using SPI trigger, you need to specify the SCL clock sources and SDA data sources. Below is the sequential chart of SPI bus.
Page 112 RIGOL Chapter 5 To Trigger the Oscilloscope signal line. The available channels are CH1-CH4 or D0-D15 (only the channels currently enabled can be selected). For the details, please refer to the introduction in "Trigger Source". The current trigger source is displayed at the upper right corner of the screen.
Page 113: Trigger Output Connector
Chapter 5 To Trigger the Oscilloscope RIGOL Trigger Output Connector The trigger output connector ([Trigger Out]) at the rear panel can output trigger signals determined by the current setting. Trigger Output Connector A signal which reflects the current oscilloscope capture rate can be output from [Trigger Out] connector each time a trigger is generated by the oscilloscope.
Page 114 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
Page 115: Chapter 6 Math And Measurement
Chapter 6 MATH and Measurement RIGOL Chapter 6 MATH and Measurement MSO1000Z/DS1000Z can make math operation, cursor measurement and auto measurement after data is sampled and displayed. The contents of this chapter: Math Operation  Auto Measurement  Cursor Measurement ...
Page 116: Math Operation
RIGOL Chapter 6 MATH and Measurement Math Operation MSO1000Z/DS1000Z can realize various math operations, including: Algebra operations: A+B, A-B, A×B and A/B  Spectrum operation: FFT  Logic operations: A&&B, A||B, A^B and !A  Function operations: Intg, Diff, Sqrt, Lg, Ln, Exp and Abs ...
Page 117: Subtraction
Chapter 6 MATH and Measurement RIGOL "Fx Operation"). Note: Sens. and Smooth are grayed out and disabled. Sens. is only available when a digital channel is selected as the source. Smooth is only available for differential operation. You can also use HORIZONTAL POSITION and HORIZONTAL ...
Page 118: Multiplication
RIGOL Chapter 6 MATH and Measurement Multiplication Multiply the waveform voltage values of signal source A and B point by point and display the results. Press MATH  Math  Operator to select "A×B": Press Operation to enable or disable the multiplication operation function.
Page 119 Chapter 6 MATH and Measurement RIGOL Press SourceA and SourceB to select the desired channels (CH1, CH2, CH3,  CH4 or fx (please refer to the introduction in "Fx Operation")). Press Offset and use to adjust the vertical position of the operation results.
Page 120: Fft
RIGOL Chapter 6 MATH and Measurement FFT (Fast Fourier Transform) is used to transform time domain signals to frequency domain components (frequency spectrum). MSO1000Z/DS1000Z oscilloscope provides FFT operation function which enables users to observe the time domain waveform and spectrum of the signal at the same time. FFT operation can facilitate...
Page 121 Chapter 6 MATH and Measurement RIGOL waveform corresponding to the horizontal center of the screen. 4. Horizontal Scale Press Hz/Div and use to adjust the horizontal scale of the frequency domain waveform. 5. Vertical Position Press Offset and use to adjust the vertical position of the operation results.
Page 122 RIGOL Chapter 6 MATH and Measurement Table 6-1 Window Function Waveforms Suitable for Window Characteristics Measurement Rectangle The best frequency Transient or short pulse, the signal levels resolution; before and after the multiplication are the poorest amplitude basically the same;...
Page 123 Chapter 6 MATH and Measurement RIGOL Trigger Position 16384 points If the trigger position is in the memory and the number of the  points from the trigger point to the end point of the memory is greater than or equal to 16384, the instrument will read the data of 16384 points from the trigger point.
Page 124 RIGOL Chapter 6 MATH and Measurement Tips You can adjust the center frequency and horizontal scale at the same time  using HORIZONTAL SCALE. Signals with DC components or deviation would cause error or deviation of the  FFT waveform components. To reduce the DC components, set the "Channel Coupling"...
Page 125: And" Operation
Chapter 6 MATH and Measurement RIGOL "AND" Operation Perform logic "AND" operation on the waveform voltage values of the specified sources point by point and display the results. In operation, when the voltage value of the source channel is greater than the threshold of the corresponding channel, it is regarded as logic "1";...
Page 126: Or" Operation
RIGOL Chapter 6 MATH and Measurement Note: Smooth is grayed out and disabled. It is only available for differential operation. You can also use HORIZONTAL POSITION and HORIZONTAL  SCALE to adjust the horizontal position and scale of the operation results.
Page 127: Xor" Operation
Chapter 6 MATH and Measurement RIGOL from the analog signal on the source. The setting range is from 0 Div to 0.96 Div. ― Press Auto Scale to enable or disable the auto scale function. When auto scale is enabled, the instrument will adjust the vertical scale of the operation results to the optimal value according to the current configuration.
Page 128: Not" Operation
RIGOL Chapter 6 MATH and Measurement disable waveform invert, etc. ― Press Start and use to set the start point of the operation results. ― Press End and use to set the end point of the operation results. ― Press Invert to enable or disable the inverted display function of the waveform.
Page 129: Intg
Chapter 6 MATH and Measurement RIGOL disable waveform invert, etc. ― Press Start and use to set the start point of the operation results. ― Press End and use to set the end point of the operation results. ― Press Invert to enable or disable the inverted display function of the waveform.
Page 130: Diff
RIGOL Chapter 6 MATH and Measurement the inner layer operation of Fx operation (please refer to the introduction in "Fx Operation"). Note: Sens. and Smooth are grayed out and disabled. Sens. is only available when a digital channel is selected as the source. Smooth is only available for differential operation.
Page 131: Sqrt
Chapter 6 MATH and Measurement RIGOL Because the differential operation is very sensitive to noise, you can set the "Acquisition Mode" to "Average". Sqrt Calculate the square root of the selected source point by point and display the results. When the operation is invalid, "NAN" is displayed at the bottom of the screen.
Page 132 RIGOL Chapter 6 MATH and Measurement the screen. Press MATH  Math  Operator to select "Lg": Press Operation to enable or disable the "Lg" operation function.  Press Source to select the desired channel (CH1, CH2, CH3, CH4 or fx (please ...
Page 133: Exp
Chapter 6 MATH and Measurement RIGOL optimal value according to the current configuration. Press Options to set the start and end points of the operation results, enable or  disable waveform invert, etc. ― Press Start and use to set the start point of the operation results.
Page 134: Abs
RIGOL Chapter 6 MATH and Measurement configuration. ― Press fx Operator, fx A and fx B to set the operator and signal sources of the inner layer operation of Fx operation (please refer to the introduction in "Fx Operation"). Note: Sens.
Page 135: Filter
Chapter 6 MATH and Measurement RIGOL Filter MSO1000Z/DS1000Z provides 4 types of filters (Low Pass Filter, High Pass Filter, Band Pass Filter and Band Stop Filter). The specified frequencies can be filtered by setting the bandwidth. Press MATH  Math  Operator to select "Filter": Press Operation to enable or disable the "Filter"...
Page 136: Fx Operation
RIGOL Chapter 6 MATH and Measurement ― Press Auto Scale to enable or disable the auto scale function. When auto scale is enabled, the instrument will adjust the vertical scale of the operation results to the optimal value according to the current configuration.
Page 137: Math Operation Label
Chapter 6 MATH and Measurement RIGOL Math Operation Label Press MATH  Math  Label  Display to enable or disable the MATH label. When "ON" is selected, you can add the MATH label via two modes. To Use Preset Label ...
Page 138: Auto Measurement
RIGOL Chapter 6 MATH and Measurement Auto Measurement MSO1000Z/DS1000Z provides auto measurements of 37 waveform parameters and the statistics and analysis of the measurement results. What’s more, you can also use the frequency counter to realize more precise frequency measurement.
Page 139: One-Key Measurement Of 37 Parameters
Chapter 6 MATH and Measurement RIGOL One-key Measurement of 37 Parameters Press MENU at the left of the screen to turn on the measurement menu of the 37 parameters and then press the corresponding menu softkey to quickly realize "One-key" measurement. The measurement results can be displayed at the bottom of the screen in various font sizes (press Measure ...
Page 140 RIGOL Chapter 6 MATH and Measurement Time Parameters Fall Time Rise Time Threshold Upper Limit +Width -Width Threshold Middle Value Threshold Lower Limit Period Figure 6-3 Time Parameters 1. Period: defined as the time between the middle threshold points of two consecutive, like-polarity edges.
Page 141 Chapter 6 MATH and Measurement RIGOL Count Values 1. +Pulses: the number of positive pulses that rise from below the threshold lower limit to above the threshold upper limit. +Pulses = n Threshold Upper Limit Threshold Lower Limit 2. -Pulses: the number of negative pulses that fall from above the threshold upper limit to below the threshold lower limit.
Page 142 RIGOL Chapter 6 MATH and Measurement Delay and Phase Period Source1 Delay Source2 Figure 6-4 Delay and Phase Source 1 and source 2, the same as source A and source B in the measurement setting menu can be any channel of CH1-CH4 or D0-D15. For the setting method, please refer to the introduction in "Measurement Setting".
Page 143 Chapter 6 MATH and Measurement RIGOL Voltage Parameters Overshoot Vmax Vupper Vtop Vamp Vmid Vbase Vlower Vmin Preshoot Figure 6-5 Voltage Parameters 1. Vmax: the voltage value from the highest point of the waveform to the GND. 2. Vmin: the voltage value from the lowest point of the waveform to the GND.
Page 144: Other Parameters
RIGOL Chapter 6 MATH and Measurement 12. Per.Vrms: the root mean square value within a period. The calculation formula is as follows. ∑ (6-3) RMS = Wherein, is the measurement result of the th point, is the number of points being measured.
Page 145: Frequency Counter Measurement
Chapter 6 MATH and Measurement RIGOL Frequency Counter Measurement The hardware frequency counter supplied with MSO1000Z/DS1000Z oscilloscope can make more precise measurement of the input signal frequency. Press Measure  Counter to select CH1-CH4 or D0-D15 as the measurement source. The measurement result is displayed at the upper right corner of the screen and you can identify the current measurement source according to the color of the icon and channel number.
Page 146: To Clear The Measurement
RIGOL Chapter 6 MATH and Measurement minimum value within the settable range. 3. Delay Measurement Setting 1→2" Specify the source 1 and source 2 in the measurement items "Delay 1→2". and "Delay Press Measure  Setting  Type  "Delay" and then press SourceA and SourceB to set the two channel sources (CH1-CH4 or D0-D15) of delay measurement respectively.
Page 147 Chapter 6 MATH and Measurement RIGOL Press Measure  Clear  Item n (n=1~5) to "Delete" or "Recover" the specified measurement item. When the state of Item n (n=1~5) is "Delete", you can press Item n (n=1~5)  to delete the corresponding item. At this point, the Nth measurement result at the bottom of the screen is grayed out.
Page 148: All Measurement
RIGOL Chapter 6 MATH and Measurement All Measurement All measurement could measure all the time and voltage parameters (each measurement source has 29 items) of the current measurement source and display the results on the screen. Press Measure  Measure All to enable or disable the all measurement function.
Page 149: Measurement History
Chapter 6 MATH and Measurement RIGOL Measurement History The measurement history function can display the history measurement data of the measurement items currently turned on in graph or table form. Press Measure  History  Disp Type to select "Graph" or "Table". Press Measure ...
Page 150: Cursor Measurement
RIGOL Chapter 6 MATH and Measurement Cursor Measurement Cursor measurement can measure the X axis values (usually Time) and Y axis values (usually Voltage) of the selected waveform. Before making cursor measurement, connect the signal to the oscilloscope and acquire stable display. All the parameters supported by the "Auto Measurement"...
Page 151 Chapter 6 MATH and Measurement RIGOL BY: the Y value at cursor B. Y value takes the channel GND of CH1 as reference.  Its unit is the same as that of the current signal source. BX-AX: the horizontal difference between cursors A and B.
Page 152 RIGOL Chapter 6 MATH and Measurement 3. Adjust Cursor Position Adjust cursorA: press CursorA and use to adjust the position of  cursorA. The measurement result will change accordingly during the adjustment and the adjustable range is limited within the screen.
Page 153 Chapter 6 MATH and Measurement RIGOL corresponding value. When "Main" is selected, the cursor values are displayed in the zoom region. When "Zoom" is selected, the cursors values are displayed in the main region. Note: ― When the cursor measurement source is set to "LA" and the main time base is measured (namely the "Main"...
Page 154: Track Mode
RIGOL Chapter 6 MATH and Measurement Track Mode In this mode, one or two pairs of cursors will appear. You can adjust the two pairs of cursors (cursor A and cursor B) to measure the X and Y values on two different sources respectively.
Page 155 Chapter 6 MATH and Measurement RIGOL A. During the adjustment, the measurement result will change accordingly. The adjustable range is limited within the screen. Adjust cursor B: press CursorB and use to adjust the position of cursor  B. During the adjustment, the measurement result will change accordingly.
Page 156: Auto Mode
RIGOL Chapter 6 MATH and Measurement Auto Mode In this mode, one or more cursors will appear. You can use auto cursor measurement to measure any of the 37 waveform parameters. Before using this mode, you need to at least enable one auto measurement parameter and the number of cursors will change with the measurement parameter enabled.
Page 157: Xy Mode
Chapter 6 MATH and Measurement RIGOL XY Mode XY mode is only available when the horizontal time base mode is "XY". In this mode, two pairs of cursors will appear. You can adjust the cursor positions and the instrument will automatically calculate the chord length and curvature of the ellipses corresponding to the crossing points of the two pairs of cursor lines.
Page 158 RIGOL Chapter 6 MATH and Measurement absAA argAA Center X-axis Point Y-axis Figure 6-8 XY Cursor Measurement Definition 1. Select Values Press Values and use to turn the value(s) to be measured on or off. The △X,△Y: Open the BX-AX and BY-AY measurement items.
Page 159 Chapter 6 MATH and Measurement RIGOL Note: You can also press down knob continuously to switch the current cursor. 3. Display Lissajous Legend This oscilloscope provides the lissajous schematic diagram under different frequencies and phases. Phase difference between two signals...
Page 160 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
Page 161: Chapter 7 Digital Channel
Chapter 7 Digital Channel RIGOL Chapter 7 Digital Channel MSO1000Z provides 4 analog channels as well as 16 digital channels. DS1000Z Plus can be upgraded to MSO using the MSO upgrade option. For the digital channels, the oscilloscope compares the voltages acquired in each sample with the preset logic threshold.
Page 162: To Select The Digital Channel
RIGOL Chapter 7 Digital Channel To Select the Digital Channel Press LA to open the logic analysis control menu. You can select any of the digital channels or user-defined digital channel groups. Press Current to open the channel/group dropdown menu and rotate the multifunction knob to select the desire channel or channel group.
Page 163: Group Set
Chapter 7 Digital Channel RIGOL menu. When you have turned on channels D7-D0 at the same time using D7-D0, the channels in the list switch to ON status automatically. The situation of channels D15-D8 is similar. ― Only user-defined digital channel groups can be selected.
Page 164: To Set The Waveform Display Size
RIGOL Chapter 7 Digital Channel To Set the Waveform Display Size Press WaveSize to open the waveform size selection list. You can use or press WaveSize to set the waveform display size of the channel currently turned on to S (small) and L (large).
Page 165: To Set The Label
Chapter 7 Digital Channel RIGOL the desired threshold. Press High Type to open the threshold selection list to select the threshold of D15-D8. The selectable preset values include TTL (1.40 V), CMOS (2.50 V), ECL (-1.30 V), PECL (3.70 V), LVDS (1.20 V) and 0V. You can also press D15-D8 and use to set the desired threshold.
Page 166 RIGOL Chapter 7 Digital Channel Press Delay-Cal and rotate to set the delay calibration time. The range is from -100 ns to 100 ns. Note: The delay calibration setting is related to the instrument model and the current horizontal time base. The larger the horizontal time base is, the larger the setting step will be.
Page 167: Chapter 8 Protocol Decoding
Chapter 8 Protocol Decoding RIGOL Chapter 8 Protocol Decoding Protocol analysis can be used by users to discover errors, debug hardware and accelerate development easily, so as to guarantee quick and high-quality accomplishment of projects. Protocol decoding is the basis of protocol analysis. Only protocol analyses with correct protocol decoding are acceptable and only correct protocol decoding can provide more error information.
Page 168: Parallel Decoding
RIGOL Chapter 8 Protocol Decoding Parallel Decoding Parallel bus consists of clock line and data line. As shown in the figure below, CLK is the clock line, while Bit0 and Bit1 are the 0 bit and 1st bit on the data line respectively.
Page 169 Chapter 8 Protocol Decoding RIGOL Width BitX Note D7-D0 Bit0 to Bit7 are set to D0 to D7 respectively. D15-D8 8 Bit0 to Bit7 are set to D8 to D15 respectively. D15-D0 16 Bit0 to Bit15 are set to D0 to D15 respectively.
Page 170 RIGOL Chapter 8 Protocol Decoding 6. Display-related Setting Press Format to set the display format of the bus to HEX, DEC, BIN, ASC or  LINE. Note: In LINE format, the actual values of the bus are displayed in binary form and the order is consistent with the bus transmission order.
Page 171 Chapter 8 Protocol Decoding RIGOL Press Width to enable or disable the width display function. When "ON" is  selected, the current bus width will be displayed on the right side of the format display (the bus display is turned on). You can use "Width" to set the bus width.
Page 172 RIGOL Chapter 8 Protocol Decoding Figure 8-2 Parallel Decoding Event Table MSO1000Z/DS1000Z User’s Guide GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
Page 173: Rs232 Decoding (Optional)
Chapter 8 Protocol Decoding RIGOL RS232 Decoding (Optional) RS232 serial bus consists of the transmitting data line (TX) and the receiving data line (RX). DeviceA DeviceB Figure 8-3 RS232 Serial Bus Schematic Diagram The industry standard of RS232 uses "Negative Logic", namely high level is logic "0"...
Page 174 RIGOL Chapter 8 Protocol Decoding Start Bit: represent when the data starts outputting. Data Bits: represent the number of data bits actually contained in each frame of data. Check Bit: used to check the correctness of the data transmission. Odd Checkout: the total number of "1" in the data bit and check bit is an odd.
Page 175 Chapter 8 Protocol Decoding RIGOL "Polarity Setting". The setting methods of other parameters are as follows. Press Data to set the data width of each frame. It can be set to 5, 6, 7 or 8  and the default is 8.
Page 176 RIGOL Chapter 8 Protocol Decoding Press Line to enable or disable the bus display function. When "ON" is  selected, the bus will be displayed on the screen. You can use "Pos" to adjust the vertical display position of the bus.
Page 177 Chapter 8 Protocol Decoding RIGOL (01111101, LSB) The check bit detected is 0 Wherein, there are even number of 1 in the 8-bit data 01111101 and the check bit should be 1; but the check bit detected on the TX is 0, thus check error occurs.
Page 178: I2C Decoding (Optional)
RIGOL Chapter 8 Protocol Decoding I2C Decoding (Optional) I2C serial bus consists of the clock line (SCLK) and the data line (SDA). SCLK Device Host SCLK Figure 8-5 I2C Serial Bus Press MATH Decode1  Decoder to select "I2C" and open the I2C decoding function menu.
Page 179 Chapter 8 Protocol Decoding RIGOL 7. Event Table The event table displays the decoded data, the corresponding line number and time in table format. Press Evt. Table  EventTable to select "ON" (Note: This operation is only available when MATH  Decode1 / Decode2 ...
Page 180 RIGOL Chapter 8 Protocol Decoding sample rate relates to the horizontal time base. Note: By default, MSO1000Z/DS1000Z uses "Trace" as the data source. 9. Address Information during Decoding In I2C bus, the front part of each frame of data contains the address information and blue patches are used to represent the address ID.
Page 181: Spi Decoding (Optional)
Chapter 8 Protocol Decoding RIGOL SPI Decoding (Optional) SPI bus is based on the master-slave configuration and usually consists of chip select line (CS), clock line (SCLK) and data line (SDA). Wherein, the data line includes MISO and MOSI. SCLK...
Page 182 RIGOL Chapter 8 Protocol Decoding 5. Mode Timeout: you can perform frame synchronization according to the timeout  and the timeout must be greater than half of the clock cycle. CS: it contains a chip select line (CS). You can perform frame ...
Page 183 Chapter 8 Protocol Decoding RIGOL View: select the display form of the event table. If "Packets" is selected, the time and data are displayed in the event table; if "Details" is selected, the detailed data of the specified row will be displayed in the event table; if "Payload"...
Page 184 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
Page 185: Chapter 9 Reference Waveform
Chapter 9 Reference Waveform RIGOL Chapter 9 Reference Waveform In the actual test process, you can compare the waveform with the reference waveform to determine the cause of failure. The contents of this chapter: To Enable REF Function  To Select REF Source ...
Page 186: To Enable Ref Function
RIGOL Chapter 9 Reference Waveform To Enable REF Function Press REF in the vertical control area (VERTICAL) at the front panel to enable the REF function. MSO1000Z/DS1000Z provides 10 reference waveform channels. Press Channel and to set the desired reference channel to on or off and the channel icon (for...
Page 187: To Set The Color
Chapter 9 Reference Waveform RIGOL To Set the Color MSO1000Z/DS1000Z series oscilloscope provides five colors (light gray, green, light blue, magenta and orange) to mark the reference waveforms of different channels in order to distinguish them. Press Current and use to select any of the reference channels (Ref1-Ref10) enabled.
Page 188 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
Page 189: Chapter 10 Pass/Fail Test
Chapter 10 Pass/Fail Test RIGOL Chapter 10 Pass/Fail Test During the product design and manufacture process, you usually need to monitor the change of the signal or judge whether the product is up to standard. The pass/fail test function of MSO1000Z/DS1000Z oscilloscope can fulfill this task perfectly.
Page 190: To Enable Pass/Fail Test
RIGOL Chapter 10 Pass/Fail Test To Enable Pass/Fail Test Press Utility  Pass/Fail  Enable to select "ON". The blue shadow area denotes the failure area and if the waveform measured at certain time point during the measurement process passes through the failure area, it will be treated as failed frame.
Page 191: Test And Output
Chapter 10 Pass/Fail Test RIGOL Test and Output You can set the output form of the test results by the following method. Press Stat.Disp to select "ON" or "OFF". When "ON" is selected, the test results will be displayed at the upper right corner of the screen as shown in the figure below.
Page 192: To Save The Test Mask
RIGOL Chapter 10 Pass/Fail Test To Save the Test Mask Users can save the current test mask to the internal flash memory or external USB storage device. The file format of the test mask file is "*.pf". Note: MSO1000Z/DS1000Z only supports the flash memory USB storage device of FAT32 format.
Page 193: Chapter 11 Waveform Record
Chapter 11 Waveform Record RIGOL Chapter 11 Waveform Record Waveform record can record the waveforms of the analog input channels (CH1-CH4) and the digital channels (D0-D15). Waveform playback can provide better waveform analysis effect. Note: The horizontal time base must be set to Y-T mode during waveform record.
Page 194: Common Settings
RIGOL Chapter 11 Waveform Record Common Settings Press Utility  Record  Record to turn on or off the waveform record function. 1. Record Waveform Before recording the waveform, you can refer to the introduction in "Record Option" to set the waveform recording parameters. Press Record to start recording the waveform.
Page 195: Playback Option
Chapter 11 Waveform Record RIGOL Playback Option Waveform playback can play back the waveforms currently recorded. During the playback, the information as shown in the figure below is displayed at the upper right corner of the screen. The data at the left side of the figure indicates the specific frame currently displayed on the screen.
Page 196: Record Option
RIGOL Chapter 11 Waveform Record Record Option Before recording the waveform, you can press Record Opt to set the following parameters. 1. Interval Press Interval to set the time interval between the frames in waveform recording and the range available is from 100 ns to 10 s. For the setting method, please refer to the introduction in "Parameter Setting Method".
Page 197: Chapter 12 Display Control
Chapter 12 Display Control RIGOL Chapter 12 Display Control You can set the type, persistence time and brightness of waveform display as well as the grid type and grid brightness of the screen display. The contents of this chapter: To Select the Display Type ...
Page 198: To Select The Display Type
RIGOL Chapter 12 Display Control To Select the Display Type Press Display  Type to set the waveform display mode to "Vectors" or "Dots". Vectors: the sample points are connected by lines and displayed, as shown in  the figure below. Normally, this mode can provide the most vivid waveform to view the steep edge of the waveform (such as square waveform).
Page 199: To Set The Waveform Intensity
Chapter 12 Display Control RIGOL 3. Infinite In this mode, the oscilloscope displays the waveform newly acquired without clearing the waveforms acquired formerly. The waveforms acquired formerly will be displayed in relatively low-brightness color and the waveform newly acquired will be displayed in normal brightness and color. Infinite persistence can be used to measure noise and jitter and to capture incidental events.
Page 200 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
Page 201: Chapter 13 Signal Source
Chapter 13 Signal Source RIGOL Chapter 13 Signal Source MSO1000Z/DS1000Z combines signal generator and oscilloscope in one instrument by providing a built-in dual-channel, 25MHz signal generator, thus providing convenience for engineers who need to use the signal generator and oscilloscope at the same time.
Page 202: To Output Basic Waveform
RIGOL Chapter 13 Signal Source To Output Basic Waveform MSO1000Z/DS1000Z built-in signal source can output a variety of basic waveforms, including sine, square, ramp, pulse, DC and noise. To Output Sine Press Src1Conf to open the waveform setting menu. Press Wave and select "Sine".
Page 203: To Output Square
Chapter 13 Signal Source RIGOL 6. Align phase Pressing AlignPhase will re-configure the two channels to output according to the preset frequency and phase. For two signals of which the frequencies are the same or are multiples, this operation can align their phases. Acquire the waveforms of the two channels using the oscilloscope and display the waveforms stably.
Page 204: To Output Ramp
RIGOL Chapter 13 Signal Source To Output Ramp Press Src1Conf to open the waveform setting menu. Press Wave and select "Ramp". At this point, you can set the ramp parameters. For the detailed setting method, refer to the introduction in "To Output Sine". This section only introduces "Symmetry".
Page 205: To Output Pulse
Chapter 13 Signal Source RIGOL To Output Pulse Press Src1Conf to open the waveform setting menu. Press Wave and select "Pulse". At this point, you can set the pulse parameters. For the detailed setting method, refer to the introduction in "To Output Sine". This section only introduces "DutyCycle".
Page 206: To Output Noise
RIGOL Chapter 13 Signal Source To Output Noise Press Src1Conf to open the waveform setting menu. Press Wave and select "Noise". At this point, you can output a noise signal with the specified amplitude, offset and impedance. 1. Source 1 output Press Output to turn on or off the signal output.
Page 207 Chapter 13 Signal Source RIGOL Figure 13-3 Built-in Waveform-Sinc Figure 13-4 Built-in Waveform-ExpRise Figure 13-5 Built-in Waveform-ExpFall MSO1000Z/DS1000Z User’s Guide 13-7 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
Page 208 RIGOL Chapter 13 Signal Source Figure 13-6 Built-in Waveform-ECG Figure 13-7 Built-in Waveform-Gauss Figure 13-8 Built-in Waveform-Lorentz 13-8 MSO1000Z/DS1000Z User’s Guide GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
Page 209 Chapter 13 Signal Source RIGOL Figure 13-9 Built-in Waveform-Haversine 3. Set the frequency Press Frequency to set the frequency of the signal. For the setting method, please refer to the introduction in "Parameter Setting Method". The range is from 100 mHz to 1 MHz.
Page 210: To Output Arbitrary Waveform
RIGOL Chapter 13 Signal Source 8. Modulation Press Src1Mod to enter the modulation setting interface. For detailed introduction of the modulation function, please refer to "Modulation". Note: When "Pulse", "DC" or "Noise" is selected, the modulation menu will be hidden automatically.
Page 211: To Select Waveform
Chapter 13 Signal Source RIGOL 6. Align Phase The align phase operation is for the two channels. Pressing AlignPhase will re-configure the two channels to output according to the preset frequency and phase. For two signals of which the frequencies are the same or are multiples, this operation can align their phases.
Page 212: To Create Waveform
RIGOL Chapter 13 Signal Source Press Select  CHSignal to set the desired channel signal. ― Press Source to select the waveform of any of the channels turned on (CH1-CH4). ― Press WaveRange to set the waveform in the "Cursor" or "Screen" region for output.
Page 213 Chapter 13 Signal Source RIGOL OFF: the waveform editor will keep a constant voltage level between two  points and create a ladder-like waveform. 3. Zoom Press Zoom to turn on or off the zoom function. ON: the waveform editing window only displays the current point.
Page 214: To Edit Waveform
RIGOL Chapter 13 Signal Source "Store and Recall" to save the current waveform file in ".arb" format in the internal memory or external memory (you can overwrite the original file or save the current waveform again). You can select the arbitrary waveforms in the internal or external memory for output.
Page 215: Modulation
Chapter 13 Signal Source RIGOL 7. Delete Press Delete to delete the current point from the waveform and connect the remaining points using the current interpolation mode. Note: Point 1 cannot be deleted. 8. Apply Press Apply to finish editing the current waveform.
Page 216 RIGOL Chapter 13 Signal Source AM (Amplitude Modulation), namely the amplitude of the carrier waveform changes with the amplitude of the modulating waveform, as shown in the figure below. Modulating Waveform Carrier Waveform Modulated Waveform Figure 13-10 Amplitude Modulation 1. Select the Carrier Waveform Press Src1Conf to enter the waveform setting interface.
Page 217 Chapter 13 Signal Source RIGOL 5. Set the Modulation Depth The modulation depth refers to the strength of the AM and is expressed in percentage. Press Depth to set the modulation depth of the modulating waveform. The range is from 0% to 120%. When it is set to 0%, the output amplitude is half of the carrier amplitude.
Page 218 RIGOL Chapter 13 Signal Source waveform and noise. 4. Set the Modulation Frequency Press Frequency to set the frequency of the modulating waveform. The range is from 1 Hz to 50 kHz. 5. Set the Modulation Deviation Press Deviation to set the deviation of the frequency of the modulating waveform relative to the carrier frequency.
Page 219: Chapter 14 Store And Recall
Chapter 14 Store and Recall RIGOL Chapter 14 Store and Recall Users can save the current settings, waveforms, screen image and parameters of the oscilloscope in internal memory or external USB mass storage device (such as USB storage device) in various formats and recall the stored traces, settings or waveforms when needed.
Page 220: Storage System
RIGOL Chapter 14 Store and Recall Storage System Press Storage to enter the store and recall setting interface. The internal memory (Local Disk) of this oscilloscope is 90.5 MByte. It provides a USB Host interface at the front panel to connect USB storage device for external storage.
Page 221 Chapter 14 Store and Recall RIGOL waveforms will be displayed on the screen.) 3. Waves Save the main setting information (e.g. "On/Off" states of the channels, vertical scale and horizontal scale) and waveform data of all enabled channels (analog channel and digital channel) to the external memory in "*.wfm" format. When the waves file is loaded, the system will set the oscilloscope based on its existing saved setting information of the oscilloscope and recall all the waveform data.
Page 222 RIGOL Chapter 14 Store and Recall software and hardware version number) and the current setting information of the instrument (such as vertical, horizontal, trigger, etc). The recall of the parameter file is not supported. 14-4 MSO1000Z/DS1000Z User’s Guide GlobalTestSupply www.
Page 223: Internal Storage And Recall
Chapter 14 Store and Recall RIGOL Internal Storage and Recall "Setups" and "Param" (internal recall is not supported) in Storage support internal storage. In the following part, the storage and recall method and procedures of internal storage are introduced. 1. Save the specified oscilloscope setting in internal memory.
Page 224: External Storage And Recall
RIGOL Chapter 14 Store and Recall External Storage and Recall Before using external storage and recall, make sure that a USB storage device (FAT32 format, flash memory) is connected correctly. External storage supports all the types of files in Storage but in recall, "Picture", "CSV" and "Param" are not supported.
Page 225: Disk Management
Chapter 14 Store and Recall RIGOL Disk Management Press Storage  DiskManage to turn on the disk management interface as shown in Figure 14-1 and use to select the desired disk. The disk currently selected is displayed in blue shading. Press down to open the disk selected.
Page 226: To Create A New File Or Folder
RIGOL Chapter 14 Store and Recall To Create a New File or Folder This operation is only valid in external storage. Before using external disk, make sure that a USB storage device (FAT32 format, flash memory) is connected correctly. First, press Storage  DiskManage and use to select and open the external disk ("Disk D").
Page 227 Chapter 14 Store and Recall RIGOL English Input Method For example, create a file or folder with the name "Filename". Press Keyboard. 1) Use to select English input method "En" and uppercase input state "A ". to input the letter "F". If the input is wrong, press Delete to delete 2) Use the character input.
Page 228 RIGOL Chapter 14 Store and Recall Chinese Input Method For example, create a file or folder with the name "文件名". Press Keyboard. 1) Use to select Chinese input method "中". Note: Chinese is added in the menu items at the right of the screen.
Page 229: To Delete A File Or Folder
Chapter 14 Store and Recall RIGOL To Delete a File or Folder Folder operation is valid only in external storage. Before using the external disk, make sure that a USB storage device (FAT32 format, flash memory) is connected correctly. 1. Delete a file in internal memory.
Page 230: Factory
RIGOL Chapter 14 Store and Recall Factory Press Storage Default to return the oscilloscope to its factory state (refer to the table below). Table 14-1 Factory Parameter Factory Horizontal Setting (HORIZONTAL) Vertical Setting (VERTICAL) Acquisition Setting (Acquire) Trigger Setting (TRIGGER)
Page 231 Chapter 14 Store and Recall RIGOL Acquisition Setting (Acquire) Acquisition Mode Normal Sin(x)/x Memory Depth Auto Anti-Aliasing Trigger Setting (TRIGGER) Trigger Type Edge Source Slope Rising Edge Trigger Mode Auto Trigger Coupling Trigger Holdoff 16 ns Noise Reject Display Setting (Display)
Page 232 RIGOL Chapter 14 Store and Recall Horizontal Unit Track CursorA Source CursorB Source CursorA -4.000 μs CursorB 4.000 μs 2.000 V -2.000 V 2.000 V -2.000 V Storage Setting (Storage) Storage Type Picture Utility Function Setting (Utility) Sound Pass/Fail Test...
Page 233 Chapter 14 Store and Recall RIGOL Scale 1.00 V A×B Operation Source A Source B Offset 0.00 U Scale 2.00 U Operation Source A Source B Offset 0.00 U Scale 50.0 mU Operation Source Center Frequency 5.00 MHz Horizontal Scale 5.00 MHz...
Page 234 RIGOL Chapter 14 Store and Recall Offset 0.00 V Scale 1.00 V Threshold A 0.00 V Threshold B 0.00 V Operation Source A Offset 0.00 V Scale 1.00 V Threshold A 0.00 V Intg Operation Source Offset 0.00 U Scale 10.0 μU...
Page 235 Chapter 14 Store and Recall RIGOL Scale 50.0 V Filter Operation Source Offset 0.00 V Scale 1.00 V Filter Low Pass Cutoff Frequency 500 kHz Current Channel None D7-D0 D15-D8 Wave Size ReOrder D0-D15 Delay Calibration 0.00 s Switch Channel...
Page 236 RIGOL Chapter 14 Store and Recall Stop Bit Parity None DATA Address Mode Normal MISO MOSI Mode Timeout Timeout 1.00 us Edge Rising Edge Polarity Width Order Decoding Configuration Label Line Format Endian Width Data Source Traces Reference Waveform Setting (REF)
Page 237: Chapter 15 Accessibility Setting
Chapter 15 Accessibility Setting RIGOL Chapter 15 Accessibility Setting The contents of this chapter: Remote Interface Configuration  System-related  MSO1000Z/DS1000Z User’s Guide 15-1 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
Page 238: Remote Interface Configuration
RIGOL Chapter 15 Accessibility Setting Remote Interface Configuration MSO1000Z/DS1000Z provides two remote control interfaces: USB Device (TMC and SICD static image capture devices share this interface) and LAN. The USB Device interface takes precedence over the LAN interface. You can press Utility  IO Setting ...
Page 239 Chapter 15 Accessibility Setting RIGOL Network Status Connect the oscilloscope to your local area network using a network cable. The network interface of the oscilloscope is at the rear panel. The oscilloscope will give different prompts according to the current network connection status.
Page 240 RIGOL Chapter 15 Accessibility Setting Mask, Gate and DNS are added to the right of the screen. At this point, users can define their own network parameters (such as the IP address) of the oscilloscope. 1. Set the IP Address The format of IP address is nnn.nnn.nnn.nnn.
Page 241: Usb Device
Chapter 15 Accessibility Setting RIGOL press DNS and use to input the desired address. Generally, users do not need to set the DNS, therefore this parameter setting can be ignored. Tips When the three IP configuration types are all turned on, the priority of the ...
Page 242: System-Related
RIGOL Chapter 15 Accessibility Setting System-related Sound When the sound is enabled, you can hear the sound of the beeper when you press a function key or a menu softkey or when the prompt message pops up. Press Utility  Sound to select (off) or (on).
Page 243: Power-Off Recall
Chapter 15 Accessibility Setting RIGOL Power-off Recall You can set the system configuration to be recalled when the oscilloscope is powered on again after power-off. Press Utility  System  Power Set to select "Last" or "Default". Last: return to the setting of the system at last power-off.
Page 244: Print Setting
RIGOL Chapter 15 Accessibility Setting Print Setting PictBridge is a new print standard. If your oscilloscope and the printer both comply with the PictBridge standard, you can connect the oscilloscope to the printer using a USB cable to print the screen image directly.
Page 245 Chapter 15 Accessibility Setting RIGOL 7. Paper Size Press this key to open the size list and rotate the multifunction knob select the desired paper size. You can also press this key continuously to switch among the options. The sizes include "Default", "A2", "A3", "A4", "A5", "A6" or "B5".
Page 246: Aux Output
RIGOL Chapter 15 Accessibility Setting Aux Output Users can set the type of the signal output from the [Trigger Out] connector at the rear panel. Press Utility  Aux Out to select the desired output type. 1. TrigOut After this type is selected, the oscilloscope outputs a signal that can reflect the current capture rate of the oscilloscope at each trigger.
Page 247: Option Management
Before installing an option, follow the steps below to generate the option license using the key. Log in RIGOL official website (www.rigol.com); click Customer Center  License Generate to enter the software license generation interface. Input the correct key, instrument serial number (press Utility  System ...
Page 248: Auto Options
RIGOL Chapter 15 Accessibility Setting Auto Options As mentioned before, pressing AUTO at the front panel can enable the waveform automatic setting function. The oscilloscope will automatically adjust the vertical scale, horizontal time base and trigger mode according to the input signal to realize optimum waveform display.
Page 249: Chapter 16 Remote Control
Use PC software Users can use PC software to send commands to control the oscilloscope remotely. Ultra Sigma of RIGOL is recommended. You can download Ultra Sigma from RIGOL official website (www.rigol.com). This oscilloscope can communicate with PC through USB or LAN instrument bus. This chapter gives a detailed introduction of how to use Ultra Sigma to control the oscilloscope remotely through various interfaces.
Page 250: Remote Control Via Usb
RIGOL Chapter 16 Remote Control Remote Control via USB 1. Connect the device Connect the USB Device interface of the oscilloscope at the rear panel with the USB Host interface of your PC using a USB cable. 2. Install the USB driver This oscilloscope is a USB-TMC device.
Page 251 Chapter 16 Remote Control RIGOL MSO1000Z/DS1000Z User’s Guide 16-3 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
Page 252 4. View the device resource The resources found will appear under the "RIGOL Online Resource" directory and the model number and USB interface information of the instrument will also be displayed. For example, MSO1104Z (USB0::0x1AB1::0x04CE::DS1ZD170800001::INSTR).
Page 253 Chapter 16 Remote Control RIGOL 5. Control the instrument remotely Right click the resource name "MSO1104Z (USB0::0x1AB1::0x04CE::DS1ZD170800001::INSTR)" and select "SCPI Panel Control" to turn on the remote command control panel through which you can send commands and read data. MSO1000Z/DS1000Z User’s Guide...
Page 254: Remote Control Via Lan
You can click to add the instrument resource. 4. View the device resource The resources found will appear under the "RIGOL Online Resource" directory. For example, MSO1104Z (TCPIP::172.16.3.94::INSTR). 5. Control the instrument remotely Right click the resource name "MSO1104Z (TCPIP::172.16.3.94::INSTR)" and select "SCPI Panel Control"...
Page 255: Chapter 17 Troubleshooting
The commonly encountered failures and their solutions are listed below. When you encounter those problems, please solve them following the corresponding steps. If the problem remains still, please contact RIGOL and provide your device information (Utility  System  System Info).
Page 256: Rigol
RIGOL Chapter 17 Troubleshooting 6. The display of waveform is ladder-like: (1) The horizontal time base might be too low. Increase the horizontal time base to increase the horizontal resolution and improve the display. (2) If the display type is "Vectors", the lines between the sample points may cause ladder-like display.
Page 257: Chapter 18 Specifications
Chapter 18 Specifications RIGOL Chapter 18 Specifications All the specifications are guaranteed except the parameters marked with "Typical" and the oscilloscope needs to operate for more than 30 minutes under the specified operation temperature. Sample Sample Mode Real-time Sample Analog channel: 1 GSa/s (single-channel), 500 Msa/s...
Page 258 RIGOL Chapter 18 Specifications Horizontal Timebase Scale 5 ns/div to 50 s/div Max Record 24 Mpts (optional) Length Timebase ≤±25 ppm Accuracy Clock Drift ≤±5 ppm/year Max Delay Negative delay: 1/2 (memeory depth/sample rate) Range Positive delay: 1 s to 500 s...
Page 259 Chapter 18 Specifications RIGOL DC Gain <10 mV: ±4% full scale Accuracy ≥10 mV: ±3% full scale DC Offset ±0.1 div±2 mV±1% offset value Accuracy Channel to DC to maximum bandwidth: >40 dB Channel Isolation Vertical (Digital Channel) (Applicable to MSO1000Z and DS1000Z Plus...
Page 260 RIGOL Chapter 18 Specifications Pulse Condition Positive Pulse Width (greater than, lower than, within specific interval) Negative Pulse Width (greater than, lower than, within specific interval) Pulse Width 8 ns to 10 s Runt Trigger (Optional) Pulse Width None, >, <, <>...
Page 261 Chapter 18 Specifications RIGOL Data Type H, L, X Setup Time 8 ns to 1 s Hold Time 8 ns to 1 s RS232/UART Trigger (Optional) Polarity Normal, Invert Trigger Condition Start, Error, Check Error, Data Baud Rate 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 57600...
Page 262 RIGOL Chapter 18 Specifications Number of Display 5 measurements at the same time Measurements Measurement Screen or cursor Range Measurement Average, Max, Min, Standard Deviation, Number of Statistic Measurements Frequency Hardware 6 bit frequency counter Counter (channels are selectable) Math Operation Waveform A+B, A-B, A×B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt,...
Page 263 Chapter 18 Specifications RIGOL Standard Sine, Square, Pulse, Ramp, Noise, DC Waveform Built-in Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, Lorentz, Waveform Haversine Sine Frequency Range 0.1 Hz to 25 MHz Flatness ±0.5 dB (relative to 1 kHz) Harmonic -40 dBc...
Page 264: General Specifications
RIGOL Chapter 18 Specifications General Specifications Probe Compensation Output Output Voltage About 3 V, peak-peak Frequency 1 kHz Power Power Voltage 100 V-240 V, 45 Hz-440 Hz Power Maximum 50 W Fuse 2 A, T degree, 250 V Environment Temperature Operating: 0 ℃...
Page 265: Chapter 19 Appendix
Serial Protocol RS232/UART, I2C and SPI trigger and decoding functions SA-DS1000Z Analysis Option Note: All the options or accessories can be ordered from you local RIGOL Office. MSO1000Z/DS1000Z User’s Guide 19-1 GlobalTestSupply www. .com nd Quality Products Online at: sales@GlobalTestSupply.co...
Page 266: Appendix B: Warranty
To get repair service, please contact with your nearest RIGOL sales or service office. There is no other warranty, expressed or implied, except such as is expressly set forth herein or other applicable warranty card.
Page 267: Index
Index RIGOL Index +Duty ........6-26 Freq ......... 6-26 +Edges ........6-27 frequency ......... 13-2 +Pulses ........6-27 Frequency Counter ....6-31 +Rate ........6-30 Gate ........15-4 +Width ........6-26 Gauss ........13-8 Acquisition Mode ......4-2 Hamming ........6-8 AM ........
Page 268 RIGOL Index Pulse ........13-5 Trigger Coupling ......5-4 Pulse Condition ......5-8 Trigger Holdoff ......5-5 Pulse Polarity ......5-21 Trigger Level ....... 5-7 Pulse Trigger ......5-8 Trigger Mode ......5-3 Pulse Width Setting..... 5-9 Trigger Position ......5-23 -Pulses ........

This manual is also suitable for:

Ds1000z series Mso1104z-s Mso1074z-s Mso1104z Mso1074z Ds1104z-s plus ... Show all

Rigol MSO1000Z Series User Manual

Safety Requirement

MSO1000Z/DS1000Z Series Overview

Document Overview

Chapter 1 Quick Start

Chapter 2 To Set the Vertical System

Chapter 3 To Set the Horizontal System

Chapter 4 To Set the Sample System

Chapter 5 To Trigger the Oscilloscope

Chapter 6 MATH and Measurement

Chapter 7 Digital Channel

Chapter 8 Protocol Decoding

Chapter 9 Reference Waveform

Chapter 10 Pass/Fail Test

Chapter 11 Waveform Record

Chapter 12 Display Control

Chapter 13 Signal Source

Chapter 14 Store and Recall

Chapter 15 Accessibility Setting

Chapter 16 Remote Control

Chapter 17 Troubleshooting

Chapter 18 Specifications

Chapter 19 Appendix

Appendix A: Accessories and Options

Appendix B: Warranty

Index

Quick Links

Need help?

Questions and answers

Related Manuals for Rigol MSO1000Z Series

Summary of Contents for Rigol MSO1000Z Series
