Figure 2-7 Waveform Compensation - Rigol DS1102E Service Manual

RIGOL
correct in accordance with the shape of waveform.
Over compensation
4.
If necessary, use a non-metallic screwdriver to adjust the variable capacitor of the
probe until a "Correct Compensation" wave displayed on the screen.
5.
Continue in the same way to check CH2.
WARNING
!
To avoid electric shock while using the probe, be sure the perfection of the
insulated cable, and do not touch the metallic portions of the probe head
while it is connected with a high-voltage power supply.
2-6
Correct Compensation

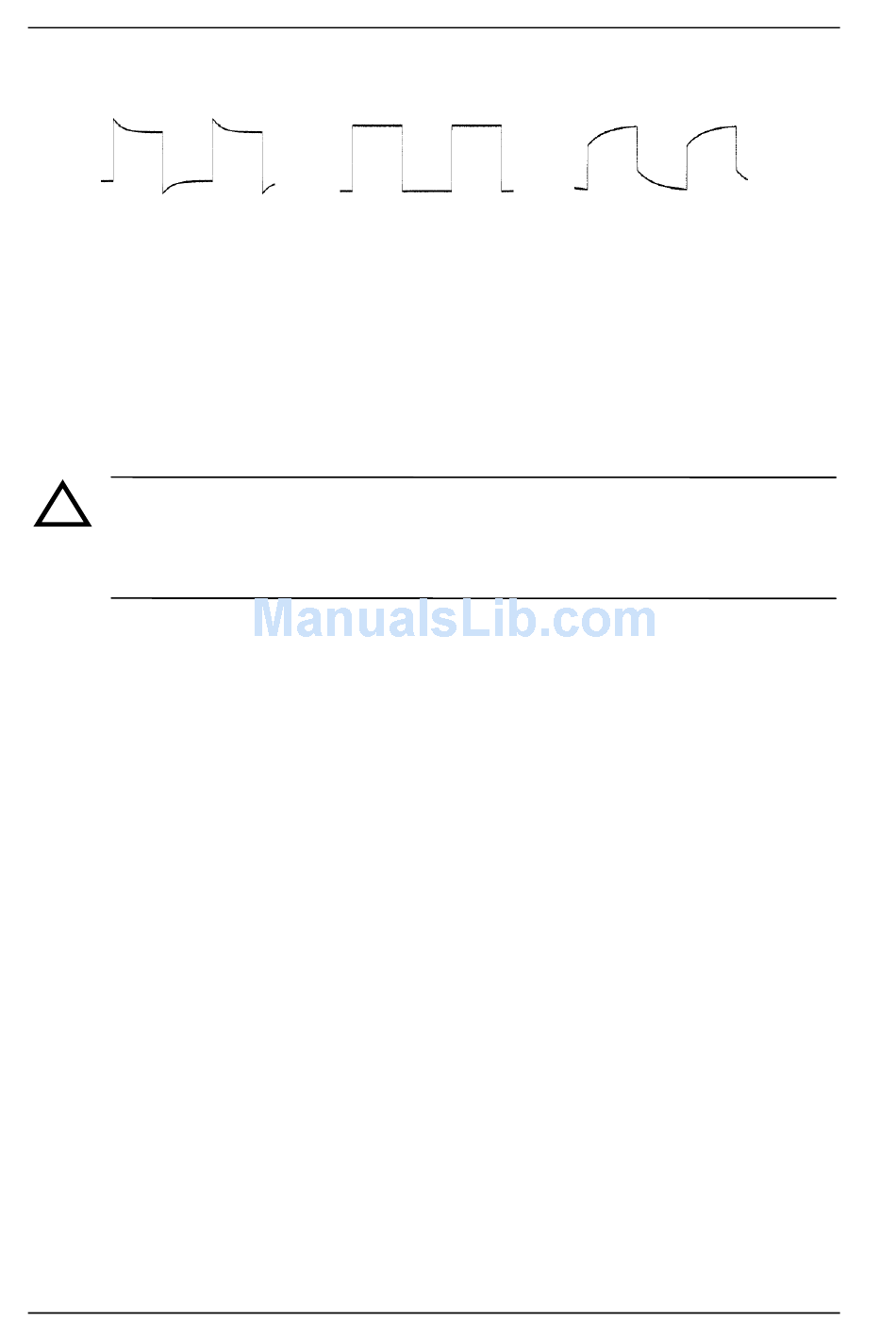

Figure 2-7 Waveform compensation
