Chapter 3 Performance Test

Logic Analyzer Interface Test (Only for DS1000D Series)

Purpose:
Test if the Logic Analyzer (hereinafter referred to as LA) interface works normally
through the logic signal output module (DG-POD-A) of DG3000.
Tools:
A set of DS1000D series digital oscilloscope

A set of DG3000 Function/ Arbitrary waveform Generator

An active logic head

Two logic cables

17 logic testing leads

A DG-POD-A module

Steps:
1.
Connect LA interface on DS1000D with the active logic head by logic cable.
2.
Connect "DIGITAL OUTPUT" interface on the rear panel of DG3000 with
DG-POD-A module by logic cable.
3.
Connect the active logic head with DG-POD-A module by logic testing leads, so as
to realize DS1000D and DG3000 connection.
LA Interface
Logic Cable
4.
Power on DS1000D and DG3000 respectively.
5.
Turn on DG3000 and press Utility→Output Setup→Digit-Modu→Power on to
enable the digital module power on.
6.
Press Arb→Edit Digital W, select Protocol→PO, Code Pat→ 32PRBS and adjust
Output Length as 16 Byte as follows, then press Arb button to output digital
signal.
Service Guide for DS1000E, DS1000D Series
DS1000D
17 Logic Testing Leads

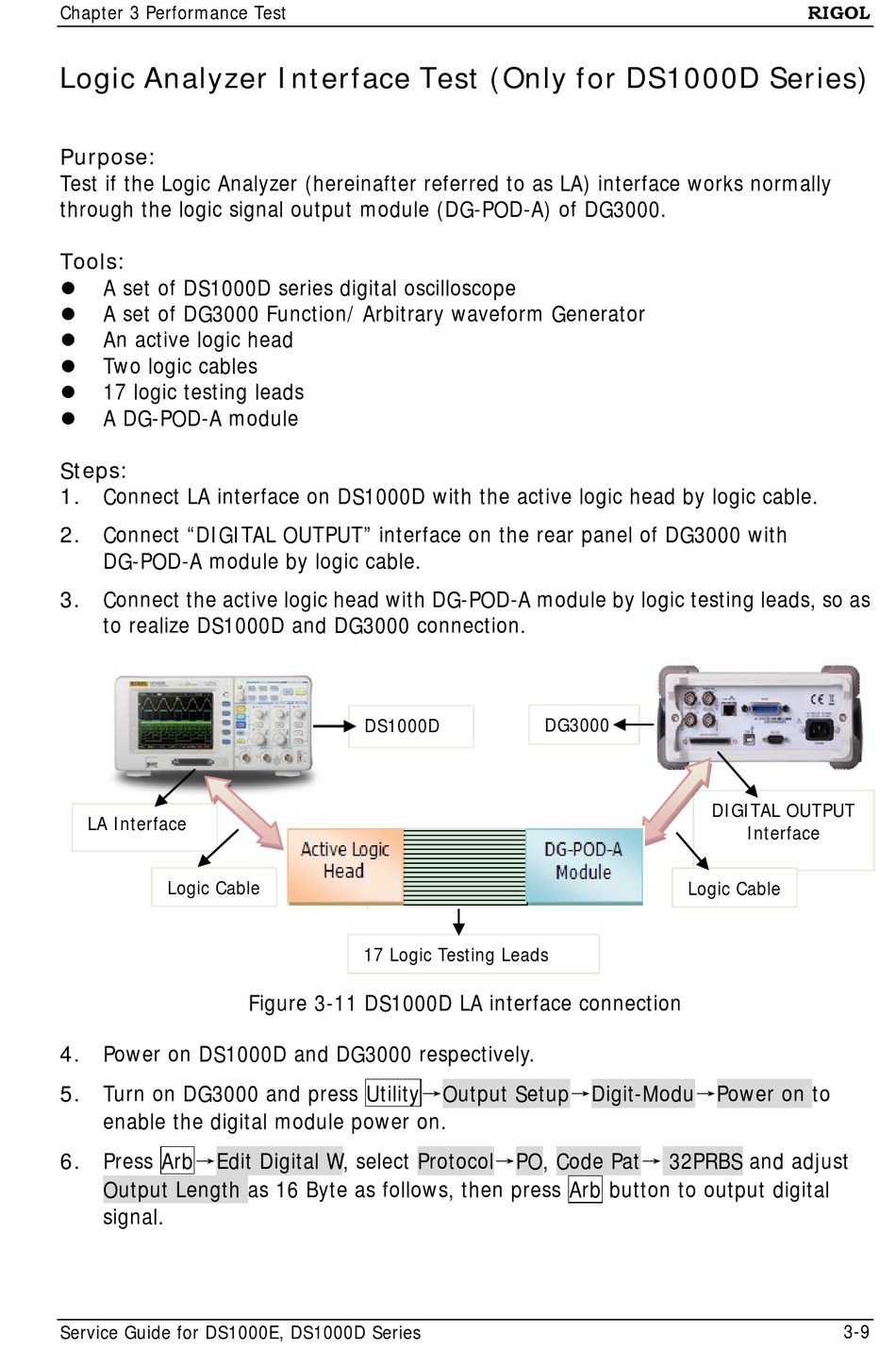

Figure 3-11 DS1000D LA interface connection

DG3000
DIGITAL OUTPUT
Logic Cable
RIGOL
Interface
3-9
