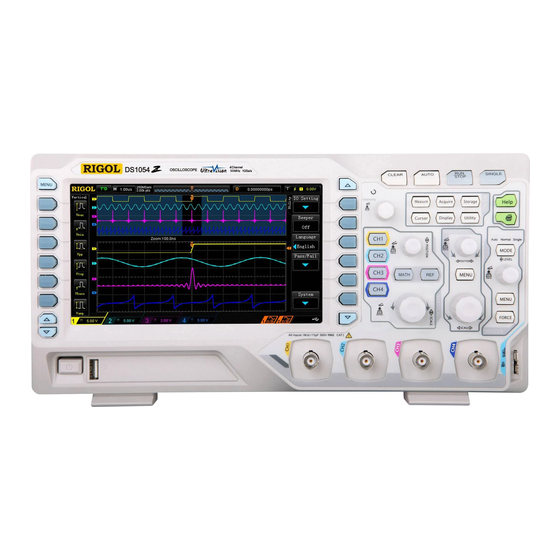

Rigol DS1000Z Series Quick Manual

Digital oscilloscope
Hide thumbs Also See for DS1000Z Series:
Table of Contents

Advertisement

Quick Links

See also: Programming Manual , Quick Manual
RIGOL
Quick Guide
MSO1000Z/DS1000Z Series
Digital Oscilloscope
Jul. 2014
RIGOL Technologies, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS1000Z Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rigol DS1000Z Series

Summary of Contents for Rigol DS1000Z Series

  • Page 1 RIGOL Quick Guide MSO1000Z/DS1000Z Series Digital Oscilloscope Jul. 2014 RIGOL Technologies, Inc.
  • Page 3 Notices RIGOL products are covered by P.R.C. and foreign patents, issued and pending.  RIGOL reserves the right to modify or change parts of or all the specifications and pricing  policies at company’s sole decision. Information in this publication replaces all previously corresponding material.

  • Page 4: Safety Requirement

    If you suspect damage occurs to the instrument, have it inspected by qualified service personnel before further operations. Any maintenance, adjustment or replacement especially to circuits or accessories must be performed by RIGOL authorized personnel. Keep Well Ventilation. Inadequate ventilation may cause increasing of temperature or damages to the device. So please keep well ventilated and inspect the intake and fan regularly.
  • Page 5 Improper change of battery (note: lithium battery) may cause explosion. Use RIGOL specified battery only. Handling Safety. Please handle with care during transportation to avoid damages to buttons, knob interfaces and other parts on the panels.

  • Page 6: Safety Terms And Symbols

    RIGOL Safety Terms and Symbols Terms Used in this Manual. These terms may appear in this manual: WARNING Warning statements indicate the conditions or practices that could result in injury or loss of life. CAUTION Caution statements indicate the conditions or practices that could result in damage to this product or other property.

  • Page 7: Allgemeine Sicherheits Informationen

    Untersuchung durch qualifiziertes Kundendienstpersonal durchgeführt wird.Jedwede Wartung, Einstellarbeiten oder Austausch von Teilen am Gerät, sowie am Zubehör dürfen nur von RIGOL autorisiertem Personal durchgeführt werden. Belüftung sicherstellen. Unzureichende Belüftung kann zu Temperaturanstiegen und somit zu thermischen Schäden am Gerät führen.
  • Page 8 RIGOL Nicht in feuchter Umgebung betreiben. Zur Vermeidung von Kurzschluß im Geräteinneren und Stromschlag betreiben Sie das Gerät bitte niemals in feuchter Umgebung. Nicht in explosiver Atmosphäre betreiben. Zur Vermeidung von Personen- und Sachschäden ist es unumgänglich, das Gerät ausschließlich fernab jedweder explosiven Atmosphäre zu betreiben.

  • Page 9: Sicherheits Begriffe Und Symbole

    RIGOL Sicherheits Begriffe und Symbole Begriffe in diesem Guide. Diese Begriffe können in diesem Handbuch auftauchen: WARNING Die Kennzeichnung WARNING beschreibt Gefahrenquellen die leibliche Schäden oder den Tod von Personen zur Folge haben können. CAUTION Die Kennzeichnung Caution (Vorsicht) beschreibt Gefahrenquellen die Schäden am Gerät hervorrufen können.

  • Page 10: Measurement Category

    RIGOL Measurement Category Measurement Category MSO1000Z/DS1000Z series digital oscilloscopes can make measurements in Measurement Category I. WARNING This oscilloscope can only be used for measurements within its specified measurement categories. Measurement Category Definitions Measurement category I is for measurements performed on circuits not directly connected to MAINS.

  • Page 11: Working Environment

    RIGOL Working Environment Temperature Operating: 0℃ to +50℃ Non-operating: -40℃ to +70℃ Humidity 0℃ to +30℃: ≤95％ relative humidity +30℃ to +40℃: ≤75％ relative humidity +40℃ to +50℃: ≤45％ relative humility WARNING To avoid short circuit inside the instrument or electric shock, please do not operate in humid environment.

  • Page 12: General Care And Cleaning

    RIGOL Safety Class Class 1 – Grounded Product General Care and Cleaning General Care: Do not store or leave the instrument in where the instrument will be exposed to direct sunlight for long periods of time. Cleaning: Clean the instrument regularly according to its operating conditions. To clean the exterior surface, perform the following steps: Disconnect the instrument from all power sources.

  • Page 13: Document Overview

    POSITION Trigger Level Knob TRIGGER LEVEL Content Conventions in this Manual: MSO1000Z/DS1000Z series includes the following models. In this manual, MSO1104Z-S is taken as an example to illustrate the functions and operation methods of MSO1000Z/DS1000Z series. Analog Analog Source Digital...

  • Page 14: Table Of Contents

    RIGOL Contents Guaranty and Declaration ....................I Safety Requirement ....................... II General Safety Summary ....................II Safety Terms and Symbols ................... IV Allgemeine Sicherheits Informationen ................V Sicherheits Begriffe und Symbole ................VII Measurement Category ..................... VIII Ventilation Requirement .................... VIII Working Environment ....................

  • Page 15: Quick Start

    RIGOL would not be responsible for free maintenance/rework or replacement of the unit. 2. Inspect the instrument. In case of any damage, or defect, or failure, notify your RIGOL sales representative. 3. Check the Accessories Please check the accessories according to the packing lists. If the accessories are incomplete or damaged, please contact your RIGOL sales representative.

  • Page 16: Appearance And Dimensions

    RIGOL Appearance and Dimensions Figure 1 Front View Unit: mm Figure 2 Top View Unit: mm MSO1000Z/DS1000Z Quick Guide...

  • Page 17: To Prepare For Operation

    RIGOL To Prepare for Operation To Adjust the Supporting Legs Adjust the supporting legs properly to use them as stands to tilt the oscilloscope upwards for stable placement of the instrument as well as easier operation and observation of the instrument.

  • Page 18: Power-On Inspection

    To Connect the Probe RIGOL provides passive probe for DS1000Z as well as passive probe and logic probe for MSO1000Z. For detailed technical information of the probes, please refer to corresponding Probe User’s Guide.
  • Page 19 RIGOL Connect the Logic Probe: Connect the single-wire terminal of the logic probe to Digital Channel Interface at the front panel of MSO1000Z in the correct direction. Connect the other terminal of the logic probe to the signal under test.

  • Page 20: Function Inspection

    RIGOL Function Inspection 1. Press Storage  Default to restore the oscilloscope to its default configuration. 2. Connect the earth alligator clip of the probe to the “Ground Terminal” as shown in the figure below. 3. Use the probe to connect the input terminal of CH1 and the “Compensation Signal Output Terminal”...

  • Page 21: Probe Compensation

    RIGOL Probe Compensation When the probes are used for the first time, you should compensate the probes to match the input channels of the oscilloscope. Non-compensated or poorly compensated probes may cause measurement inaccuracy or error. The probe compensation procedures are as follows: 1.

  • Page 22: Front Panel Overview

    RIGOL Front Panel Overview 9 10 11 12 16 17 19 20 Figure 10 Front Panel Overview Table 1 Front Panel Description Description Description Measurement Menu Softkeys Power Key USB HOST Interface Function Menu Softkeys Digital Channel Input Interface Multifunction Knob...

  • Page 23: Rear Panel Overview

    RIGOL Rear Panel Overview Figure 11 Rear Panel Overview 1． Handle Pull up the handle vertically for easy carrying of the instrument. When you do not need the handle, press it down. 2． LAN Connect the instrument to the network via this interface for remote control. This oscilloscope conforms to the LXI CORE 2011 DEVICE class instrument standards and can quickly build test system with other instruments.
  • Page 24 RIGOL The instrument can output a positive pulse via this connector when a failed waveform is detected during the pass/fail test. The instrument continuously outputs a low level via this connector when no failed waveform is detected. 5． Source Output The output terminals of the built-in dual-channel source of the oscilloscope.

  • Page 25: Front Panel Function Overview

    RIGOL Front Panel Function Overview VERTICAL CH1, CH2, CH3, CH4: analog channel setting keys. The 4 channels are marked by different colors which are also used to mark both the corresponding waveforms on the screen and the channel input connectors. Press any key to open the corresponding channel menu and press again to turn off the channel.

  • Page 26: Logic Analyzer

    RIGOL Logic Analyzer Press this key to open the logic analyzer control menu. You can turn on or off any channel or channel group, modify the display size of the digital channel, modify the logic threshold of the digital channel as well as group the 16 digital channels. You can also set a label for each digital channel.

  • Page 27: Horizontal

    RIGOL HORIZONTAL HORIZONTAL POSITION: modify the horizontal position. The trigger point would move left or right relative to the center of the screen when you turn the knob. During the modification, waveforms of all the channels would move left or right and the horizontal position message (e.g.

  • Page 28: Clear

    RIGOL CLEAR Press this key to clear all the waveforms on the screen. If the oscilloscope is in “RUN” state, new waveforms will still be displayed. AUTO Press this key to enable the waveform auto setting function. The oscilloscope will automatically adjust the vertical scale, horizontal time base and trigger mode according to the input signal to realize optimum waveform display.

  • Page 29: Multifunction Knob

    RIGOL Multifunction Knob Adjust waveform brightness: In non-menu-operation mode, turn this knob to adjust the brightness of waveform display. The adjustable range is from 0% to 100%. Turn clockwise to increase the brightness and counterclockwise to reduce. Press down this knob to reset the brightness to 60%.

  • Page 30: Print

    RIGOL Display: press this key to enter display setting menu to set the display type, persistence time, wave intensity, grid type and grid brightness. Utility: press this key to enter the system function setting menu to set the system-related functions or parameters, such as the I/O, sound and language.

  • Page 31: User Interface

    RIGOL User Interface MSO1000Z/DS1000Z provides 7.0 inches, WVGA (800*480) 160,000 color TFT LCD. 21 22 Figure 12 User Interface 1. Auto Measurement Items Provide 16 horizontal (HORIZONTAL) and 17 vertical (VERTICAL) measurement parameters. Press the softkey at the left of the screen to activate the corresponding measurement item.
  • Page 32 RIGOL 3. Status Available states include RUN, STOP, T’D (triggered), WAIT and AUTO. 4. Horizontal Time Base Represent the time per grid on the horizontal axis on the screen.  Use HORIZONTAL SCALE to modify this parameter. The range ...
  • Page 33 RIGOL level value will change with the up and down of Note: in slope trigger, runt trigger and windows trigger, there are two trigger level labels ( 12. CH1 Vertical Scale Display the voltage value per grid of CH1 waveform vertically.
  • Page 34 RIGOL When the impedance of signal source is set to 50 Ω, will be displayed at  the bottom of the Source1 Waveform. Only available to MSO1000Z-S and DS1000Z-S.  20. Source2 Waveform Display the type of waveform currently set for Source2.

  • Page 35: Parameter Setting Method

    RIGOL Parameter Setting Method This oscilloscope provides two methods to set the basic parameters. Method 1: When is displayed on the menu, you can rotate to set the desired value directly. Method 2: When is displayed, press down and the numeric keyboard is displayed, as shown below.

  • Page 36: To Use The Built-In Help System

    RIGOL To Use the Built-in Help System The help system of this oscilloscope provides instructions for all the function keys (including menu keys) at the front panel. Press Help to open the help interface and press again to close the interface. The help interface mainly consists of two parts.

  • Page 37: Troubleshooting

    The commonly encountered failures and their solutions are listed below. When you encounter those failures, please solve them following the corresponding steps. If the problem remains still, please contact RIGOL and provide your device information (acquisition method: Utility  System  System Info).
  • Page 38 RIGOL 6. The display of waveform is ladder-like: (1) The horizontal time base might be too low. Increase the horizontal time base to increase the horizontal resolution and improve the display. (2) If the display Type is “Vectors”, the lines between the sample points may cause ladder-like display.
