Interfaces Test

USB Host Interface Test

Purpose:
Test if the USB Host interface works normally through U disc.
Tools:
A set of DS1000E, DS1000D series digital oscilloscope

An U disk

Steps:
1.
Insert the U disk into the USB Host interface on the front panel of the
oscilloscope.
2.
Wait until a prompt "USB device install success" appeared on the screen, which
indicates the USB Host interface works normally, otherwise, you need to check or
repair this interface.

Figure 3-2 Successful prompt of USB interface connection

3-2

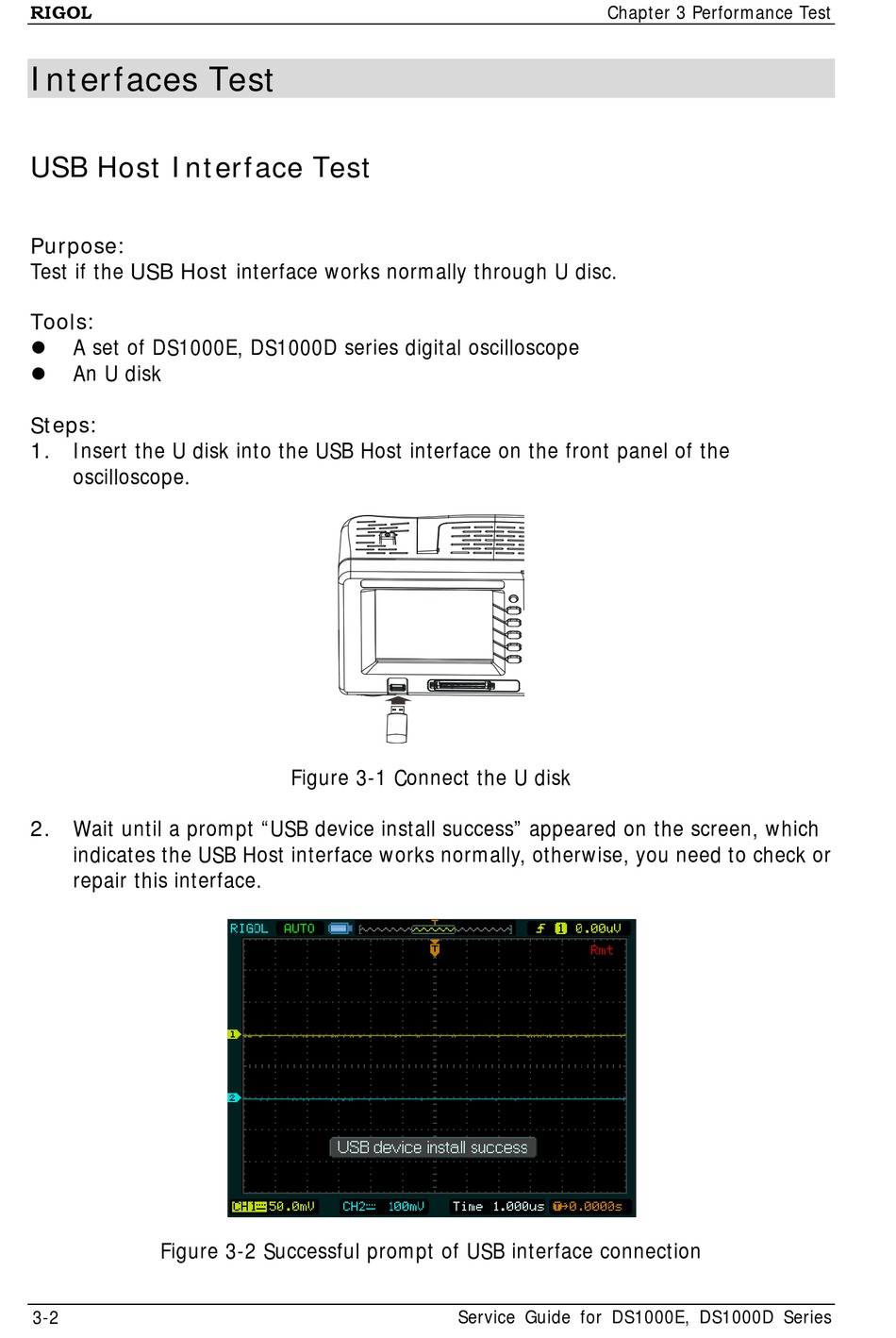

Figure 3-1 Connect the U disk
