Figure 5-6 Disassemble And Assemble Lcd And The Keyboard - Rigol DS1102E Service Manual

Chapter 5 Disassembly and Assembly
Disassemble
Keyboard
LCD
⑬
⑬
⑬
Rubber Button

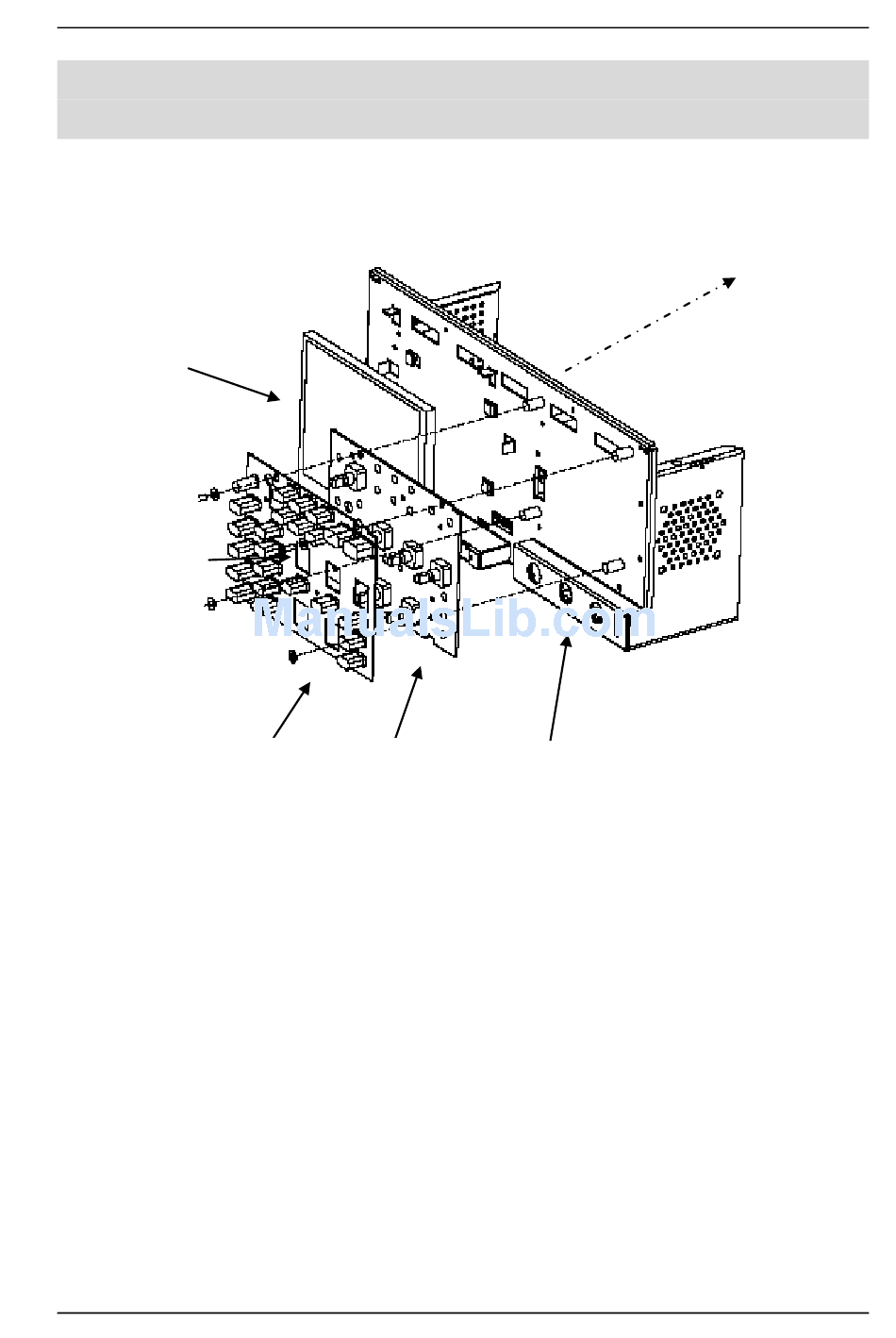

Figure 5-6 Disassemble and assemble LCD and the keyboard

Parts Explanations:
⑫ Bolts for the screen ground wire (M2*4 Pan head Torx recess machine screws): 1
⑬ Bolts fixed on the keypad board (M3*6 Flush head Torx recess machine screws): 4
Disassemble steps:
1. Pull out the LCD wire from the J603 interface of the mainboard;
2. Backout the one bolt of the screen ground wire using a TORX driver (T6);
3. Take out the LCD screen gently (Be careful the screen cable and ground wire);
4. Backout the keypad board cable from the J604 interface of the mainboard;
5. Backout the four bolts ⑬ from the keypad board using a TORX driver (T10); the
moment of force is 6 NM;
6. Take out the keypad board gently (pay attention to the wire).
Service Guide for DS1000E, DS1000D Series
and Assemble
⑬
Keyboard
LCD
Tank Body
RIGOL
and the
⑫
5-9
