Overview (Viewing the System Dashboard)

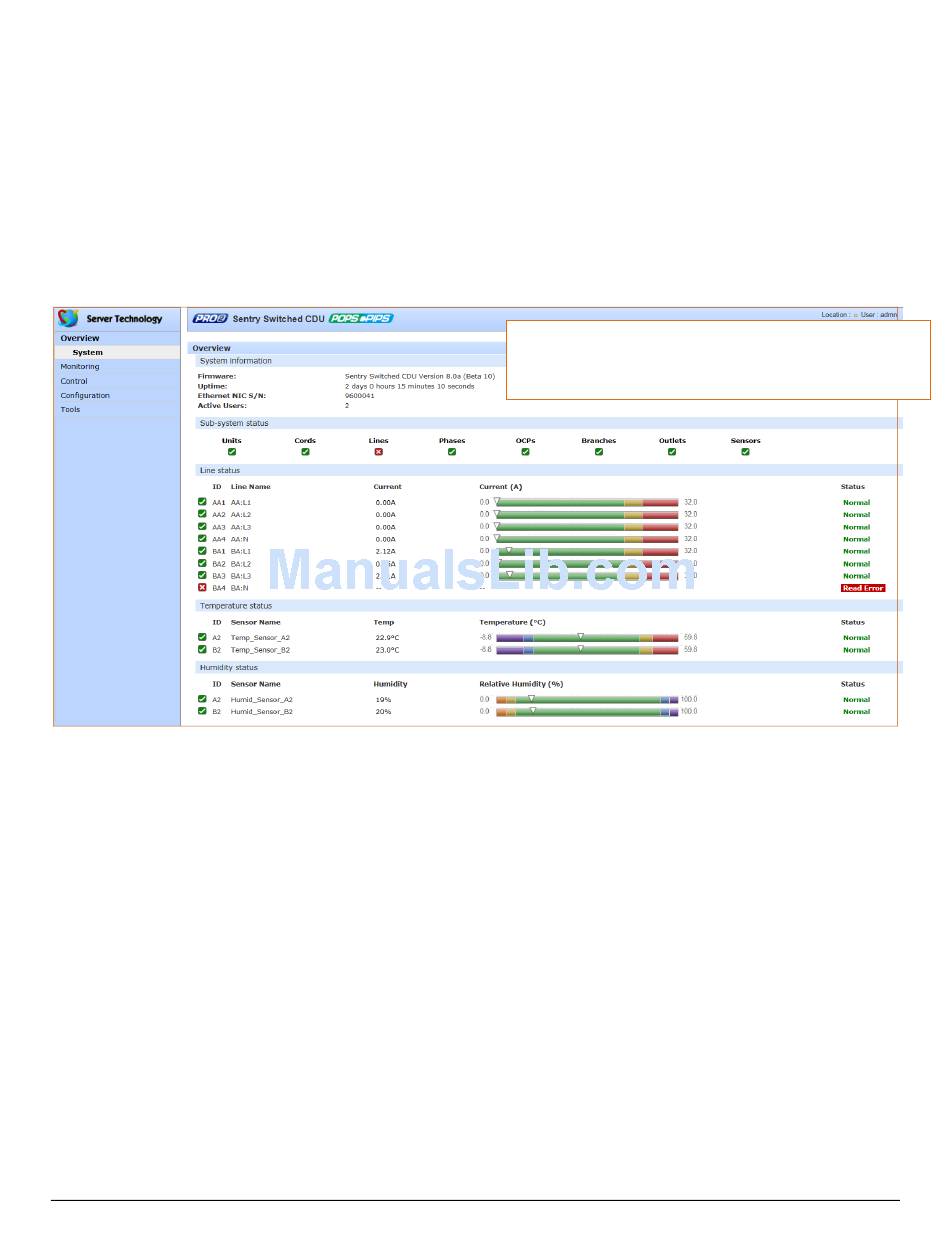

The System page of the Web interface is the first stop for high-level and fast monitoring of major PRO2 operational
areas. The page displays a quick view of color-coded icons showing current status of the units, cords, branches,
lines, phases, sensors. Click an icon for the related monitoring page to view the metrics behind the status.
The System page also shows color-coded graphs for the operational status of line current and
temperature/humidity sensor readings.
General system information displays on the page to firmware version in use, uptime data, Ethernet NIC serial
number, and current number of active
The System page dynamically updates status and threshold values with a full-screen refresh to reflect the latest
PRO2 details for instant assessment and response.
How to Read the Metrics
The color-coded status icons and graphs on the System page update dynamically (normal-green, warning-yellow,
critical-red) with the latest metrics of the unit, line status, and temperature/humidity sensor status.
About Auto-Scaling
The displayed graphs reflect the internal function of auto-scaling. This means that if the threshold range of values
changes for the graph, the graph will auto-scale to the appropriate range, allowing the graphs to still present
relevant and consistent information.
What To Look For
The dynamic performance of the System page is essential for monitoring new PRO2 installation or watching for
power distribution changes in hi-density environments. High-level status information on the System page gives the
chance to correct of an operating condition before it affects the entire device network.
System administrators and power users can also view the System graphs to quickly identify thermal and humidity
issues that might otherwise escalate to infrastructure repairs if left unchecked.
Using the Web Interface
users.
Switched PRO2 – User Guide
The sub-system icons across the page match the left-pane
Monitoring options. Click either the icon name or select a
monitoring option to display the related monitoring page.
•
