Mounting the Camera to
the Ceiling Mount Bracket
Be sure to put on protective glasses to protect
0
your eyes from falling objects when mounting
the camera.
Be sure to place the base of the camera
0
horizontally. The camera will not operate
properly if it is slanted.
Memo :
The ceiling mount bracket is not necessary
0
when the camera is installed on a desktop or
attached to a tripod.
If necessary, make a hole (Φ40 mm) to route the
0
connection cable and fall prevention wire
(ceiling) into the ceiling.
Caution :
The fall prevention wire (for ceiling) is not
0
supplied. Make use of the wire while taking note
of its length, strength, pull and material
(insulation).
Attach the fall prevention wire (ceiling) to a place
0
with sufficient strength (ceiling slab, etc.).
Take note of the length, strength, pull and
0
material (insulation) of the fall prevention wire
(for ceiling) and use one with a wire strength of
150 N (15 kg) or more.
The inner diameter of the ring section of the fall
0
prevention wire (ceiling) mounted on the camera
should be above Φ3 mm but below Φ4 mm, the
outer diameter should be Φ9 mm and below, and
the thickness 2 mm and below.

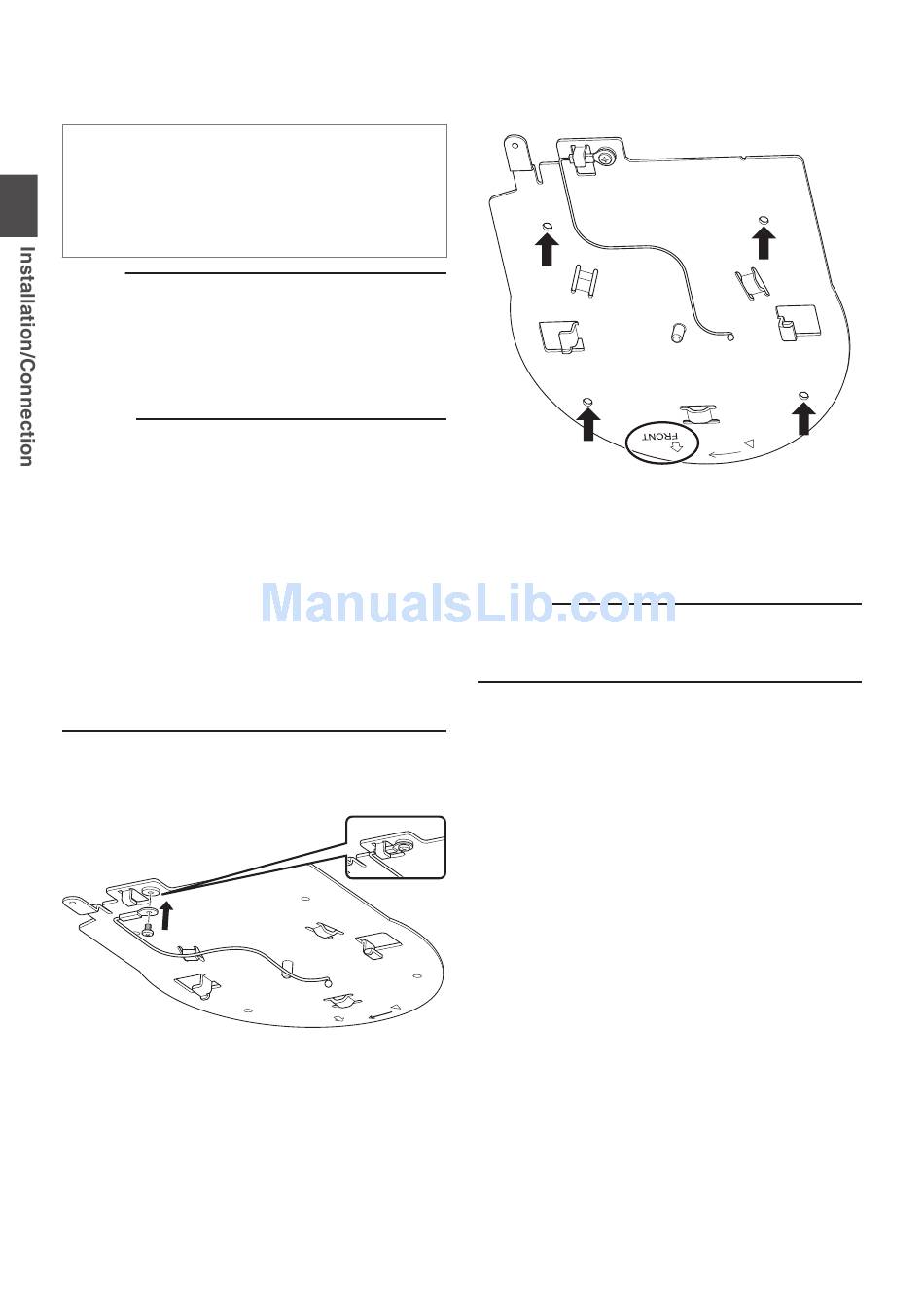

1 Fix the fall prevention wire (camera) to the
ceiling mount bracket using the screw
(M2.6) provided.
.
22

Mounting the Camera to the Ceiling Mount Bracket

2 Place the supplied template against the
ceiling, and fasten the ceiling mount
bracket with four screws (M4 wooden
screws: Φ4.1).
.
Prior to mounting, check the "FRONT" mark
0
on the ceiling mount bracket to ensure that it
is facing the same direction as the front of the
camera.
Check that the screws are tighten securely
0
when mounting is completed.
Caution :
The fall prevention wire (camera) is designed
0
exclusively for hanging this product. Do not load
anything other than this product.
