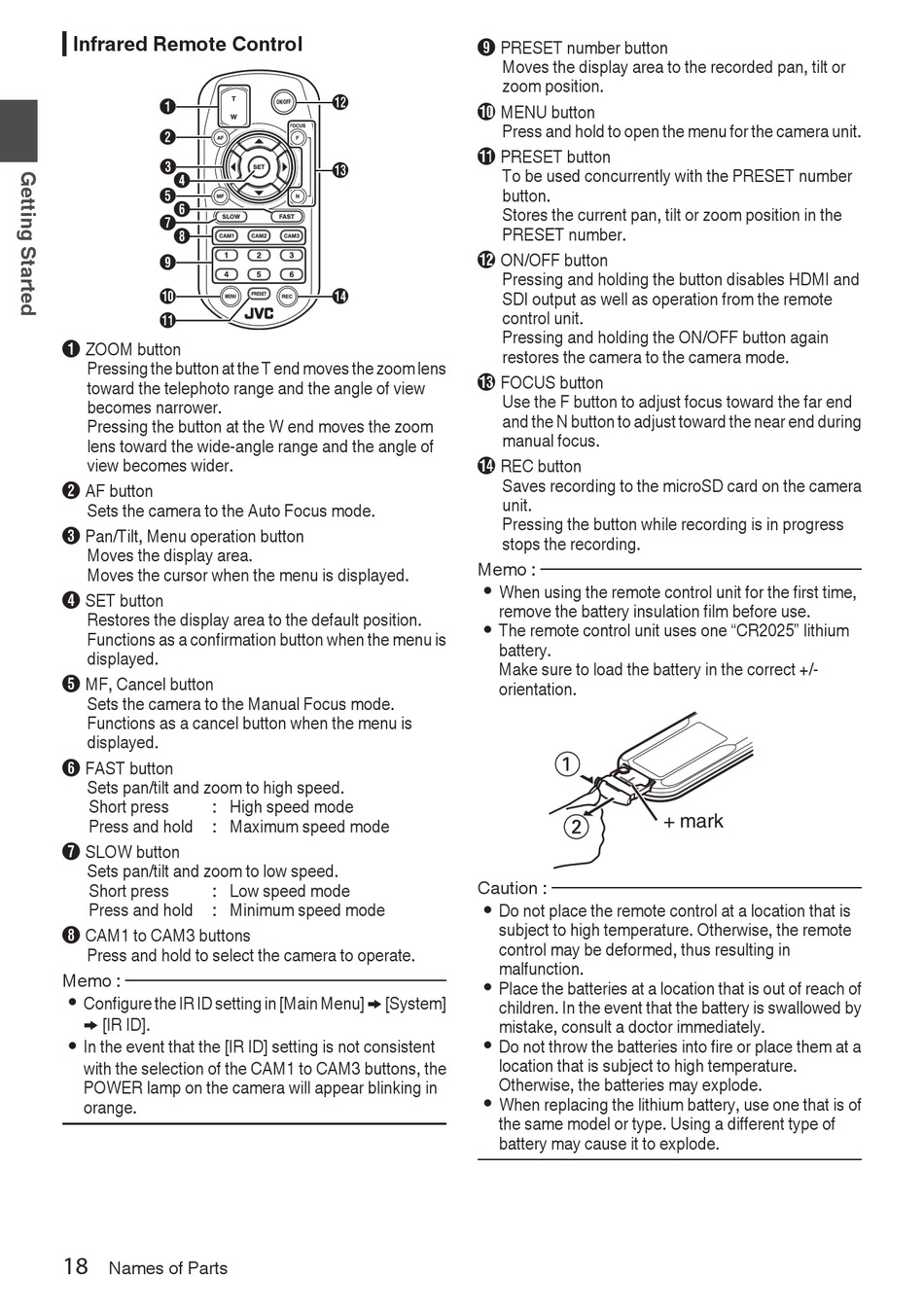

Infrared Remote Control

A
B
C
D
E
F
G
H
I
J
K
.
A ZOOM button
Pressing the button at the T end moves the zoom lens
toward the telephoto range and the angle of view
becomes narrower.
Pressing the button at the W end moves the zoom
lens toward the wide-angle range and the angle of
view becomes wider.
B AF button
Sets the camera to the Auto Focus mode.
C Pan/Tilt, Menu operation button
Moves the display area.
Moves the cursor when the menu is displayed.
D SET button
Restores the display area to the default position.
Functions as a confirmation button when the menu is
displayed.
E MF, Cancel button
Sets the camera to the Manual Focus mode.
Functions as a cancel button when the menu is
displayed.
F FAST button
Sets pan/tilt and zoom to high speed.
Short press
: High speed mode
Press and hold
: Maximum speed mode
G SLOW button
Sets pan/tilt and zoom to low speed.
Short press
: Low speed mode
Press and hold
: Minimum speed mode
H CAM1 to CAM3 buttons
Press and hold to select the camera to operate.
Memo :
Configure the IR ID setting in [Main Menu] B [System]
0
B [IR ID].
In the event that the [IR ID] setting is not consistent
0
with the selection of the CAM1 to CAM3 buttons, the
POWER lamp on the camera will appear blinking in
orange.
18
Names of Parts
I PRESET number button
Moves the display area to the recorded pan, tilt or
zoom position.
L
J MENU button
Press and hold to open the menu for the camera unit.
K PRESET button
M
To be used concurrently with the PRESET number
button.
Stores the current pan, tilt or zoom position in the
PRESET number.
L ON/OFF button
Pressing and holding the button disables HDMI and
SDI output as well as operation from the remote
N
control unit.
Pressing and holding the ON/OFF button again
restores the camera to the camera mode.
M FOCUS button
Use the F button to adjust focus toward the far end
and the N button to adjust toward the near end during
manual focus.
N REC button
Saves recording to the microSD card on the camera
unit.
Pressing the button while recording is in progress
stops the recording.
Memo :
When using the remote control unit for the first time,
0
remove the battery insulation film before use.
The remote control unit uses one "CR2025" lithium
0
battery.
Make sure to load the battery in the correct +/-
orientation.
Caution :
Do not place the remote control at a location that is
0
subject to high temperature. Otherwise, the remote
control may be deformed, thus resulting in
malfunction.
Place the batteries at a location that is out of reach of
0
children. In the event that the battery is swallowed by
mistake, consult a doctor immediately.
Do not throw the batteries into fire or place them at a
0
location that is subject to high temperature.
Otherwise, the batteries may explode.
When replacing the lithium battery, use one that is of
0
the same model or type. Using a different type of
battery may cause it to explode.
+ mark
.
