Installing The Camera On The Ceiling - JVC KY-PZ100WU Instructions Manual

Hd ptz remote camera
Hide thumbs

Advertisement

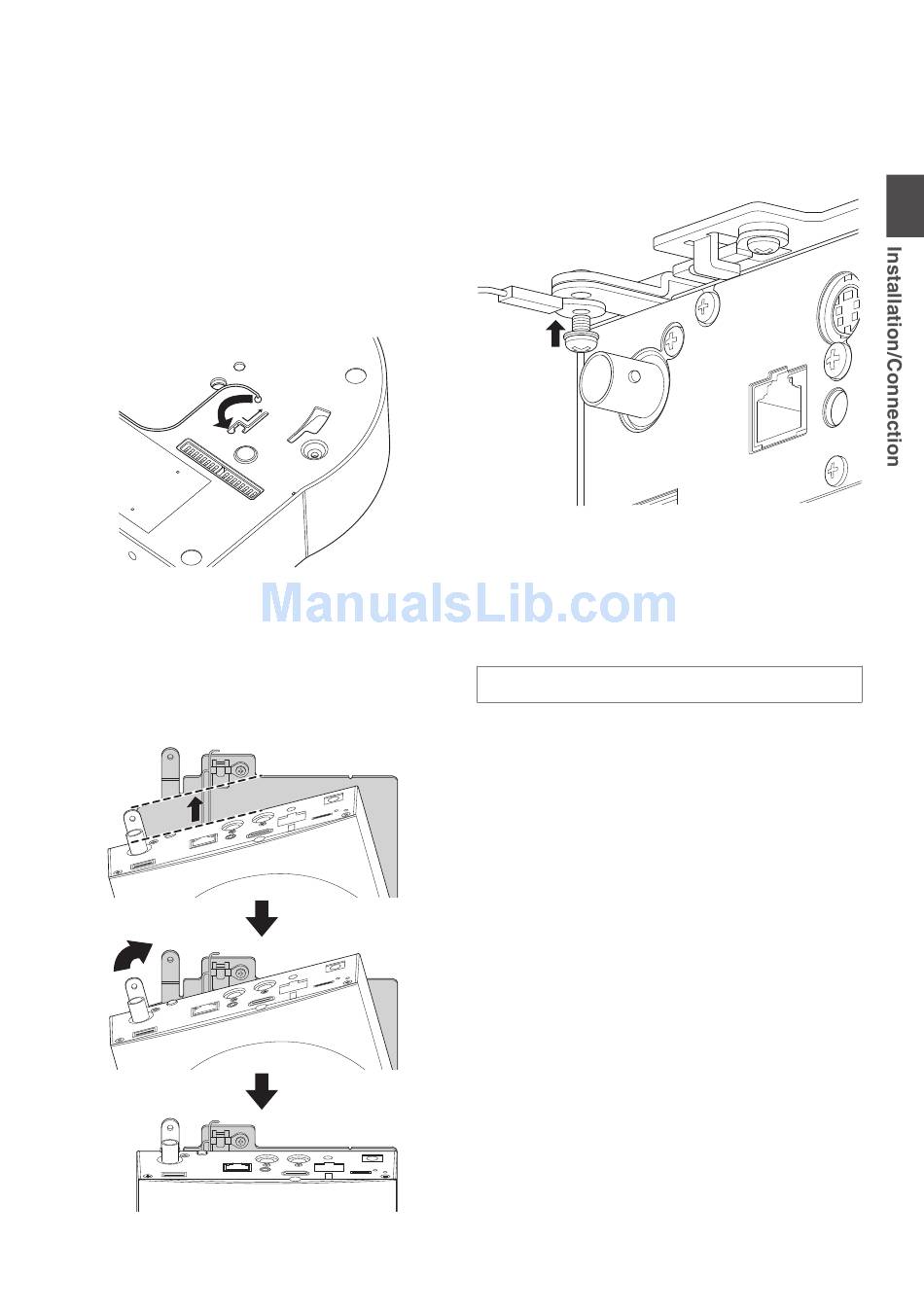

Installing the Camera on
the Ceiling
1 Set the DIP switch.
Set the DIP switch prior to mounting the
0
camera to the ceiling mount bracket.
2 Insert an microSD card.
Insert the card as necessary during
0
installation.
3 Attach the fall prevention wire (camera),
which is fixed to the ceiling mount bracket,
to the camera.
.
Insert the tip of the fall prevention wire
0
(camera) to the groove of the camera, and
move it toward the direction indicated by the
arrow.
Check that the fall prevention wire (camera)
0
is fixed securely to the camera.
4 Mount the camera to the ceiling mount
bracket.
.
Align the cutout of the ceiling mount bracket
0
and the line indicated on the camera. Press
the camera unit to insert, and then turn the
camera clockwise.
5 Fix the camera and the fall prevention wire
(ceiling) on the ceiling mount bracket using
the provided screw (M3).
.
Check that the screws are tighten securely
0
when mounting is completed.
6 Connect the adapter to the [USB] terminal.
When needed, connect the adapter
0
according to the intended purpose. For
details on the settings, please refer to
INSTRUCTIONS.
Connect the cables after these procedures.
