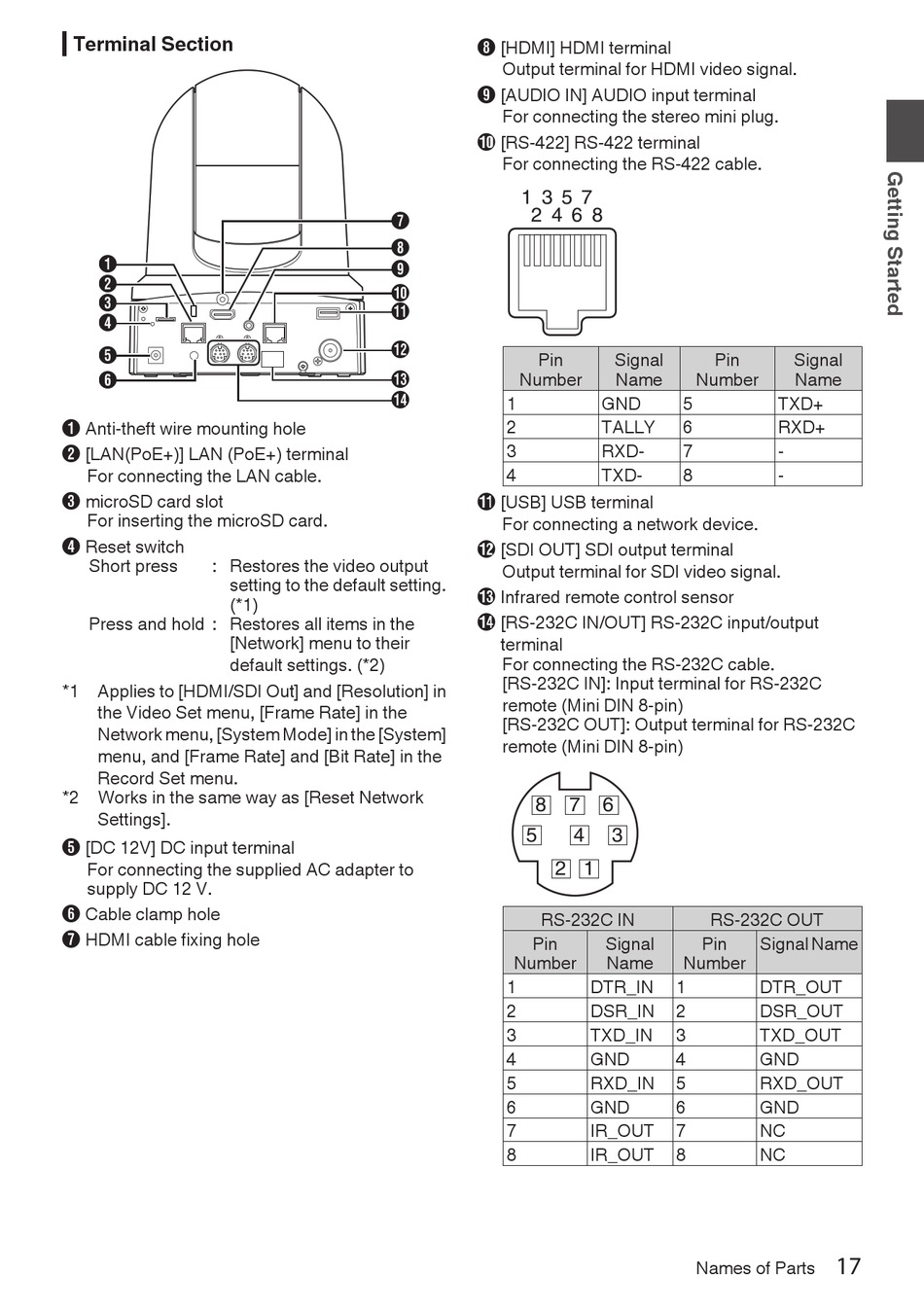

Terminal Section
A
B
C
D
E
F
.
A Anti-theft wire mounting hole
B [LAN(PoE+)] LAN (PoE+) terminal
For connecting the LAN cable.
C microSD card slot
For inserting the microSD card.
D Reset switch
Short press
: Restores the video output
setting to the default setting.
(*1)
Press and hold : Restores all items in the
[Network] menu to their
default settings. (*2)
*1
Applies to [HDMI/SDI Out] and [Resolution] in
the Video Set menu, [Frame Rate] in the
Network menu, [System Mode] in the [System]
menu, and [Frame Rate] and [Bit Rate] in the
Record Set menu.
*2
Works in the same way as [Reset Network
Settings].
E [DC 12V] DC input terminal
For connecting the supplied AC adapter to
supply DC 12 V.
F Cable clamp hole
G HDMI cable fixing hole
H [HDMI] HDMI terminal
Output terminal for HDMI video signal.
I [AUDIO IN] AUDIO input terminal
For connecting the stereo mini plug.
J [RS-422] RS-422 terminal
For connecting the RS-422 cable.
1 3
5
2
4 6 8
G
H
I
J
K
.
L
Pin
Number
M
N
1
2
3
4
K [USB] USB terminal
For connecting a network device.
L [SDI OUT] SDI output terminal
Output terminal for SDI video signal.
M Infrared remote control sensor
N [RS-232C IN/OUT] RS-232C input/output
terminal
For connecting the RS-232C cable.
[RS-232C IN]: Input terminal for RS-232C
remote (Mini DIN 8-pin)
[RS-232C OUT]: Output terminal for RS-232C
remote (Mini DIN 8-pin)
8
5
2
.
RS-232C IN
Pin
Number
1
2
3
4
5
6
7
8
7
Signal
Pin
Name
Number
GND
5
TALLY
6
RXD-
7
TXD-
8
7
6
4
3
1
RS-232C OUT
Signal
Pin
Name
Number
DTR_IN
1
DSR_IN
2
TXD_IN
3
GND
4
RXD_IN
5
GND
6
IR_OUT
7
IR_OUT
8
Names of Parts
Signal
Name
TXD+
RXD+
-
-
Signal Name
DTR_OUT
DSR_OUT
TXD_OUT
GND
RXD_OUT
GND
NC
NC
17
