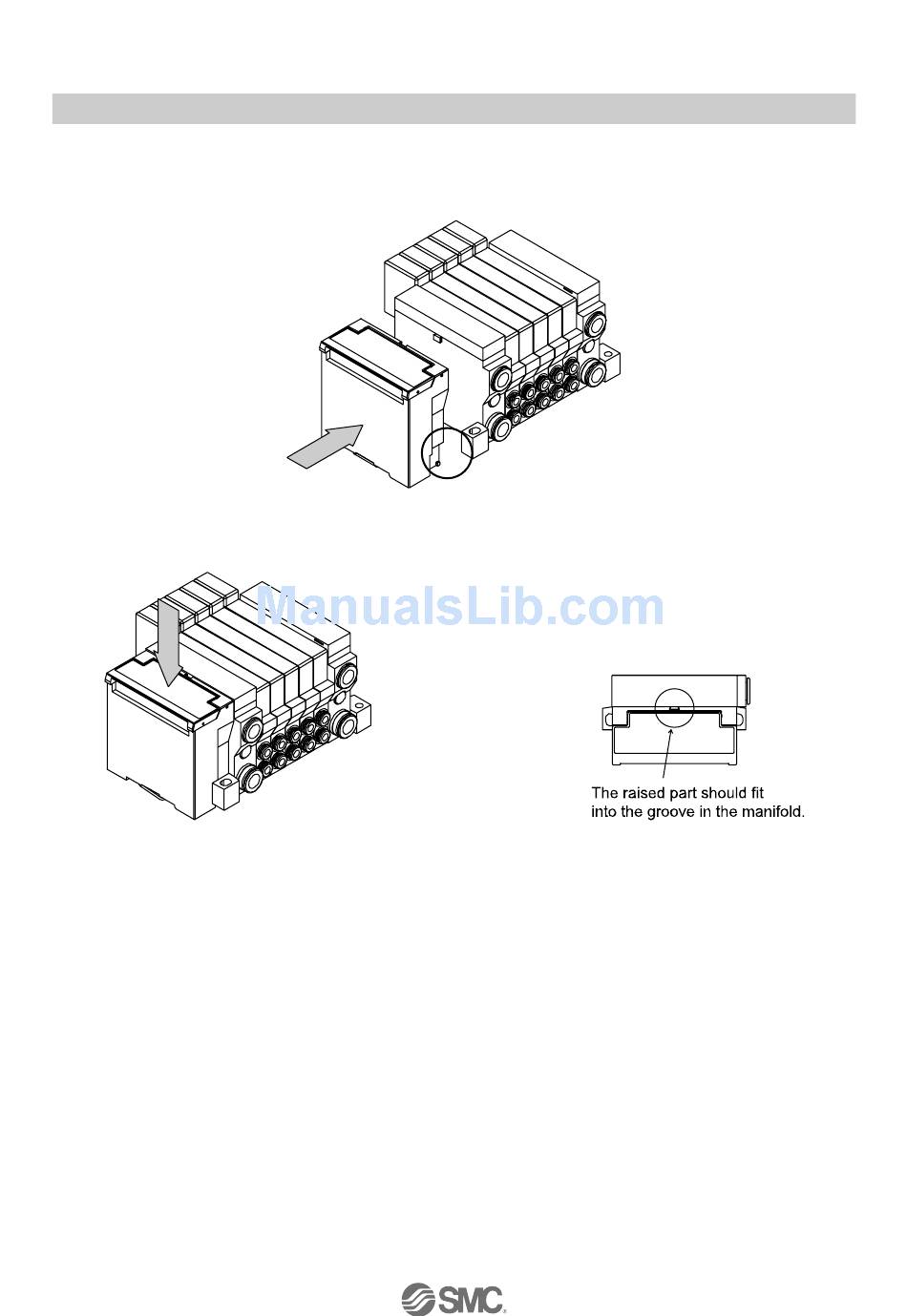

•Mounting

1. Align the raised part on the manifold side at the bottom of the SI unit with the groove of the manifold, and

press it in evenly.

2. Confirm that the SI unit and manifold are securely locked together, and slide the SI unit downwards.

-36-

No.EX##-OME0015-C
