Introduction
1.4.2 Features
®
The VLT AQUA Drive FC 202 is designed for water and wastewater applications. The range of standard and optional
features includes:
•
Cascade control • Dry run detection • End of curve detection • SmartStart
•
Motor alternation • Deragging • 2-step ramps • Flow Confirmation
•
Check valve protection • Safe Torque Off • Low flow detection • Pre/Post Lubrication
•
Pipe fill mode • Sleep mode • Real-time clock • User configurable info texts, warnings and alarms
•
Password protection • Overload protection • Smart logic control • Dual Power rating (High/Normal Overload)

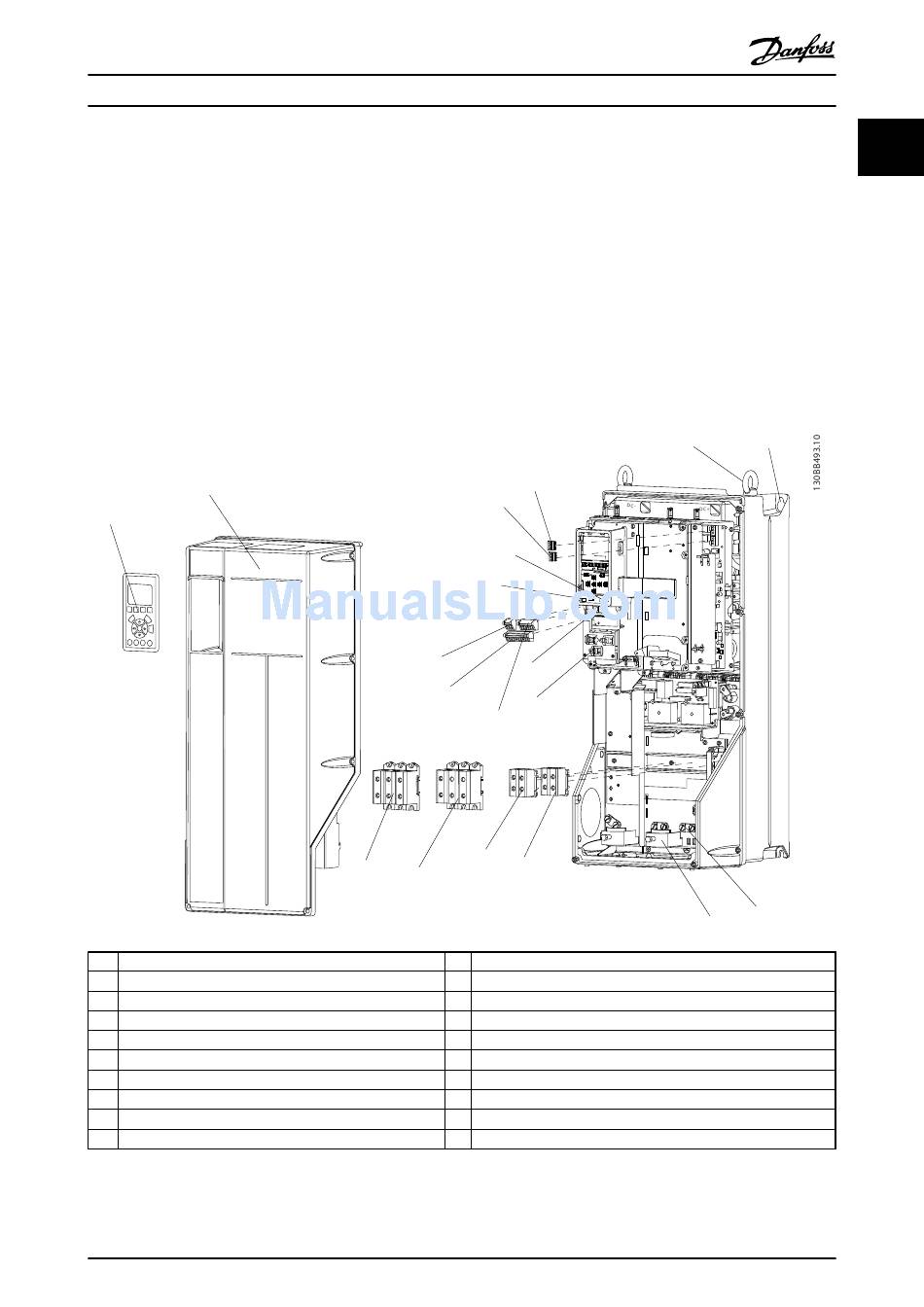

1.4.3 Exploded Views
2
1
1 Local Control Panel (LCP)
2 Cover
3 RS-485 serial bus connector
4 Digital I/O and 24 V power supply
5 Analog I/O connector
6 Cable screen connector
7 USB connector
8 Serial bus terminal switch
9 Analog switches (A53), (A54)
10 Relay 1 (01, 02, 03)
Illustration 1.1 Exploded View Enclosure Types B and C, IP55 and IP66
MG20MB02
Operating Instructions
10
9
8
61 68 39 42 50
3
7
4
5
17
16
19
18
11 Relay 2 (04, 05, 06)
12 Lifting ring
13 Mounting slot
14 Grounding clamp (PE)
15 Cable screen connector
16 Brake terminal (-81, +82)
17 Load sharing terminal (DC bus) (-88, +89)
18 Motor output terminals 96 (U), 97 (V), 98 (W)
19 Mains input terminals 91 (L1), 92 (L2), 93 (L3)
Danfoss A/S © Rev. 05/2014 All rights reserved.
12
11
53 54
6
FAN MOUNTING
1
13
14
15
5
