Aws Logic Control Screen; Transport Function Key Layout - Solid State Logic AWS 900+ SE Owner's Manual

MCU based DAW Control Guide

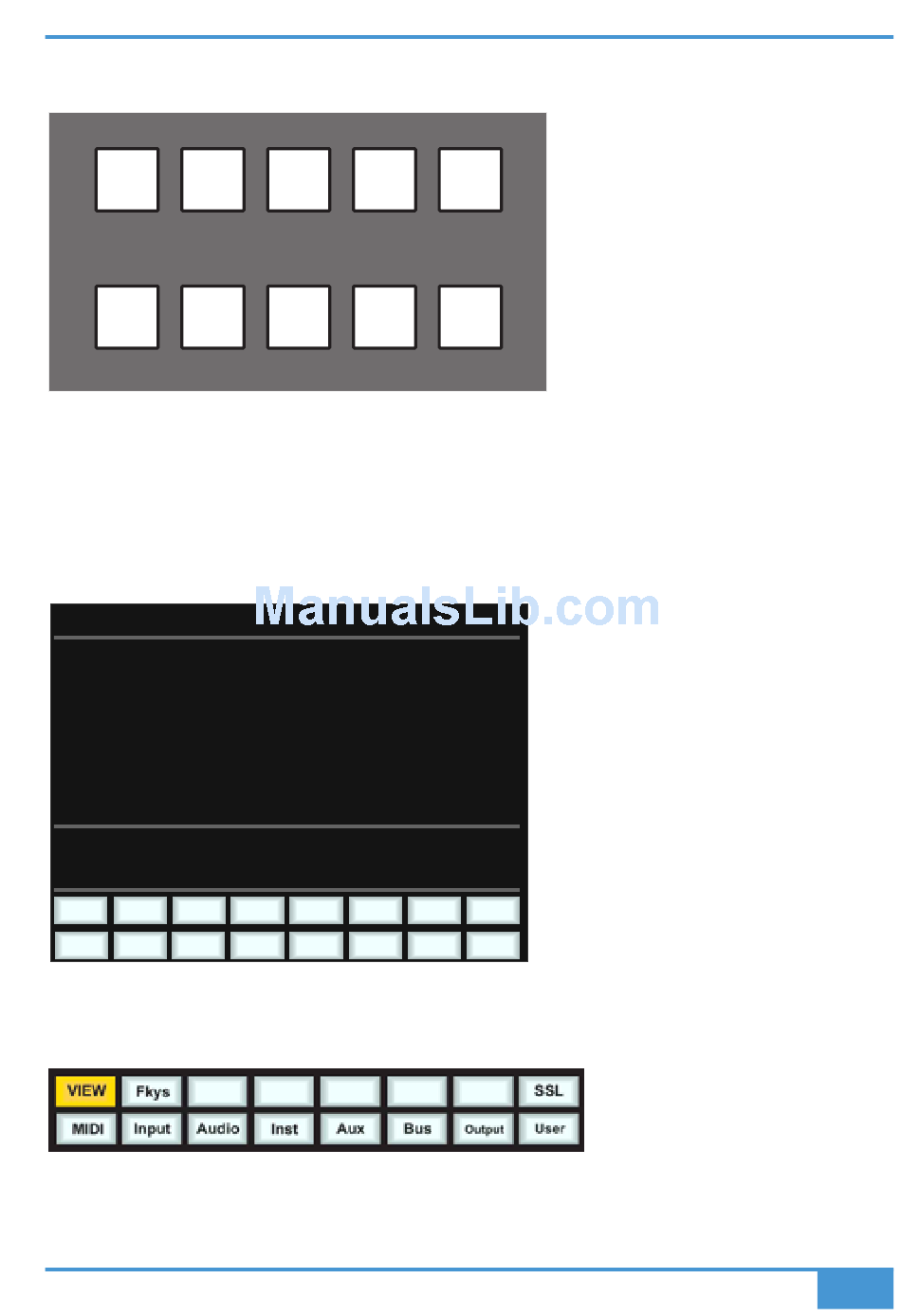

AWS Transport Function Key Layout
CYCLE DROP CLICK SOLO
REPLACE
Only five of the ten keys above the Motion controls are assigned. These have on screen tallies in the status area
of the TFT display.
Full operational documentation for using Logic with Mackie Control and Extender units can be found in Logic
Pro 8 Dedicated Control Surface Support (Manual) which can be downloaded from
http://www.apple.com/support/manuals/logicpro/.
The AWS Logic Control screen
00:00:00:00
VIEW Fkys SSL
VIEW is selected automatically by the GLOBAL key to access the eight Global View select keys. It can also be
selected manually if required. There are no tallies for the selected VIEW. VIEW is an AWS function and not part of
the MCU protocol.
Fkys are the eight functions keys as on the HUI interface. These are also permanently mapped to the numeric
keypad, which is not supported in the Mackie Control protocol.
A ' Rude' Solo tally is displayed in the on-screen Status area. This corresponds to the front panel LED on a MCU.
