Logic Pro 8 - Solid State Logic AWS 900+ SE Owner's Manual

Installation

Logic Pro 8

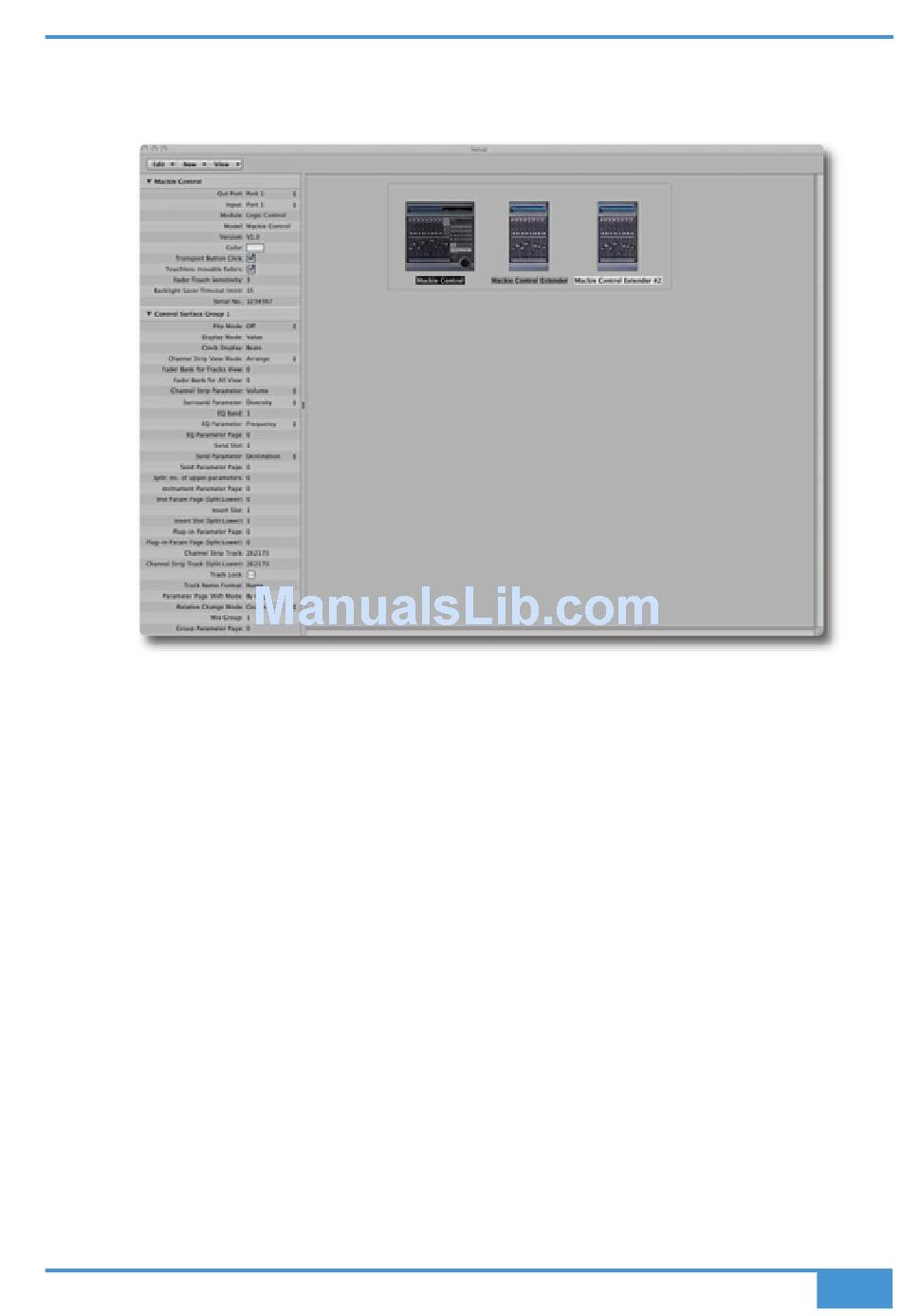

When Logic is assigned to one of the two AWS workstation layers a Mackie Control together with a Mackie Control
Extender must be added to the Logic Pro Preferences/Control Surfaces Setup menu as shown below:
AWS Faders 1-8 are mapped to the Mackie Control ports along with the Master Fader and workstation Control
function switches. AWS Faders 9 -16 and 17-24 are mapped to the Mackie Control Extender ports. The actual
ipMIDI ports used will depend on which layer (or layers) Logic is assigned to. See the list of AWS MIDI port
assignments for details. It is essential that the layout shown is followed. If the physical arrangement is reversed,
then the AWS faders will not map correctly to the on-screen faders in Logic.
If the protocol is set to Logic Handshake, Logic should automatically detect the three virtual controllers which will
be shown in the Logic Setup menu (as shown above), with the appropriate AWS ipMIDI ports assigned. If Logic
fails to detect the control surfaces, then the controllers can be added manually via the New/Install menu and the
appropriate MIDI Out port and Input assigned. As described above, normally only one layer should be set to Logic
Handshake.
Full details can be found in the online Logic Pro 8 Control Surfaces Support guide in the Logic Help Menu.
