The Channel Strip (629921X1)

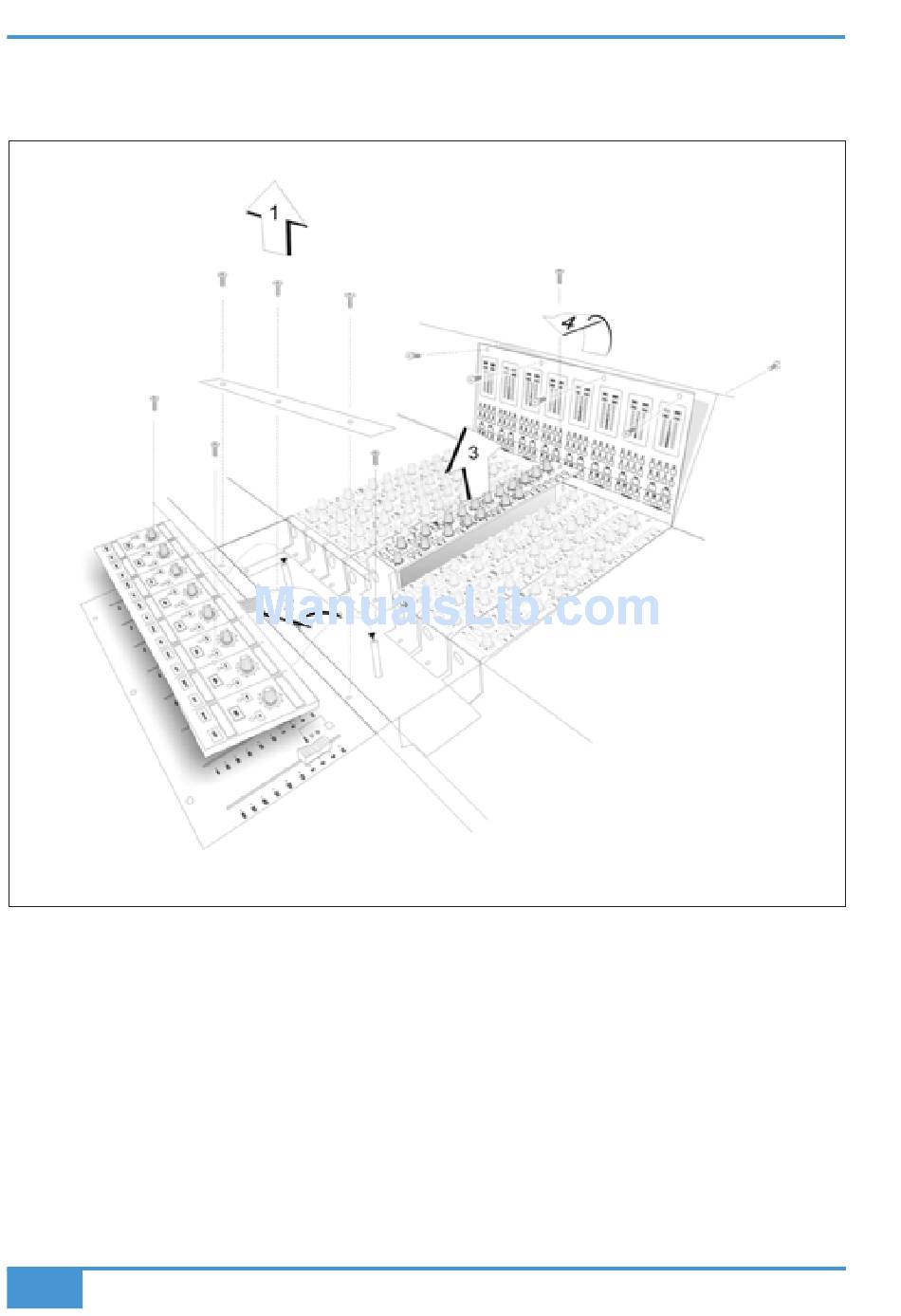

First, remove the scribble strip (three screws). Now remove the Solos and Cuts Panel (629922X1) that fits
across the bottom of each bay of eight channels; remove the two countersunk screws, then carefully lift the
panel clear onto a piece of foam or bubble wrap. Disconnect the ribbon and put the panel to one side.
Each channel strip is connected to the frame of the console by three screws – one at the top next to the
meters, one at the bottom (revealed when the Solo and Cuts Panel has been removed) and one at the rear of
the console just above the channel's XLR connectors (you will have to look carefully to find this one). When the
screws have been removed, screw the module puller into the top hole. Using both the puller, and the finger
hole next to the bottom screw, pull the channel strip clear from its edge connectors.
