Ecom j2kn pro Operating Instructions Manual page 17

The position of the measured and calculated values (gas analysis)
on the display pages is free selectable (choose „Display values" for
<F4> Hotkey). For alteration of the existing succession respectively
personal listing, proceed as follows:
-Press <F4> to activate the function.
-select the line with the cursor keys <up/down>,
-select the measured or calculated value with the cursor
keys <right/left>,
-repeat this procedure until all modifications are completed.
-Press <F4> to deactivate the function.

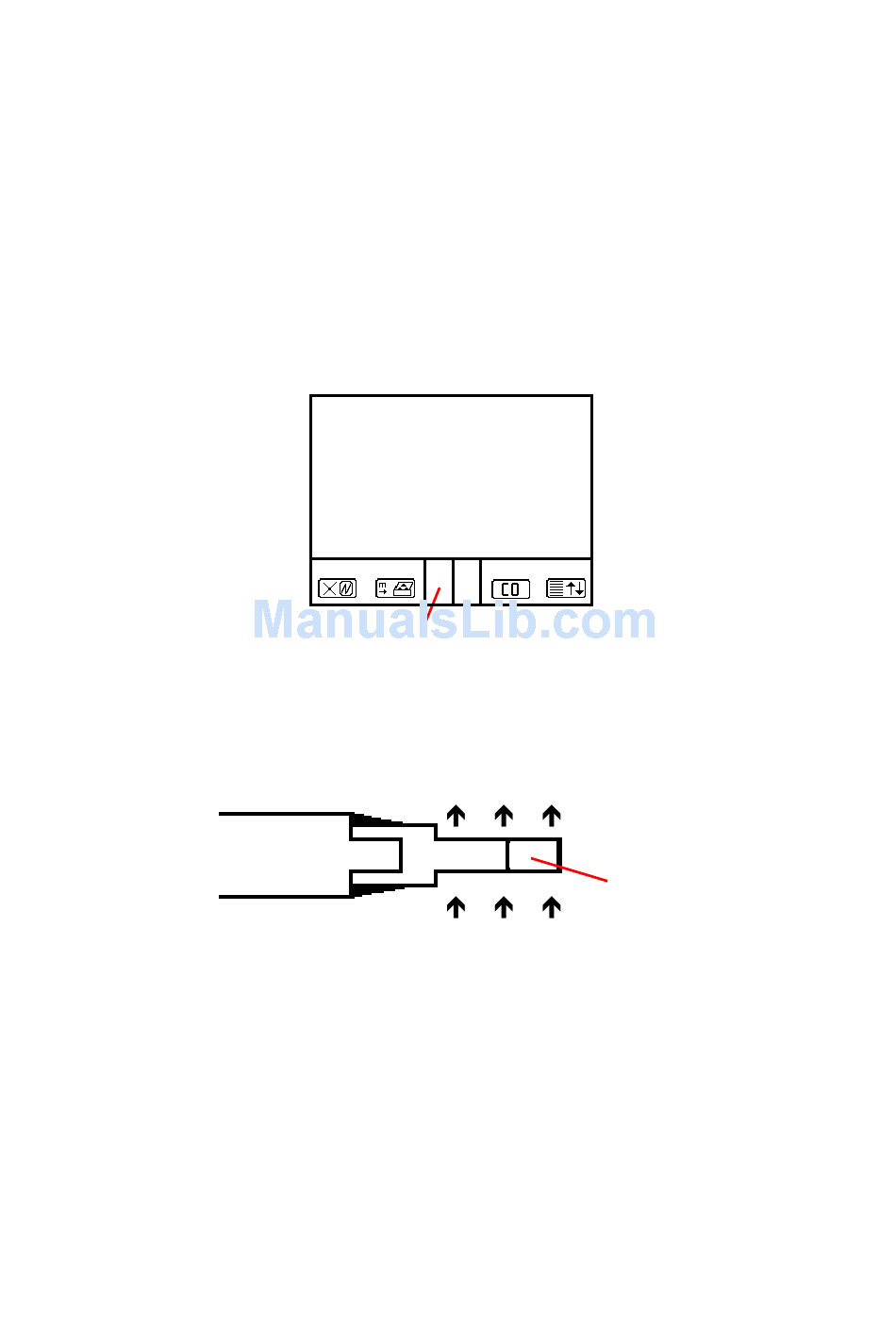

Position the sampling probe in the exhaust channel so that the ther-
mocouple is fully surrounded with the gas (see picture).
Probe tip
Perform the measurement in the core stream of the exhaust gas
channel (probe placed in the highest gas temperature area). A trend
indication for T.Gas easies the core stream search. As long as the
display shows a + symbol, the measured temperature increases, it
means the probe tip moves towards the core stream. If a - symbol is
displayed, pull the probe out of the core stream and the temperature
sinks. If no temperature change is shown for at least 3 seconds, so
the trend indication will be deleted.
pro
ecom-J2KN
O2
13.1
CO2
T.Gas
T.Air
Gas analysis
+
Core stream search
Gas stream
3.2
%
%
184
°C
20
°C
25.11.07
Protection bow
Page 17
