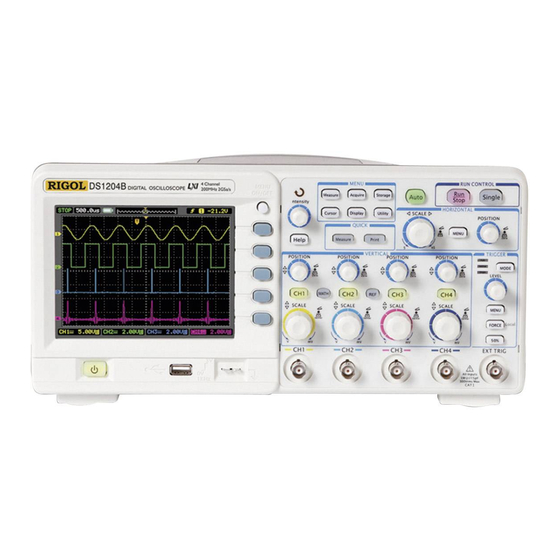

Rigol DS1074B User Manual

Digital oscilloscope
Hide thumbs Also See for DS1074B:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Programming Manual
RIGOL
User's Guide
DS1000B Series Digital Oscilloscopes
DS1074B,DS1104B,DS1204B
Aug. 2016
RIGOL TECHNOLOGIES, INC.

Advertisement

Table of Contents
loading

Related Manuals for Rigol DS1074B

Summary of Contents for Rigol DS1074B

  • Page 1 RIGOL User’s Guide DS1000B Series Digital Oscilloscopes DS1074B,DS1104B,DS1204B Aug. 2016 RIGOL TECHNOLOGIES, INC.

  • Page 3: Guaranty And Declaration

    RIGOL products are covered by P.R.C. and foreign patents, issued and  pending. RIGOL reserves the right to modify or change parts of or all the specifications  and pricing policies at the company’s sole decision. Information in this publication replaces all previously released materials.

  • Page 4: Safety Notices

    RIGOL Safety Notices Please review the following safety precautions carefully before putting the instrument into operation so as to avoid any personal injury or damage to the instrument and any product connected to it. To prevent potential hazards, please follow the instructions specified in this manual to use the instrument properly.
  • Page 5 Do Not Operate With Suspected Failures. If you suspect that any damage may occur to the instrument, have it inspected by RIGOL authorized personnel before further operations. Any maintenance, adjustment or replacement especially to circuits or accessories must be performed by RIGOL authorized personnel.
  • Page 6 RIGOL Keep it out of the reach of children. Improper change of a battery (lithium battery) may cause an explosion. Use the RIGOL specified battery only. Handle with Caution. Please handle with care during transportation to avoid damage to keys, knobs, interfaces, and other parts on the panels.

  • Page 7: Safety Notices And Symbols

    RIGOL Safety Notices and Symbols Safety Notices in this Manual: WARNING Indicates a potentially hazardous situation or practice which, if not avoided, will result in serious injury or death. CAUTION Indicates a potentially hazardous situation or practice which, if not avoided, could result in damage to the product or loss of important data.

  • Page 8: Allgemeine Sicherheits Informationen

    RIGOL Allgemeine Sicherheits Informationen Überprüfen Sie diefolgenden Sicherheitshinweise sorgfältigumPersonenschädenoderSchäden am Gerätundan damit verbundenen weiteren Gerätenzu vermeiden. Zur Vermeidung vonGefahren, nutzen Sie bitte das Gerät nur so, wiein diesem Handbuchangegeben. Um Feuer oder Verletzungen zu vermeiden, verwenden Sie ein ordnungsgemäßes Netzkabel.
  • Page 9 Wenn Sie am Gerät einen Defekt vermuten, sorgen Sie dafür, bevor Sie das Gerät wieder betreiben, dass eine Untersuchung durch RIGOL autorisiertem Personal durchgeführt wird. Jedwede Wartung, Einstellarbeiten oder Austausch von Teilen am Gerät, sowie am Zubehör dürfen nur von RIGOL autorisiertem Personal durchgeführt werden. Belüftung sicherstellen.
  • Page 10 Wenneine Batterieverwendet wird, vermeiden Sie hohe Temperaturen bzw. Feuer ausgesetzt werden. Bewahren Sie es außerhalbder Reichweitevon Kindern auf. UnsachgemäßeÄnderung derBatterie (Anmerkung: Lithium-Batterie) kann zu einer Explosion führen. VerwendenSie nur von RIGOL angegebenenAkkus. Sicherer Transport. Transportieren Sie das Gerät sorgfältig (Verpackung!), um Schäden an Bedienelementen, Anschlüssen und anderen Teilen zu vermeiden.

  • Page 11: Sicherheits Begriffe Und Symbole

    RIGOL Sicherheits Begriffe und Symbole Begriffe in diesem Guide: WARNING Die Kennzeichnung WARNING beschreibt Gefahrenquellen die leibliche Schäden oder den Tod von Personen zur Folge haben können. CAUTION Die Kennzeichnung Caution (Vorsicht) beschreibt Gefahrenquellen die Schäden am Gerät hervorrufen können.

  • Page 12: General-Purpose Oscilloscopes

    The introduction of this document contains three types of DS1000B series oscilloscope: DS1074B, DS1104B and DS1204B RIGOL DS1000B series digital oscilloscopes with four analog channels in connection with an external trigger channel are designed to capture multiple signals and meet the needs of measurement along with its excellent performance, powerful functions.
  • Page 13 RIGOL Built-in FFT function.  Digital filters, includes LPF, HPF, BPF, BRF.  Pass/Fail detection Function, optically isolated Pass/Fail output.  Addition, Subtract and Multiply Mathematic Functions of waveforms.  Advanced trigger types include: Edge, Video, Pulse width, Pattern, Alternative.

  • Page 14: Document Overview

    RIGOL Document Overview Chapter 1 Quick Start To introduce the panls and menus to help users to realize the base operations. Chapter 2 Operating Your Oscilloscope More details to help users to understand the functions and measurements of instrument deeply.

  • Page 15: Table Of Contents

    RIGOL Contents Guaranty and Declaration ................ I Safety Notices ..................II Safety Notices and Symbols ..............V Allgemeine Sicherheits Informationen........... VI Sicherheits Begriffe und Symbole ............IX General-Purpose Oscilloscopes ............... X Document Overview ................XII Chapter 1 Quick Guide ............... 1-1 General Inspect ..................
  • Page 16 RIGOL To Set up the Sampling System ............2-50 To Set up the Display System ............... 2-54 To Store and Recall ................2-57 To Set up the Utility ................2-66 The I/O Setup ................2-68 Language ..................2-76 Pass/Fail ..................2-77 Waveform Recorder ..............
  • Page 17 RIGOL Appendix A: DS1000B series Accessories ..........6-1 Appendix B: Warranty ................6-2 Appendix C: Care and Cleaning .............. 6-3 Index ...................... 1 User’s Guide for DS1000B Series...

  • Page 19: Chapter 1 Quick Guide

    RIGOL Chapter 1 Quick Guide This chapter covers the following topics: General Inspect  Panels and User Interface  Functional Check  To Compensate the Probes  To Display a Signal Automatically  To Understand the Vertical System  To Understand the Horizontal System ...

  • Page 20: General Inspect

    The consigner or carrier shall be liable for the damage to instrument resulting from shipment, without free maintenance or replacement by RIGOL. 2. Inspect the instrument. In case of any damage, or defect, or failure, notify your RIGOL Sales Representative. 3. Check the accessories.

  • Page 21: Panels And User Interface

    RIGOL Panels and User Interface Being familiar with the operation panels is the first priority when you get a new DS1000B series digital oscilloscope. This chapter will bring you a brief introduction and description of the panels and functions of oscilloscope, which can help users to know well about the instrument in a short time.

  • Page 22: Rear Panel

    RIGOL Front Panel Interfaces: USB Host: Connect DS1000B with external USB devices when the oscilloscope is regarded as “Host Device”, such as connecting a USB flash device. Analog Signal Channels: Four channels are provided: CH1, CH2, CH3 and CH4. EXT TRIG Input: It is applied to input external trigger signal.
  • Page 23 RIGOL Notation definitions in this Manual: Throughout this guide, notation symbols of buttons and knobs are the same of those on front-panel. A box around the name of the key denotes MENU function buttons on  front-panel, such as Measure.

  • Page 24: User Interface

    RIGOL User Interface U-Disk Location of Waveform Trigger Point Connected Window in Memory in Memory Status Timebase Trigger Point in Waveform Window Trigger Symbol Menu Waveform Display Window CH1 Volts/div CH2 Volts/div CH3 Volts/div CH4 Volts/div Figure 1-3 User Interface Overview...

  • Page 25: Functional Check

    RIGOL Functional Check Perform this quick functional check to verify that the instrument is operating correctly. 1. Turn on the instrument Use the power cord designed for the oscilloscope only to connect the instrument and AC power which delivers 100 to 240 VAC , 45Hz to 440Hz.
  • Page 26 RIGOL Figure 1-5 Probe connection Figure 1-6 Probe adjustment Attach the probe tip to the Probe compensator connector and the reference lead  to the ground pin. Press Auto, within a few seconds, a square wave will display (approximately 1kHz, 3Vpp).

  • Page 27: To Compensate The Probes

    RIGOL To Compensate the Probes Perform this adjustment to match the characteristics of the probe and the channel input. This should be performed whenever attaching a probe to any input channel at the first time. 1. From CH1 menu, set the Probe attenuation to 10X (press CH1→Probe→10X).

  • Page 28: To Display A Signal Automatically

    RIGOL To Display a Signal Automatically The oscilloscope has an automated feature to display the input signal in best-fit status. The input signal should be 50 Hz or higher and a duty cycle is greater than Using the automatic setting: 1.

  • Page 29: To Understand The Vertical System

    RIGOL To Understand the Vertical System As shown in Figure 1-8, there are several buttons and knobs in the VERTICAL control area, which are used for setting Channels, MATH and REF functions as well as adjusting vertical position and Volts/div of waveforms. In addition, different colors are designed for different channels, corresponding to different waveforms, so as to observe clearly.
  • Page 30 RIGOL Measurement hints If the channel is DC coupled, measuring the DC components of the signal by simply noting its distance from the ground symbol. If the channel is AC coupled, the DC component of the signal is blocked, allow you to use greater sensitivity to display the AC component of the signal.

  • Page 31: To Understand The Horizontal System

    RIGOL To Understand the Horizontal System Figure1-9 shows the HORIZONTAL controls: MENU button, knobs of horizontal system. Following the exercise to familiarize with the buttons, knobs, and status bar. Figure 1-9 Horizontal control 1. Set horizontal “s/div” by knob. The horizontal knob changes the sweep speed in a 1-2-5 step sequence, and displays the value at the upper-left of the display.
  • Page 32 RIGOL 3. The horizontal knob moves displayed signal horizontally on the waveform window. The horizontal knob adjusts the trigger offset of signal, when turning the knob; you can note that the waveform moves horizontally in conjunction with the knob. Horizontal offset back to 0 shortcut key...

  • Page 33: To Understand The Trigger System

    RIGOL To Understand the Trigger System Figure 1-10 shows the TRIGGER control: MODE, MENU, FORCE, 50% and a knob. Following the exercises to familiarize with the buttons, trigger level knob and status bar. Figure 1-10 Trigger control 1. Three kinds of trigger modes can be switched among Auto, Normal and Single with pressing MODE button.
  • Page 34 RIGOL 3. Press MENU button in the Trigger control area. A soft button menu appears on the display showing the trigger setting choices as shown in Figure 1-11. Figure 1-11 Press NO.1 menu button to choose Edge.  Press NO.2 menu button to choose Source as CH1.

  • Page 35: To Understand The Quick Function

    RIGOL To Understand the Quick Function The following figure shows that there are two buttons in the QUICK function area. The exercise below will gradually conduct you to familiarize the settings of the buttons. Figure 1-12 The quick function menu...

  • Page 37: Chapter 2 Operating Your Oscilloscope

    RIGOL Chapter 2 Operating Your Oscilloscope By now, a user should understand the VERTICAL, HORIZONTAL and TRIGGER control systems and know how to determine the system setup from the status bar of a DS1000B series digital oscilloscope. This chapter will go through all groups of front-panel buttons, knobs and menus;...

  • Page 38: To Set Up The Vertical System

    RIGOL To Set up the Vertical System Four analog channels are provided by DS1000B: CH1, CH2, CH3 and CH4. Press the corresponding button on the front panel to turn the channels on/off. The backlight indicates the channel is currently active. Press the button again to turn the channel off.
  • Page 39 RIGOL Knobs Explanation Use the vertical controls to display signal waveforms by adjusting the vertical knob, and the knob, and setting the input parameters. Using vertical knob. The vertical control changes the vertical position of signal waveforms in all channels (excluding MATH and REF). The resolution changes according to the vertical level set.

  • Page 40: Channel Settings

    RIGOL Channel Settings Each channel of DS1000B series digital oscilloscope has an independent operation menu and it will pop-up after pressing any button among CH1, CH2, CH3, CH4. The menu to set CH1 is shown in the table below. Press CH1 to enter the following menus.
  • Page 41 RIGOL Figure 2-2 Table 2-3 Channel menu (Page 2/2) Menu Settings Comments Back to the previous menu page (The followings are the same, no more explanation). Coarse Define a 1-2-5 sequence. Fine To change the Volts/Dive settings in Volts/Div small steps between the coarse settings.
  • Page 42 RIGOL 1. To set up channel coupling To use Channel 1 as an example, input a square wave signal with DC shift. Press CH1→Coupling→DC to set “DC” coupling. Both the AC component and the DC component of the input signal will pass.
  • Page 43 RIGOL Press CH1→Coupling→GND, to set “GND” coupling, it disconnects the input signal. The screen displays as Figure 2-5: Coupling Setup GND Coupling Status Symbol Figure 2-5 Ground coupling settings User’s Guide for DS1000B Series...
  • Page 44 RIGOL 2. To set up the channel bandwidth limit Take Channel 1 for an example, input a signal containing high frequency component. Press CH1→BW Limit→OFF, to set up bandwidth limit to “OFF” status. The oscilloscope is set to full bandwidth and passing the high frequency component in the signal.
  • Page 45 RIGOL 3. To set up Probe Attenuation The oscilloscope allows selecting the attenuation factor for the probe. The attenuation factor changes the vertical scaling of the oscilloscope so that the measurement results reflect the actual voltage levels at the probe tip. Figure 2-8 shows an example for using a 1000:1 probe and its attenuation factor.
  • Page 46 RIGOL 4. Digital Filter Press CH1→ Digital Filter to display the digital filter menu. Turn Off Digital Filter Figure 2-9 Turn off digital filter Turn On Digital Filter Figure 2-10 Turn on digital filter Turn the digital filter on or off as shown in the following figure. Turn ( ) knob to adjust the upper and lower limit of frequency after turning on the digital filter.
  • Page 47 RIGOL Figure 2-11 Table 2-5 The Filter menu Menu Settings Comments Turn on the digital filter. Digital Filter Turn off the digital filter. Setup as LPF (Low Pass Filter). Setup as HPF (High Pass Filter). Filter Type Setup as BPF (Band Pass Filter).
  • Page 48 RIGOL 5. To change the Volts/Div settings The Volts/Div control has Coarse or Fine configuration. The Vertical Sensitivity is 2mv/div - 10V/div. Coarse: It is the default setting of Volts/Div in a 1-2-5-step sequence from 2mV/div, 5mV/div, 10mV/div, to 10 V/div.

  • Page 49: To Invert A Waveform

    RIGOL 6. To invert a waveform Invert turns the displayed waveform 180 degrees with respect to the ground level. When the oscilloscope is triggered on the inverted signal, the trigger is also inverted. Figure 2-13 and Figure 2-14 show the changes before and after the inversion respectively.

  • Page 50: Math Function

    RIGOL Math Function The mathematic functions include “add”, “subtract”, “Multiply” and “FFT” for CH1, CH2, CH3 and CH4. The mathematic result can be measured by the grid and the cursor. Press MATH button to enter “Math” menu, meanwhile, sign of math scale will appear under the screen.
  • Page 51 RIGOL Figure 2-17 Table 2-7 The Math menu (Page 2/2) Menu Settings Comments The multifunctional knob ( ) adjusts the vertical position of the Math waveform. The multifunctional knob ( ) adjusts the vertical amplitude of the Math waveform. Reset the math waveform to vertical Reset mid-point.

  • Page 52: Using Fft Function

    RIGOL 1. Using FFT function The FFT (Fast Fourier Transform) process converts a time-domain signal into its frequency components mathematically. FFT waveforms are useful in the following applications: Measuring harmonic content and distortion in systems  Characterizing noise in DC power supplies ...
  • Page 53 RIGOL Key points for FFT Signals that have a DC component or offset can cause incorrect FFT waveform component magnitude values. To minimize the DC component, choose AC Coupling on the source signal. To reduce random noise and aliases components in repetitive or single-shot events, set the oscilloscope acquisition mode to Average.
  • Page 54 RIGOL 2. Selecting an FFT Window DS1000B series oscilloscope provides four FFT windows. Each window is a trade-off between frequency resolution and amplitude accuracy. It depends on the desired measurement and the source signals characteristics to determine the window to use. Use the following guidelines to select the best window.
  • Page 55 RIGOL Term Explanations FFT Resolution: The FFT resolution is the quotient between sampling rate and the number of FFT points. With a fixed FFT points, the lower sampling rate, the better the resolution. Nyquist Frequency: The highest frequency that any real-time digitizing oscilloscope can acquire without aliasing.

  • Page 56: Ref Function

    RIGOL REF Function Reference Waveforms are saved waveforms to be selected for display. The reference function will be available after saving the selected waveform to non-volatile memory. During the actual measurement process, you can use DS1000B series digital oscilloscope to observe the waveforms of correlative components. It will help you to determine the cause of malfunction when you compare the measured waveform with the reference waveform.
  • Page 57 RIGOL Figure 2-21 Table 2-12 REF menu when using internal/external memory (Page 2/3) Menu Settings Comments Save REF waveform to outer memory Save location. The multifunctional knob ( ) adjusts the vertical position of REF The multifunctional knob ( ) adjusts...
  • Page 58 RIGOL 1. Import and Export Switch to external memory and select Internal location. Then, press REF →Imp. /Exp. and enter the following interface. Figure 2-24 Import and export interface Figure 2-25 Table 2-15 Imp. /Exp. Menu Menu Settings Comments Path...
  • Page 59 RIGOL 2. Export Switch to external memory and select Internal location. Then, press REF→Imp. /Exp.→ Export and go to the following interface. Figure 2-26 Export interface Figure 2-27 Table 2-16 The Export menu Menu Settings Comments Move the input focus point of files’ name up and down.
  • Page 60 RIGOL 3. Save to External Memory Switch to external memory and select External location. Then, press REF→Save and enter the following interface. Figure 2-28 Save interface Figure 2-29 Table 2-17 The Save menu Menu Settings Comments Path Switch among Path, Directories and...
  • Page 61 RIGOL 4. New File (or New Folder) Switch to external memory and select External location. Then, press REF→Save→New File (or New Folder) and go to the following interface. File Name Input Pane Switch Capital Switch Chinese On or Off and English...
  • Page 62 RIGOL 5. Import Switch to external memory and select External location. Then, press REF→Import and enter the following interface. Figure 2-32 Import interface Figure 2-33 Table 2-19 The Import menu Menu Settings Comments Path Switch among Path, Directories and Explorer Directories Files.
  • Page 63 RIGOL 6. Display a Reference Waveform Figure 2-34 Reference waveform display Operation introductions: Press REF button to show the reference waveform menu. Press soft button 3 to select the reference channel: CH1, CH2, CH3, CH4 or MATH. Turn vertical and vertical to adjust the REF waveform to a suitable position.

  • Page 64: To Set Up The Horizontal System

    RIGOL To Set up the Horizontal System Press MENU button to enter the horizontal setting system. Figure 2-35 Table 2-20 The Horizontal menu Menu Settings Comments Turn on the Delayed Scan mode. Delayed Turn off the Delayed Scan mode. The waveform expands or compresses...
  • Page 65 RIGOL Term Explanations Slow Scan Mode: This mode is available when the horizontal time base is set to 50ms or slower. In this mode, the oscilloscope acquires sufficient data for the left part to the trigger point, then wait for trigger, when trigger occurs, it continue to draw the rest part from the trigger point to the end of the right side.
  • Page 66 RIGOL Knobs Explanation The horizontal controls change the horizontal scale and position of waveforms. The horizontal center of the screen is the time reference for waveforms. Changing the horizontal scale causes the waveform to be expanded or compressed with respect to the screen center.

  • Page 67: Delayed Scan

    RIGOL Delayed Scan The Delayed Scan is a magnified portion of the main waveform window. Use Delayed Scan to locate and horizontally expand part of the main waveform window for a more detailed (higher horizontal resolution) analysis of signal. The Delayed Scan time base setting cannot be set slower than the Main time base setting.

  • Page 68: X-Y Format

    RIGOL X-Y Format This format is useful for studying phase relationships between CH1 and ch2 (CH3 and CH4 can’t be used).CH1 in the horizontal axis(X) and CH2 in the vertical axis(Y), the oscilloscope uses a none-trigger acquisition mode, data is displayed as dots.

  • Page 69: To Set Up The Trigger System

    RIGOL To Set up the Trigger System The trigger determines when the oscilloscope starts to acquire data and display a waveform. When a trigger is set up properly, it can convert unstable displays or blank screens into meaningful waveforms. When the oscilloscope starts to acquire a waveform, it collects enough data so that it can draw the waveform to the left of the trigger point.

  • Page 70: Edge Trigger

    RIGOL Edge Trigger An edge trigger determines whether the oscilloscope finds the trigger point on the rising or the falling edge of a signal. Select Edge trigger Mode to trigger on Rising edge, falling edge or rising & falling edge.

  • Page 71: Pulse Width Trigger

    RIGOL Pulse Width Trigger Pulse trigger occurs according to the width of pulse. The abnormal signals can be detected through setting up the pulse width condition. Press MENU→Mode→Pulse to enter the following menu. Figure 2-40 Table 2-22 The Trigger menu (Page 1/2)

  • Page 72: Video Trigger

    RIGOL Video Trigger Choose video trigger to trigger on fields or lines of NTSC, PAL, or SECAM standard video signals. Trigger coupling preset to DC. Press MENU→Mode→Video to enter the following menu. Figure 2-42 Table 2-24 The Video Trigger menu (Page 1/2)
  • Page 73 RIGOL Figure 2-43 Table 2-25 The Video Trigger menu (Line Num, Page 2/2) Menu Settings Comments The range is from No.1 to No.525 when NTSC video standard is used and from Line Num No.1 to No.625 when PAL/SECAM video < Line sync >...
  • Page 74 RIGOL Select “Line Synchronization”: Select “Filed Synchronization”: Figure 2-45 Figure 2-46 Video Trigger: Line Synchronization Video Trigger: Field Synchronization User’s Guide for DS1000B series 2-38...

  • Page 75: Pattern Trigger

    RIGOL Pattern Trigger Pattern trigger recognises the trigger condition through inspecting the code preset which means the logic values or the logic combination.Every channel has its own logic value,such as,logic high value,logic low value,and the neglect value. Press MENU→Mode→Pattern to enter the following menu.
  • Page 76 RIGOL Figure 2-48 Pattern trigger: set code as falling edge User’s Guide for DS1000B series 2-40...

  • Page 77: Alternative Trigger

    RIGOL Alternative Trigger When alternative trigger is on, the trigger sources come from two vertical channels. This mode can be used to observe two non-related signals. You can choose two different trigger modes for the two vertical channels. The options are as follows: Edge, Pulse and video.
  • Page 78 RIGOL Figure 2-51 Table 2-30 The Alternative trigger menu (Page 1/2 Trigger Type: Pulse) Menu Settings Comments CH1-CH2 To specify the current alternative CH1-CH3 trigger channels as any two channels CH1-CH4 Alt Channel CH2-CH3 selected form CH1, CH2, CH3, CH4.
  • Page 79 RIGOL Figure 2-53 Table 2-32 The Alternative trigger menu (Page 1/2 Trigger Type: Video) Menu Settings Comments CH1-CH2 To specify the current CH1-CH3 alternative trigger channels CH1-CH4 as any two channels selected Alt Channel CH2-CH3 form CH1, CH2, CH3, CH4.

  • Page 80: Trigger Settings

    RIGOL Trigger Settings Set up different trigger settings according to different trigger modes. In Edge, Pulse and Pattern trigger modes. You need to set up coupling, sensitivity and trigger holdoff; in video trigger mode, to set up sensitivity and holdoff; in alternate trigger, different trigger types have different setting options.
  • Page 81 RIGOL Figure 2-56 Table 2-35 Page 2/2 Settings for Edge, Pulse and Pattern Triggers Menu Settings comments Holdoff Reset Reset Holdoff time to 500ns. Figure 2-57 Table 2-36 Settings for Video Trigger Menu Settings Comments Set trigger sensitivity between Sensitivity 0.1div to 1.00div.

  • Page 82: Trigger Holdoff

    RIGOL Trigger Holdoff You can use trigger Holdoff to stabilize a complex waveform, such as a pulse sequence. Holdoff time is the oscilloscope’s waiting period before starting a new trigger. During Holdoff, oscilloscope will not trigger until Holdoff ends. For instance: To trigger on the first pulse on a group of them, users can set the holdoff time to Pulse cluster width.

  • Page 83: Trigger Source

    RIGOL Trigger Terms Explanation 1. Trigger Source: Trigger occurs from several sources: Input channels (CH1, CH2, CH3, CH4), AC Line, Ext, Ext/5. CH1, CH2, CH3, CH4:  It is the most commonly used trigger source. The channel works when it is selected as a trigger source whatever displayed.
  • Page 84 RIGOL display becomes stable on the screen. Any factor results in the instability of waveforms can be detected by Auto Trigger, such as the output of Power supply. NOTE: When horizontal control is set under 50 ms/div, Auto mode allows the oscilloscope not to capture trigger signal.
  • Page 85 RIGOL 5. Adjustable trigger sensitivity To avoid the influence of noise from the physical world, and get the stable trigger, the trigger circuit has adopted Stickiness. In DS1000B series, the stickiness is adjustable from 0.1div-1.0div, which means when it sets to 1.0div; the trigger circuit will not affect any signal with peak-peak amplitude less than 1.0div, so as...

  • Page 86: To Set Up The Sampling System

    RIGOL To Set up the Sampling System Figure 2-59 shows, the Acquire button at the MENU of the front panel. Acquire Setup Button Figure 2-59 The Acquire setup button Press Acquire button, the interface menu shows as follows: Figure 2-60 Table 2-37 The Acquire menu...
  • Page 87 RIGOL The waveform displayed on the screen will change in conjunction with the setting of Acquire menu. To reduce the displayed random noise, select the Average Acquisition. This  mode would make the screen refresh slower. To Avoid signal aliasing, select Peak Detect Acquisition.
  • Page 88 RIGOL Figure 2-63 Adopt Normal acquisition Figure 2-64 Adopt peak detect acquisition, signal contains envelope Key points Stop Acquisition: When the scope is acquiring waveforms, the waveforms is in a live status; when acquisition is stopped, frozen waveform will be displayed, the position and scale can still be adjusted by vertical control and horizontal control.
  • Page 89 RIGOL Key Points: Real-time Sampling: DS1000B has Real-time sampling rate up to 2GSa/s. At the time base 20ns or faster, the oscilloscopes use the sine(x)/x interpolation to expand the horizontal time base. Equivalent sampling: Known as Repetitive sampling to get up to 20ps of horizontal resolution (equivalent 50Gsa/s).

  • Page 90: To Set Up The Display System

    RIGOL To Set up the Display System The menu button for the display system on the front panel is shown in the following figure. Display Setup Button Figure 2-65 The display setup button Press the Display button, the interface menu for settings shows as follows.
  • Page 91 RIGOL Figure 2-67 Table 2-39 The Display menu (Page 2/3) Menu Settings Comments The waveform is displayed in multiple Grading levels of pixel intensity. Display grids and coordinates on the screen. Grid Turn off the grids. Turn off the grids and coordinates.
  • Page 92 RIGOL Term Explanations Refresh rate: It is an important performance of digital oscilloscopes. It means the number of display refreshing per second and it will affect the ability to observe signal. Adjusting waveform intensity Default setup of multi-function knob ( ) is adjusting waveform intensity.

  • Page 93: To Store And Recall

    RIGOL To Store and Recall Figure 2-69 shows the menu button for the storage system on the front panel. Storage Setup Button Figure 2-69 The storage setup button Press the Storage button, the interface menu for settings shows as follows.
  • Page 94 RIGOL Figure 2-71 Table 2-42 The Storage menu (Bitmap storage) Menu Settings Comments Create or delete 8bits Bitmap files. 8-Bitmap Storage Create or delete 24bits Bitmap files. 24-Bitmap Save the current oscilloscope settings Para Save in different format with the same file name.
  • Page 95 RIGOL Figure 2-73 Table 2-44 The Storage menu (CSV storage) Menu Settings Comments Storage Create or delete CSV files. Displayed Save currently displayed waveform data to CSV file. Data Depth Maximum Save the whole waveform data in memory to CSV file.
  • Page 96 RIGOL Internal Memory Press Storage→Internal to go to the following menu. Figure 2-75 Table 2-46 The Memory menu Menu Settings Comments Set up the location of files in internal Int_00 (S) Int_01 (S) memory among Int_00 Int_09. Internal Thereinto, S in brackets indicates the...
  • Page 97 RIGOL External Memory Press Storage→ External to go to the following interface. Path Back to File Previous Folder Current Folder File Info. Figure 2-76 External memory interface Figure 2-77 Table 2-47 The Memory menu Menu Settings Comments Path Explorer Directories Switch among Path, Directory and File.
  • Page 98 RIGOL U-disk Selection Figure 2-78 U-disk selection DS1000B series have two USB Host ports on the front and rear panel. When both ports were inserted USB flash drive, the screen will appear a U-disk selection interface as Figure 2-78. Turn the multifunction knob to choose the driver. The front one marked “F:”...

  • Page 99: Disk Management

    RIGOL Disk Management Press Storage→Disk Mgr.. Then go to the following menu. Figure 2-79 Table 2-48 The Disk Management menu (Page 1/2) Menu Settings Comments Path Switch among Path, Directory and Explorer Directories File. Files To create new folder (same as new New folder files, see table 2-18).
  • Page 100 RIGOL 1. Disk Information Press Storage →Disk Mgr. →Disk info to go to the disk information interface. Figure 2-81 Disk information interface 2. Rename Press Storage→Disk Mgr.→Rename to go to the following interface. Figure 2-82 Rename the file User’s Guide for DS1000B series...
  • Page 101 RIGOL Figure 2-83 Table 2-50 The Rename menu Menu Settings Comments To move the input focus point of file name up and down. To move the focus point to the next location. To delete chosen letter. Rename the file. Key point Factory: The oscilloscope has default settings and can be recalled at anytime by user.

  • Page 102: To Set Up The Utility

    RIGOL To Set up the Utility Figure 2-69 shows the menu button for the utility system on the front panel. System Function Setup Button Figure 2-84 The Utility setup button Press the Utility button to show the menu of the settings in the Utility system.
  • Page 103 RIGOL Figure 2-86 Table 2-52 The Utility menu (Page 2/3) Menu Settings Comments Pass/Fail Setup Pass/Fail test. Record Setup Waveform Recorder. Print set Setup printing. Figure 2-87 Table 2-53 The Utility menu (Page 3/3) Menu Settings Comments Self-Cal Execute Self-calibration.

  • Page 104: The I/O Setup

    RIGOL The I/O Setup Press Utility→IO Setting to go to the following menu. Figure 2-88 Table 2-54 The I/O Setup menu Menu Display Comments Set network function, the local area LAN Set network interface corresponds with the LXI standard. Auto Detect...

  • Page 105: Lan Setting

    RIGOL 1. LAN Setting Access the oscilloscope into Network, and press LAN Set to enter the setting interface, see figure below: Recall the LAN Initialize setting Move the focus up and down Move the focus left and right User-defined area...

  • Page 106: Remote Control

    RIGOL 2. Remote Control (1) By Web Page When the network configuration is completed, open the IE and enter the IP address of oscilloscope, it will enter the interface with relative information below. Figure 2-90 Remote control interface Click “Web Control” and set the corresponding parameters listed in the window below using the mouse.
  • Page 107 RIGOL (2) By Commands DS1000B is a USB TMC (USB Test & Measurement Class) instrument, which could be controlled by commands on the basis of NI-VISA (NI-National Instrument, VISA-Virtual Instrument Software Architecture) or Agilent-VISA (for the details about commands, refer to the relative Programming Guide). USB or network is recommended for the communication between the instrument and a PC to integrate it into your testing system.
  • Page 108 RIGOL Figure 2-93 VISA TCP/IP Resource interface  Click “Next” and select “Auto-detect of LAN Instrument”. Figure 2-94 Auto-detect of LAN Instrument interface User’s Guide for DS1000B series 2-72...
  • Page 109 RIGOL  The software searching the available network device automatically. Figure 2-95 Search the network device interface  Click “Finish” and you will see the oscilloscope that has been accessed to the network from the subdirectory “VISA TCP/IP Resource” under the main Explorer interface.
  • Page 110 RIGOL Figure 2-97 Communication testing dialog Make a connection by USB   Connect the oscilloscope to a PC by using an USB data cable. Then, turn on the oscilloscope, at the moment, the computer will pop up a Hardware Installation wizard and please install the “USB Test and Measurement Device”...
  • Page 111 RIGOL Figure 2-98 Measurement & Automation Explorer interface  Select the responding resource and open the VISA Test Panel to send commands and read data. Figure 2-99 Communication testing dialog 2-75 User’s Guide for DS1000B Series...

  • Page 112: Language

    RIGOL Language The DS1000B series oscilloscopes have multi-language user menu, choose as your desire. Press Utility → Language to select the language. Press button No.4 until the desired language appears. Figure 2-100 Language selection screen User’s Guide for DS1000B series...

  • Page 113: Pass/Fail

    RIGOL Pass/Fail The Pass/Fail function monitors changes of signals by comparing the input signal which is within the pre-defined mask. The testing results not only can be displayed on screen, but also can be alarmed by opening the system sound settings.
  • Page 114 RIGOL Mask setting Press Utility→Pass/Fail→Mask Setting to go to the following menu. Figure 2-103 Table 2-57 The Mask setting menu (Page 1/2) Menu Settings Comments Set horizontal clearance to the waveform X Mask <x div> (0.04div-4.00div). Set vertical clearance to the waveform Y Mask <y div>...
  • Page 115 RIGOL Figure 2-105 Table 2-59 The Mask setting menu (External, Page 2/2) Menu Settings Comments Go to save menu (same as REF save Save menu, see table 2-16). Recall Go to recall menu (see Table 2-63). Go to import menu. (Same as REF import Import menu, see table 2-18).

  • Page 116: Waveform Recorder

    RIGOL Waveform Recorder Waveform recorder records input waveforms from CH1, CH2, CH3 and CH4 with a maximum record length of 800 frames. This performance can also be activated by the Pass/Fail test, which makes this function especially useful to capture abnormal signals in long term without keeping an eye watching it.
  • Page 117 RIGOL Figure 2-108 Table 2-62 The Record menu (Page 2/2) Menu Settings Comments Set time interval between record Interval frames. <1.00ms-1000s> 3. Play Back: Play back the recorded waveforms. Figure 2-109 Table 2-63 The Play Back menu (Page 1/2) Menu...
  • Page 118 RIGOL Run/Stop Button The Run/Stop button can also replay or continue the waveform display. The Current Frame will go forward one frame by pressing Single button in Play back mode. 4. Storage: Store recorded waveforms in non-volatile memory according to the setup frames.
  • Page 119 RIGOL Figure 2-113 Table 2-67 The Storage menu (External location Page 2/2) Menu Settings Comments Go to save menu (same as REF save Save menu. see table 2-160). recall Go to recall menu (see Table 2-63). Go to import menu. (Same as REF import Import menu, see table 2-18).

  • Page 120: Print Setting

    “Device equipment” and printer via USB Device port on the rear panel. Digital Oscilloscope 100-127V, 45-440Hz 100-240V , 45-65Hz LINE 60W MAX F use: 250V , 2A RIGOL Technologies, Inc. LXI Class C Non Auto-MDIX DEVICE HOST MADE IN CHINA Figure 2-114 PictBridge print If use Normal printer, please select “Normal”...
  • Page 121 RIGOL 2. To set up print parameters: Press Utility→Print set to into a setting menu. Please setup the printer type and the print mode as the case may be, or else the instrument will refuse printing if they can’t match well.
  • Page 122 RIGOL Figure 2-118 Table 2-70 Print setup menu (PictBridge mode, Page 2/4) Menu Settings Comments Default, Paper size A2, A3, A4, Select the paper size for printing. A5, A6, B5 Default To specify the image type for printing File type Exif/Jpeg as Exif/Jpeg or Bmp format.
  • Page 123 RIGOL 3. Print: Make sure the Printer has been connected and the print settings are all ready before printing. Then, press Utility → Print or press to execute print operation, If you want to go on printing, please use the button.

  • Page 124: Self-Calibration

    RIGOL Self-Calibration The Self-Calibration adjusts the internal circuitry to get the best accuracy. Use this function to calibrate the vertical and horizontal systems. For maximum accuracy at any time, run this calibration if the ambient temperature changes by 5℃ or more.

  • Page 125: System Information

    RIGOL System Information Press Utility→System Info to view the system information, including Model, Serial Number, Software version and installed module. Figure 2-122 Information system interface 2-89 User’s Guide for DS1000B Series...
  • Page 126 RIGOL Preference Press Utility→Preference to go to the following menu Figure 2-123 Table 2-73 The Preference menu Menu Display Comments 1 min … Screen saver Set up screen saver timer. 5 hour Ground Set up waveform vertical expand Expand Center reference.

  • Page 127: Date And Time

    RIGOL Date and Time DS1000B Series provide build-in system real-time date and time. Users can set the date and time as shown in the following figure. Time Display Figure 2-124 Date and time setting Figure 2-125 Table 2-74 Time setting menu...

  • Page 128: To Measure Automatically

    RIGOL To Measure Automatically The Measure button in the menu area activates the automatic measurement function. The instruction below shows the powerful measurement function of DS1000B series oscilloscopes. Auto Measurement Figure 2-126 The Measure setup button The oscilloscopes provide 22 auto measurements: Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time,Delay A ...
  • Page 129 RIGOL Figure 2-128 Table 2-76 The Measure menu (Page 2/2) Menu Settings Comments Turn off all measurements result. Display All Turn on all measurements result. To specify three quick measure items QuickMea which you can choose among the above 22 measurements.

  • Page 130: Quick Measurement Setup

    RIGOL Quick Measurement Setup Press Measure→QuickMea button, go to the quick measure menu。 Figure 2-129 Table 2-77 Quick measure menu Menu Settings Comments Item1 To specify Item1, Item2 and Item3 respectively, each item can be Item2 chosen from 22 kinds of measure items.

  • Page 131: Delay/Phase Setup

    RIGOL Delay/Phase Setup Press Measure→Delay/Phase Setup button, and go to the delay/phase setup menu. Figure 2-130 Table 2-78 The delay/phase setup menu. Menu Settings Comments Delay A To set CHA of Delay measurement as one of CH1,CH2,CH3,CH4 Delay B Phase A...

  • Page 132: Voltage Measurements

    RIGOL Voltage Measurements The DS1000B series oscilloscopes provide automatic voltage measurements including Vpp, Vmax, Vmin, Vavg, Vamp, Vrms, Vtop, Vbase, Overshoot and Preshoot. Figure 2-131 below shows a pulse with some of the voltage measurement points. Overshoot Vmax Vtop Vamp...
  • Page 133 RIGOL Press Measure→Voltage button, and go to the following menu. Figure 2-132 Table 2-79 The Voltage Measurement menu (Page 1/3) Menu Settings Comments Measure maximum voltage Vmax waveform. Measure minimum voltage Vmin waveform. Measure Peak-to-Peak Voltage. Measure a flat top voltage of a square Vtop waveform.

  • Page 134: Time Measurements

    RIGOL Time Measurements The DS1000B series oscilloscopes provide 12 kinds of timing parameters auto-measurements: Frequency, Period, Rise Time, Fall Time, +Width, -Width, Delay A→B , Delay A→B , +Duty and –Duty, Phase A→B ,Phase A→B . Figure 2-135 shows a pulse with some of the time measurement points.
  • Page 135 RIGOL Press Measure→Time button, and go to the following menu Figure 2-136 Table 2-82 The Time Measurement menu (Page 1/3) Menu Settings Comments Period Measure Period of a waveform. Freq Measure Frequency of a waveform. Rise time Measure Rise Time of a rising edge.
  • Page 136 RIGOL Key Points: Select the signal channel for measuring. CH1, CH2, CH3, CH4 according to the interest. Press soft buttons as follows: Measure→Source→CH1, CH2, CH3 , CH4. To see all measurement values, Press No.2 button to set the Display All to ON.

  • Page 137: To Measure With Cursors

    RIGOL To Measure with Cursors Figure 2-140 shows the Cursor button on the front-panel. Cursor Measurement Figure 2-140 The Cursor setup button The cursor measurement has three modes: Manual, Track and Auto Measure. 1. Manual In this mode, the screen displays two parallel cursors. Move the cursors to make custom voltage or time measurements of the signal.

  • Page 138: Manual Mode

    RIGOL Manual Mode Press Cursor→Mode→Manual to display the manual mode menu. Figure 2-141 Table 2-85 The Cursors menu Menu Settings Comments Adjust cursor measure Mode Manual parameters manually. Shown as vertical line to measure the time/frequency values. Type Shown as horizontal line to measure the voltage values.
  • Page 139 RIGOL Table 2-86 The Cursor menu Cursor Increment Operation Turn the multifunctional knob ( to move cursor A horizontally. Cursor A Turn the multifunctional knob ( to move cursor A vertically. Turn the multifunctional knob ( ) to move cursor B horizontally.

  • Page 140: Track Mode

    RIGOL Track Mode Press Cursor→Mode→Track to display the manual mode menu. Figure 2-142 Table 2-87 Cursor descriptions Menu Settings Comments Mode Track Set Track mode in cursor measurement. Set Cursor A in conjunction with CH1. Set Cursor A in conjunction with CH2.

  • Page 141: Cursor Operation

    RIGOL Table 2-88 The Cursor usage Cursor Operation Cursor A Turn the multifunctional knob ( ) to move cursor A horizontally. Cursor B Turn the multifunctional knob ( ) to move Cursor B horizontally. NOTE: Moving cursor horizontally is not allowed when other (not tracking cursor) menu is activated.

  • Page 142: Auto Mode

    RIGOL Auto mode Press Cursor→Mode→Auto to display the manual mode menu. Figure 2-143 Table 2-89 The Mode setting Menu Settings Comments Display cursors current Mode Auto automatic measuring. (See the following figure). There will be no cursor display if no parameters are chosen in Measure menu. The oscilloscope could move cursor automatically to measure 22 parameters in Measure menu.

  • Page 143: To Use Run Control Buttons

    RIGOL To Use Run Control Buttons The RUN control buttons include Auto (auto setting), Run/Stop and Single. Auto: The Auto features automatic adjustments to produce a stable display of the input signal. Press Auto button, the following menu appears. Figure 2-145 Table 2-90 The Auto menu...
  • Page 144 RIGOL Auto-Set functions When the Auto is pressed the oscilloscope is configured to the following defaults: Table 2-91 The Auto menu Menu Settings Display format Acquire mode Normal Vertical Position Adjusted to right position Vertical “V/div” Adjusted to right scale...

  • Page 145: Chapter 3 Application Examples

    RIGOL Chapter 3 Application Examples Example 1: Taking Simple Measurements The function is used to observe an unknown signal; to display, measure frequency, and peak-to-peak amplitude. 1. To quickly display a signal, please do the steps as follows: (1) Set the probe and the channel attenuations to 10X.

  • Page 146: Example 2: View A Signal Delay Caused By A Circuit

    RIGOL Example 2: View a Signal Delay Caused by a Circuit This example is to test the input and output signals of a circuit and observe the signal delay. First, set the probe and the channel attenuation to 10X and connect CH1 probe to the input, CH2 to the output of the circuit.

  • Page 147: Example 3: Capture A Single-Shot Signal

    RIGOL Example 3: Capture a Single-Shot Signal To capture a single event, it needs to gather some pre-test knowledge of the signal in order to set up the trigger level and slope correctly. For example, if the event is derived from TTL logic, a trigger level of 2 volts should work on a rising edge.

  • Page 148: Example 4: To Reduce The Random Noise On A Signal

    RIGOL Example 4: To Reduce the Random Noise on a Signal If the signal is noisy (Figure 3-2), set up the oscilloscope to reduce the noise on the waveform and avoid its interference to the signal. Figure 3-2 Signal with noises 1.
  • Page 149 RIGOL To reduce the noise by setting the acquisition type and adjust the waveform intensity. (1) If there is noise within the signal and the waveform looks too wide, in this case, choose average acquisition. In this mode the waveform will be thin and easy to observe and measure.

  • Page 150: Example 5: Making Cursor Measurements

    RIGOL Example 5: Making Cursor Measurements There are 22 build-in automatic measurements. They can also be conducted using cursors to make time and voltage measurements of a waveform quickly. Measure the Peak Frequency of the First Sinc Waveform To measure the rising frequency at the rising edge of a signal, do these steps: 1.
  • Page 151 RIGOL Measure the Amplitude of the First Waveform Peak of the Sinc. Please follow these steps: 1. Press Cursor key to see the Cursor menu. 2. Press Mode to set Manual mode. 3. Press Type to select Y. 4. Turn ( ) knob to place cursor A on the first peak of the wave.

  • Page 152: Example 6: The Application Of The X-Y Operation

    RIGOL Example 6: The Application of the X-Y operation Viewing Phase Changes through a Network Theme: Connect the oscilloscope to monitor the input and output of the circuit and capture the phase changes. To view the input and output of the circuit in an X-Y display, do these steps: 1.
  • Page 153 RIGOL Signal must be centered in X Figure 3-6 Ellipse method to observe the phase difference Sinθ = A/B or C/D, where θ = phase shift (in degrees) between the two signals. From the formula above, you could get: θ = ±arcsine (A/B) or ±arcsine (C/D) θ...

  • Page 154: Example 7: Triggering On A Video Signal

    RIGOL Example 7: Triggering on a Video Signal Test a video circuit in the DVD set. Use video trigger to obtain a stable display. Triggering on Video Fields To trigger on the video fields, please do as the following steps: 1．...
  • Page 155 RIGOL Triggering on the Video Lines Press the MENU key in the Trigger control area to see the trigger menu. Press Mode to select Video. Press Source to select CH1 as trigger source. Press Polarity to select . Press Sync to select Line Num.

  • Page 156: Example 8: Fft Cursor Measurement

    RIGOL Example 8: FFT Cursor Measurement FFT measurements include: Amplitude measurement (V or dBV ) and Frequency measurement (Hz). Do these steps as follows: 1. Press Cursor→Press No.1 button to set cursor mode to Manual. 2. Press No.2 button associated with Type to select X or Y.

  • Page 157: Example 9: Pass/Fail Test

    RIGOL Example 9: Pass/Fail Test In Pass/Fail Test, the oscilloscope compares the input signal to the established waveform mask. Execute the steps as following: Press Utility→Pass/Fail. Press Enable Test and select ON. Press Mask Setting and then: Press Recall to a the saved mask or press X Mask and Y Mask to adjust the...

  • Page 159: Chapter 4 Troubleshooting

    (3) Check whether the fuse burns out or not. (4) After the above inspection, restart the oscilloscope. (5) If the problem still remains, please contact RIGOL for help. 2. After the signal acquisition the waveform does not appear: (1) Check the probes connected with the signals.
  • Page 160 RIGOL waveform on screen. 6. After the Acquisition is set to “Averages” or Display Persistence is set ON, the waveform refreshes slowly. It is normal in these settings. 7. The signal is displayed as ladder like waveform. (1) The time base setting maybe is too low. Turn the horizontal knob to increase horizontal resolution to improve the display.

  • Page 161: Chapter 5 Specifications

    RIGOL Chapter 5 Specifications All specifications apply to the DS1000B Series Oscilloscopes unless noted otherwise. To meet these specifications, two conditions must first be met: The instrument must have been operating continuously for thirty minutes within  the specified operating temperature.

  • Page 162: Technical Specifications

    Memory Depth 50ns/div or higher for half channel 8k samples for each channel Scan speed Range 1ns/div~50s/div, DS1204B (Sec/div) 2ns/div~50s/div, DS1104B 5ns/div~50s/div, DS1074B 1-2-5 Sequence Sample Rate and ±50ppm (over any≥1ms time interval) Delay Time Accuracy User’s Guide for DS1000B Series...
  • Page 163 RIGOL Vertical A/D converter 8-bit resolution, each channel samples simultaneously Volts/div Range 2mV/div-10V/div at input BNC Offset Range ±40V(250mV/div ~10V/div) ±2V(2mV/div~245mV/div) Analog Bandwidth 70MHz(DS1074B) 100MHz(DS1104B) 200MHz(DS1204B) Single-shot Bandwidth 70MHz(DS1074B) 100MHz(DS1104B) 200MHz(DS1204B) Selectable Analog 20MHz (typical) Bandwidth Limit Lower Frequency Limit ≤5Hz (at input BNC)

  • Page 164: Alternate Trigger

    RIGOL Trigger Sensitivity 0.1div-1.0div (adjustable) Trigger Level Range Internal ±6 divisions from center of screen ±1.2V EXT/5 ±6V Trigger Level Accuracy Internal ±(0.3div × V/div)(±4 divisions from (typical) applicable for center of screen) the signal of rising and ±(6% of setting + 40 mV) falling time ≥20ns...
  • Page 165 [1] Half channel indicates selecting one of the channels in CH1 and CH2, or in CH3 and CH4. [2] This is the highest specification, the specific specifications are as follows: DS1204B: 50GSa/s DS1104B: 25GSa/s DS1074B: 10GSa/s User’s Guide for DS1000B Series...

  • Page 166: General Specifications

    RIGOL General Specifications Display Display Type 5.7 inch. (145 mm) diagonal TFT Liquid Crystal Display Display Resolution 320 horizontal ×RGB×240 vertical pixels Display Color 64k color Display Contrast (typical) 150:1 Backlight Brightness (typical) 300 nit Probe Compensator Output Output Voltage (typical)

  • Page 167: Chapter 6 Appendixes

    RIGOL Chapter 6 Appendixes Appendix A: DS1000B series Accessories Standard Accessories Four Passive Probes:  PVP2150 for DS1074B/DS1104B PVP2350 for DS1204B A Power Cord that fits the standard of destination country.  An USB Cable  A Quick Guide ...

  • Page 168: Appendix B: Warranty

    To get repair service, please contact with your nearest RIGOL sales or service office. There is no other warranty, expressed or implied, except such as is expressly set forth herein or other applicable warranty card.

  • Page 169: Appendix C: Care And Cleaning

    RIGOL Appendix C: Care and Cleaning Care Do not store or leave the instrument where it may be exposed to direct sunlight for long periods of time. Cleaning Clean the instrument regularly according to its operating conditions. Disconnect the instrument from all power sources.

  • Page 171: Index

    RIGOL Index Hanning Window ...... 2-18 50% ........1-16 HF Reject ........ 2-46 Horizontal ........5-2 AC Coupling ....... 2-6 AC Line ........2-45 I/O setup ......... 2-66 Accessories ........ 6-2 Inputs ........5-2 Acquire ........2-48 Instant Execute Key ....2-105 Acquisition .........
  • Page 172 RIGOL Vertical System ......2-2 Video Signal ......3-10 Vertical Window ....... 1-11 Video Trigger ......2-35 User’s Guide for DS1000B Series...

This manual is also suitable for:

Ds1104bDs1204b

Table of Contents
