Rigol DS1000CA series User Manual

Ds1000ca series digital oscilloscopes
Hide thumbs Also See for DS1000CA series:
Table of Contents

Advertisement

Quick Links

See also: Programming Manual , Quick Manual

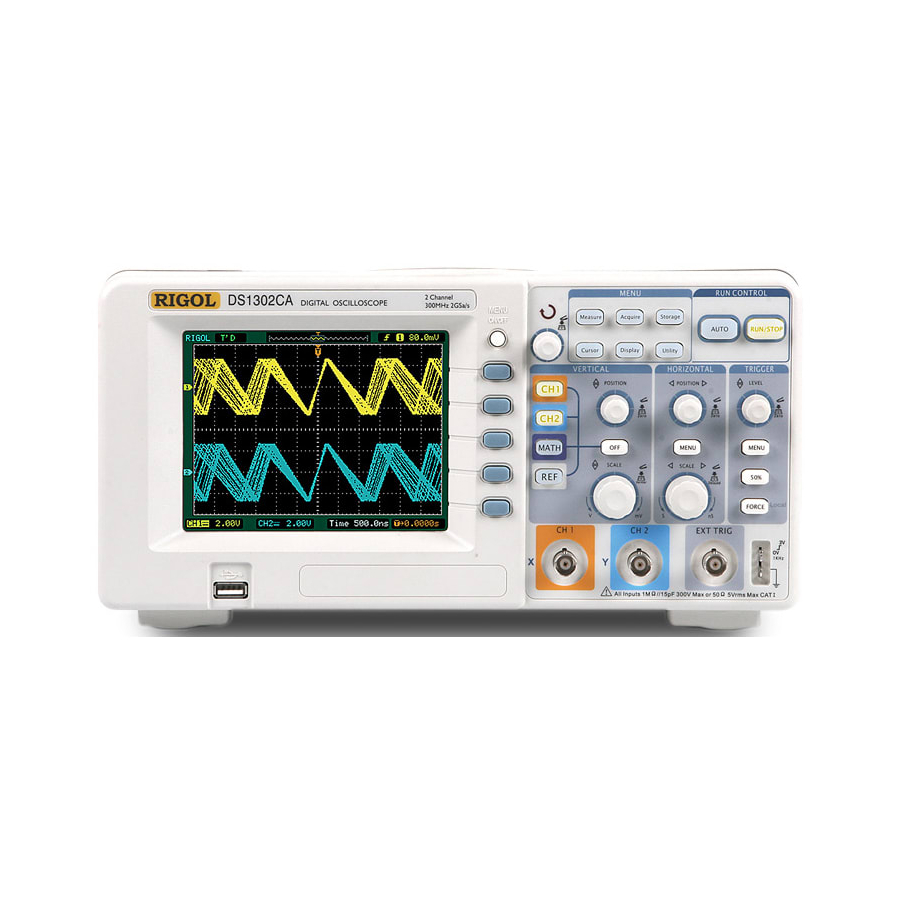

RIGOL
User's Guide
DS1000CA Series
Digital Oscilloscopes
DS1302CA, DS1202CA, DS1102CA, DS1072CA
Aug. 2011
RIGOL Technologies, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS1000CA series and is the answer not in the manual?

Questions and answers

Related Manuals for Rigol DS1000CA series

Summary of Contents for Rigol DS1000CA series

  • Page 1 RIGOL User’s Guide DS1000CA Series Digital Oscilloscopes DS1302CA, DS1202CA, DS1102CA, DS1072CA Aug. 2011 RIGOL Technologies, Inc.

  • Page 3: Guaranty And Declaration

    Notices RIGOL products are protected by patent law in and outside of P.R.C..  RIGOL Technologies, Inc. reserves the right to modify or change parts of or all  the specifications and pricing policies at company‟s sole decision. Information in this publication replaces all previously corresponding material.

  • Page 4: Safety Notices

    RIGOL Safety Notices Review the following safety precautions Observe All Terminal Ratings. carefully before operating the To avoid fire or shock hazard, observe instrument to avoid any personal all ratings and marks on the instrument. injuries or damages to the instrument Follow the user‟s guide for further...

  • Page 5: Measurement Category

    RIGOL interior of the device or electric shock, Definitions please do not operate in a humid Measurement Category I is for environment. measurements performed on circuits not directly connected to MAINS. Do Not Operate in an Explosive Examples are measurements on circuits...

  • Page 6: Safety Terms And Symbols

    RIGOL Safety Terms and Symbols Terms in this Manual. These terms may appear in this manual: WARNING Warning statements indicate the conditions or practices that could result in injury or loss of life. CAUTION Caution statements indicate the conditions or practices that could result in damage to this product or other property.

  • Page 7: Instrument At A Glance

    RIGOL Instrument at a Glance Four types of DS1000CA series digital oscilloscopes will be introduced in this book: DS1072CA, DS1102CA, DS1202CA, DS1302CA The instrument could help users to achieve high-quality measurement by excellent performance, powerful functions and easy operation. DS1000CA is designed for 2GSa/s maximum real-time sample rate, 50GSa/s...
  • Page 8 RIGOL Digital filters, includes LPF, HPF, BPF, BRF.  Pass/Fail Function, optically isolated Pass/Fail output.  Add, Subtract and Multiply Mathematic Functions.  Advanced trigger types include: Edge, Video, Pulse width, Slope, Alternative.  Adjustable trigger sensitivity.  Multiple Language User Interface.

  • Page 9: Chapter 4 Troubleshooting

    RIGOL Structure of This Document Chpter 1 Quick Start To introduce the panls and menus to help user to realize the base operations. Chapter 2 Operating Your Oscilloscope More details to help users to understand the functions and measurements of instrument deeply.

  • Page 10: Table Of Contents

    RIGOL Content Guaranty and Declaration ............... I Safety Notices ..................II Instrument at a Glance ................V Chapter 1 Quick Start ................ 1-1 General Inspect ..................1-2 Panels and User Interface ..............1-3 Function Check ..................1-7 To Compensate Probes ................1-9 To Display a Signal Automatically ............
  • Page 11 RIGOL Language ..................2-63 Pass/Fail ..................2-64 Waveform Recorder ..............2-68 Print Set ..................2-72 Self-Calibration ................2-73 Service ..................2-74 Preference ................... 2-75 To Measure Automatically ..............2-77 Automatic measurement of voltage parameters ....... 2-81 Automatic measurement of time parameters ........2-82 To Measure with Cursors ..............

  • Page 13: Chapter 1 Quick Start

    RIGOL Chapter 1 Quick Start This chapter covers the following topics: General Inspect  Panels and User Interface  Function Check  To Compensate Probes  To Display a Signal Automatically  To Understand the Vertical System  To Understand the Horizontal System ...

  • Page 14: General Inspect

    The consigner or carrier shall be liable for the damage to instrument resulting from shipment, without free maintenance or replacement by RIGOL. 2. Inspect the instrument. In case of any damage, or defect, or failure, notify your RIGOL Sales Representative. 3. Check the accessories.

  • Page 15: Panels And User Interface

    RIGOL Panels and User Interface The first thing to do with a new oscilloscope is to know its panels. This chapter helps to be familiar with the layout of the knobs and keys and how to use them. Read the chapter carefully before further operations.
  • Page 16 RIGOL Interfaces: USB Host: It is used to connect DS1000CA with external USB devices when the oscilloscope is regarded as “Host Device”. For example, connect a USB flash device. Signal Input: Two channels are provided: CH1 and CH2. EXT TRIG Input: It is applied to input external trigger signal.
  • Page 17 RIGOL The Rear Panel Pass/Fail RS232 USB Device Figure 1-2 Rear panel of DS1000CA series oscilloscope Interfaces: Pass/Fail: It is used to output the pass/fail test result. RS232: To connect the oscilloscope with external devices by serial port. USB Device: It is used to connect DS1000CA with external USB devices when the oscilloscope is regarded as a “Slave Device”.
  • Page 18 RIGOL User’s Interface Location of Waveform Trigger Point Run Status Window in Memory in Memory Status Bar Trigger Point in Waveform Window Channel 1 Menu Channel 2 CH1 Volts/Div CH2 Volts/Div Timebase Trigger Offset Figure 1-3 User‟s Interface User‟s Guide for DS1000CA Series...

  • Page 19: Function Check

    RIGOL Function Check Perform this quick functional check to verify that the instrument is operating correctly. 1. Turn on the instrument Use the power cord designed for the oscilloscope to connect the instrument and AC power which delivers 100 to 240 VAC , 45Hz to 440Hz.
  • Page 20 RIGOL Probe compensator connector Ground pin Figure 1-5 Probe connection Figure 1-6 Probe adjustment Press CH1 → Probe → 10X to set probe attenuation of the oscilloscope, so as  to make sure the measurement result is correct. (Default probe attenuation scale is 1X.)

  • Page 21: To Compensate Probes

    RIGOL To Compensate Probes Perform this adjustment to match the characteristics of the probe and the channel input. This should be performed whenever attaching a probe to any input channel the first time. 1. From CH1 menu, set the Probe attenuation to 10X (press CH1 → Probe → 10X).

  • Page 22: To Display A Signal Automatically

    RIGOL To Display a Signal Automatically The oscilloscope has an automated feature to display the input signal best-fit. The input signal should be 50Hz or higher and a duty cycle is greater than 1%. Please take the following steps: 1. Connect a signal to the oscilloscope input channel.

  • Page 23: To Understand The Vertical System

    RIGOL To Understand the Vertical System See figure 1-8 as below, the VERTICAL Control Area contains a series of buttons and knobs, which are not only used to set CH1, CH2, math and reference waveform functions, but also to adjust vertical position and “Volts/div”.
  • Page 24 RIGOL Vertical offset back to 0 shortcut key Turn the knob to change the vertical display position of channel and press the knob to set the vertical display position back to 0 as a shortcut key, this is especially helpful when the trace position is far out of the screen and want it to get back to the screen center immediately.

  • Page 25: To Understand The Horizontal System

    RIGOL To Understand the Horizontal System See figure 1-9 as below, the HORIZONTAL Control Area contains a button and two knobs, which are not only used to set up horizontal parameters and timebase, but also to adjust horizontal position of waveforms.
  • Page 26 RIGOL Term Explanations Trigger offset: Denotes the real position of the trigger point relative to the midpoint of the memory. In this setting, the trigger position will be changed horizontally when you turning the knob. 3. Set horizontal “s/div” by knob.

  • Page 27: To Understand The Trigger System

    RIGOL To Understand the Trigger System See figure 1-10 below, the TRIGGER Control Area contains a knob and three buttons, which are used to set trigger level, trigger parameters and force trigger. Figure 1-10 Trigger Control 1. Set trigger level by knob.
  • Page 28 RIGOL · Press NO.1 menu button to choose Edge. · Press NO.2 menu button to choose Source as CH1. · Press NO.3 menu button to choose Slope as · Press NO.4 menu button to choose Sweep as Auto. · Press NO.5 menu button to enter secondary menu of Set Up.

  • Page 29: Chapter 2 Operating Your Oscilloscope

    RIGOL Chapter 2 Operating Your Oscilloscope By now, a user should understand the VERTICAL, HORIZONTAL and TRIGGER control systems and knows how to determine the system setup from the status bar of a DS1000CA-series digital oscilloscope. This chapter will go through all groups of front-panel buttons, knobs and menus;...

  • Page 30: To Set Up The Vertical System

    RIGOL To Set Up the Vertical System Two analog channels are provided by DS1000CA: CH1 and CH2. Press the corresponding button on the front panel to turn the channels on/off. The backlight indicates the channel is currently active. Press the button again to turn the channel off.
  • Page 31 RIGOL Knobs Explanations Use the vertical controls to display signal waveforms by adjusting the vertical , and setting the input parameters. 1. Using vertical knob The vertical control changes the vertical position of signal waveforms in all channels (including MATH and REF). The resolution changes according to the vertical level set.

  • Page 32: Channel Settings

    RIGOL Channel Settings Each channel of DS1000CA has an operation menu and it will pop up after pressing CH1 or CH2 button. Take CH1 as an example, the settings of all items in the menu are shown in the table below.
  • Page 33 RIGOL Figure 2-2 Table 2-3 The Channel menu (Page 2/2) Menu Settings Comments Back to the previous menu page (The followings are the same, no more explanation). Coarse Define a 1-2-5 sequence. Fine To change the resolution to small Volts/Div steps between the coarse settings.

  • Page 34: Channel Coupling

    RIGOL Channel coupling To use CH 1 as an example, input a sine wave signal with DC shift. Press CH1→Coupling→AC to set “AC” coupling. It will pass AC component blocks the DC component of the input signal. AC Coupling Setup...
  • Page 35 RIGOL Press CH1→Coupling→GND, to set “GND” coupling, it disconnects the input signal. Coupling setup GND Coupling Status Symbol Figure 2-5 GND coupling setting User‟s Guide for DS1000CA Series...
  • Page 36 RIGOL 2. Set up the channel bandwidth limit Take CH1 for an example, input a signal containing high frequency component. Press CH1→BW Limit→OFF, to set up bandwidth limit to “OFF” status. The oscilloscope is set to full bandwidth and passing the high frequency component in the signal.

  • Page 37: Probe Attenuation Setting

    RIGOL 3. Probe Attenuation Setting The oscilloscope allows selecting the attenuation factor for the probe. The attenuation factor changes the vertical scaling of the oscilloscope so that the measurement results reflect the actual voltage levels at the probe tip. To change (or check) the probe attenuation setting, press the CH1 or CH2 button (according to which channel in using).
  • Page 38 RIGOL 4. Digital Filter Press CH1→Digital filter, display the digital filter menu. Turn off Digital Filter Figure 2-9 Turn off digital filter Turn on Digital Filter Mark of Digital Filter Figure 2-10 Turn on digital filter 2-10 User‟s Guide for DS1000CA Series...
  • Page 39 RIGOL Turn ( ) knob to set high and low limit of frequency. Figure 2-11 Table 2-5 The Filter menu Menu Settings Comments Turn off the digital filter. Digital Filter Turn on the digital filter. Setup as LPF (Low Pass Filter).
  • Page 40 RIGOL 5. Volts/Div settings The Volts/Div control has Coarse or Fine configuration. The Vertical Sensitivity is 1mv/div ~10V/div. Coarse: It is the default setting of Volts/Div in a 1-2-5 step sequence from 1mV/div, 2mV/div, 5mV/div, 10mV/div to10 V/div. Fine: This setting changes the vertical scale to small steps between the coarse settings.
  • Page 41 RIGOL 6. To invert a waveform Invert turns the displayed waveform 180 degrees, as respect to the ground level. When the oscilloscope is triggered on the inverted signal, the trigger is also inverted. Figure 2-13 and 2-14 show the changes before after the inversion respectively.

  • Page 42: Math Functions

    RIGOL Math functions The mathematic functions include “Add”, “Subtract”, “Multiply” and “FFT” for Channel 1 and Channel 2. The mathematic result can be measured by the grid and the cursor. Press MATH button to enter “Math” menu, meanwhile, sign of math scale will appear under the screen.
  • Page 43 RIGOL 1. FFT Analyse The FFT (Fast Fourier Transform) process converts a time-domain signal into its frequency components mathematically. FFT waveforms are useful in the following applications: Measuring harmonic content and distortion in systems  Characterizing noise in DC power supplies ...
  • Page 44 RIGOL 2. Selecting an FFT Window Oscilloscope record the FFT change for a limit time assume that YT waveform repeat ceaselessly. If cycle is integer, YT waveform voltage is the same at starting and ending point, and waveform is consecutive. Contrary, If cycle is non-integer, the voltage is different at starting and ending point, leading to the high frequency instantaneous intermit, which is called “leak”.
  • Page 45 RIGOL Term Explanations FFT Resolution: The quotient between sampling rate and number of FFT points. With a fixed FFT points, the lower sampling rate results in better resolution. Nyquist Frequency The highest frequency that any real-time digitizing oscilloscope can acquire without aliasing.

  • Page 46: Ref Function

    RIGOL REF function Reference Waveforms are saved waveforms to be selected for display. The reference function will be available after saving the selected waveform to non-volatile memory. Press REF button to display the Reference waveform menu. Figure 2-18 Table 2-9 REF menu when using internal memory...
  • Page 47 RIGOL 1. Import and Export Switch in external memory and select Internal location. Then, press REF →Imp. /Exp. and go to the following interface. Figure 2-20 Import of export the figure Figure 2-21 Table 2-11 (a) The Imp. /Exp. Menu (Files)
  • Page 48 RIGOL (b) The Imp. /Exp. Menu (Directories) Menu Settings Comments Path Set the explorer to Path, directories Explorer Directories or files. Files Create a new folder under the New Folder current path. Del Folder Delete the folder currently selected. 2-20...
  • Page 49 RIGOL 2. Export Switch in external memory and select Internal location. Then, press REF→Imp. /Exp.→ Export and go to the following interface. Figure 2-22 Figure export Figure 2-23 Table 2-12 The Export menu Menu Settings Comments Move the cursor up.
  • Page 50 RIGOL 3. Save to External memory Switch in external memory and select External location. Then, press REF→Save and go to the following interface. Figure 2-24 Save the figure Figure 2-25 Table 2-13 The Save menu Menu Settings Comments Path Switch among Path, Directories...
  • Page 51 RIGOL 4. New File (or New Folder) Switch in external memory and select External location. Then, press REF→Save→New File (or New Folder) and go to the following interface. File Name Key In Spell Key In Character Window Switch Capital On/Off...
  • Page 52 RIGOL 5. Import Switch in external memory and select External location. Then, press REF→Import and go to the following interface. Figure 2-28 Figure import Figure 2-29 Table 2-15 The Import menu Menu Settings Comments Path Switch among Path, Directories and...
  • Page 53 RIGOL 6. Display a Reference Waveform Figure 2-30 Reference waveform display Operation Explanations: 1. Push REF button to show the reference waveform menu. 2. Press soft button 1 to select the reference channel: CH1, CH2, MATH/FFT. 3. Turn vertical and vertical to adjust the REF waveform to a suitable position.

  • Page 54: To Set Up The Horizontal System

    RIGOL To Set Up the Horizontal System Press MENU button to enter the horizontal setting system. Figure 2-31 Table 2-16 The Horizontal menu Menu Settings Comments Turn on Delayed Scan mode. Delayed Turn off the Delayed Scan mode. Y-axis indicates vertical voltage, X-axis indicates horizontal time.
  • Page 55 RIGOL The Horizontal Knobs The horizontal controls change the horizontal scale and position of waveforms. The horizontal center of the screen is the time reference for waveforms. Changing the horizontal scale causes the waveform to expand or contract with respect to the screen center.

  • Page 56: Delayed Scan

    RIGOL Delayed Scan The Delayed Scan is a magnified portion of the main waveform window. Use Delayed Scan to locate and horizontally expand part of the main waveform window for a more detailed (higher horizontal resolution) analysis of signal. The Delayed Scan time base setting cannot be set slower than the Main time base setting.

  • Page 57: X-Y Format

    RIGOL X-Y Format This format is useful for studying phase relationships between two signals. CH1 in the horizontal axis(X) and CH2 in the vertical axis(Y), the oscilloscope uses a none-trigger acquisition mode, data is displayed as dots. Press MENU→Time Base→X-Y to enter X-Y mode.

  • Page 58: To Set Up The Trigger System

    RIGOL To Set Up the Trigger System The trigger determines when the oscilloscope starts to acquire data and display a waveform. When a trigger is set up properly, it can convert unstable displays or blank screens into meaningful waveforms. When the oscilloscope starts to acquire a waveform, it collects enough data so that it can draw the waveform to the left of the trigger point.

  • Page 59: Edge Trigger

    RIGOL Edge Trigger An edge trigger determines whether the oscilloscope finds the trigger point on the rising or the falling edge of a signal. Select Edge trigger Mode to trigger on Rising edge, falling edge or rising & falling edge.

  • Page 60: Pulse Width Trigger

    RIGOL Pulse Width Trigger Pulse trigger occurs according to the width of pulse. The abnormal signals can be detected through setting up the pulse width condition. Press MENU→Mode→Pulse to enter the following menu. Figure 2-36 Table 2-18 The Trigger menu (Page 1/2)

  • Page 61: Video Trigger

    RIGOL Video Trigger Choose video trigger to trigger on fields or lines of NTSC, PAL, or SECAM standard video signals. Trigger coupling preset to DC. Press MENU→Mode→Video to enter the following menu. Figure 2-38 Table 2-20 The Video Trigger menu (Page 1/2)
  • Page 62 RIGOL Figure 2-39 Table 2-21 The Video Trigger menu (Page 2/2, when Sync is set as the specified line) Menu Settings Comments Specify the line on which the oscilloscope triggers. The range of the line number Line Num <line available is from 1 to 525 (NTSC) or from number>...
  • Page 63 RIGOL Figure 2-40 Table 2-22 The Video Trigger menu (When the Sync is set as All lines, Odd field and Even field) Menu Settings Comments PAL/SECAM Standard Select Video standard. NTSC Auto Force the oscilloscope to trigger in the absence of trigger condition.

  • Page 64: Slope Trigger

    RIGOL Slope Trigger Slope trigger sets the oscilloscope as the positive/negative slope trigger within the specified time. Press MENU→Mode→Slope to enter the following menu. Figure 2-43 Table 2-23 The Slope Trigger menu (Page 1/2) Menu Settings Comments Set channel 1 as trigger source.
  • Page 65 RIGOL NOTE: Slope time can be set from 20ns to 10s. When a signal meets the trigger condition, scope will execute the acquisition. You can adjust LEVEL A/ LEVEL B or both simultaneous by turning the knob. 2-37 User‟s Guide for DS1000CA Series...

  • Page 66: Alternative Trigger

    RIGOL Alternative Trigger When alternative trigger is on, the trigger sources come from two vertical channels. This mode can be used to observe two non-related signals. You can choose two different trigger modes for the two vertical channels. The options are as follows: Edge, Pulse, Slope and video.
  • Page 67 RIGOL Figure 2-47 Table 2-27 The Alternative menu (Trigger Type: Pulse Page 2/2) Settings Comments Setting Set the width of the pulse. < > pulse width Set Up To go to set up menu. See Table 2-32. Figure 2-48 Table 2-28 The Alternative menu (Trigger Type: Slope Page 1/2)
  • Page 68 RIGOL Figure 2-50 Table 2-30 The Alternative menu (Trigger Type: Video Page 1/2) Menu Settings Comments Set trigger mode for CH1. Select Set trigger mode for CH2. Type Video Video Trigger for the channel. Trigger on the negative edge of the sync pulse...

  • Page 69: Trigger Settings

    RIGOL Trigger Settings Set up different trigger settings according to different trigger modes. When in the mode of Edge and Pulse, only Holdoff is adjustable. When source is non-digital channel and in slope trigger, only trigger coupling, trigger sensitivity and Holdoff can be set.

  • Page 70: Trigger Holdoff

    RIGOL Trigger Holdoff Use trigger Holdoff to stabilize a complex waveform, such as a pulse range. Holdoff time is the oscilloscope‟s waiting period before starting a new trigger. During Holdoff, oscilloscope will not trigger until Holdoff ends. For instance: To trigger on the first pulse on a group of them, users can set the holdoff time to Pulse cluster width.

  • Page 71: Trigger Source

    RIGOL Trigger Terms Explanation 1. Trigger Source: Trigger occurs from several sources: Input channels (CH1 and CH2), AC Line, Ext, Ext/5.  Input Channels: It is the most commonly used trigger source. The channel works when selected as a trigger source whatever displayed.
  • Page 72 RIGOL occur, the display becomes stable on the screen. Any factor results in the un-stability of waveforms can be detected by Auto Trigger, such as the output of Power supply. NOTE: When horizontal control is set under 50 ms/div, Auto mode allows the oscilloscope not to capture trigger signal.
  • Page 73 RIGOL 5. Adjustable trigger sensitivity: To avoid the influence of noise from the physical world, and get the stable trigger, the trigger circuit has adopted Stickiness. In DS1000CA series, the stickiness is adjustable from 0.1div-1.0div, which means when it sets to 1.0div, the trigger circuit will not affect any signal with peak-peak amplitude less than 1.0div, so as...

  • Page 74: To Set Up The Sampling System

    RIGOL To Set Up the Sampling System Figure 2-55 shows the menu button for acquire system on the front panel. Acquire Setup Button Figure 2-55 Acquire button Press Acquire button, the interface menu shows as follows: Figure 2-56 Table 2-34 The Acquire menu...
  • Page 75 RIGOL The waveform displayed on the screen will change in conjunction with the setting of Acquire menu. To reduce the displayed random noise, select the Average Acquisition. This  mode would make the screen refresh slower. To Avoid signal aliasing, select Peak Detect Acquisition.
  • Page 76 RIGOL Figure 2-59 Adopt Normal acquisition Figure 2-60 Adopt peak detect acquisition, signal contains envelope Key points Stop Acquisition: When the scope is acquiring waveforms, the waveforms is in a live status; when acquisition is stopped, frozen waveform will be displayed, the position and scale can still be adjusted by vertical control and horizontal control.
  • Page 77 RIGOL Term Explanations Real-time Sampling: DS1000CA has Real-time sampling rate up to 2GSa/s. At the time base 20ns or faster, the oscilloscopes use the sine(x)/x interpolation to expand the horizontal time base. Equivalent sampling: Known as Repetitive sampling to get up to 20ps of horizontal resolution (equivalent 50Gsa/s).

  • Page 78: To Set Up The Display System

    RIGOL To Set Up the Display System Figure 2-61 shows the menu button for the display system on the front panel. Display Setup Button Figure 2-61 Display button Press the Display button, the interface menu for settings shows as follows.
  • Page 79 RIGOL Figure 2-63 Table 2-36 The Display menu (Page 2/3) Menu Settings Comments Normal The waveform is displayed at the same intensity. Function Intensity The intensity of waveforms is connecting to probability. Display grids and coordinates on the screen. Grid Turn off the grids.
  • Page 80 RIGOL Adjusting waveform intensity Default setup of multi-function knob ( ) is adjusting waveform intensity. 2-52 User‟s Guide for DS1000CA Series...

  • Page 81: To Store And Recall Waveforms Or Setups

    RIGOL To Store and Recall Waveforms or Setups Figure 2-65 shows the menu button for the storage system on the front panel. Storage Setup Button Figure 2-65 Storage button Press the Storage button, the interface menu for settings shows as follows.
  • Page 82 RIGOL Figure 2-67 Table 2-39 The Storage menu (Bit Map storage) Menu Settings Comments Storage Bit map Create or delete bit map files. Save the current oscilloscope Para Save settings in different format with the same file name. Go to menu for external memory External operation (see Table 2-43).
  • Page 83 RIGOL Internal Memory Press Storage→Internal to go to the following menu. Figure 2-70 Table 2-42 The Internal Memory menu Menu Settings Comments Set up the location of files in Int_00 (S) Int_01 (S) internal memory among Int_00 to Internal Int_09. Thereinto, S in brackets...
  • Page 84 RIGOL External Memory Switch in external memory, press Storage→ External to go to the following menu. Current Path Back to Previous Directory Files Current Directory File Information Figure 2-71 File system Figure 2-72 Table 2-43 The External Memory menu Menu...

  • Page 85: Disk Management

    RIGOL Disk Management Press Storage→Disk Mana. to go to the following menu. Figure 2-73 Table 2-44 The Disk Management menu (Page 1/2) Menu Settings Comments Path Switch among Path, Directory and Explorer Directory File. File To create new folder (same as new New folder files).
  • Page 86 RIGOL 1. Disk Information Press Storage →Disk Mana →Diskinfo to go to the disk information interface. Figure 2-75 Disk information interface 2. Rename Press Storage→Disk Mana.→Rename to go to the following interface. Figure 2-76 Rename the file 2-58 User‟s Guide for DS1000CA Series...
  • Page 87 RIGOL Figure 2-77 Table 2-46 The Rename menu Menu Settings Comments To move the cursor up. To move the cursor down. To delete chosen letter. Rename the file. Key point Factory: The oscilloscope has default settings and can be recalled at anytime by user.

  • Page 88: To Set Up The Utility

    RIGOL To Set Up the Utility Figure 2-78 shows the menu button for the Utility on the front panel. System Function Setup Button Figure 2-78 Utility button Press the Utility button to show the menu of the settings in the Utility system.
  • Page 89 RIGOL Figure 2-80 Table 2-48 The Utility menu (Page 2/3) Menu Settings Comments Pass/Fail Setup Pass/Fail test. Record Setup Waveform Recorder. Print set Setup printing. Figure 2-81 Table 2-49 The Utility menu (3/3) Menu Settings Comments Self-Cal Execute Self-calibration. Service Go to service menu.

  • Page 90: I/O Setup

    RIGOL I/O Setup Press Utility → I/O setting to go to the following menu. Figure 2-82 Table 2-50 The I/O Setup menu Menu Display Comments RS-232 Set RS-232 baud rate as 300, 2400, Baud 4800, 9600, 19200 or 38400. 38400...

  • Page 91: Language

    RIGOL Language The DS1000CA series oscilloscopes have multi-language user menu, choose as your desire. Press Utility→Language to select the language. Figure 2-83 Language interface 2-63 User‟s Guide for DS1000CA Series...

  • Page 92: Pass/Fail

    RIGOL Pass/Fail The Pass/Fail function monitors changes of signals and output pass or fail signals by comparing the input signal is within the pre-defined mask. The testing results not only can be displayed on screen or output by isolated pass/fail port but also can be alarmed if turn on system sound.

  • Page 93: Mask Setting

    RIGOL 1. Mask Setting Press Utility→Pass/Fail→Mask Setting to go to the following menu. Figure 2-86 Table 2-53 The Mask setting menu (Page 1/2) Menu Settings Comments horizontal clearance X Mask <x div> waveform (0.04div-4.00div). Set vertical clearance to the waveform Y Mask <y div>...
  • Page 94 RIGOL Figure 2-88 Table 2-55 The Mask setting menu (Page 2/2) When the save as external memory Menu Settings Comments Go to save menu (same as REF save Save menu). Load Go to load menu (see Table 2-56). Go to import menu. (The same as REF Import import menu).
  • Page 95 RIGOL 3. Pass/Fail connection The Pass/Fail connection has an optically isolated output. It needs to connect to another circuit to fulfill the function. Before connecting to an external circuit, make sure the maximum voltage/current does not exceed the internal photo MOS relay‟s rating, 400V/100mA.

  • Page 96: Waveform Recorder

    RIGOL Waveform Recorder Waveform recorder records input waveforms from CH1 and CH2, with a maximum record length of 1000 frames. This performance can also be activated by the Pass/Fail test output, which makes this function especially useful to capture abnormal signals in long term without keeping an eye watching it. This function contains four modes: OFF, Record, Play back and Storage.
  • Page 97 RIGOL Figure 2-92 Table 2-58 The Record menu (Page 2/2) Menu Settings Comments time interval between Interval record frames. <1.00ms-1000s> 3. Play back: Play back the recorded waveforms. Figure 2-93 Table 2-59 The Play Back menu (Page 1/2) Menu Settings...
  • Page 98 RIGOL Key Points The RUN/STOP button can also replay or continue the waveform display. 4. Storage: Store recorded waveforms to non-volatile memory according to the setup frames. Figure 2-95 Table 2-61 The Storage menu (Page 1/2) Menu Settings Comments Start Frame Set first frame to be saved.
  • Page 99 RIGOL Figure 2-97 Table 2-63 The Storage menu when the save as external memory (Page 2/2) Menu Settings Comments Go to save menu (same as REF save Save menu). Load Go to load menu (see Table 2-56). Go to import menu. (Same as REF Import import menu).

  • Page 100: Print Set

    RIGOL Print Set DS1000CA series oscilloscopes support external printers. Press Utility→ Print set to go to the following menu. Figure 2-98 Table 2-64 The Print Set menu Menu Settings Comments Print Execute print function. Invert the color for print. Inverted Print original color.

  • Page 101: Self-Calibration

    RIGOL Self-Calibration The Self-Calibration adjusts the internal circuitry to get the best accuracy. Use these functions to calibrate the vertical and horizontal systems. For maximum accuracy at any time, run this calibration if the ambient temperature changes by 5℃ or more.

  • Page 102: Service

    RIGOL Service Press Utility→Service to go to the following menu. Figure 2-100 Table 2-65 The Service menu Menu Settings System Info Press to display system information. Color Test Press to run color test. 1. System Information Press Utility→Service→System Info to display the information of the oscilloscope.

  • Page 103: Preference

    Tradition Succinct Figure 2-102 Table 2-67 The Preference menu (Page 2/2) Menu Display Comments Set up sticky state of CH1, CH2, Sticky key MATH, REF, Trig. Lev. and Trig. Pos. Command RIGOL or TEK 2-75 User‟s Guide for DS1000CA Series...
  • Page 104 RIGOL Key Points Screen saver: If oscilloscope is free for a pointed time, screen saver function can be used. This function extends the life of LCD backlighting system. Expand reference: When changing the volts/div. for channels, the signal expands or compresses around the signal ground level, or the center of the screen.

  • Page 105: To Measure Automatically

    RIGOL To Measure Automatically The Measure button in the menu area activates the automatic measurement function. The instruction below shows the powerful measurement function of DS1000CA series oscilloscopes. Auto Measurement Figure 2-103 Measure button The oscilloscopes provide 20 auto measurements: Vpp, Vmax, Vmin, Vtop, Vbase,...
  • Page 106 RIGOL 1. Page 1 for Voltage Measurements Figure 2-105 Table 2-69 The Voltage Measurement menu Menu Settings Comments Measure maximum voltage of a Maximum waveform. Measure minimum voltage of a Minimum waveform. Peak-Peak Measure Peak-to-Peak Voltage. Measure a flat top voltage of a square waveform.
  • Page 107 RIGOL 4. Page 1 for Time Measurements Figure 2-108 Table 2-72 The Time Measurement menu Menu Settings Comments Period Measure Period of a waveform. Freq Measure Frequency of a waveform. Rise time Measure Rise Time of a rising edge. Fall time Measure Fall Time of a falling edge.
  • Page 108 RIGOL NOTE: The results of the automatic measurements will be displayed on the bottom of the screen. Maximum 3 results could be displayed at the same time. When there is no room, the next new measurement result will make the previous results moving left out of screen.

  • Page 109: Automatic Measurement Of Voltage Parameters

    RIGOL Automatic measurement of voltage parameters The DS1000CA series oscilloscopes provide automatic voltage measurements including Vpp, Vmax, Vmin, Vavg, Vamp, Vrms, Vtop, Vbase, Overshoot and Preshoot. Figure 2-112 below shows a pulse with some of the voltage measurement points. Overshoot...

  • Page 110: Automatic Measurement Of Time Parameters

    RIGOL Automatic measurement of time parameters DS1000CA series oscilloscopes provide timing parameters auto-measurements; Frequency, Period, Rise Time, Fall Time, +Width, -Width, Delay 1→2 , Delay 1→2 , +Duty and -Duty. Figure 2-113 shows a pulse with some of the time measurement points.

  • Page 111: To Measure With Cursors

    RIGOL To Measure with Cursors Figure 2-112 shows the Cursor button on the front-panel. Cursor Measurement Figure 2-114 Cursor button The cursor measurement has three modes: Manual, Track and Auto Measure. 1. Manual: In this mode, the screen displays two parallel cursors. Move the cursors to make custom voltage or time measurements of the signal.

  • Page 112: Manual Mode

    RIGOL Manual Mode Press Cursor→Mode→Manual to display the manual mode menu. Figure 2-115 Table 2-75 Manual mode menu Menu Settings Comments Adjust the cursor to measure X/Y Mode Manual parameters manually. Shown as vertical line to measure the horizontal parameters.
  • Page 113 RIGOL Table 2-76 The Cursor menu Cursor Increment Operation Turn the multifunctional knob ( to move cursor A horizontally. Cursor A Turn the multifunctional knob ( to move cursor A vertically. Turn the multifunctional knob ( ) to move cursor B horizontally.

  • Page 114: Track Mode

    RIGOL Track Mode Press Cursor→Mode→Track to display the track mode menu. Figure 2-116 Table 2-77 Track mode menu Menu Settings Comments Mode Track Set Track mode in cursor measurement. Set Cursor A in conjunction with CH1, Cursor A CH2 or turn off Cursor A.

  • Page 115: Cursor Operation

    RIGOL Table 2-78 The Cursor usage Cursor Operation Cursor A Turn the multifunctional knob ( ) to move cursor A horizontally. Cursor B Turn the multifunctional knob ( ) to move Cursor B horizontally. NOTE: Moving cursor horizontally is not allowed when other (not tracking cursor) menu is activated.

  • Page 116: Auto Mode

    RIGOL Auto Mode Press Cursor→Mode→Auto to display the auto mode menu. Figure 2-117 Table 2-79 Auto mode menu Menu Settings Comments Display the cursors for the current Mode Auto automatic measuring. (See the following figure). There will be no cursor display if no parameters are chosen in Measure menu. The oscilloscope could move cursor automatically to measure 20 parameters in Measure menu.

  • Page 117: To Use Run Control Buttons

    RIGOL To Use Run Control Buttons The RUN control buttons include AUTO (auto setting) and RUN/STOP. AUTO: The AUTO features automatic adjustments to produce a stable display of the input signal. Press AUTO button, the following menu appears. Figure 2-119...
  • Page 118 RIGOL Auto-Set functions When the AUTO is pressed the oscilloscope is configured to the following defaults: Table 2-81 The Auto menu Menu Settings Display format Acquire mode Normal Vertical position Adjust to right position Vertical “Volts/div” Adjusted Volts/Div Coarse Bandwidth limit...

  • Page 119: Chapter 3 Application & Examples

    RIGOL Chapter 3 Application & Examples Example 1: Taking Simple Measurements The function is used to observe an unknown signal; to display, measure frequency, and peak-to-peak amplitude. 1. To quickly display a signal, please do the steps as follow: (1) Set the probe and the channel attenuations to 10X.

  • Page 120: Example 2: View A Signal Delay Caused By A Circuit

    RIGOL Example 2: View a Signal Delay Caused by a Circuit This example is to test the input and output signals of a circuit and observe the signal delay. First, set the probe and the channel attenuation to 10X and connect CH1 probe to the input, CH2 to the output of the circuit.

  • Page 121: Example 3: Capture A Single-Shot Signal

    RIGOL Example 3: Capture a Single-Shot Signal To capture a single event, it needs to gather some pre-test knowledge of the signal in order to set up the trigger level and slope correctly. For example, if the event is derived from TTL logic, a trigger level of 2 volts should work on a rising edge.

  • Page 122: Example 4: To Reduce The Random Noise On A Signal

    RIGOL Example 4: To Reduce the Random Noise on a Signal If the signal is noisy (Figure 3-2), set up the oscilloscope to reduce the noise on the waveform and avoid its interference to the signal. Figure 3-2 Signal with noise 1.
  • Page 123 RIGOL (1) If there is noise within the signal and the waveform looks too wide, in this case, choose average acquisition. In this mode the waveform will be thin and easy to observe and measure. To use average follow these steps.

  • Page 124: Example 5: Making Cursor Measurements

    RIGOL Example 5: Making Cursor Measurements There are 20 build-in automatic measurements. They can also be conducted using cursors to make time and voltage measurements of a waveform quickly. Measure the Peak Frequency of the First Sinc Waveform To measure the ringing frequency at the rising edge of a signal, do these steps: 1.
  • Page 125 RIGOL Measure the Amplitude of the First Waveform Peak of the Sinc. Please follow these steps: 1. Press Cursor key to see the Cursor menu. 2. Press Mode to set Manual mode. 3. Press Type to select Y. 4. Turn ( ) knob to place cursor A on the first peak of the wave.

  • Page 126: Example 6: The Application Of The X-Y Operation

    RIGOL Example 6: The application of the X-Y operation Viewing Phase Changes through a Network Theme: Connect the oscilloscope to monitor the input and output of the circuit and capture the phase changes. To view the input and output of the circuit in an X-Y display, do these steps: 1.
  • Page 127 RIGOL Signal must be centered in X Figure 3-6 Ellipse method to observe the phase difference Sin = A/B or C/D, where  = phase shift (in degrees) between the two signals. From the formula above, you could get:  = arcsine (A/B) or arcsine (C/D) If the main axis of the ellipse is at I and III quadrant, ...

  • Page 128: Example 7: Triggering On A Video Signal

    RIGOL Example 7: Triggering on a Video Signal Test a video circuit in the DVD set. Use video trigger to obtain a stable display. Triggering on Video Fields To trigger on the video fields, please do as the following steps: Press the MENU key in the Trigger control area to see the Trigger menu.
  • Page 129 RIGOL Triggering on the Video Lines Press the MENU key in the Trigger control area to see the trigger menu. Press Mode to select Video. Press Source to select CH1 as trigger source. Press Polarity to select . Press Sync to select Line Num.

  • Page 130: Example 8: Fft Cursor Measurement

    RIGOL Example 8: FFT Cursor Measurement FFT measurements include: Amplitude measurement (V or dBV ) and Frequency measurement (Hz). Do these steps as follow: 1. Press Cursor→Manual. 2. Press Type to select X or Y. 3. Press Source to select FFT.

  • Page 131: Example 9: Pass/Fail Test

    RIGOL Example 9: Pass/Fail Test The Pass/Fail Test is one of enhanced special functions based on DS1000CA series. In this test function the oscilloscope, compares the input signal to the established waveform mask. If the waveform “touches” the mask, a “Fail” signal occurs, otherwise the test passes.

  • Page 133: Chapter 4 Troubleshooting

    (2) Check if the power switch is turned on. (3) After the above inspection, restart the oscilloscope. (4) If the problem still remains, please contact RIGOL for help. 2. After the oscilloscopes is powered on, the screen can not display normally: Do not turn the instrument on/off frequently.
  • Page 134 RIGOL 6. After pressing the RUN/STOP button, the oscilloscope does not display any waveform on screen. Check whether the Trigger Mode is set to “Normal” or “Single” and see whether the trigger level is out of the signal range. If yes, set the trigger level in proper range by turning the knob or pressing the 50% button.

  • Page 135: Chapter 5 Specifications

    RIGOL Chapter 5 Specifications All specifications apply to the DS1000CA Series Oscilloscopes unless noted otherwise. To meet these specifications, two conditions must first be met: The instrument must have been operating continuously for thirty minutes within  the specified operating temperature.

  • Page 136: Technical Specifications

    RIGOL Technical Specifications Acquisition Sampling Modes Real-Time Equivalent Sampling Rate 2GSa/s (single channel) 50GSa/s 1GSa/s (each channel) Averages N time acquisitions, all channels simultaneously, N is selectable from 2, 4, 8, 16, 32, 64, 128 and 256 Inputs Input Coupling...
  • Page 137 RIGOL (Full Bandwidth) >16 averages: ± (1sample interval + 50ppm × reading + 0.4 ns) Measurements Manual Voltage difference between cursors (∆V) Cursor Time difference between cursors (∆T) Reciprocal of ∆T in Hertz (1/∆T) Track Voltage value for Y-axis waveform...
  • Page 138 RIGOL 10mV/div-10V/div: ± 3% (Normal or Average acquisition mode) DC Measurement Average of ≥16 Waveforms with vertical position at zero: Accuracy, Average ± (DC Gain Accuracy× reading+0.1div+1mV) Acquisition Mode Average of ≥16 Waveforms with vertical position not at zero: ± [DC Gain Accuracy× (reading+ vertical position)+(1% of vertical position)+0.2div]...

  • Page 139: Alternate Trigger

    RIGOL Video Trigger Video standard & Support standard NTSC, PAL and SECAM broadcast line frequency systems. Line number range: 1-525 (NTSC) and 1-625 (PAL/SECAM) Slope Trigger Trigger condition (＞, ＜, =) Positive slope, (＞, ＜, =) negative slope Time setting 20ns –...

  • Page 140: General Specifications

    RIGOL General Specifications Display Display Type 5.7 in. (145 mm) diagonal TFT Liquid Crystal Display Display Resolution 320 horizontal × RGB× 234 vertical pixels Display Color 64k color Display Contrast (typical) 150:1 Backlight Brightness (typical) 300 nit Probe Compensator Output Output Voltage (typical) 3 Vpp into ≥1 MΩ...

  • Page 141: Calibration Interval

    RIGOL IP Protection IP2X Calibration Interval The calibration interval is one year User‟s Guide for DS1000CA Series...

  • Page 143: Chapter 6 Appendix

    Optional Accessories DS1000CA soft carrying case  BNC Cable  RS-232 Cable  USB Cable  USB-GPIB Adapter  50Ω Impedance Adapter  All accessories (standard and optional) are available by contacting your local RIGOL office. User‟s Guide for DS1000CA Series...

  • Page 144: Appendix B: Warranty

    To get repair service or obtain a copy of the whole warranty statement, please contact with your nearest RIGOL sales and service office. RIGOL do not provide any other warranty items except the one being provided by this summary and the warranty statement. The warranty items include but not being subjected to the hint guarantee items related to tradable characteristic and any particular purpose.

  • Page 145: Appendix C: Maintenance

    RIGOL Appendix C: Maintenance General Maintenance Do not store or leave the instrument in where the instrument will be exposed to direct sunlight for long periods of time. Caution To avoid damages to the instrument or probes, do not expose them to liquids which have causticity.

  • Page 146: Appendix D: Any Comment Or Question

    RIGOL Appendix D: Any Comment or Question? If you have any question or comment on our document, please mail to: service@rigol.com User‟s Guide for DS1000CA Series...

  • Page 147: Index

    RIGOL Index 50% ........1-16 Horizontal ........5-2 AC Coupling ......2-6 I/O setup ......... 2-62 AC Line ........2-43 Inputs ........5-2 Acquisition ........ 5-2 Instant Execute Key ....2-89 Alternative Trigger ....2-38 Invert a waveform ....2-13 Appendix ........6-1 Language .........
  • Page 148 Video Signal......3-10 Video Trigger ......2-33 User‟s Guide for DS1000CA Series...
